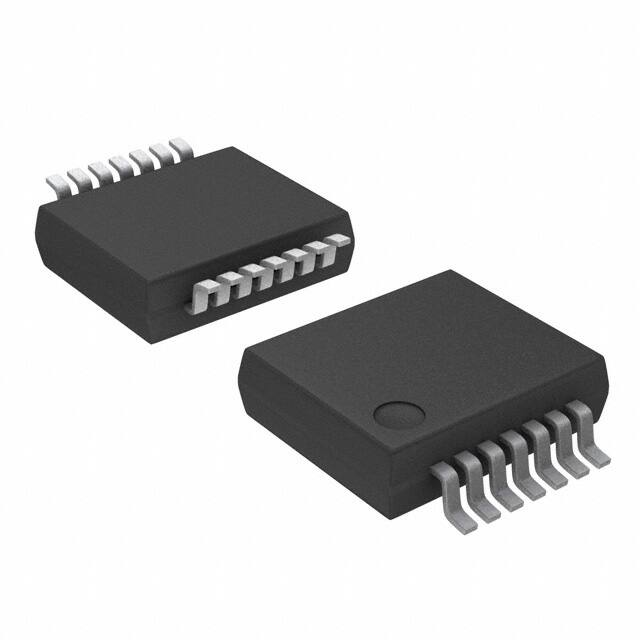

74HCT126DB,112

74HCT126DB,112

  • 厂商:

    NEXPERIA(安世)

  • 封装:

    SSOP-14_6.2X5.3MM

  • 描述:

    四路缓冲器/线路驱动器;3 态

  • 数据手册
  • 价格&库存
74HCT126DB,112 数据手册
74HC126; 74HCT126 Quad buffer/line driver; 3-state Rev. 4 — 1 December 2015 Product data sheet 1. General description The 74HC126; 74HCT126 is a quad buffer/line driver with 3-state outputs controlled by the output enable inputs (nOE). A LOW on nOE causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. 2. Features and benefits  Inverting outputs  Complies with JEDEC standard no. 7A  Input levels:  For 74HC126: CMOS level  For 74HCT126: TTL level  ESD protection:  HBM JESD22-A114F exceeds 2000 V  MM JESD22-A115-A exceeds 200 V  Multiple package options  Specified from 40 C to +85 C and 40 C to +125 C 3. Ordering information Table 1. Ordering information Type number 74HC126D Package Temperature range Name Description Version 40 C to +125 C SO14 plastic small outline package; 14 leads; body width 3.9 mm SOT108-1 40 C to +125 C SSOP14 plastic shrink small outline package; 14 leads; body width 5.3 mm SOT337-1 40 C to +125 C TSSOP14 plastic thin shrink small outline package; 14 leads; body width 4.4 mm SOT402-1 74HCT126D 74HC126DB 74HCT126DB 74HC126PW 74HCT126PW 74HC126; 74HCT126 Nexperia Quad buffer/line driver; 3-state 4. Functional diagram  $  2( <    $  2(  $  2(  $  2(  <      <     <     PQD Fig 1.  (1 PQD Logic symbol Fig 2. IEC logic symbol Q< Q$ Q2( PQD Fig 3. Logic diagram (one buffer/line driver) 5. Pinning information 5.1 Pinning +& +&7 2(   9&& $   2( <   $ 2(   < $   2( <   $ *1'   < +& +&7 2(   9&& $   2( <   $ 2(   < $   2( <   $ *1'   < DDD DDD Fig 4. Pin configuration for SOT108-1 74HC_HCT126 Product data sheet Fig 5. Pin configuration for SOT337-1 and SOT402-1 All information provided in this document is subject to legal disclaimers. Rev. 4 — 1 December 2015 © Nexperia B.V. 2017. All rights reserved 2 of 15 74HC126; 74HCT126 Nexperia Quad buffer/line driver; 3-state 5.2 Pin description Table 2. Pin description Symbol Pin Description 1OE, 2OE, 3OE, 4OE 1, 4, 10, 13 data enable input (active HIGH) 1A, 2A, 3A, 4A 2, 5, 9, 12 data input 1Y, 2Y, 3Y, 4Y 3, 6, 8, 11 data output GND 7 ground (0 V) VCC 14 supply voltage 6. Functional description Table 3. Function table[1] Control Input Output nOE nA nY H L L H H H L X Z [1] H = HIGH voltage level; L = LOW voltage level; X = don’t care; Z = high-impedance OFF-state. 7. Limiting values Table 4. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Voltages are referenced to GND (ground = 0 V). Symbol Parameter Conditions Min Max Unit VCC supply voltage 0.5 +7 V IIK input clamping current VI < 0.5 V or VI > VCC + 0.5 V [1] - 20 mA IOK output clamping current VO < 0.5 V or VO > VCC + 0.5 V [1] - 20 mA IO output current 0.5 V < VO < VCC + 0.5 V - 35 mA ICC supply current - 70 mA IGND ground current 70 - mA Tstg storage temperature 65 +150 C Ptot total power dissipation - 500 mW Tamb = 40 C to +125 C SO14 and (T)SSOP14 packages [2] [1] The input and output voltage ratings may be exceeded if the input and output current ratings are observed. [2] For SO14 package: Ptot derates linearly with 8 mW/K above 70 C. For (T)SSOP14 packages: Ptot derates linearly with 5.5 mW/K above 60 C. 74HC_HCT126 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4 — 1 December 2015 © Nexperia B.V. 2017. All rights reserved 3 of 15 74HC126; 74HCT126 Nexperia Quad buffer/line driver; 3-state 8. Recommended operating conditions Table 5. Recommended operating conditions Voltages are referenced to GND (ground = 0 V). Symbol Parameter Conditions 74HC126 Min Typ 74HCT126 Max Min Typ Unit Max VCC supply voltage 2.0 5.0 6.0 4.5 5.0 5.5 V VI input voltage 0 - VCC 0 - VCC V VO output voltage 0 - VCC 0 - VCC V Tamb ambient temperature 40 +25 +125 40 +25 +125 C t/V input transition rise and fall rate VCC = 2.0 V - - 625 - - - ns/V VCC = 4.5 V - 1.67 139 - 1.67 139 ns/V VCC = 6.0 V - - 83 - - - ns/V 9. Static characteristics Table 6. Static characteristics At recommended operating conditions; voltages are referenced to GND (ground = 0 V). Symbol Parameter Tamb = 25 C Conditions Tamb = 40 C to +85 C Tamb = 40 C to +125 C Unit Min Typ Max Min Max Min Max VCC = 2.0 V 1.5 1.2 - 1.5 - 1.5 - VCC = 4.5 V 3.15 2.4 - 3.15 - 3.15 - V VCC = 6.0 V 4.2 3.2 - 4.2 - 4.2 - V LOW-level input voltage VCC = 2.0 V - 0.8 0.5 - 0.5 - 0.5 V VCC = 4.5 V - 2.1 1.35 - 1.35 - 1.35 V VCC = 6.0 V - 2.8 1.8 - 1.8 - 1.8 V HIGH-level output voltage VI = VIH or VIL IO = 20 A; VCC = 2.0 V 1.9 2.0 - 1.9 - 1.9 - V IO = 20 A; VCC = 4.5 V 4.4 4.5 - 4.4 - 4.4 - V 74HC126 VIH VIL VOH VOL HIGH-level input voltage LOW-level output voltage V IO = 20 A; VCC = 6.0 V 5.9 6.0 - 5.9 - 5.9 - V IO = 6.0 mA; VCC = 4.5 V 3.98 4.32 - 3.84 - 3.7 - V IO = 7.8 mA; VCC = 6.0 V 5.48 5.81 - 5.34 - 5.2 - V VI = VIH or VIL IO = 20 A; VCC = 2.0 V - 0 0.1 - 0.1 - 0.1 V IO = 20 A; VCC = 4.5 V - 0 0.1 - 0.1 - 0.1 V IO = 20 A; VCC = 6.0 V - 0 0.1 - 0.1 - 0.1 V IO = 6.0 mA; VCC = 4.5 V - 0.15 0.26 - 0.33 - 0.4 V IO = 7.8 mA; VCC = 6.0 V - 0.16 0.26 - 0.33 - 0.4 V II input leakage current VI = VCC or GND; VCC = 6.0 V - - 0.1 - 1.0 - 1.0 A IOZ OFF-state output current VI = VIH or VIL; VCC = 6.0 V; VO = VCC or GND - 0.5 - 5.0 - 10 - A 74HC_HCT126 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4 — 1 December 2015 © Nexperia B.V. 2017. All rights reserved 4 of 15 74HC126; 74HCT126 Nexperia Quad buffer/line driver; 3-state Table 6. Static characteristics …continued At recommended operating conditions; voltages are referenced to GND (ground = 0 V). Symbol Parameter ICC supply current CI input capacitance Tamb = 25 C Conditions VI = VCC or GND; IO = 0 A; VCC = 6.0 V Tamb = 40 C to +85 C Tamb = 40 C to +125 C Unit Min Typ Max Min Max Min Max - - 8.0 - 80 - 160 A - 3.5 - - - - - pF 74HCT126 VIH HIGH-level input voltage VCC = 4.5 V to 5.5 V 2.0 1.6 - 2.0 - 2.0 - V VIL LOW-level input voltage VCC = 4.5 V to 5.5 V - 1.2 0.8 - 0.8 - 0.8 V VOH HIGH-level output voltage VI = VIH or VIL; VCC = 4.5 V IO = 20 A 4.4 4.5 - 4.4 - 4.4 - V IO = 6.0 mA 3.98 4.32 - 3.84 - 3.7 - V IO = 20 A - 0 0.1 - 0.1 - 0.1 V IO = 6.0 mA - 0.16 0.26 - 0.33 - 0.4 V VOL LOW-level output voltage VI = VIH or VIL; VCC = 4.5 V II input leakage current VI = VCC or GND; VCC = 5.5 V - - 0.1 - 1.0 - 1.0 A IOZ OFF-state output current VI = VIH or VIL; VCC = 5.5 V; VO = VCC or GND - - 0.5 - 5.0 - 10 A ICC supply current VI = VCC or GND; IO = 0 A; VCC = 5.5 V - - 8.0 - 80 - 160 A ICC additional supply current per input pin; IO = 0 A; VI = VCC  2.1 V; other inputs at VCC or GND; VCC = 4.5 V to 5.5 V; nA, nOE inputs - 100 360 - 450 - 490 A CI input capacitance - 3.5 - - - - - pF 10. Dynamic characteristics Table 7. Dynamic characteristics GND = 0 V; CL = 50 pF; for test circuit, see Figure 8. Symbol Parameter Tamb = 25 C Conditions Tamb = 40 C to +125 C Unit Min Typ Max Max (85 C) Max (125 C) VCC = 2.0 V - 30 100 125 150 ns VCC = 4.5 V - 11 20 25 30 ns VCC = 5.0 V; CL = 15 pF - 9 - - - ns VCC = 6.0 V - 9 17 21 26 ns 74HC126 tpd propagation delay nA to nY; see Figure 6 74HC_HCT126 Product data sheet [1] All information provided in this document is subject to legal disclaimers. Rev. 4 — 1 December 2015 © Nexperia B.V. 2017. All rights reserved 5 of 15 74HC126; 74HCT126 Nexperia Quad buffer/line driver; 3-state Table 7. Dynamic characteristics …continued GND = 0 V; CL = 50 pF; for test circuit, see Figure 8. Symbol Parameter ten enable time Tamb = 25 C Conditions disable time Min Typ Max Max (85 C) Max (125 C) VCC = 2.0 V - 41 125 155 190 ns VCC = 4.5 V - 15 25 31 38 ns - 12 21 26 32 ns VCC = 2.0 V - 41 125 155 190 ns VCC = 4.5 V - 15 25 31 38 ns - 12 21 26 32 ns VCC = 2.0 V - 14 60 75 90 ns VCC = 4.5 V - 5 12 15 18 ns - 4 10 13 15 ns - 23 - - - pF - 14 24 30 36 ns nOE to nY; see Figure 7 nOE to nY; see Figure 7 [1] VCC = 6.0 V transition time tt [1] see Figure 6 VCC = 6.0 V power dissipation capacitance CPD Unit [1] VCC = 6.0 V tdis Tamb = 40 C to +125 C [2] per package; VI = GND to VCC 74HCT126 propagation delay nA to nY; see Figure 6 tpd [1] VCC = 4.5 V - 11 - - - ns ten enable time nOE to nY; see Figure 7; VCC = 4.5 V VCC = 5.0 V; CL = 15 pF [1] - 13 25 31 38 ns tdis disable time nOE to nY; see Figure 7; VCC = 4.5 V [1] - 18 28 35 42 ns tt transition time VCC = 4.5 V; see Figure 6 [1] - 5 12 15 18 ns per package; VI = GND to VCC  1.5 V [2] - 24 - - - pF power dissipation capacitance CPD [1] tpd is the same as tPLH and tPHL. ten is the same as tPZL and tPZH. tdis is the same as tPLZ and tPHZ. tt is the same as tTHL and tTLH. [2] CPD is used to determine the dynamic power dissipation (PD in W). PD = CPD  VCC2  fi  N + (CL  VCC2  fo) where: fi = input frequency in MHz; fo = output frequency in MHz; CL = output load capacitance in pF; VCC = supply voltage in V; N = number of inputs switching; (CL  VCC2  fo) = sum of outputs. 74HC_HCT126 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4 — 1 December 2015 © Nexperia B.V. 2017. All rights reserved 6 of 15 74HC126; 74HCT126 Nexperia Quad buffer/line driver; 3-state 11. Waveforms and test circuit 9, 90 Q$LQSXW  *1' W3/+ W3+/ 92+ 9,  90 Q
