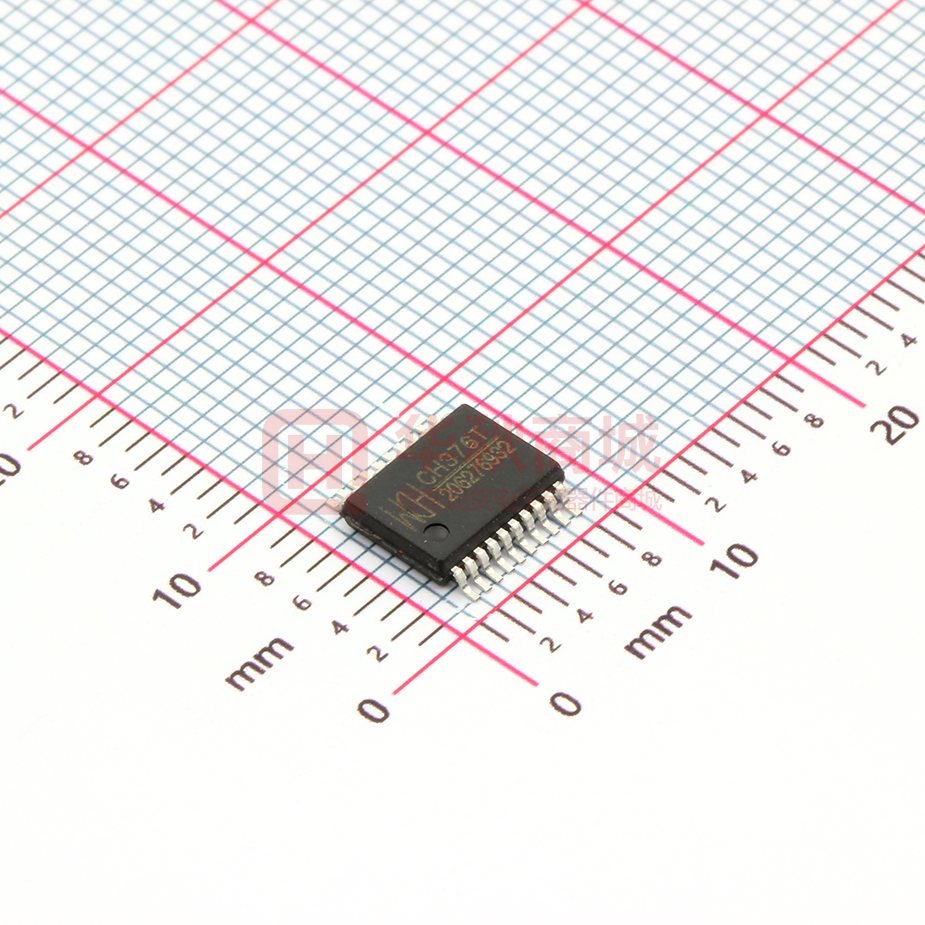

CH376T

The DataSheet of CH376 (the first) 1 File manage and control chip CH376 English DataSheet Version: 1 http://wch.cn http://wch-ic.com 1. Introduction CH376 is used as file manage control chip, used to MCU system read/write file in USB Flash Drive or SD card. CH376 supports USB-Device Mode and USB-HOST Mode. Set the basic firmware of USB communication protocol in the inner. It is also set firmware of special communication protocol to deal with Mass-Storage devices, communication interface firmware of SD card, FAT16, FAT32 and FAT12 file system manage firmware in the inner. It supports common USB storage devices (contains USB Flash Drive/USB hard disk/USB Flash memory/USB read card) and SD cards (contain SD card with standard capacity and HC-SD card with high capacity, MMC card and TF card compatible with protocol). CH376 supports three communication interfaces: 8-bit parallel, SPI interface or asynchronism serial interface. DSP/MCU/MPU etc. controller via the any interface of them to control CH376 chip, storage and get file in USB Flash Drive or SD card, or communication with computer. The USB-DEVICE Mode of CH376 is totally compatible with CH372, the USB-HOST Mode of CH375 is basically compatible with CH375. The following is the application image of CH376. D0-D7 Local Controller DSP MCU MPU Etc. A0 RD# WR# PCS# Parallel bus USB-Phy I/O 8-bit passive parallel USB-Host D+ DUSB Bus File system Manage firmware SCS SCK MOSI => SDI MISO RXD RXD
