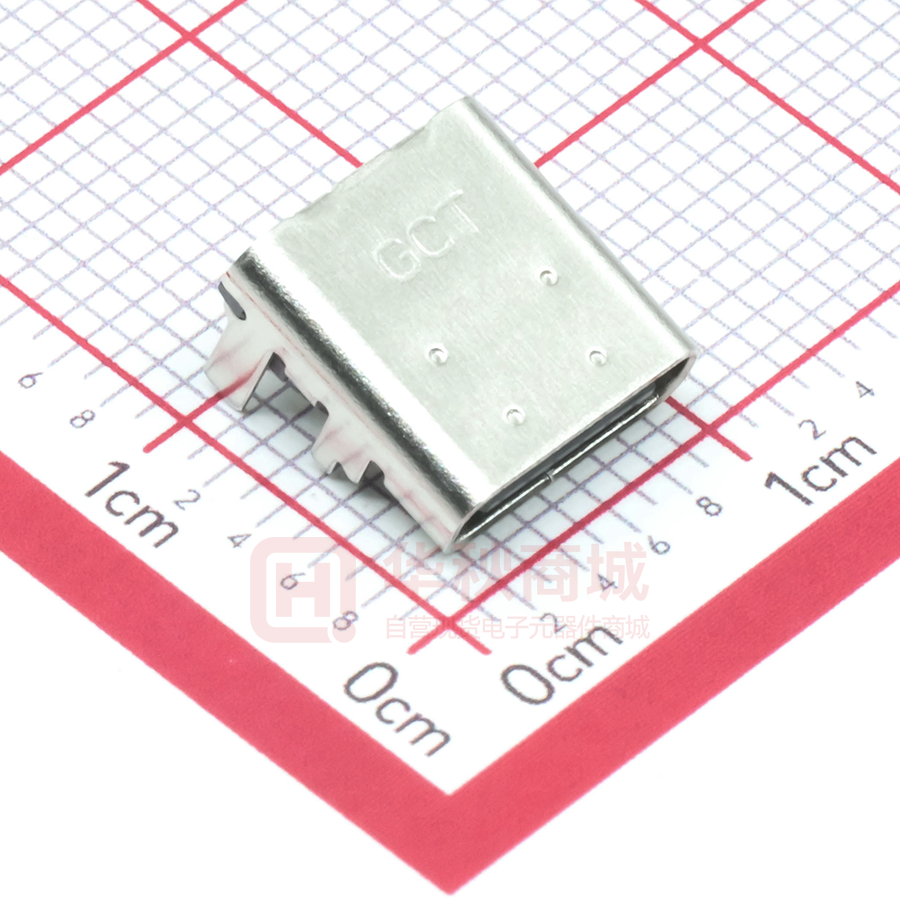

USB4085-GF-A

7.26 1.35 GND First B12 GND First A4 VBUS First B9 VBUS First A5 CC1 Second B8 SBU2 Second A6 Dp1 Second B7 Dn2 Second A7 Dn1 Second B6 Dp2 Second A8 SBU1 Second B5 CC2 Second A9 VBUS First B4 VBUS First First B1 GND GND First GND SHELL GND Material Insulator: High Temp. Plastic UL 94V-0, Black Contact: Copper Alloy (T=0.15mm) Shell: Stainless steel (T=0.30mm) Inner Ground Cover Shell: Stainless Steel (T=0.10mm) Section B-B Plating Contact: Gold Flash over 50µ" min. Nickel Solder Tails: 80µ" min. Matte Tin over 50µ" min. Nickel Shell: 50µ" min. Nickel 3.16 2.56±0.04 A1 Specifications A12 Electrical Current Rating: 3.00A collectively for VBUS pins 4.25A collectively for GND pins 1.25A for B5 pin 0.25A per pin for all other pins Voltage Rating: 20V DC Contact Resistance: 40mΩ max initial. 50mΩ max after test Dielectric Withstanding Voltage: 100V AC Insulation Resistance 100MΩ min B1 D 0.80±0.10 A Mating Sequence 2x 0.25±0.025 6.69+0.05 -0.06 A B12 Signal 4.50±0.10 3.20±0.10 0.25 8.35+0.06 -0.02 B Pin SHELL Section A-A B Mating Sequence A12 8.95 A1 Signal 1.70±0.10 0.98 3.52±0.15 1.88 T=0.15±0.05 3.92±0.15 2.10 1.60 0.80 3.46 1.37+0.05 -0.10 0.60 1.20±0.05 1.56+0.05 -0.10 F E Pin 4.60 9.17±0.30 G 12x 0.70±0.05 H 16x 0.22±0.05 1.50±0.10 8.65 4.25 T=0.30±0.05 3.38 Mechanical & Environmental Operating Temperature: -40°C to 85°C Mating Force: 5 to 20 N. Unmated Force: 6 to 20 N after test Durability: 10,000 cycles 1.35 C Ordering Grid B USB4085 0.85 2.55 4.25 5.95 C A Detail C Scale 2:1 1 2 3 4 GF Contact Plating GF = Gold Flash Part Number Product Description USB4085 USB 2.0 Type C Receptacle Dip Type, PCB Top Mount Drawing Date 9th April 2018 By Detail Revision Date 5 CC Drawing Release A2 15/08/18 Tolerances (Except as Noted) Length Angle X. ± 0.50 X.X ± 0.30 X.XX ± 0.20 X.XXX ± 0.10 ± 2° Units: Metric (mm) Request Samples and Quotation Packing Options A = Tape & Reel (700 per reel) C 3rd Angle Projection 6 A 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By CC 8 Sheet No. 1/3 5.95 4.25 2.55 G 16x Ø0.65 0.85 A4 A6 A5 A7 A8 A9 A12 F B12 B9 B8 B7 B6 B5 B4 B1 16x Ø0.40 3.38 2x 2.40 2x 2.10 A1 0.98 1.35 H 4x 0.60 4x 0.90 D 2x 1.70 2x 1.40 1.74 E 8.65 C Recommended PCB Layout As viewed from component side Tolerance:±0.05mm B Solder Area Component Outline Part Number Product Description USB4085 USB 2.0 Type C Receptacle Dip Type, PCB Top Mount Drawing Date 9th April 2018 A By Detail Revision Date 1 2 3 4 5 CC Drawing Release A2 15/08/18 Tolerances (Except as Noted) Length X. ± 0.50 X.X ± 0.30 X.XX ± 0.20 X.XXX ± 0.10 Angle Units: Metric (mm) ± 2° C 3rd Angle Projection 6 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By CC 8 Sheet No. 2/3 H 38.4 32.4 Label Tape & Reel 400 min. Peeling Angle 165° ~ 180° Ø330 G Vacuum Bag F About 240mm long User Direction of Unreeling Void filler 2.00±0.10 4.00±0.10 10 +0. 0 -0.00 5.34±0.10 .5 Ø1 Inner carton dimensions 340mm x 340mm x 285mm 0. 05 16.00±0.10 Detail 1 R0 .7 5± C 0.2±0.05 D About 240mm long Unloaded Section Product Loaded Section 28.40±0.15 32.00±0.3 E 1.75±0.10 14.20±0.15 Unloaded Section Notes: Peeling off force of top tape: 0.1-1.3N (Peeling direction as shown) B Materials: Carrier Tape: Polystyrene (PS) Top Tape: PE Reel Tape: Polystyrene (PS) Bag: PE A Part Number Product Description USB4085 USB 2.0 Type C Receptacle Dip Type, PCB Top Mount Drawing Date 9th April 2018 By Revision Date 2 3 4 5 CC Drawing Release A2 15/08/18 Reels / Carton 7 Pcs / Reel 700 Detail 1 4:1 Detail 1 Box dimensions 355mm x 355mm x 305mm Tolerances (Except as Noted) Length X. ± 0.50 X.X ± 0.30 X.XX ± 0.20 X.XXX ± 0.10 Angle Units: Metric (mm) ± 2° C 3rd Angle Projection 6 7 Total Qualtity 4,900 pcs This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By CC 8 Sheet No. 3/3
