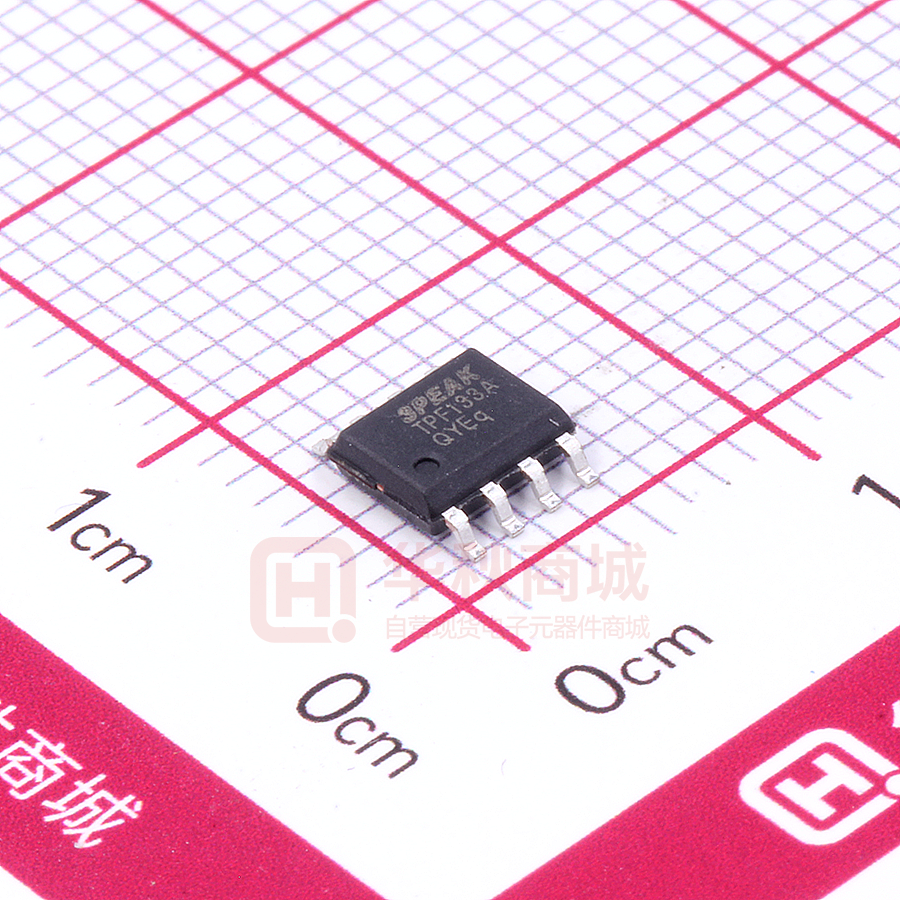

TPF133A-SR

TPF133A Low Power, 3-channel Video Filter for HD Video Features Description   3-HDTV Video Filter Support Y'Pb'Pr'-1080i/720p, R'G'B' or VGA/SVGA/XGA Optimized 6th-order Butterworth Video reconstruction filter： HD Channel: -3dB ≥ 36MHz Support Multiple Input Biasing: - Provide 80-mV Level-Shift when DC-Coupled - Transparent Input Clamping when AC-Coupled - Support External DC Biasing when AC-Coupled Very Low Quiescent Current: 11.7 mA(at 3.3V, Typical) 6dB Gain(2V/V), Rail TO Rail Output AC- or DC-Coupled Output Driving Dual Video Loads (75Ω) Wide Power Supply: +3.0V to +5.5V Single Supply Robust ESD Protection:  Robust 8kV – HBM and 2kV – CDM ESD Rating Green Product, SOIC-8 Package       Applications      Video Signal Amplification Set-Top Box Video Driver PVR、DVD Player Video Buffer Video Buffer for Portable or USB-Powered Video Devices HDTV TPF133A is a specially designed for consumer applications, high-performance, low-cost video reconstruction filter, it combine excellent video performance and low power consumption perfectly. It incorporates three high-definition (HD) filter channels. All filters feature sixth-order Butterworth characteristics that are useful as digital-to-analog converter (DAC) reconstruction filters or as analog-to-digital converter (ADC) anti-aliasing filters. The HD filters can be bypassed to support filters. The HD filters can be bypassed to support 1080p60 video or up to quad extended graphics array (QXGA) RGB video. As part of the TP133A flexibility, the input can be configured for ac- or dc-coupled inputs. The 84-mV output level shift allows for a full sync dynamic range at the output with 0-V input. The ac-coupled modes include a transparent sync-tip clamp option for Y', and G'B'R' signals. AC- coupled biasing for C'/P'B/P'R channels can easily be achieved by adding an external resistor to VS+. The TP133A rail-to-rail output stage with 6-dB gain allows for both ac and dc line driving. The ability to drive two lines, or 75-Ω loads, allows for maximum flexibility as a video line driver. The 27.6-mA total quiescent current at 3.3 V makes it an excellent choice for power-sensitive video applications. TPF133A is available in SOIC-8 package. Its operation temperature range is from −40°C to +85°C. Related Resources AN-1201: Application notes of TPF1xx Pin configuration (Top View) IN1 1 8 OUT1 IN2 2 TPF133A 7 OUT2 IN3 3 8 LEAD SOIC 6 OUT3 Pin Number 1 2 3 +Vs 4 5 GND 4 +Vs 5 6 7 8 GND OUT3 OUT2 OUT1 Figure 1. REV 1.1 www.3peakic.com Pin Name Function IN1 IN2 IN3 First Input Second input Third input Positive power supply Ground Third output Second output First output ©2011 3PEAK INCORPORATED TPF133A Low Power, 3-channel Video Filter for HD Video Function Block TPF133A +Vs 80mV Level Shift gm Channel 1 Input LPF Sync-Tip Clamp (DC Restore) +Vs LPF +Vs +Vs 6dB Channel 2 Output 6dB Channel 3 Output 6th-order HD Filter Sync-Tip Clamp (DC Restore) Channel 3 Input Channel 1 Output 80mV Level Shift gm Channel 2 Input 6dB 6th-order HD Filter 80mV Level Shift gm LPF Sync-Tip Clamp (DC Restore) 6th-order HD Filter GND Figure 2. Order Information Operating Order Number Temperature Package Package Range TPF133A-SR -40 to 85°C Transport Media, Quantity Options MSL-3 SOIC-8 Tape and Reel, 4000 Absolute Maximum Ratings* PD VIN IO TJ TA TSTG TL θJA * Note: Parameters Power Supply, VDD to GND Power Dissipation，TA = 25°C，8-Lead SOIC Input Voltage Output Current Maximum Junction Temperature Operating Temperature Range Storage Temperature Range Lead Temperature (Soldering 10 sec) 8-Lead SOIC Thermal Resistance Value 6.0 800(1) Units V mW VDD + 0.3V to GND - 0.3V 65 mA 150 °C –45 to 85 °C –65 to 150 °C 300 °C 130(2) °C/W Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. Exposure to any Absolute Maximum Rating condition for extended periods may affect device reliability and lifetime. (1) This data was taken with the JEDEC low effective thermal conductivity test board. (2) This data was taken with the JEDEC standard multilayer test boards. ©2011 3PEAK INCORPORATED ~ 2 ~ REV 1.1 www.3peakic.com TPF133A Low Power, 3-channel Video Filter for HD Video ESD, Electrostatic Discharge Protection Symbol Parameter Condition HBM Human Body Model ESD CDM Charged Device Model ESD JEDEC-EIA/JESD22-C101E REV1.1 www.3peakic.com MIL-STD-883H Method 3015.8 ~3~ Minimum Level Unit 8 kV 2 kV ©2011 3PEAK INCORPORATED TPF133A Low Power, 3-channel Video Filter for HD Video Electrical Characteristics All test condition is VDD = 3.3V, TA = +25°C, RL = 150Ω to GND, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS 5.5 V Input Electrical Specifications VDD Supply Voltage Range 3.0 IDD Quiescent current (IQ) (1) ICLAMP-DOWN Clamp Discharge Current VIN=300mV, measure current ICLAMP-UP Clamp Charge Current VCLAMP VDD = 3.3V, VIN = 500mV, no load 27.6 34.5 mA VDD = 5.0V, VIN = 500mV, no load 36.0 44.7 mA 1.5 2.0 5.1 μA VY = -0.2V -1.5 -1.7 Input Voltage Clamp IY = -100μA -40 0 RIN Input Impedance 0.5V < VY < 1V 0.5 3 AV Voltage Gain 5.91 6.01 6.03 dB VOLS Output Level Shift Voltage 54 80 124 mV VOL Output Voltage Low Swing VOH Output Voltage High Swing PSRR Power Supply Rejection Ratio ISC Short-circuit current VIN=0.5V,1V or 2V RL=150Ω to GND VIN = 0V, no load, input referred VIN = -0.3V, RL =75Ω VIN = 3V, RL =75Ω to GND (dual load) ΔVDD = 3.3V to 3.6V ΔVDD = 5.0V to 5.5V, 50Hz mA +40 mV MΩ 0.05 V 3.18 V 57 dB 61 dB VIN = 2V, 10Ω, output to GND 65 mA VIN =0.1V, output short to VDD 65 mA AC Electrical Specifications f-1dB -1dB Bandwidth HD Channel RL=150Ω 31.5 MHz f-3dB -3dB Bandwidth HD Channel RL=150Ω 36 MHz dG Differential Gain Video input range 1V 0.1 dP Differential Phase Total Harmonic HD Channel Distortion Video input range 1V 0.25 ° f=1MHz, VOUT=1.4VPP 0.2 % f = 100kHz to 60MHz 6.0 ns THD D/DT Group Delay Variation XTALK Channel Crosstalk SNR Signal-to-Noise Ration ROUT_AC Output Impedance HD Channel HD Channel 1 % f = 1MHz, VOUT=1.4VPP -68 -74 dB f= 100kHz to 30MHz 66 71 dB 0.5 Ω f = 10MHz Note: (1). 100% tested at TA=25°C. ©2011 3PEAK INCORPORATED ~ 4 ~ REV 1.1 www.3peakic.com TPF133A Low Power, 3-channel Video Filter for HD Video Typical Application  STB / DVB / DVD-Player +3.3 V + 10μF 0.1μF TPF133A + Vs Clamp IN1 R / Pr Level Shift OUT1 LPF 75Ω 220μF 75Ω Video Cable 75Ω 220μF 75Ω Video Cable G/Y 220μF 75Ω Video Cable B / Pb R / Pr 6 dB RSOURCE + Vs IN2 G/Y Clamp Video SoC Level Shift OUT2 LPF 6 dB RSOURCE + Vs Clamp IN3 B / Pb Level Shift OUT3 LPF 75Ω 6 dB RSOURCE DAC Load Resistor RSOURCE = DAC Load Resistor // SoC Output Resistor +Vs GND AC-coupling Output Figure3. Reference Application Design REV1.1 www.3peakic.com ~5~ ©2011 3PEAK INCORPORATED TPF133A Low Power, 3-channel Video Filter for HD Video Application Information The TPF133A is targeted for systems that require three high-definition (HD) video outputs. Although it can be used for numerous other applications, the needs and requirements of the video signal are the most important design parameters of the TPF133A. The TPF133A incorporates many features not typically found in integrated video parts while consuming very low power. Internal Sync Clamp The typical embedded video DAC operates from a ground referenced single supply. This becomes an issue because the lower level of the sync pulse output may be at a 0V reference level to some positive level. The problem is presenting a 0V input to most single supply driven amplifiers will saturate the output stage of the amplifier resulting in a clipped sync tip and degrading the video image. A larger positive reference may offset the input above its positive range. The TPF133A features an internal sync clamp and offset function to level shift the entire video signal to the best level before it reaches the input of the amplifier stage. These features are also helpful to avoid saturation of the output stage of the amplifier by setting the signal closer to the best voltage range. The simplified block diagram of the TPF133A in Figure-2. The AC coupled video sync signal is pulled negative by a current source at the input of the comparator amplifier. When the sync tip goes below the comparator threshold the output comparator is driven negative, The PMOS device turns on clamping sync tip to near ground level. The network triggers on the sync tip of video signal. Droop Voltage and DC Restoration Selection of the input AC-coupling capacitance is based on the system requirements. A typical sync tip width of a 64μs NTSC line is 4μs during which clamp circuit restores its DC level. In the remaining 60μs period, the voltage droops because of a small constant 2.0μA sinking current. If the AC-coupling ©2011 3PEAK INCORPORATED capacitance is 0.1μF, the maximum droop voltage is about 1mV which is restored by the clamp circuit. The maximum pull-up current of the clamp circuit is 1.7mA. For a 4μs sync tip width and 0.1μF capacitor, the maximum restoration voltage is about 80mV. The line droop voltage will increase if a smaller AC-coupling capacitance is used. For the same reason, if larger capacitance is used the line droop voltage will decrease. Table 1 is droop voltage and maximum restoration voltage of the clamp for typical capacitance. Table 1. Maximum restoration voltage and droop voltage of Y signals for different capacitance CAP VALUE (nF) 100 1,000 DROOP IN 60μs (mV) 1.2 0.12 CHARGE IN 4μs (mV) 68 6.8 Low Pass Filter--Sallen Key The Sallen Key is a classic low pass configuration. This provides a very stable low pass function, and in the case of the TPF133A, the six-pole roll-off at around 36MHz. The six-pole function is accomplished with an RC low pass network placed in series with and before the Sallen Key. Output Couple TPF133A output could support both “AC Couple” and “DC Couple”, if use “AC Couple”, this capacitor is typically between 220-μF and 1000-μF, although 470-μF is common. This value of this capacitor must be this large to minimize the line tilt (droop) and/or field tilt associated with ac-coupling as described previously in this document. The TPF133A internal sync clamp makes it possible to DC couple the output to a video load, eliminating the need for any AC coupling capacitors, thereby saving board space and additional expense for capacitors. This makes the TPF133A extremely attractive for portable video applications. Additionally, this solution completely eliminates the issue of field tilt in the lower frequency. The trade off is greater demand of supply current. Typical load current for AC coupled is around 1mA, compared to typical 6.6mA used when DC ~ 6 ~ REV 1.1 www.3peakic.com TPF133A Low Power, 3-channel Video Filter for HD Video coupling. PDMAX =Vs  I SMAX +（Vs  VOUT） Output Drive Capability and Power Dissipation With the high output drive capability of the TPF133A, it is possible to exceed the +125°C absolute maximum junction temperature under certain load current conditions. Therefore, it is important to calculate the maximum junction temperature for an application to determine if load conditions or package types need to be modified to assure operation of the amplifier in a safe operating area. The maximum power dissipation allowed in a package is determined according to Equation: PDMAX = TJMAX  TAMAX  JA Where： TJMAX = Maximum junction temperature TAMAX = Maximum ambient temperature ΘJA = Thermal resistance of the package The maximum power dissipation actually produced by an IC is the total quiescent supply current times the total power supply voltage, plus the power in the IC due to the load, or: for sourcing: VOUT RL Where： VS = Supply voltage ISMAX = Maximum quiescent supply current VOUT = Maximum output voltage of the application RLOAD = Load resistance tied to ground By setting the two PDMAX equations equal to each other, we can solve the output current and RLOAD to avoid the device overheat. Power Supply Bypassing Printed Circuit Board Layout As with any modern operational amplifier, a good printed circuit board layout is necessary for optimum performance. Lead lengths should be as short as possible. The power supply pin must be well bypassed to reduce the risk of oscillation. For normal single supply operation, a single 4.7μF tantalum capacitor in parallel with a 0.1μF ceramic capacitor from VS+ to GND will suffice.   VIDEO FILTER DRIVER SELECTION GUIDE P/N Product Description Channel -3dB Bandwidth Package TPF110 /TPF110L Low power, enable function and 1-SD 9MHz SC70-5 SOT23-6 3-SD 9MHz SO-8 4-SD 9MHz MSOP-10 TSSOP-14 6-SD 9MHz TSSOP-14 3-ED 13.5MHz SO-8 3-HD 36MHz SO-8 1-SD& 3-SD 9MHz 36MHz MSOP-10 TSSOP-14 SAG correction, 1 channel 6th order 9MHz TPF113 Low power 3 channel, 6th-order 9MHz SD video filter TPF114 Low power 4 channel, 6th-order 9MHz SD video filter TPF116 Low power 4 channel, 6th-order 9MHz SD video filter for CVBS, SVIDEO TPF123 3 channel 6th-order 13.5MHz, 960H/720H-CVBS video filter or Y’Pb’Pr 480P/576P video filter TPF133 Low power 3 channel, 6th-order 36MHz HD video filter TPF134 Low power 3 channel, 6th-order 36MHz HD video filter and 1 channel SD video filter REV1.1 www.3peakic.com ~7~ ©2011 3PEAK INCORPORATED TPF133A Low Power, 3-channel Video Filter for HD Video TPF136 Low power 3 channel, 6th-order 36MHz HD video filter and 3 channel 3-SD& 3-HD 9MHz 36MHz TSSOP-20 3-FHD 72MHz SO-8 1-SD& 3-FHD 9MHz 72MHz MSOP-10 TSSOP-14 3-SD& 3-FHD 9MHz 72MHz TSSOP-20 3-CH 220MHz SO-8 SD video filter TPF143 Low power 3 channel, 6th-order 72MHz Full HD video filter TPF144 Low power 3 channel, 6th-order 72MHz Full HD video filter and 1 channel SD video filter TPF146 Low power 3 channel, 6th-order 72MHz Full HD video filter and3 channel SD video filter TPF153 Low power 3 channel, 6th-order 220MHz Full HD video filter ©2011 3PEAK INCORPORATED ~ 8 ~ REV 1.1 www.3peakic.com TPF133A Low Power, 3-channel Video Filter for HD Video Package Outline Dimensions SOIC-8 REV1.1 www.3peakic.com ~9~ Symbol Dimensions In Millimeters Min Max Dimensions In Inches Min Max A 1.350 1.750 0.053 0.069 A1 0.100 0.250 0.004 0.010 A2 1.350 1.550 0.053 0.061 B 0.330 0.510 0.013 0.020 C 0.190 0.250 0.007 0.010 D 4.780 5.000 0.188 0.197 E 3.800 4.000 0.150 0.157 E1 5.800 6.300 0.228 0.248 e 1.270TYP L1 0.400 1.270 0.016 0.050 θ 0° 8° 0° 8° 0.050TYP ©2011 3PEAK INCORPORATED TPF133A Low Power, 3-channel Video Filter for HD Video IMPORTANT NOTICE "PRELIMINARY" PRODUCT INFORMATION DESCRIBES PRODUCTS THAT ARE IN PRODUCTION, BUT FOR WHICH FULL CHARACTERIZATION DATA IS NOT YET AVAILABLE. 3PEAKIC MICROELECTRONICS CO. LTD BELIEVES THAT THE INFORMATION CONTAINED IN THIS DOCUMENT IS ACCURATE AND RELIABLE. HOWEVER, THE INFORMATION IS SUBJECT TO CHANGE WITHOUT NOTICE AND IS PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND (EXPRESS OR IMPLIED). CUSTOMERS ARE ADVISED TO OBTAIN THE LATEST VERSION OF RELEVANT INFORMATION TO VERIFY, BEFORE PLACING ORDERS, THAT INFORMATION BEING RELIED ON IS CURRENT AND COMPLETE. ALL PRODUCTS ARE SOLD SUBJECT TO THE TERMS AND CONDITIONS OF SALE SUPPLIED AT THE TIME OF ORDER ACKNOWLEDGMENT, INCLUDING THOSE PERTAINING TO WARRANTY, INDEMNIFICATION, AND LIMITATION OF LIABILITY. NO RESPONSIBILITY IS ASSUMED BY 3PEAKIC MICROELECTRONICS CO. LTD FOR THE USE OF THIS INFORMATION, INCLUDING USE OF THIS INFORMATION AS THE BASIS FOR MANUFACTURE OR SALE OF ANY ITEMS, OR FOR INFRINGEMENT OF PATENTS OR OTHER RIGHTS OF THIRD PARTIES. THIS DOCUMENT IS THE PROPERTY OF 3PEAKIC MICROELECTRONICS CO. LTD AND BY FURNISHING THIS INFORMATION, 3PEAKIC MICROELECTRONICS CO. LTD GRANTS NO LICENSE, EXPRESS OR IMPLIED UNDER ANY PATENTS, MASK WORK RIGHTS, COPYRIGHTS, TRADEMARKS, TRADE SECRETS OR OTHER INTELLECTUAL PROPERTY RIGHTS. 3PEAKIC MICROELECTRONICS CO. LTD OWNS THE COPYRIGHTS ASSOCIATED WITH THE INFORMATION CONTAINED HEREIN AND GIVES CONSENT FOR COPIES TO BE MADE OF THE INFORMATION ONLY FOR USE WITHIN YOUR ORGANIZATION WITH RESPECT TO 3PEAKIC MICROELECTRONICS CO. LTD INTEGRATED CIRCUITS OR OTHER PRODUCTS OF 3PEAKIC MICROELECTRONICS CO. LTD. THIS CONSENT DOES NOT EXTEND TO OTHER COPYING SUCH AS COPYING FOR GENERAL DISTRIBUTION, ADVERTISING OR PROMOTIONAL PURPOSES, OR FOR CREATING ANY WORK FOR RESALE. CERTAIN APPLICATIONS USING SEMICONDUCTOR PRODUCTS MAY INVOLVE POTENTIAL RISKS OF DEATH, PERSONAL INJURY, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE (“CRITICAL APPLICATIONS”). 3PEAKIC MICROELECTRONICS CO. LTD PRODUCTS ARE NOT DESIGNED, AUTHORIZED OR WARRANTED FOR USE IN AIRCRAFT SYSTEMS, MILITARY APPLICATIONS, PRODUCTS SURGICALLY IMPLANTED INTO THE BODY, AUTOMOTIVE SAFETY OR SECURITY DEVICES, LIFE SUPPORT PRODUCTS OR OTHER CRITICAL APPLICATIONS. INCLUSION OF 3PEAKIC MICROELECTRONICS CO. LTD PRODUCTS IN SUCH APPLICATIONS IS UNDERSTOOD TO BE FULLY AT THE CUSTOMER'S RISK AND INCLUSION DISCLAIMS AND MAKES NO WARRANTY, EXPRESS, STATUTORY OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, WITH REGARD TO ANY DISCLAIMS PRODUCT THAT IS USED IN SUCH A MANNER. IF THE CUSTOMER OR CUSTOMER'S CUSTOMER USES OR PERMITS THE USE OF 3PEAKIC MICROELECTRONICS CO. LTD PRODUCTS IN CRITICAL APPLICATIONS, CUSTOMER AGREES, BY SUCH USE, TO FULLY INDEMNIFY 3PEAKIC MICROELECTRONICS CO. LTD, ITS OFFICERS, DIRECTORS, EMPLOYEES, DISTRIBUTORS AND OTHER AGENTS FROM ANY AND ALL LIABILITY, INCLUDING ATTORNEYS' FEES AND COSTS, THAT MAY RESULT FROM OR ARISE IN CONNECTION WITH THESE USES. THE LOGO DESIGNS OF 3PEAKIC MICROELECTRONICS CO. LTD ARE TRADEMARKS OF DESIGNS. ALL OTHER BRAND AND PRODUCT NAMES IN THIS DOCUMENT MAY BE TRADEMARKS OR SERVICE MARKS OF THEIR RESPECTIVE OWNERS. Contact information: USA: 635 W. Alma School Road, Suite102 Chandler, USA. AZ 85234 Shanghai-China: Room 401-407 No.1278 Keyuan Road, Zhangjiang High-tech Park, Pudong New District, Shanghai, China Zip Code: 201203 Suzhou-China: Suite 304, Building B2, Creative Industrial Park, No.328 Xinghu Street, Industrial Park, Suzhou, Jiangsu Province, China Zip Code: 215123 ©2011 3PEAK INCORPORATED ~ 10 ~ REV 1.1 www.3peakic.com
