7382-3SG-300

7382-3SG-300

  • 厂商:

    CONXALL

  • 封装:

    CONN_20.60X23.5MM_SM

  • 描述:

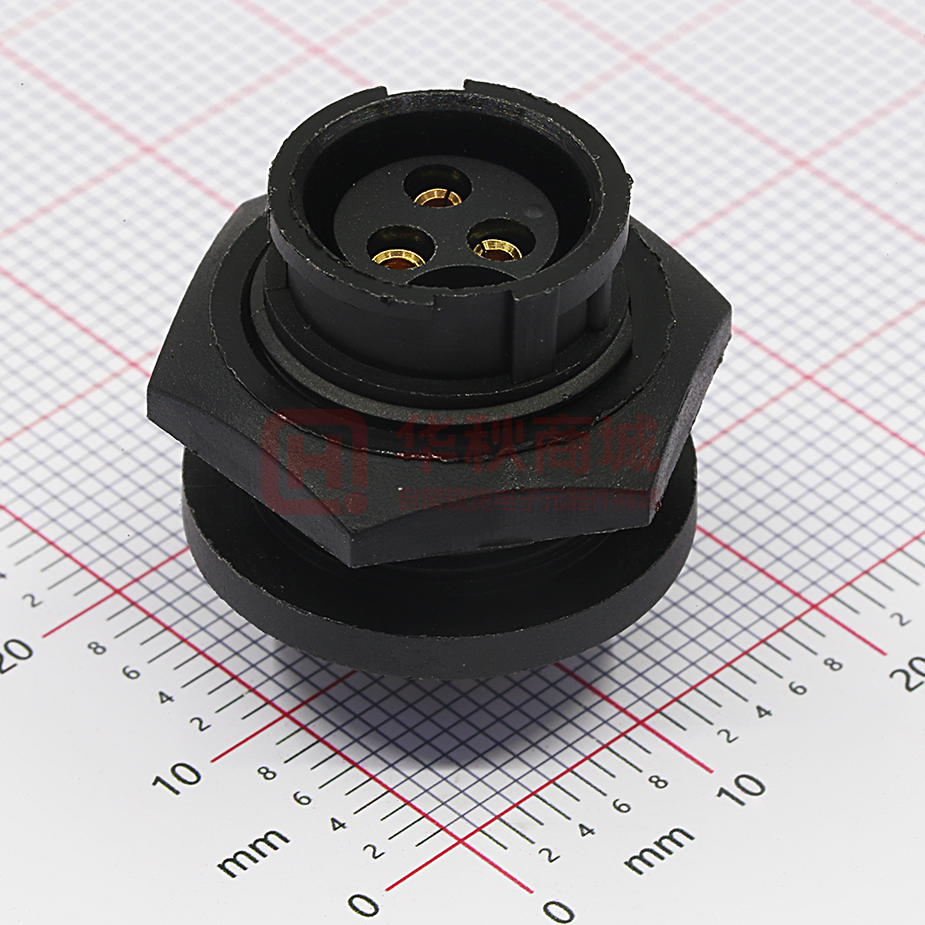

    圆形连接器 20.60 x 23.50 Panel 600V 13A Female 3Pin Black

  • 数据手册
  • 价格&库存
7382-3SG-300 数据手册
MINI-CON-X® FIELD INSTALLABLE CONNECTORS Cable Pin Panel Mount P/C Tail Panel Mount 6X8X-XPG-XXX Matching Mates: • Cable-Cable 7X8X-XXG-XXX Matching Mates: • Cable Pin 7XXX-XXG-XXX Matching Mates: • Cable Pin 8X8X-XSG-XXX • Panel 6X8X-XPG-XXX • Cable Socket 7XXX-XSG-XXX 6X8X-XPG-XXX • Cable Socket 6X8X-XSG-XXX 6X8X-XSG-XXX Cable Socket Cable to Cable Dust Cap 6X8X-XSG-XXX Matching Mates: • Cable-Cable 8X8X-XXG-XXX Matching Mates: • Cable Pin 6295 8X8X-XPG-XXX • Panel 6X8X-XPG-XXX • Cable Socket 7XXX-XPG-XXX 6X8X-XSG-XXX Winged Coupling Ring W/6482 Molded Cable Assemblies Cable End ® (See pages 3 & 26) Cable to Cable Right Angle 601 East Wildwood, Villa Park, Illinois 60181 • Telephone (630) 834-7504 • Fax (630) 834-8540 10 ® MINI-CON-X® FIELD INSTALLABLE CONNECTORS Dimensions Molded Cable Assemblies (See pages 3 & 26) 1.100 [24.9] 1.690 [42.9] 1.690 [42.9] 1.375 [34.9] CABLE END ASSEMBLY CABLE TO CABLE ASSEMBLY CABLE END ASSEMBLY STRAIGHT BOOT 0.375 [9.5] MAX. CABLE O.D. STRAIGHT BOOT 0.375 [9.5] MAX. CABLE O.D. 90º BOOT 0.310 [7.9] MAX. CABLE O.D. ® 601 East Wildwood, Villa Park, Illinois 60181 • Telephone (630) 834-7504 • Fax (630) 834-8540 11 ® MINI-CON-X® FIELD INSTALLABLE CONNECTORS Part Number to Order X X XX-XXG-XXX Grommet Code – Cable O.D. Range: Connector Type: 6 - Cable End 7 - Panel Mount 8 - Cable to Cable Back Shell Style 3 11 15 18 21 - .09 - .14 (2.3 - 3.5) .15 - .17 (3.8 - 4.3) .18 - .20 (4.6 - 5.1) .21 - .23 (5.3 - 5.8) Back Shell Style 5 13 16 19 22 - .13 - .15 (3.3 - 3.8) .16 - .18 (4.1 - 4.6) .19 - .21 (4.8 - 5.3) .22 - .25 (5.6 - 6.3) Contact Size: 2 - #20 (2-8 Contacts) 3 - #16 (2-5 Contacts) Contact Style: 80 81 82 91 92 - Crimp (Supplied loose) P/C Tail .187" (4.7) (Supplied assembled) Solder Cup (Supplied assembled) P/C Tail .280" (7.1) (Supplied assembled)* P/C Tail .335" (8.5) (Supplied assembled)* Back Shell Style: Weathertight grommet grip/ seal & (1) interfacial “O” ring. 3DC - Daisy chain grommet with 3 I.D.s. (.125, .188 & .250) 5 Long back shell with extended grommet & cable grip. Use with crimp or solder. 3 Number of Contacts: 2, 3, 4, 5, 6, 7 & 8 Type of Contact: 300 - Panel mount with hex nut & gasket. 3ES - 300 with Epoxy P - Pin S - Socket Contact Plating: G - Gold over Nickel (Standard) *Available in #20 size contact only. Consult factory for optional threaded coupling.. Consult factory for your custom design cable assemblies and connectors. (See pages 3 & 26) Contact Arrangements 1 1 2 2 1 4 3 1 2 1 5 1 2 3 2-#16 3 3-#16 4-#16 1 1 2 5 4 5-#16* 1 6 5 2-#20 1 7 3-#20 1 8 7 2 3 4-#20 5-#20 6-#20 7-#20* 8-#20* Contact arrangements shown are wiring view of cable end pins/sockets. Key/keyway shown for orientation only. *Available in connector types: cable end socket, panel mount pin, and cable to cable pin styles only. ® 601 East Wildwood, Villa Park, Illinois 60181 • Telephone (630) 834-7504 • Fax (630) 834-8540 12 ® MINI-CON-X® FIELD INSTALLABLE CONNECTORS Specifications Typical Specifications Manufacturers Identifications Description Rating Conductor Size Configuration Certification Mini-Con-X® Field Installable Connector & Custom Cable Assemblies 4.8 thru 13.0A, 600V #16 contacts, 16 thru 18 AWG #20 contacts, 20 thru 24 AWG 2 thru 5 #16 Contacts or 2 thru 8 #20 Contacts UL Recognized File #E138878 - 250V CSA Certified File #LR89277 - 600V Material Specifications Cable Pin/Socket Backshell (Removable Twist Lock) Grommet Coupling Ring Contacts Connector Body O-Ring Optional Long Backshell (Removable Twist Lock) Winged Coupling Ring Cable to Cable Backshell (Removable Twist Lock) Grommet Contacts Connector Body Panel Mount Contacts Panel Body Gasket Hex Nut Optional Dust Cap Mechanical Specifications Durability Vibration Nylon, UL Recognized, Black Santoprene Rubber, Black Nylon, UL Recognized, Black Brass, Gold over Nickel Nylon, UL Recognized, Black Nitrile Rubber, Black Nylon, UL Recognized, Black (Style #5) Nylon, UL Recognized, Black (W/6482) Nylon, UL Recognized, Black Santoprene Rubber, Black Brass, Gold over Nickel Nylon, UL Recognized, Black Brass, Gold over Nickel Nylon, UL Recognized, Black Nitrile Rubber, Black Nylon, UL Recognized, Black Santoprene Rubber, Black (Part No. 6295) Hex Nut Torque Minimum 300 mate/unmate cycles without mechanical or electrical failure Coupling rings have overriding locking feature to prevent loosening or separation of connector All series hex nut to withstand 10-12 inch/lb tightening torque Electrical Specifications Voltage Current 600 V See Electrical Current Rating Chart (Page 27) Environmental Specifications Temperature Rating Corrosion Weathertight -55°C to +125°C (-67°F to +257°F) 300 Hr salt spray contacts Consult factory with specific application Molded Cable Assemblies Watertight (See Pages 3 & 26) NEMA 6P, 13: IEC IP67 ® 601 East Wildwood, Villa Park, Illinois 60181 • Telephone (630) 834-7504 • Fax (630) 834-8540 13 ®
