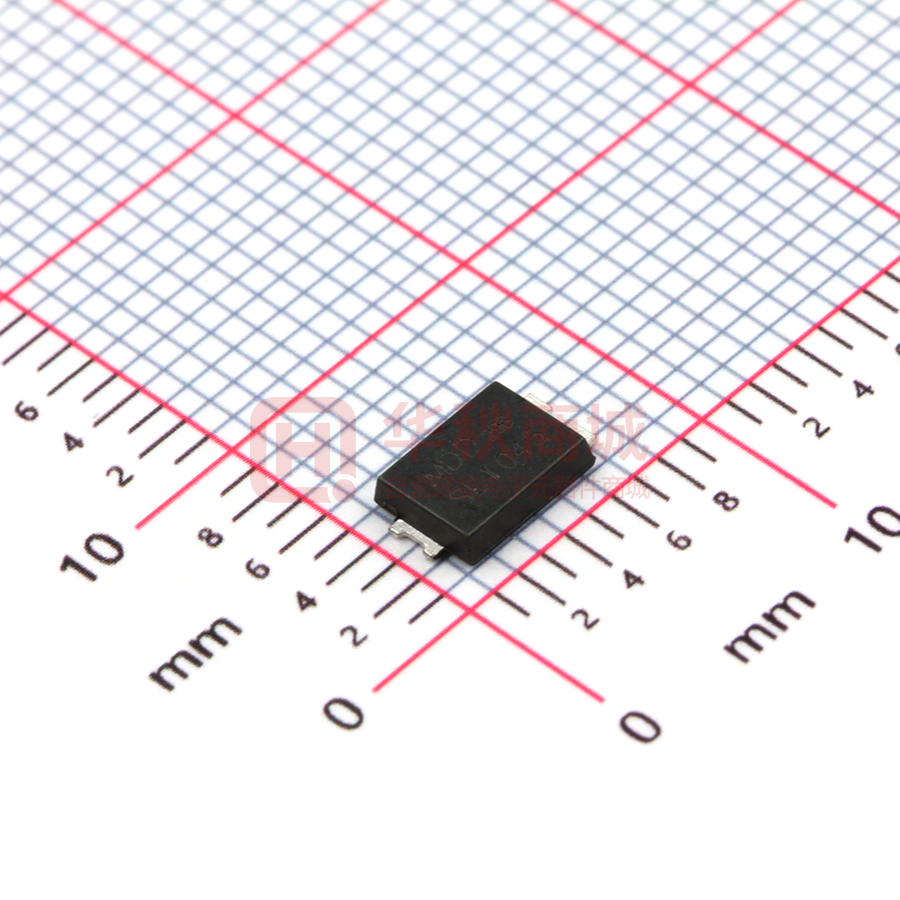

SL1045 Reverse Voltage - 45Volts Forward Current -10.0 Ampere SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Features TO-277  Planar MOS Schottky barrier diodes  Low forward voltage drop  low profile - typical body height 1.1 mm Moisture  sensitivity: level 1, per J-STD-020  High temperature soldering guaranteed: 260℃/ 10 seconds  RoHS Compliant  Halogen-free according to IEC 61249-2-21 definition Mechanical Data Case : JEDEC TO-277 Molded plastic body Case Material: Molding compound meets UL 94V-0 flammability rating Terminals :Plated Leads Solderable per MIL-STD-202,Method 208 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.003 ounce, 0.092 grams Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. SL1045 Parameter SYMBOL Marking Code MDD SL1045 UNIT 45 V Maximum repetitive peak reverse voltage VRRM Maximum DC blocking voltage VDC RMS Reverse voltage VRMS 32 V Average Rectified Output Current I(O) 10 A Non-Repetitive Peak Forward Surge8.3ms Single Half Sine-Wave Superimposed on rated load(JEDEC Method) IFSM 175 A Typical Junction Capacitance (note1) CJ 1200 pF Electrical Characteristics Ta=25℃ unless otherwise noted Test Conditions Symbol TA=25℃ TA=150℃ vF Peak reverse curent at rated DC TA=25℃ blocking voltage TA=100℃ IR Parameter Forward Voltage Drop at 10A Typical thermal resistance(note2) Operating junction storage temperature range Storage temperaturerange Value Unit Typ Max 0.44 -- 0.48 0.42 V 100 200 uA 10 20 mA RθJA 65 ℃/W TJ -55 to +150 ℃ TSTG -55 to +150 ℃ note:1.Measured at 1.0 MHz and applied reverse voltage of 4.0Vdc 2.Polymide PCB, 2oz. Copper. Cathode pad dimensions 18.8* 14.4*1.6mm. Anode pad dimensions 5.6 x 14.4*1.6mm. http://www.microdiode.com Rev:2025A3 Page :1 SL1045 Reverse Voltage - 45Volts Forward Current -10.0 Ampere Ratings And Characteristic Curves The curve above is for reference only. http://www.microdiode.com Rev:2025A3 Page :2 SL1045 Reverse Voltage - 45Volts Forward Current -10.0 Ampere Packing information d Top cover tape thickness 0.10mm(0.004") max.thick W1 Embossed carrier tape °MAX °MAX A Embossed cavity SPECIFICATIONS PACKAGE mm(inch) SPECIFICATIONS PACKAGE mm(inch) ITEM SYMBOL TO-277 ITEM SYMBOL TO-277 Carrier width A 4.45(0.175)Max Carrier depth K 1.60(0.063) Carrier length B 7.0(0.276)Max Punch hole pitch P Typ8.00(0.315) Sprocket hole d ø1.55(0.061)Typ Sprocket hole pitch P0 Typ4.00(0.157) Reel outer diameter D 330.0(13.0)Typ Embossment center P1 Typ2.00(0.079) Reel inner diameter D1 74.0(2.913)Min Overall tape thickness T Typ0.25(0.010) Feed hole diameter D2 13.0(0.512)Typ Tape width W Typ16.0(0.630) Sprocket hole position J 1.75(0.069)Typ Reel width W1 Typ16.5(0.650) Punch hole position H 7.50(0.295)Typ Min Reel packing PACKAGE REEL SIZE REEL (pcs) BOX (pcs) INNER BOX (m/m) CARTON SIZE (m/m) CARTON (pcs) TO-277 13" 3,000 6,000 338*338*38 350*350*330 36,000 http://www.microdiode.com Rev:2025A3 Page :3 SL1045 Reverse Voltage - 45Volts TO-277 Outlitne Drawing F G A D J K N M E imensions in Millimeters Symbol B C E G Forward Current -10.0 Ampere Min Max A 5.2 5.8 B 3.8 4.3 C 1.7 1.9 D 6.4 6.6 E 0.8 1.0 F 1.0 1.3 G 0.2 0.45 J 1.1 1.5 K 2.4 4.0 M 1.65 1.95 N 0.7 1.3 Suggested Pad Layout Symbol Unit (mm) Unit (inch) A 0.142 B 3.60 5.35 C 1.50 0.059 D 1.85 0.073 E 4.30 0.169 0.211 Important Notice and Disclaimer Microdiode Electronics (Shenzhen) reserves the right to make changes to this document and its products and specifications at any time without notice. Customers should obtain and confirm the latest product information and specifications before final design,purchase or use. Microdiode Electronics (Shenzhen) makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, not does Microdiode Electronics (Shenzhen) assume any liability for application assistance or customer product design. Microdiode Electronics (Shenzhen) does not warrant or accept any liability with products which are purchased or used for any unintended or unauthorized application. No license is granted by implication or otherwise under any intellectual property rights of Microdiode Electronics (Shenzhen). Microdiode Electronics (Shenzhen) products are not authorized for use as critical components in life support devices or systems without express written approval of Microdiode Electronics (Shenzhen). http://www.microdiode.com Rev:2025A3 Page :4
