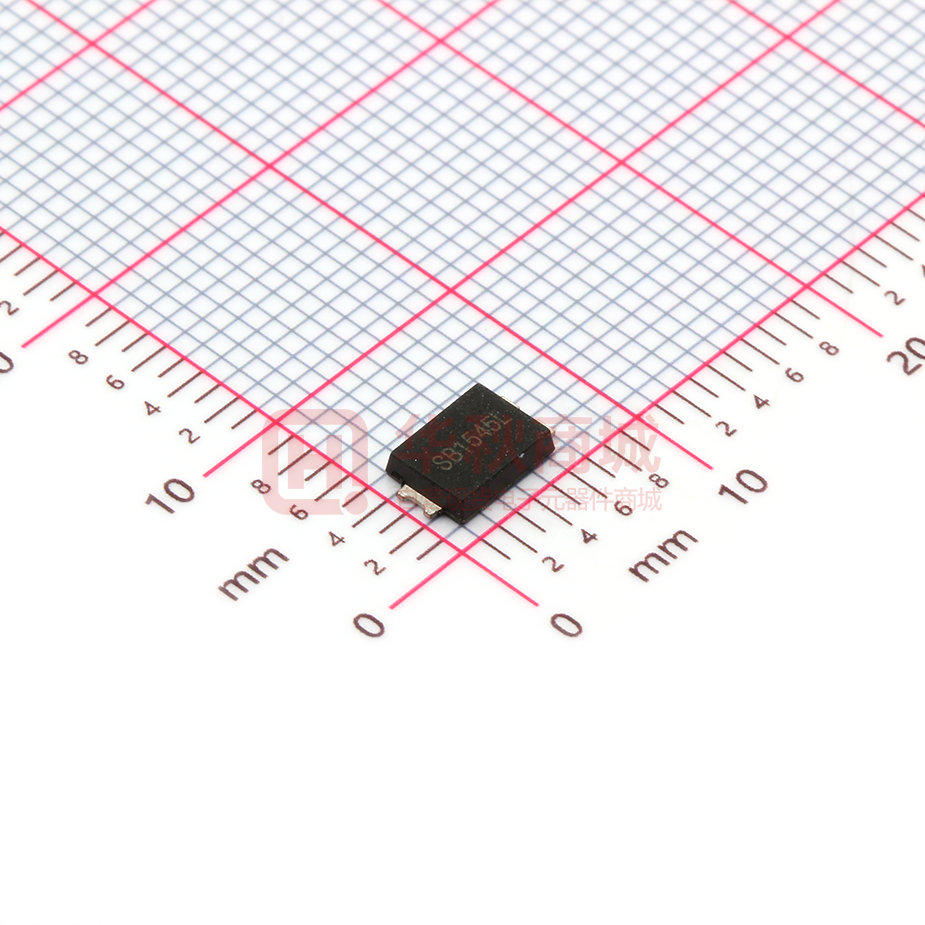

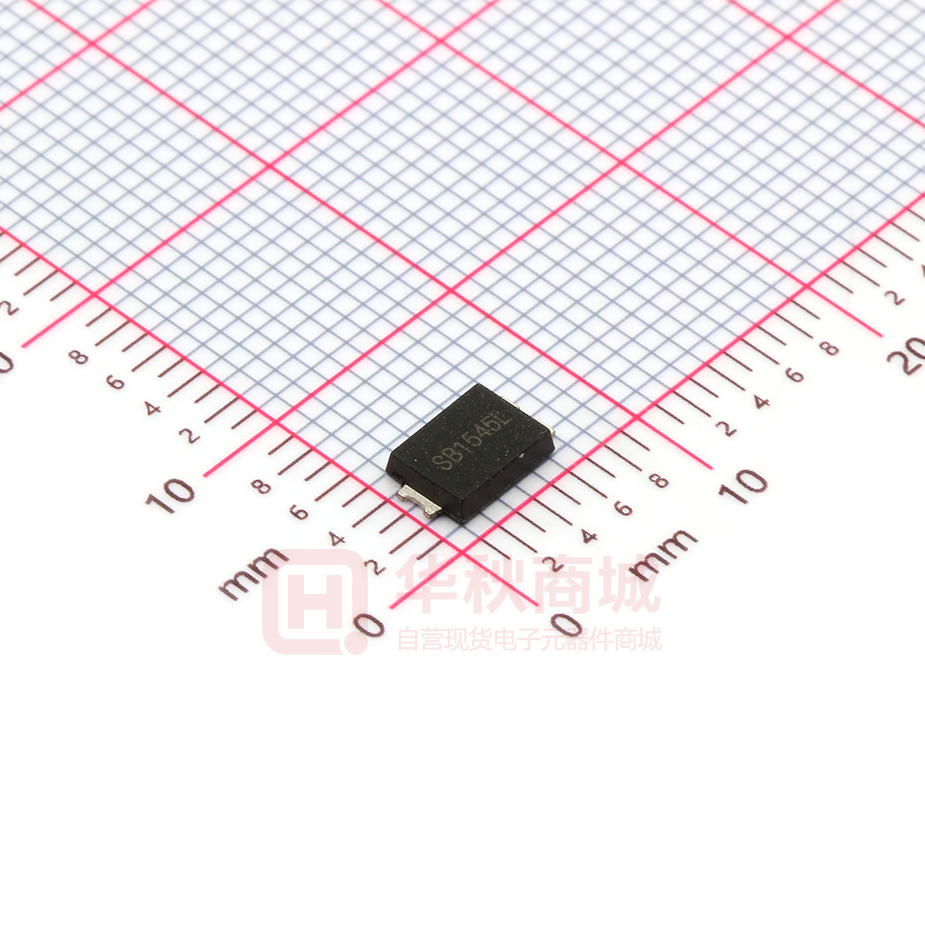

SB1545L

SB1535L THRU SB15200L Reverse Voltage -35 to 200 Volts Forward Current -15.0 Ampere SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Features TO-277  Schottky Barrier Chip  High Thermal Reliability  Patented Super Barrier Rectifier Technology  High Forward Surge Capability  Ultra Fow Power Loss,High Efficiency  Excellent High temperature Stability  Plastic material-UL flammability 94V-0 Mechanical Data Case : JEDEC TO-277 Molded plastic body Terminals :Plated Leads Solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.003 ounce, 0.092 grams Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter Marking Code SB1535L SB1545L SB1550L SB1560L SB15100L SB15150L SB15200L SYMBOLS MDD MDD MDD MDD MDD MDD MDD SB1535L SB1545L SB1550L SB1560L SB15100L SB15150L SB15200L Maximum repetitive peak reverse voltage VRRM 35 RMS Reverse voltage Maximum DC blocking voltage VRMS VDC 25 35 45 32 50 35 60 42 100 70 150 105 200 140 V V 45 50 100 150 200 V A Average Rectified Output Current See Fig.1 I(O) 60 15 Non-Repetitive Peak Forward Surge8.3ms Single Half Sine-Wave Superimposed on rated load(JEDEC IFSM 150 Forward Voltage Drop at 15A T A=25℃ VF Peak reverse curent at rated DC TA=25℃ blocking voltage (Note 1) Typical thermal resistance IR Operating junction temperature range Storage temperature range UNIT 0.50 0.55 30 A 0.70 0.3 0.80 50 V 0.85 mA RθJC 3.0 ℃/W TJ -65 to +150 ℃ TSTG -65 to +150 ℃ Note:1.Pulse test:300us pulse width,1% duty cycle. 2.The rmal resistance from juncion to case. 3.The typical data above is for referenceonly. DN:T19813A0 https://www.microdiode.com Rev:2019A0 Page :1 SB1535L THRU SB15200L Reverse Voltage - 35 to 200 Volts Forward Current -15.0 Ampere Ratings And Characteristic Curves FIG.2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 25 175 RESISTIVE OR INDUCTVE LOAD 20 TJ=TJMAX 150 PEAK FORWARD SURGE CURRENT(AMPERES) AVERAGE FORWARD CURRENT AMPERES FIG.1-FORWARD CURRENT DERATING CURVE 15 10 5 0 0 50 100 150 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 125 100 75 50 25 LEAD TEMPERATURE ( C) 1 100 NUMBER OF CYCLES AT 60Hz FIG.3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS FIG.4-TYPICAL REVERSE CHARACTERISTICS 20 50 SB1535L --SB1545L INSTANTANEOUS REVERSE CURRENT (mA) 10 INSTANTANEOUS FORWARD CURRENT( AMPERES) 10 10 TJ=125 C PULSE WIDTH=300 S 1% DUTY CYCLE TJ=25 C 1 0.1 SB1535L --SB1545L SB1550L --SB15200L TJ=125 C 1 0.1 TJ=75 C 0.01 SB1550L --SB15200L 0.01 TJ=25 C 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 0.001 0 INSTANTANEOUS FORWARD VOLTAGE (VOLTS) 20 40 60 80 100 PERCENT OF RATED PEAK REVERSE VOLTAGE% FIG.5-TYPICAL JUNCTION CAPACITANCE FIG.6-TYPICAL TRANSIENT THERMAL IMPEDANCE TRANSIENT THERMAL IMPEDANCE, C/ W JUNCTION CAPACITANCE(pF) 4000 TJ=25 C f=1.0MHZ Vsig=50mVp-p 1000 SB1535L --SB1545L SB1550L --SB15200L 100 40 0.1 1 10 REVERSE VOLTAGE. VOLTS 100 100 10 1 0.1 0.01 0.1 1 10 100 T, PULSE DURATION ,sec. The curve above is for reference only. https://www.microdiode.com Rev:2019A0 Page :2 SB1535L THRU SB15200L Reverse Voltage - 35 to 200 Volts Forward Current -15.0 Ampere Packing information P0 P1 unit:mm d E F B A Item Symbol Tolerance TO-277 Carrier width Carrier length Carrier depth Sprocket hole 11" Reel outside diameter 11" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width Reel width A B C d D D1 D2 E F P P0 P1 T W W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 4.45 7.0 1.60 1.55 280.00 50.0 13.00 1.75 7.50 8.00 4.00 2.00 W P D2 T D1 C W1 D 0.25 12.00 12.30 Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE REEL SIZE REEL (pcs) COMPONENT SPACING (m/m) BOX (pcs) INNER BOX (m/m) REEL DIA, (m/m) CARTON SIZE (m/m) CARTON (pcs) TO-277 11" 3,000 5.0 6,000 340*340*43 280 380*380*380 48,000 APPROX. GROSS WEIGHT (kg) 9.0 Suggested Pad Layout Symbol Unit (mm) Unit (inch) A 0.142 B 3.60 5.35 C 1.50 0.059 D 1.85 0.073 E 4.30 0.169 0.211 Important Notice and Disclaimer Microdiode Electronics (Jiangsu) reserves the right to make changes to this document and its products and specifications at any time without notice. Customers should obtain and confirm the latest product information and specifications before final design,purchase or use. Microdiode Electronics (Jiangsu) makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, not does Microdiode Electronics (Jiangsu) assume any liability for application assistance or customer product design. Microdiode Electronics (Jiangsu) does not warrant or accept any liability with products which are purchased or used for any unintended or unauthorized application. No license is granted by implication or otherwise under any intellectual property rights of Microdiode Electronics (Jiangsu). Microdiode Electronics (Jiangsu) products are not authorized for use as critical components in life support devices or systems without express written approval of Microdiode Electronics (Jiangsu). https://www.microdiode.com Rev:2019A0 Page :3
