MC34629

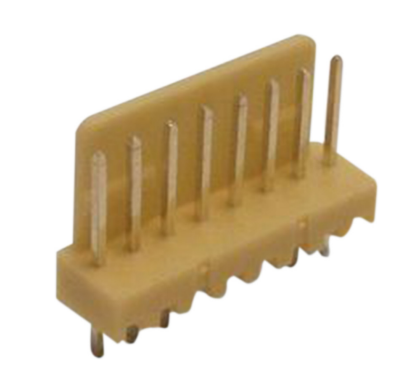

2.54mm Header WTB, Vertical Specifications: Current Rating Voltage Rating Maximum Contact Resistance Minimum Insulation Resistance Withstanding Voltage Operating Temperature Range : 3A AC/DC : 250V AC/DC : 20mΩ : 1,000MΩ : 1,000V AC/minute : -40°C to +105°C Material and Finish: Insulator Insulator Colour Contact Plating : High Temperature Plastic (nylon 66) : Beige : Brass : Tin Plated PCB Layout Dimensions : Millimetres www.element14.com www.farnell.com www.newark.com Page 26/09/13 V1.0 2.54mm Header WTB, Vertical Part Number Table Description A B Part Number Header, THT, Vertical, 2.54mm, 2Way 2.54 5.08 MC34629 Header, Square Pin, 2.54mm, 3Way 5.08 7.62 MC34631 Header, Square Pin, 2.54mm, 4Way 7.62 10.16 MC34633 Header, Square Pin, 2.54mm, 5Way 10.16 12.7 MC34655 Header, Square Pin, 2.54mm, 6Way 12.7 15.24 MC34635 Header, Square Pin, 2.54mm, 8Way 17.78 20.32 MC34637 Header, Square Pin, 2.54mm, 10Way 22.86 25.4 MC34639 Header, Square Pin, 2.54mm, 12Way 27.94 30.48 MC34679 Dimensions : Millimetres Important Notice : This data sheet and its contents (the “Information”) belong to the members of the Premier Farnell group of companies (the “Group”) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. Multicomp is the registered trademark of the Group. © Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com Page 26/09/13 V1.0
