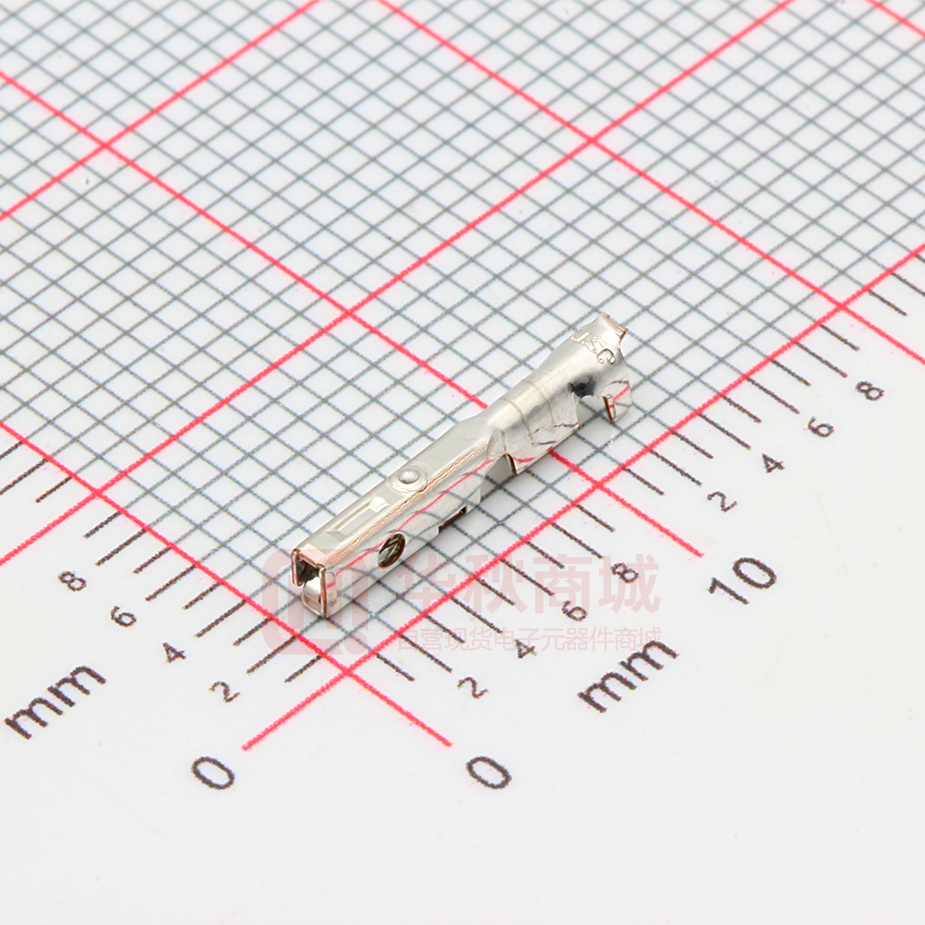

SWPR-001T-P025

JWPF CONNECTOR 2.0mm pitch/Disconnectable Crimp style connectors (Combined use for both wire-to-board and wire-to-wire connections) 4 Specifications –––––––––––––––––– This JWPF connector can be used for the place of which especially waterproof is required. This is the wire-to-board connector that is grade 7 ingress protection of JIS C 0920 (IPX7 of IEC 60529). • Waterproof performance • Contained seal ring • Solid rubber seal • Double-spring construction • Housing-to-terminal locks • Inner housing lock • Header for use specifically with resin coated ("potted") PC board • Current rating: 3 A AC, DC (AWG #22) • Voltage rating: 100 V AC, DC • Temperature range: -55˚C to +85˚C (including temperature rise in applying electrical current) • Contact resistance: Initial value/ 10 mΩ max. After environmental tests/ 15 mΩ max. • Insulation resistance: 1,000 MΩ min. • Withstanding voltage: 1,000 VAC/minute • Applicable wire: AWG #26 to #22 0.13 to 0.33 mm2 Insulation O.D./ 1.4 to 1.7 mm • Waterproof grade: Grade 7 ingress protection of JIS C 0920 (IPX7 of IEC 60529 ) * Refer to "General Instruction and Notice when using Terminals and Connectors" at the end of this catalog. * Contact JST for details. * Compliant with RoHS. Standards ––––––––––––––––––––– 0 2 Recognized E60389 R50326661 PC board layout and Assembly layout Double-row type Single-row type 7 ＋0.1 0 3 ±0.05 21 16.6 ±0.05 4 2.45 ±0.05 6 2 ±0.05 3 2.05 ±0.05 2 16.6 21 1.5 φ1±0.05 6 φ1±0.05 φ1.1 1.5 2 ＋0.1 0 φ1.1 ±0.05 11 2±0.05 Note: 1. The above figure is the figure viewed from the connector mounting side. 2. Tolerances are non-cumulative: ±0.05 mm for all centers. 3. Hole dimension differ according to the type of PC board and piercing method. If PC boards made of hard material are used, the hole dimensions should be larger. The dimensions above should serve as a guideline. Contact JST for details. 1 JWPF CONNECTOR Contact Applicable wire mm2 AWG# Model No. SWPR-001T-P025 0.13∼0.33 Insulation O.D (mm) Q'ty/reel 1.4∼1.7 8,200 26∼22 Material and Finish Copper alloy, tin-plated (reflow treatment) 11.7 6 RoHS compliance 4.5 Contact Applicator Dies Crimping machine Crimp applicator SWPR-001T-P025 AP-K2N MKS-L Crimp applicator with dies MK/SWPR/T-001-025 APLMK SWPR/T001-025 − − − Housing (2 circuits) 7 16.5 5.5 Circuits Model No. Q'ty/bag 2 02R-JWPF-VSLE-S 03R-JWPF-VSLE-S 04R-JWPF-VSLE-S 06R-JWPF-VSLE-D 08R-JWPF-VSLE-D 1,000 3 2 4 6.7 6 8 Material PBT, UL94V-0, natural (white) (3 circuits) 7 16.5 8.7 2 5.5 (4 circuits) 7 16.5 (6 circuits) 2 10.7 5.5 11 16.5 8.7 2 9.5 4 (8 circuits) 11 2 10.7 9.5 4 Note: Housing comes with seal rubber plate. 2 16.5 RoHS compliance 1,000 1,000 1,000 1,000 JWPF CONNECTOR Shrouded header (2 circuits) (3.3) 16.6 8.1 Circuits Model No. Q'ty/box 2 B02B-JWPF-SK-R B03B-JWPF-SK-R B04B-JWPF-SK-R B06B-JWPF-SK-R B08B-JWPF-SK-R 825 3 4 8 525 330 270 2 7 6 650 Material and Finish 1.2 Press pin: Copper alloy, tin-plated (reflow treatment) Seal ring: Silicon rubber Seal ring holder: PBT, UL94V-0, yellow Wafer: Glass-filled PBT, UL94V-0, natural (white) (3 circuits) 16.6 8.4 16.6 8.4 16.6 12.8 4 16.6 12.5 RoHS compliance This product displays (LF)(SN) on a label. 2 9 (3.3) 1.2 2 (3.3) 11 (4 circuits) 1.2 (6 circuits) 2 9.8 (3.3) 1.2 (8 circuits) (3.3) 11.8 2 4 1.2 3
