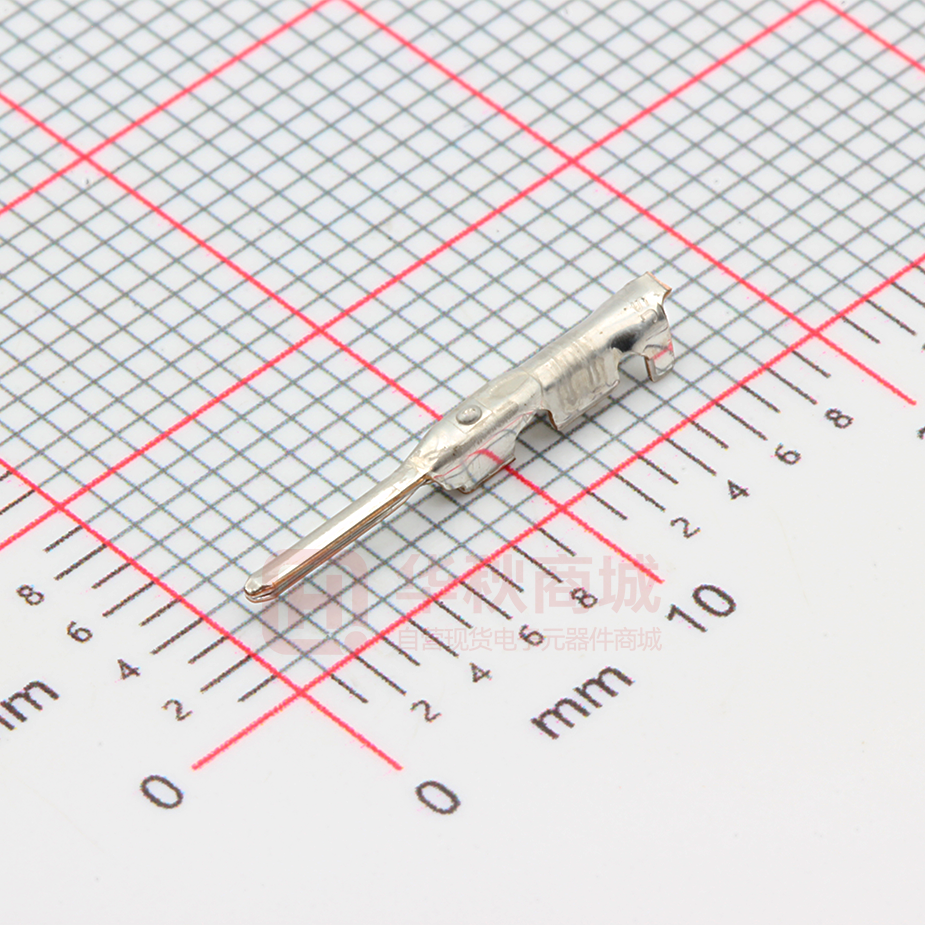

SWPT-001T-P025

JWPF CONNECTOR 2.0mm pitch/Disconnectable Crimp style Wire-to-wire connectors (waterproot type) Specifications ––––––––––––––––––– • Current rating: 3 A AC, DC (AWG #22) • Voltage rating: 100 V AC, DC • Temperature range: -55˚C to +85˚C (including temperature rise in applying electrical current) • Contact resistance: Initial value/ 10 mΩ max. After environmental tests/ 15 mΩ max. • Insulation resistance: 1,000 MΩ min. • Withstanding voltage: 1,000 VAC/minute • Applicable wire: AWG #26 to #22 0.13 to 0.33 mm2 Insulation O.D./ 1.4 to 1.7 mm • Waterproof grade: Grade 7 ingress protection of JIS C 0920 (IPX7 of IEC 60529 ) This JWPF connector can be used for the place of which especially waterproof is required. This is the wire-to-wire connector that is grade 7 ingress protection of JIS C 0920 (IPX7 of IEC 60529). *Refer to "General Instruction and Notice when using Terminals and Connectors" at the end of this catalog. * Contact JST for details. *Compliant with RoHS. • Waterproof performance • Contained seal ring • Solid rubber seal • Double-spring construction • Housing-to-terminal locks • Inner-housing lock Standards –––––––––––––––––––––– 0 Recognized E60389 2 R50326661 Assembly layout 30.2 4 4 JST Contact Applicable wire Model No. Receptacle contact Tab contact mm2 Tab contact AWG # Insulation O.D. (mm) Q’ty/ reel 26∼22 1.4∼1.7 8,200 SWPT-001T-P025 SWPR-001T-P025 0.13∼0.33 15.2 4.5 2 Material and Finish 7.5 Tab contact: Phosphor bronze, tin-plated (reflow treatment) Receptacle contact: Copper alloy, tin-plated (reflow treatment) RoHS compliance Note: Contact JST for brass products. Receptacle contact Contact SWPT-001T-P025 1 AP-K2N MKS-L Applicator Dies 4.5 Crimp applicator with dies MK/SWPR/T-001-025 APLMK SWPR/T001-025 SWPR-001T-P025 − − Note: Contact JST tor fully automatic crimping applicator. 11.7 6 Crimping machine Crimp applicator − JWPF CONNECTOR Housing Material: PBT, UL94V-0, natural (white) Tab housing (for Tab contact) Circuits Receptacle housing (for Receptacle contact) 02T-JWPF-VSLE-S   25.8 Q’ty/ bag 02R-JWPF-VSLE-S   7 5.5 8.1 Q’ty/ bag 16.5 2 2 2 03T-JWPF-VSLE-S 25.8 Q’ty/ bag 1,000 6.7 7 1,000 03R-JWPF-VSLE-S   7 5.5 8.4 Q’ty/ bag 16.5 Q’ty/ bag 8.4 1,000 8.7 9 1,000 04T-JWPF-VSLE-S 25.8 2 2 3 04R-JWPF-VSLE-S   7 5.5 16.5 Q’ty/ bag 06T-JWPF-VSLE-D 25.8 Q’ty/ bag 12.8 1,000 10.7 2 1,000 11 2 4 06R-JWPF-VSLE-D   11 9.5 4 4 16.5 Q’ty/ bag 08T-JWPF-VSLE-D 25.8 Q’ty/ bag 12.1 4 1,000 2 1,000 8.7 9.8 2 6 08R-JWPF-VSLE-D   11 9.5 4 16.5 Q’ty/ bag 2 1,000 10.7 11 2 8 1,000 RoHS compliance Note: 1. Receptacle housing comes with seal rubber plate. 2. Tab housing comes with seal rubber plate, seal ring and seal ring holder. 2
