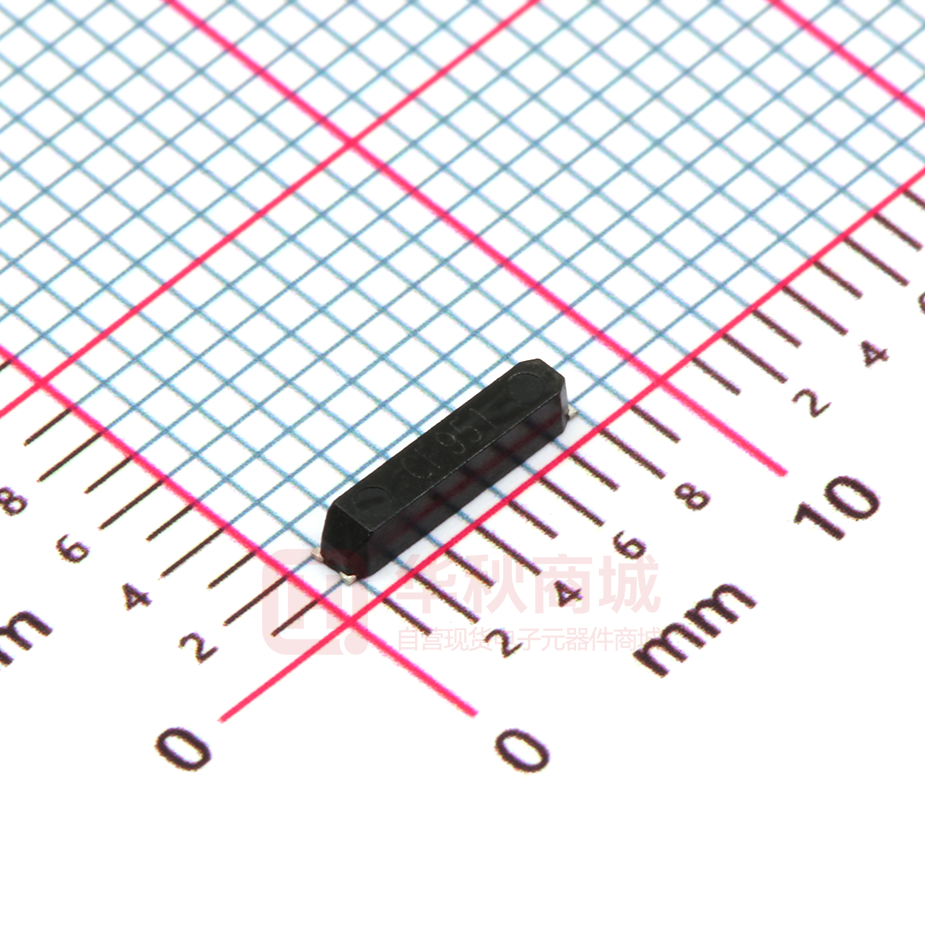

X701532768KGD4GI

YSX146GA/YSX306GA Features ． External dimensions: 7.0 x 1.5 x 1.4 mm / 8.0 x 3.8 x 2.54 mm. ． Frequency range: 32.768KHz. reference clocks. ．portable consumer products ．High reliable environmental performance. ．RoHS compliant /Pb Free. ．Measurement Instrument : S&A 250B(Measured FL). Electrical Specifications Item / Type YSX146GA/YSX306GA Nominal Frequency Range 32.768 KHz AT Fundamental 12.5pF, or specify Frequency Tolerance (at 25 ℃) ± 20 ppm , or specify Operating Temperature – 40 ~ + 85 ℃ Storage Temperature – 55 ~ + 125 ℃ Re ar m rk : : Sp Vibration Mode Load Capacitance Shunt Capacitance 2.0pF typical Level Of Drive 1.0 μW Max. Frequency Aging (at 25 ℃) ± 5 ppm / year Max. Turnover Temperature 25 ℃ ± 5 ℃ Temperature Coefficient ± 0.006ppm/ ℃2 –0.036 Motional Resistance 50KΩ Max. Motional Capacitance 3.0pF typical Mode of Vibration +2 X-cut o Fundameneta Dimensions Y SX 306G A #1 6.7 7.0 Max. #3 Y X C32X X X #1 0.4 #4 0.25 #1 0.2 0.15 0.4 0.2 内部连接 (TOP VIEW) #3 #2 0.1 Max. #4 #3 #1 #2 #2 #2 #1 2.38 1.4 0.1 #4 8.0 #4 3.8 Max. 0.3 Y X C32X X X 内部连接 (TOP VIEW) 2.54 Max. 1.5 Max. #3 3.2 #4 0.55 0.3 Y SX 146G A 0.5 5.5 1.9 (0.9) #2 #3 0.2 Units: mm come visit our site http://www.yxc.hk 1/5 YSX146GA/YSX306GA 【Components】 １. Crystal blank(SiO 2) Electrode (Cr ,Cu,Ag) ２. Cup( Nickel silver) Finish(Nickel plating) ３. Base(Glass,KV,Fe‐Ni(42%)) Finish(Nickel under plating 4μ, Tin plating 10 μ(Cu 2wt%) ４. Solder of a junction RX307‐207BHO (NIHON HANDA SHANGHAI) Pb 93.5%, Sn 5%, Ag 1.5% (Melting points 260℃) 5 ．MOLD Epoxy compound KL-G100 【Physical and environmental characteristics 】 1. Humidity Subject the crystal at 40℃2℃ and 90％-95％ RH for 96 4 hours. Then release the crystal into the room conditions for 2 hours prior to the measurement﹒ 2. High Temperature Exposure Subject the crystal to 85℃ 5℃ for 964 hours﹒ Then release the crystal into the room conditions for 2 hours prior to the measurement﹒ 3. Low Temperature Subject the crystal to -20℃ 5℃ for 96 4 hours﹒Then release the crystal into the room conditions for 2 hours prior to the measurement. 4. Mechanical Shock Drop the crystal randomly onto a concrete floor from the height of 75cm 3 times﹒ Then release the crystal into the room temperature for 15 minutes prior to the measurement﹒ 5. Temperature Cycling Subject the crystal to -30℃ for 30 min. followed by a high temperature of +85℃ for 30 min. Cycling shall be repeated 5times with a transfer time of 15sec. at the room condition﹒ Then release the resonator into the room temperature for 2 hours prior to the measurement﹒ 6. Vibration Subject the crystal to vibration for 2 hours each in x, y, and z axes with the amplitude of 1.5mm, the frequency shall be varied uniformly between the limits of 10-55 Hz﹒Then release the crystal into the room temperature for 15 minutes prior to the measurement﹒ come visit our site http://www.yxc.hk 2/5 YSX146GA/YSX306GA 7. Resistance to Solder Heat Dip the crystal terminals no closer than 2mm into the solder bath 260℃5℃ for 51 sec; Then release the crystal into the room temperature for 2 hour prior to the measurement﹒ 8. Solder Ability Dip the crystal terminals no closer than 2mm into the solder bath at 235℃ 5℃ for 30.5 sec.more than 95％ of the erminal surface of the crystal shall be covered with fresh solder. Then release the crystal into the room temperature for 2hour prior to the measurement﹒ 9. Lead Fatigue (1) Pulling Test Weight along with the direction of terminals without any shock 0.5kg for 10±1sec.; The crystal shall no evidence of damage and shall fulfill all the initial electric characteristics. (2) Bending Test Lead shall be subject to withstand against 90 degrees bending at its stem•This operation shall be done towards both directions; The crystal shall no evidence of damage and shall fulfill all the initial electric characteristics. 【 Handling Notice for Standard Tuning Fork Crystal (Cylindrical Type) 】 1. Shock resistance It may deteriorate the characteristics or cause of no oscillation if excess physical shock given. Please be careful not to drop. Please use under condition to minimize the shocks as much as possible. Please review the conditions if it is used by auto mounting or after the conditions are changed. 2. Heat and humidity resistance in storage Storing the crystal products under higher or lower temperature or high humidity for a long period may deteriorate the characteristics of crystal units. Please store and use the crystal products at the normal temperature and humidity. 3. Solder heat resistance Standard type crystal products use Material have a 280℃ melting point. Heating up the package more than 270ºC may deteriorate the characteristics or cause of no oscillation the products. come visit our site http://www.yxc.hk 3/5 YSX146GA/YSX306GA 4. Mounting method to PCB When the crystal products need to be lay down please fix to PCB securely. If the crystal is used with mechanical vibration location, please put cushion in between PCB or fix with elasticity glue (Silicon etc) as shown in below figure. Please don’t gluing hermetic seal grass. Y SX 146G A 1.3 0.6 1.9 0.6 0.3 Y SX 306G A 1.2 5.1 1.9 1.2 1.3 4.2 1.3 5. Ultrasonic cleaning and ultrasonic soldering Soldered by ultrasonic cannot be guaranteed, because crystal maybe sympathetic vibrated and may damage. Please study at your side about ultrasonic cleaning. 6. Drive level Applying excessive drive level to the crystal units may cause deterioration of characteristics or damage. Less then 1.0μW is recommended to this products. More than 2.0μW cannot be guaranteed. REVIEW OF SPECIFICATION When something get doubtful with this specifications ，we shall jointly work to get an agreement. come visit our site http://www.yxc.hk 4/5 YSX146GA/YSX306GA ★ PART NUMBER GUIDE 部件号示例 Quartz Crystal Resonator Dimensions Frequency Load Capacitance (Hz) (Pf) X 7015 32768K YSX14 6G A =7 .0×1.5 SMD SEAM TYPE e.g. X7 015327 68 K SD4 G I S Frequency Stability Overall (ppm) Pin Material Operating Temp. Range D 4 G I come visit our site http://www.yxc.hk 5/5
