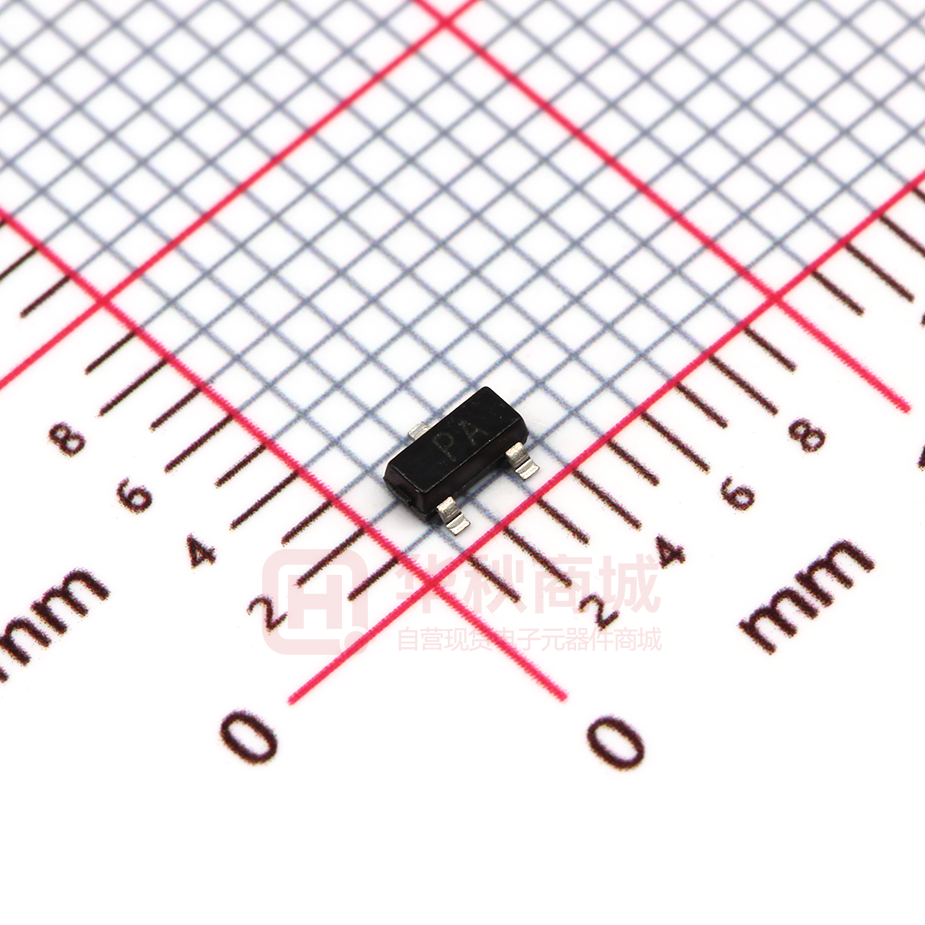

BZX84C18CA

BZX84C18CA

  • 厂商:

    BLUECOLOUR(蓝彩电子)

  • 封装:

    SOT-23

  • 描述:

    Vz=18V 16.8V~19.1V Izt=5mA P=300mW 2通路

  • 数据手册
  • 价格&库存
BZX84C18CA 数据手册
BZX84C…CA Series SILICON PLANAR ZENER DIODES Features • Zener breakdown voltage range - 2.4 V to 75 V • Package designed for optimal automated board assembly • Small package size for high density applications 3 ol ou r 1. Cathode 2. Cathode 3. Anode SOT-23 Plastic Package 1 2 bl u ec Zener Voltage Regulator Absolute Maximum Ratings (Ta = 25 C) O Parameter Power Dissipation Thermal Resistance, Junction to Ambient 1) Junction and Storage Temperature Range 1) Symbol Value Unit PD 300 RθJA 417 Tj ,TS - 65 to + 150 Symbol Max. Unit VF 0.9 V mW C/W O C O Alumina = 0.4 X 0.3 X 0.024 in, 99.5% alumina Characteristics at Ta = 25 C O Parameter Forward Voltage at IF = 10 mA Page 1 f 4 REV01: 09/2011 Electrical Characteristics (Ta = 25 C unless otherwise noted) O Zener Voltage Range 1) Marking Code VZ at IZT ZZT at IZT ZZK at IZK Reverse Leakage Current IR at VR Nom. (V) Min. (V) Max. (V) mA Max. (Ω) mA Max. (Ω) mA Max. (µA) V BZX84C2V4CA 7H 2.4 2.2 2.6 5 100 5 600 1 50 1 BZX84C2V7CA 7J 2.7 2.5 2.9 5 100 5 600 1 20 1 BZX84C3V0CA MR 3.0 2.8 3.2 5 95 5 600 1 10 1 BZX84C3V3CA MX 3.3 3.1 3.5 5 95 5 600 1 5 1 BZX84C3V6CA MY 3.6 3.4 3.8 5 90 5 600 1 5 1 BZX84C3V9CA MZ 3.9 3.7 4.1 5 90 5 600 1 3 1 BZX84C4V3CA NA 4.3 4 4.6 5 90 5 600 1 3 1 BZX84C4V7CA NB 4.7 4.4 5 5 80 5 500 1 3 2 BZX84C5V1CA NC 5.1 4.8 5.4 5 60 5 480 1 2 2 BZX84C5V6CA ND 5.6 5.2 6 5 40 5 400 1 1 2 BZX84C6V2CA NE 6.2 5.8 6.6 5 10 5 150 1 3 4 BZX84C6V8CA NF 6.8 6.4 7.2 5 r Type Dynamic Resistance 80 1 2 4 BZX84C7V5CA NH 7.5 7 7.9 BZX84C8V2CA NJ 8.2 7.7 8.7 BZX84C9V1CA NK 9.1 8.5 9.6 BZX84C10CA NM 10 9.4 10.6 BZX84C11CA NN 11 10.4 BZX84C12CA NP 12 11.4 BZX84C13CA NX 13 BZX84C15CA NY 15 BZX84C16CA NZ 16 PA BZX84C20CA ou 5 5 15 5 80 1 1 5 5 15 5 80 1 0.7 5 15 5 100 1 0.5 6 20 5 150 1 0.2 7 11.6 5 20 5 150 1 0.1 8 12.7 5 25 5 150 1 0.1 8 ec ol 5 5 12.4 14.1 5 30 5 170 1 0.1 8 14.3 15.8 5 30 5 200 1 0.05 10.5 15.3 17.1 5 40 5 200 1 0.05 11.2 18 16.8 19.1 5 45 5 225 1 0.05 12.6 bl u BZX84C18CA 15 PB 20 18.8 21.2 5 55 5 225 1 0.05 14 PC 22 20.8 23.3 5 55 5 250 1 0.05 15.4 PD 24 22.8 25.6 5 70 5 250 1 0.05 16.8 BZX84C27CA PE 27 25.1 28.9 2 80 2 300 0.5 0.05 18.9 BZX84C30CA PF 30 28 32 2 80 2 325 0.5 0.05 21 BZX84C33CA PH 33 31 35 2 80 2 350 0.5 0.05 23.1 BZX84C36CA PJ 36 34 38 2 90 2 350 0.5 0.05 25.2 BZX84C39CA PM 39 37 41 2 130 2 375 0.5 0.05 27.3 BZX84C43CA PN 43 40 46 2 150 2 375 0.5 0.05 30.1 BZX84C47CA PP 47 44 50 2 170 2 375 0.5 0.05 32.9 BZX84C51CA 7K 51 48 54 2 180 2 400 0.5 0.05 35.7 BZX84C56CA 7M 56 52 60 2 200 2 425 0.5 0.05 39.2 BZX84C62CA 7N 62 58 66 2 215 2 450 0.5 0.05 43.4 BZX84C68CA 7P 68 64 72 2 240 2 475 0.5 0.05 47.6 BZX84C75CA 7R 75 70 79 2 255 2 500 0.5 0.05 52.5 BZX84C22CA BZX84C24CA 1) Tested with pulses tp = 20 ms. Page 2 f 4 REV01: 09/2011 T A =25 OC 0.4 0.3 0.2 0.1 0 25 50 75 100 125 150 100 Fig.2 TEMPERATURE COEFFICENTS ol Fig.1 STEADY STATE POWER DERATING 1000 ec 1000 100 10 1 bl u LEAKAGE CURRENT,uA 1 10 NOMINAL ZENER VOLTAGE,VOLTS TEMPERATURE ( OC) O +150 C 0.1 0.01 O +25 C 0.001 0.0001 O -55 C 0.00001 0 10 20 30 40 50 60 70 80 NORMAL ZENER VOLTAGE, VOLTS Fig.3 TYPICAL LEAKAGE CURRENT Page 3 f 4 10 ou 0 100 r 0.5 90 FORWARD CURRENT,mA POWER DISSIPATION, Watts 0.6 TEMPERATURE COEFFICIENT,(mV/ OC) Typical Characteristics 100 150OC 10 75OC 25OC 1 0.4 0.5 0.6 0.7 O 5C 0.8 0.9 1.0 1.1 1.2 FORWARD VOLTAGE, VOLTS Fig.4 TYPICAL FORWARD VOLTAGE REV01: 09/2011 PACKAGE OUTLINE SOT-23 bl u ec ol ou r Plastic surface mounted package; 3 leads Page 4 f 4 REV01: 09/2011
