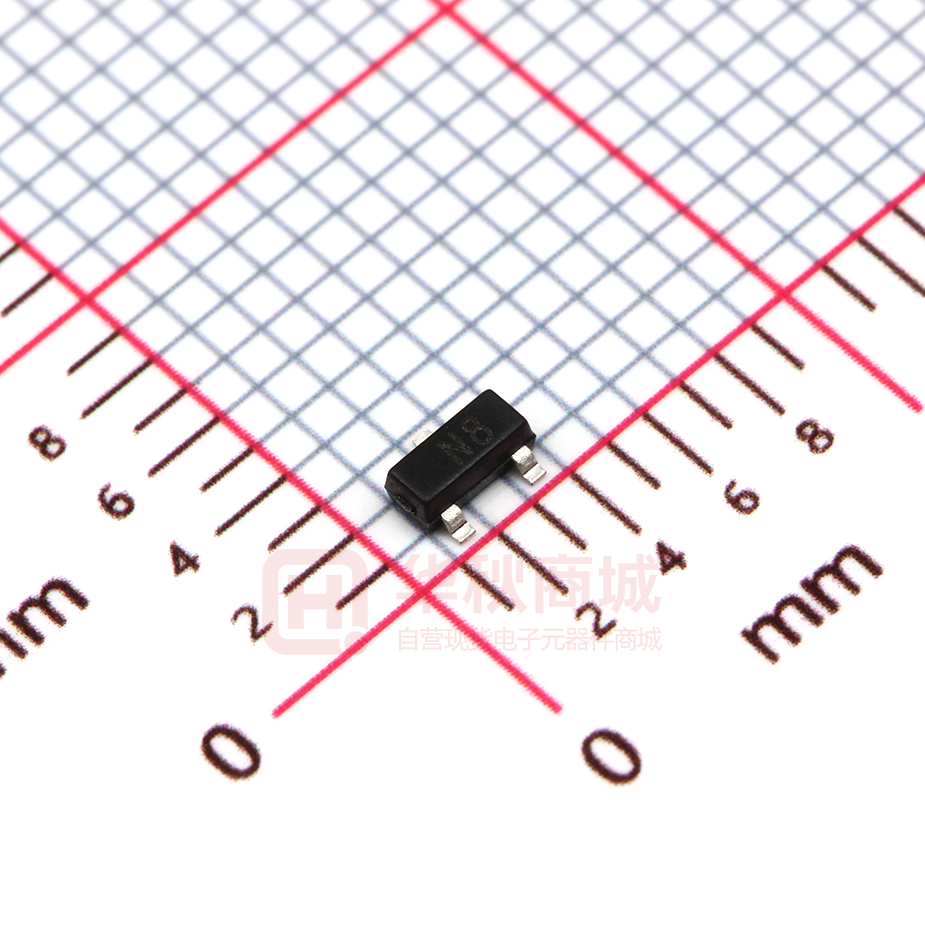

BZX84C5V1

BZX84C… Series SILICON PLANAR ZENER DIODES Features • Zener breakdown voltage range - 2.0 V to 75 V • Package designed for optimal automated board assembly • Small package size for high density applications ol ou r 1. Cathode 2. Cathode 3. Anode SOT-23 Plastic Package bl u ec Zener Voltage Regulator Absolute Maximum Ratings (Ta = 25 C) O Parameter Power Dissipation Thermal Resistance, Junction to Ambient 1) Junction and Storage Temperature Range 1) Symbol Value Unit PD 300 RθJA 417 Tj ,TS - 65 to + 150 Symbol Max. Unit VF 0.9 V mW C/W O C O Alumina = 0.4 X 0.3 X 0.024 in, 99.5% alumina Characteristics at Ta = 25 C O Parameter Forward Voltage at IF = 10 mA Page 1 f 4 REV01: 09/2011 Electrical Characteristics ( Ta = 25 C unless otherwise noted) O Zener Voltage Range 1) Type Marking Code Dynamic Impedance VZT Nom. (V) Min. (V) Max. (V) Reverse Leakage Current IR at VR at IZT ZZT at IZT ZZK at IZK (mA) Max. (Ω) (mA) Max. (Ω) (mA) Max. (μA) (V) A8 2 1.8 2.15 5 100 5 - - 120 0.5 BZX84C2V2 B8 2.2 2.08 2.33 5 100 5 - - 120 0.7 BZX84C2V4 C8 2.4 2.2 2.6 5 100 5 600 1 50 1 BZX84C2V7 D8 2.7 2.5 2.9 5 100 5 600 1 20 1 BZX84C3V0 E8 3 2.8 3.2 5 95 5 600 1 10 1 BZX84C3V3 F8 3.3 3.1 3.5 5 95 5 600 1 5 1 BZX84C3V6 H8 3.6 3.4 3.8 5 90 5 600 1 5 1 BZX84C3V9 J8 3.9 3.7 4.1 5 90 5 600 1 3 1 BZX84C4V3 K8 4.3 4 4.6 5 90 5 600 1 3 1 BZX84C4V7 M8 4.7 4.4 5 5 80 5 500 1 3 2 BZX84C5V1 N8 5.1 4.8 5.4 5 60 5 480 1 2 2 BZX84C5V6 P8 5.6 5.2 6 5 40 400 1 1 2 BZX84C6V2 R8 6.2 5.8 6.6 BZX84C6V8 X8 6.8 6.4 7.2 BZX84C7V5 Y8 7.5 7 7.9 BZX84C8V2 Z8 8.2 7.7 8.7 BZX84C9V1 A9 9.1 8.5 BZX84C10 B9 10 9.4 BZX84C11 C9 11 BZX84C12 D9 12 BZX84C13 E9 13 r BZX84C2V0 ou 5 10 5 150 1 3 4 5 15 5 80 1 2 4 5 15 5 80 1 1 5 5 15 5 80 1 0.7 5 9.6 5 15 5 100 1 0.5 6 10.6 5 20 5 150 1 0.2 7 ec ol 5 10.4 11.6 5 20 5 150 1 0.1 8 11.4 12.7 5 25 5 150 1 0.1 8 12.4 14.1 30 5 170 1 0.1 8 15 13.8 15.6 5 30 5 200 1 0.05 10.5 H9 16 15.3 17.1 5 40 5 200 1 0.05 11.2 J9 18 16.8 19.1 5 45 5 225 1 0.05 12.6 K9 20 18.8 21.2 5 55 5 225 1 0.05 14 BZX84C22 M9 22 20.8 23.3 5 55 5 250 1 0.05 15.4 BZX84C24 N9 24 22.8 25.6 5 70 5 250 1 0.05 16.8 BZX84C27 P9 27 25.1 28.9 2 80 2 300 0.5 0.05 18.9 BZX84C30 R9 30 28 32 2 80 2 300 0.5 0.05 21 BZX84C33 X9 33 31 35 2 80 2 325 0.5 0.05 23.1 BZX84C36 Y9 36 34 38 2 90 2 350 0.5 0.05 25.2 BZX84C39 Z9 39 37 41 2 130 2 350 0.5 0.05 27.3 BZX84C43 A0 43 40 46 2 150 2 375 0.5 0.05 30.1 BZX84C47 B0 47 44 50 2 170 2 375 0.5 0.05 32.9 BZX84C51 C0 51 48 54 2 180 2 400 0.5 0.05 35.7 BZX84C56 D0 56 52 60 2 200 2 425 0.5 0.05 39.2 BZX84C62 E0 62 58 66 2 215 2 450 0.5 0.05 43.4 BZX84C68 F0 68 64 72 2 240 2 475 0.5 0.05 47.6 BZX84C75 H0 75 70 79 2 255 2 500 0.5 0.05 52.5 BZX84C16 BZX84C18 BZX84C20 1) bl u 5 F9 BZX84C15 Tested with pulses tp = 20 ms. Page 2 f 4 REV01: 09/2011 T A =25 OC 0.4 0.3 0.2 0.1 0 25 50 75 100 125 150 100 Fig.2 TEMPERATURE COEFFICENTS ol Fig.1 STEADY STATE POWER DERATING 1000 ec 1000 100 10 1 bl u LEAKAGE CURRENT,uA 1 10 NOMINAL ZENER VOLTAGE,VOLTS TEMPERATURE ( OC) O +150 C 0.1 0.01 O +25 C 0.001 0.0001 O -55 C 0.00001 0 10 20 30 40 50 60 70 80 NORMAL ZENER VOLTAGE, VOLTS Fig.3 TYPICAL LEAKAGE CURRENT Page 3 f 4 10 ou 0 100 r 0.5 90 FORWARD CURRENT,mA POWER DISSIPATION, Watts 0.6 TEMPERATURE COEFFICIENT,(mV/ OC) Typical Characteristics 100 150OC 10 75OC 25OC 1 0.4 0.5 0.6 0.7 5C O 0.8 0.9 1.0 1.1 1.2 FORWARD VOLTAGE, VOLTS Fig.4 TYPICAL FORWARD VOLTAGE REV01: 09/2011 PACKAGE OUTLINE SOT-23 bl u ec ol ou r Plastic surface mounted package; 3 leads Page 4 f 4 REV01: 09/2011
