S9014

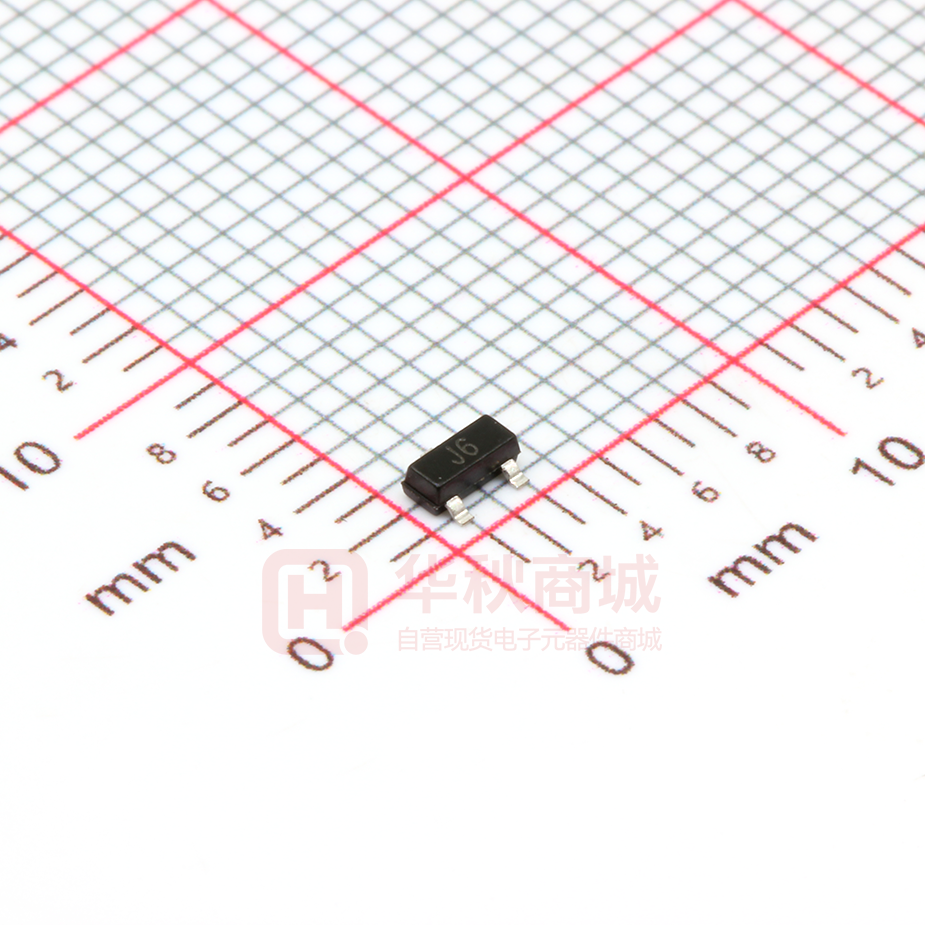

S9014 TRANSISTOR (NPN) FEATURES Complementary to S9015 SOT-23 1．BASE 2．EMITTER 3．COLLECTOR MARKING: J6 MAXIMUM RATINGS (TA=25℃ unless otherwise noted) Parameter value units 50 V 45 V 5 V 0.1 A r Symbol Collector-Base Voltage VCEO Collector-Emitter Voltage VEBO Emitter-Base Voltage IC Collector Current-Continuous PC Collector Power Dissipation 0.2 W TJ Junction Temperature 150 ℃ TSTG Storage Temperature -55-150 ℃ ec ol ou VCBO bl u ELECTRICAL CHARACTERISTICS (Tamb=25℃ unless otherwise specified) Symbol Test Collector-base breakdown voltage V(BR)CBO IC= 100µA, IE=0 50 V Collector-emitter breakdown voltage V(BR)CEO IC= 0.1mA, IB=0 45 V Emitter-base breakdown voltage V(BR)EBO IE=100µA, IC=0 5 V Parameter conditions MIN TYP MAX UNIT Collector cut-off current ICBO VCB=50V, IE=0 0.1 µA Collector cut-off current ICEO VCE=35V, IB=0 0.1 µA Emitter cut-off current IEBO VEB= 3V, IC=0 0.1 µA DC current gain hFE VCE=5V, IC= 1mA 200 450 Collector-emitter saturation voltage VCE(sat) IC=100 mA, IB= 5mA 0.3 V Base-emitter saturation voltage VBE(sat) IC=100 mA, 1 V Transition frequency Page 1 f 3 fT VCE= 5V, f=30MHz B= 5mA IC= 10mA 150 MHz REV01: 09/2011 Typical Characteristics Static Characteristic IC 16uA 14uA 4 12uA 10uA 8uA 2 IC Ta=25℃ 6uA 100 4uA 0 IB=2uA 0 2 6 COLLECTOR-EMITTER VOLTAGE VCEsat VCE COMMON EMITTER VCE= 5V 10 0.1 8 1 (V) 10 COLLECTOR CURRENT —— IC VBEsat 2 1 r BASE-EMITTER SATURATION VOLTAGE VBEsat (V) (V) 1 —— Ta=100℃ Ta=25℃ IC 100 (mA) IC Ta=25℃ ou 0.1 ol COLLECTOR-EMITTER SATURATION VOLTAGE VCEsat — — Ta=100℃ DC CURRENT GAIN COLLECTOR CURRENT COMMON EMITTER Ta=25℃ 20uA 18uA 6 hFE 1000 hFE (mA) 8 Ta=100℃ β=20 β=20 0.01 0.1 10 COLLECTOR CURRENT IC COMMON EMITTER VCE= 5V —— Cob/ Cib 0.9 1.2 VCB/ VEB 10 COMMON EMITTER VCE=5V Ta=25℃ 1 0.1 1 COLLECTOR POWER DISSIPATION PC (mW) (pF) CAPACITANCE C Cib 1 Page 2 f 3 10 1 REVERSE VOLTAGE VR (V) 10 PC 250 Cob 0.1 0.1 —— IC COLLECTOR CURRENT f=1MHz IE=0/IC=0 Ta=25 ℃ 10 100 (mA) 100 BASE-EMMITER VOLTAGE VBE (V) 100 IC (MHz) 1 0.6 fT 1000 fT Ta=100℃ 0.3 10 COLLECTOR CURRENT —— VBE Ta=25℃ 0.1 0.0 1 (mA) TRANSITION FREQUENCY 10 IC bl u COLLECTOR CURRENT IC (mA) 100 0.1 0.1 100 ec 1 20 —— IC 100 (mA) Ta 200 150 100 50 0 0 25 50 75 AMBIENT TEMPERATURE 125 100 Ta 150 (℃ ) REV01: 09/2011 PACKAGE OUTLINE SOT-23 bl u ec ol ou r Plastic surface mounted package; 3 leads Page 3 f 3 REV01: 09/2011
