S9018

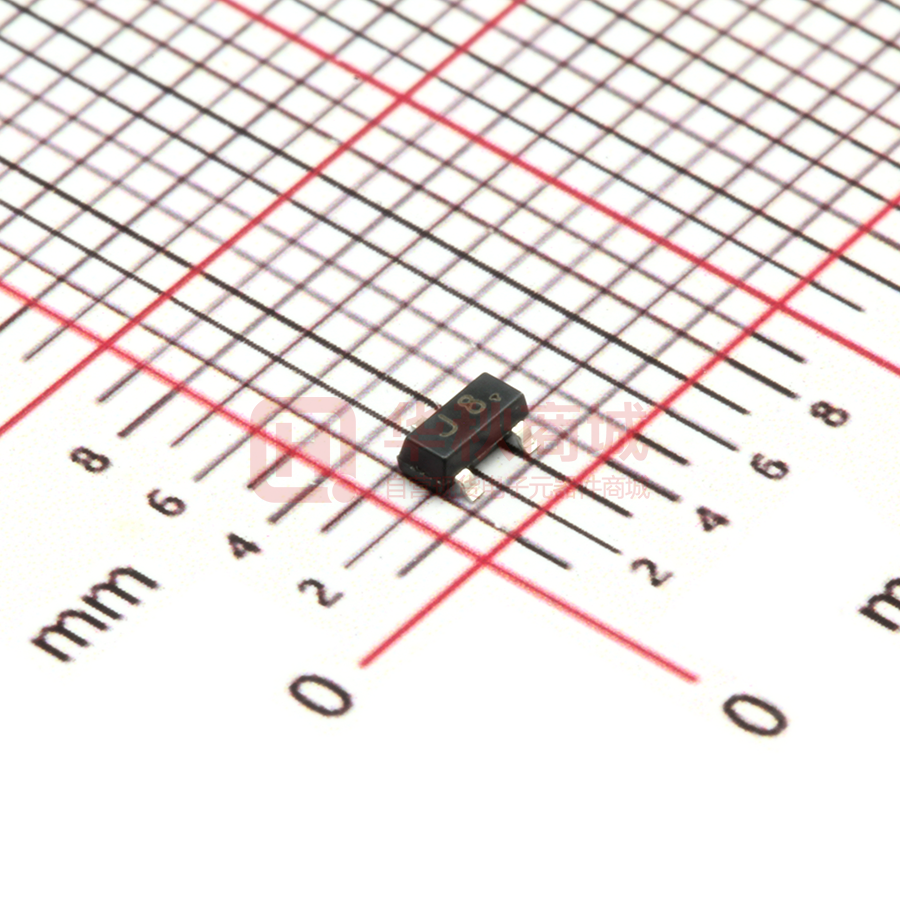

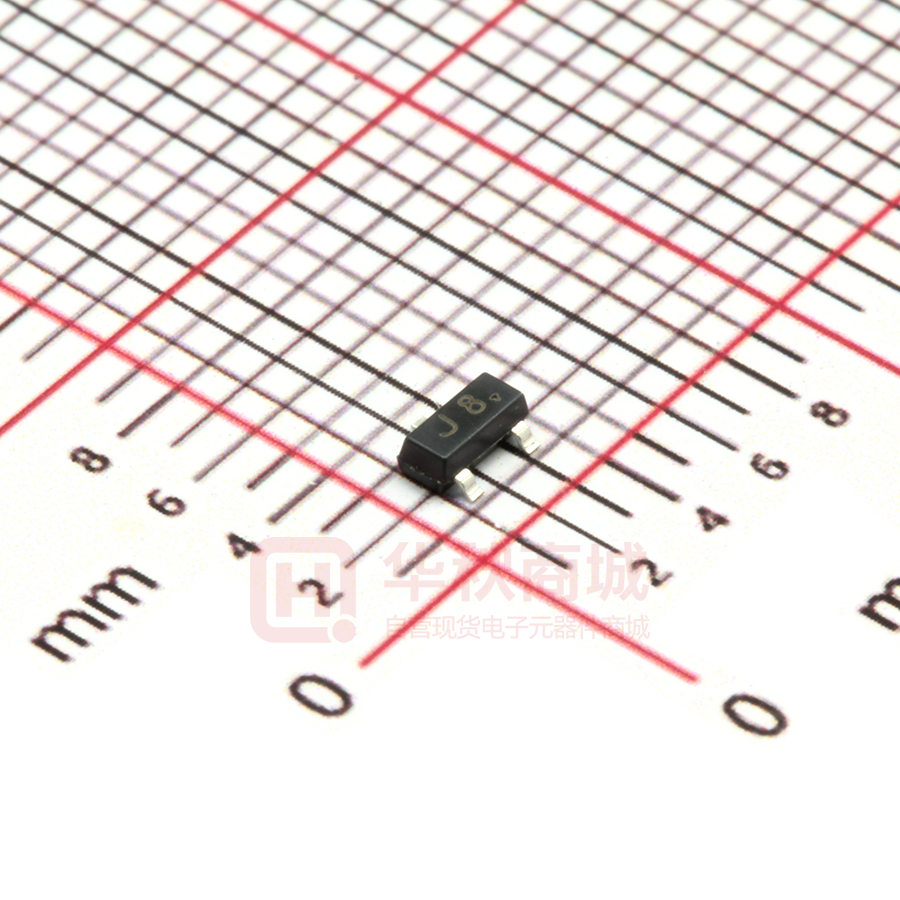

S9018 TRANSISTOR (NPN) FEATURES AM/FM Amplifier, Local Oscillator of FM/VHF Tuner SOT-23 High Current Gain Bandwidth Product fT=1.1 GHz (Typ) 1．BASE 2．EMITTER 3．COLLECTOR ou r MARKING：J8 MAXIMUM RATINGS (TA=25℃ unless otherwise noted) Symbol Value Units 30 V 15 V 5 V Collector Current -Continuous 50 mA PC Collector Power Dissipation 200 mW Tj Junction Temperature 150 ℃ Tstg Storage Temperature -55-150 ℃ Collector-Emitter Voltage VEBO Emitter-Base Voltage IC bl u ec Collector-Base Voltage VCEO ol Parameter VCBO ELECTRICAL CHARACTERISTICS (Tamb=25℃ unless otherwise specified) Parameter Symbol Test conditions MIN TYP MAX UNIT Collector-base breakdown voltage V(BR)CBO IC= 100µA, IE=0 30 V Collector-emitter breakdown voltage V(BR)CEO IC= 1mA, IB=0 15 V Emitter-base breakdown voltage V(BR)EBO IE=100µA, IC=0 5 V Collector cut-off current ICBO VCB=12V, IE=0 0.05 µA Collector cut-off current ICEO VCE=12V, IB=0 0.1 µA Emitter cut-off current IEBO VEB= 3V, IC=0 0.1 µA DC current gain hFE(1) VCE=5V, IC= 1mA 105 195 Collector-emitter saturation voltage VCE(sat) IC=10mA, IB= 1mA 0.5 V Base-emitter saturation voltage VBE(sat) IC=10mA, IB= 1mA 1.4 V VCE=5V, IC= 5mA Transition frequency Page 1 f 3 fT f=400MHz 600 MHz REV01: 09/2011 Typical Characteristics Static Characteristic VCE=5V COMMON EMITTER Ta=25℃ 25uA 2.5 20uA COLLECTOR CURRENT DC CURRENT GAIN 17.5uA 15uA 1.5 12.5uA 10uA 1.0 7.5uA 5uA 0.5 IB=2.5uA 0 1 2 5 40 1 VCEsat —— COLLECTOR-EMITTER SATURATION VOLTAGE VCEsat (V) 0.4 0.1 1 10 IC IC (mA) 0.01 50 ec COLLECTOR CURRENT IC 0.1 ol 0.6 (mA) β=10 Ta=100℃ ou Ta=25℃ Ta=100℃ IC 0.3 β=10 0.8 50 10 COLLECTOR CURRENT (V) VBEsat —— IC 1.0 BASE-EMITTER SATURATION VOLTAGE VBEsat (V) VCE Ta=25℃ 80 0 6 COLLECTOR-EMITTER VOLTAGE Ta=100℃ 120 hFE IC 22.5uA 2.0 0.0 hFE —— IC 160 r (mA) 3.0 —— VBE Ta=25℃ 1 50 10 COLLECTOR CURRENT Cob / Cib 10 IC (mA) VCB / VEB —— f=1MHz IE=0 / IC=0 Ta=25℃ bl u 0.4 0.6 C 0.8 fT —— IC fT TRANSITION FREQUENCY Page 2 f 3 PC 0.4 800 600 400 VCE=5V Ta=25℃ 10 3 COLLECTOR CURRENT 10 REVERSE VOLTAGE 1000 1 0.1 0.1 1.0 VBE(V) BASE-EMITTER VOLTAGE 1200 Cob 1 CAPACITANCE COLLECTOR CURRENT Ta=25℃ 1 0.1 0.2 (MHz) (pF) Ta=100℃ 10 200 Cib COLLECTOR POWER DISSIPATION PC (W) IC (mA) VCE=5V IC (mA) 20 —— V 20 (V) Ta 0.3 0.2 0.1 0.0 0 25 50 75 AMBIENT TEMPERATURE 100 Ta 125 150 (℃ ) REV01: 09/2011 PACKAGE OUTLINE SOT-23 bl u ec ol ou r Plastic surface mounted package; 3 leads Page 3 f 3 REV01: 09/2011
