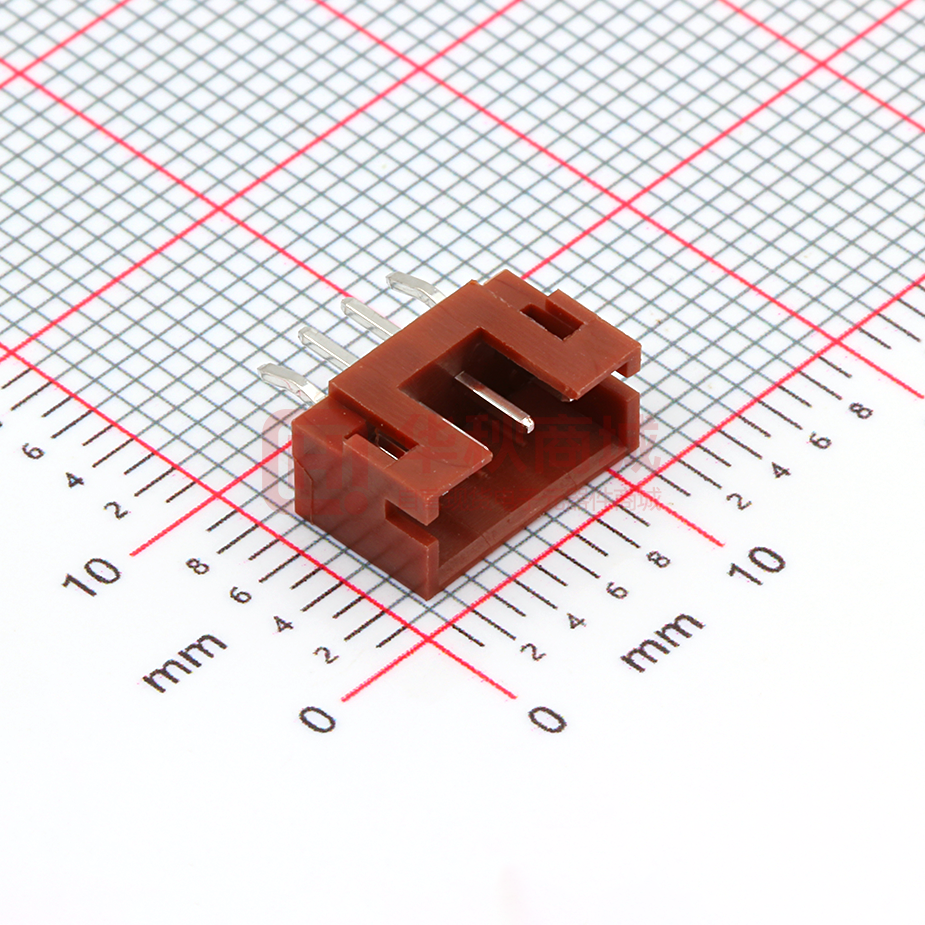

A2002WV-4P

A2002 SERIES 2.00mm pitch wire to board connector Specifications Current rating:3A AC,DC Voltage rating:300V AC,DC Temperature range:-40°C~+105°C Contact resistance:20m Max. Insulation resistance:100M Min. Withstanding voltage:1000V AC/minute *Compliant with RoHS and REACH* *Meet the HF/Halogen Free,need to customize* *Contact CJT for details* Standards E326732 E326732 1.60 7.70 REF 1.80 1.80 1.60 5.00 4.70 7.80 REF CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-152 A2002 SERIES A2002-T 2.00mm pitch wire to board connector 2.00mm pitch Crimp Terminal Reference Informations: *Used in CJT A2002H-XP series Housing 0.20 2.54±0.25 0.70±0.20 1.25±0.25 2.40±0.25 SEC:A-A B 0.40 1.80±0.20 2.10±0.25 0.95 1.46±0.25 1.60±0.25 B 1.47±0.25 A 5.10±0.25 A SEC:B-B 0.75 1.52±0.25 Ordering information & Specifications: Unit:mm Part NO. Wire Range Insulation O.D. Material Finish Qty/reel A2002-TP AWG#24-#28 1.50mm(max) Phosphor Bronze Tin over Nickel 10,000 PCS A2002-GP AWG#24-#28 1.50mm(max) Phosphor Bronze Gold over Nickel 10,000 PCS Optional Gold plating available but MOQ requested A2002H-XP 2.00mm pitch Housing Reference Informations: *Material:Nylon 66,UL94V-0 *Suitable CJT A2002-T series Terminal *Mates with CJT A2002WV,WR-XP series Wafer *Color:Brown Ordering Information: A2002H-XP - *** 1 2 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT :Nylon 66,UL94V-0 GWT 750 ℃ Circuit 1 2.00±0.10 Ordering Information & Dimensions: PART NO. A±0.20 B±0.25 5.90±0.25 4.50±0.25 3.50±0.25 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P Dimensions A B 2.00 5.60 4.00 7.60 6.00 9.60 8.00 11.60 10.00 13.60 12.00 15.60 14.00 17.60 16.00 19.60 18.00 21.60 20.00 23.60 22.00 25.60 24.00 27.60 26.00 29.60 28.00 31.60 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-153 A2002 SERIES A2002WV-XP 2.00mm pitch wire to board connector 2.00mm pitch 180° Wafer Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A2002H-XP series Housing *Color:Brown Ordering Information: A2002WV-XP - *** 1 2 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT :Nylon 66,UL94V-0 GWT 750 ℃ Circuit 1 2.00±0.08 ∅0.80±0.05 2.00±0.10 P.C.B LAYOUT A±0.20 Ordering Information & Dimensions: PART NO. 4.70±0.25 B±0.25 3.40±0.20 6.10±0.25 1.80 0.80 PIN 0.5 SQ 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P Dimensions A B 2.00 6.00 4.00 8.00 6.00 10.00 8.00 12.00 10.00 14.00 12.00 16.00 14.00 18.00 16.00 20.00 18.00 22.00 20.00 24.00 22.00 26.00 24.00 28.00 30.00 26.00 28.00 32.00 Unit: mm A2002WR-XP 2.00mm pitch 90° Wafer Reference Informations: *Material:Pin:Brass/Tin over Nickel Wafer:Nylon 66,UL94V-0 *Mates with CJT A2002H-XP series Housing *Color:Brown Ordering Information: A2002WR-XP - *** 1 2 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT :Nylon 66,UL94V-0 GWT 750 ℃ PIN 0.5 SQ 2.00±0.08 ∅0.80±0.05 P.C.B LAYOUT Ordering Information & Dimensions: 2.00±0.10 Circuit 1 PART NO. A±0.20 5.00±0.25 B±0.25 6.20±0.25 3.40±0.20 0.80 7.70±0.25 6.10±0.25 1.80 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P Dimensions A B 2.00 6.00 4.00 8.00 6.00 10.00 8.00 12.00 10.00 14.00 12.00 16.00 14.00 18.00 16.00 20.00 18.00 22.00 20.00 24.00 22.00 26.00 24.00 28.00 26.00 30.00 28.00 32.00 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-154
