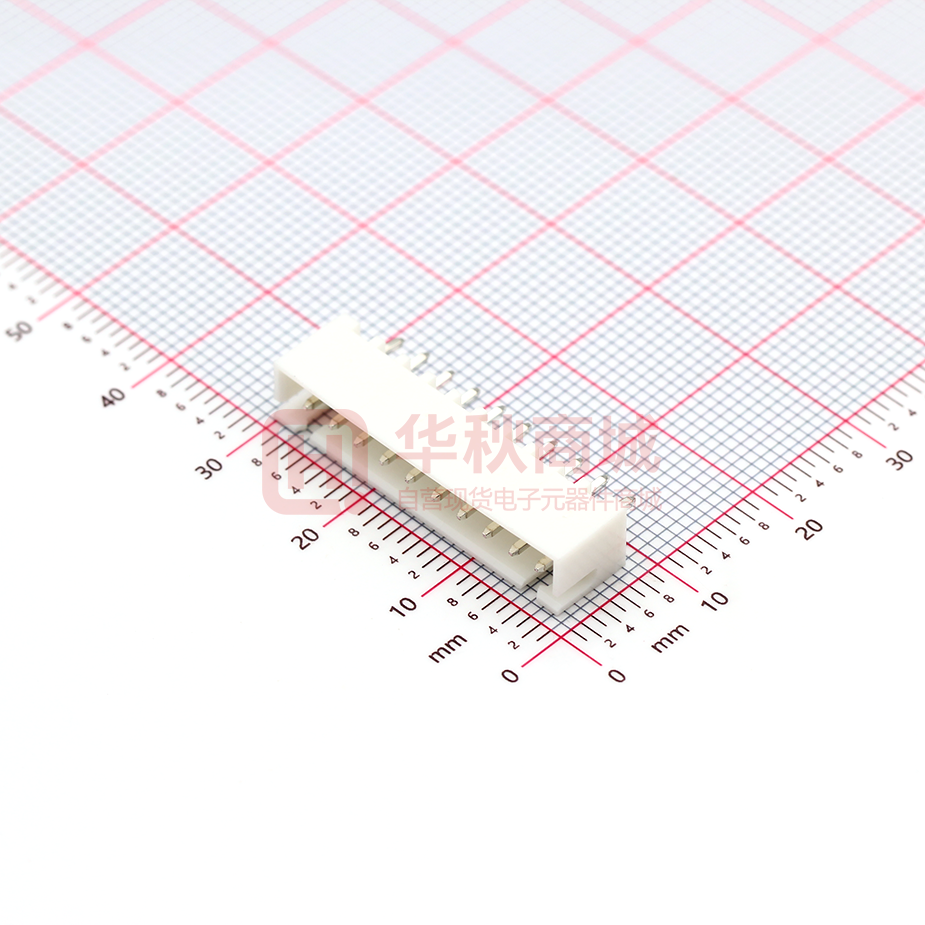

A2501WV-10P

A2501 SERIES 2.50mm pitch wire to board and wire to wire connector Specifications Current rating:3A AC,DC Voltage rating:250V AC,DC Temperature range:-40°C~+105°C Contact resistance:10mΩMax. Insulation resistance:1000MΩMin. Withstanding voltage:800V AC/minute *Compliant with RoHS and REACH* *Meet the HF/Halogen Free,need to customize* *Contact CJT for details* Standards E326732 E326732 6.50 17.15.REF 5.75.REF 7.75.REF 1.60 1.60 7.75.REF 1.60 10.00 5.75.REF wire to wire 5.75 1.60 5.75 8.12 wire to board CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-279 A2501 SERIES A2501-T 2.50mm pitch wire to board and wire to wire connector 2.50mm pitch Crimp Terminal Reference Informations: *Used in CJT A2501H,HB-XP,A2512H-XP series Housing 0.20 2.00 SEC:A-A 1.80±0.25 2.35 1.60±0.25 1.90 3.20±0.25 B 2.30±0.20 B 0.67 2.44±0.20 A 1.50 A 6.73±0.25 1.15 2.80±0.25 SEC:B-B 1.10 Unit:mm Ordering information & Specifications: Part NO. A2501-TP A2501-GP Wire Range AWG#22-#28 AWG#22-#28 Material Phosphor Bronze Phosphor Bronze Insulation O.D. 1.90mm(max) 1.90mm(max) Finish Tin over Nickel Gold over Nickel Qty/reel 8,000 PCS 8,000 PCS Optional Gold plating available but MOQ requested A2501-T-A 2.50mm pitch Crimp Terminal 2.76±0.25 Reference Informations: *Used in CJT A2501H,HB-XP,A2512H,HA,HB-XP series Housing 2.46±0.25 0.68 0.20 1.80±0.20 1.56±0.25 0.60 2.50 B 1.50 B 5.85±0.25 A 1.30 SEC:A-A A 1.68±0.25 2.30±0.20 1.00±0.20 SEC:B-B Unit:mm Ordering information & Specifications: Part NO. A2501-TP-A A2501-GP-A Wire Range AWG#22-#28 AWG#22-#28 Insulation O.D. 1.90mm(max) 1.90mm(max) Material Phosphor Bronze Phosphor Bronze Finish Tin over Nickel Gold over Nickel Qty/reel 15,000 PCS 15,000 PCS Optional Gold plating available but MOQ requested CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-280 A2501 SERIES A2501M-T 2.50mm pitch wire to board and wire to wire connector 2.50mm pitch Crimp Terminal 2.10±0.25 Reference Informations: *Used in CJT A2501HMB,HMC-XP,A2507HM-2P,A2509HM-XP,C2504HM,HMA-XP series Housing 0.20 0.80 2.35±0.25 A B 1.98±0.25 0.60 1.95±0.25 7.15±0.20 9.60±0.25 14.80±0.25 B SEC:A-A 1.80 A SEC:B-B 0.64±0.15 0.64±0.15 Unit:mm Ordering information & Specifications: Part NO. A2501M-TB A2501M-TP A2501M-GB A2501M-GP Wire Range AWG#22-#28 AWG#22-#28 AWG#22-#28 AWG#22-#28 Insulation O.D. 1.00mm(max) 1.00mm(max) 1.00mm(max) 1.00mm(max) Material Brass Phosphor Bronze Brass Phosphor Bronze Finish Tin over Nickel Tin over Nickel Gold over Nickel Gold over Nickel Qty/reel 10,000 PCS 10,000 PCS 10,000 PCS 10,000 PCS Optional Gold plating available but MOQ requested A2501H-XP 2.50mm pitch Housing Reference Informations: *Material:Nylon 66,UL94V-0 *Suitable CJT A2501-T(-A) series Terminal *Mates with CJT A2501HMB-XP series Housing or A2501WV(-F),WR,WV-S,WR-S-XP, A2501WRB,WVR,A2501WVC(-F)-XP,WVT-XP, A2512WVA,WRA,WVA-F,WVRA,WVT-XP series Wafer *Color: White Ordering Information: Circuit 1 A2501H-XP - *** - ** 1 2 3 1.Part No 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Color: (blank):White BL:Blue BK:Black RD:Red YL:Yellow GN:Green OR:Orange BR:Brown LY:Lemon yellow VY:Vivid yellow 2.50±0.10 A±0.20 B±0.25 8.00±0.25 4.10±0.20 5.70±0.20 Ordering Information & Dimensions: PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P Dimensions A B 2.50 5.70 5.00 8.20 7.50 10.70 10.00 13.20 12.50 15.70 15.00 18.20 17.50 20.70 20.00 23.20 22.50 25.70 25.00 28.20 27.50 30.70 30.00 33.20 32.50 35.70 35.00 38.20 37.50 40.70 40.00 43.20 42.50 45.70 45.00 48.20 47.50 50.70 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-281 A2501 SERIES A2501HB-XP 2.50mm pitch wire to board and wire to wire connector 2.50mm pitch Housing Reference Informations: *Material:Nylon 66,UL94V-0 *Suitable CJT A2501-T(-A) series Terminal *Mates with CJT A2501HMB-XP series Housing or A2501WV(-F),WR, WV-S,WR-S-XP,A2501WRB,WVR,A2501WVC(-F)-XPWVT-XP, series Wafer or A2512SA-XP series Retainer *Color: White Ordering Information: A2501HB-XP - *** - ** 1 2 3 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Color: (Blank):White BL:Blue BK:Black RD:Red YL:Yellow GN:Green A±0.20 2.50±0.10 Circuit 1 Ordering Information & Dimensions: PART NO. 9.50±0.25 4.00±0.25 5.00±0.25 B±0.25 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P Dimensions A B 2.50 8.10 5.00 10.60 7.50 13.10 10.00 15.60 12.50 18.10 15.00 20.60 17.50 23.10 20.00 25.60 22.50 28.10 25.00 30.60 27.50 33.10 30.00 35.60 32.50 38.10 35.00 40.60 Unit: mm A2501HMB-XP 2.50mm pitch Housing Reference Informations: *Material:Nylon 66,UL94V-0 *Suitable CJT A2501M-T series Terminal *Mates with CJT A2501H,HB-XP series Housing *Color:White 2.50±0.10 Circuit 1 A±0.20 16.90±0.25 7.65±0.25 B±0.25 Ordering Information: A2501HMB-XP - ** - *** 1 2 3 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Color: (Blank):White BL:Blue BK:Black RD:Red Ordering Information & Dimensions: YL:Yellow GN:Green Dimensions PART NO. A B 2.50 8.70 2P 3P 5.00 11.20 7.90±0.25 4P 7.50 13.70 5P 10.00 16.20 6P 12.50 18.70 7P 15.00 21.20 8P 17.50 23.70 9P 20.00 26.20 10P 22.50 28.70 25.00 31.20 11P 12P 27.50 33.70 13P 30.00 36.20 32.50 38.70 14P 15P 35.00 41.20 16P 37.50 43.70 17P 40.00 46.20 18P 42.50 48.70 19P 45.00 51.20 5.10±0.25 20P 47.50 53.70 2P 3P~12P Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-282 A2501 SERIES A2501HMC-XP 2.50mm pitch wire to board and wire to wire connector 2.50mm pitch Housing Reference Informations: *Material:Nylon 66,UL94V-0 *Suitable CJT A2501M-T series Terminal *Mates with CJT A2512HA-XP series Housing *Color:White Ordering Information: A2501HMC-XP - *** 1 2 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ Ordering Information & Dimensions: Circuit 1 2.50±0.10 PART NO. A±0.20 B±0.25 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 16.90±0.25 7.65±0.25 7.90±0.25 C±0.25 2P 5.10±0.25 3P~20P 2.00±0.05 2.50mm pitch 180° Wafer Ordering Information: Reference Informations: A2501WV(-F)-XP - * - *** - ** - ** *Material:Pin:Brass/Tin over Nickel 1 2 3 4 5 Insulator:Nylon 66,UL94V-0 1.Part No *Mates with CJT A2501H,HB-XP series Housing 2.Style: (blank) :Type 1 *Color:White 1.60±0.05 2.50±0.05 2 :Type 2 3.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 4.Color: (blank):White BL:Blue BK:Black RD:Red YL:Yellow GN:Green OR:Orange BR:Brown LY:Lemon yellow VY:Vivid yellow 5.Finish: (blank):Tin over Nickel G:Gold over Nickel A±0.20 7.00±0.25 3.40±0.20 1.50 2.38 Ø1.00 0.80 A2501WV-F-XP Circuit 1 TYPE 2 TYPE 1 Ø1.10+0.10 -0.00 Ø0.95+0.05 -0.00 5.75±0.25 B±0.25 PIN 0.64 SQ C 5.90 8.40 10.90 13.40 15.90 18.40 20.90 23.40 25.90 28.40 30.90 33.40 35.90 38.40 40.90 43.40 45.90 48.40 50.90 Unit: mm A2501WV(-F)-XP 2.50±0.10 Dimensions B 8.70 11.20 13.70 16.20 18.70 21.20 23.70 26.20 28.70 31.20 33.70 36.20 38.70 41.20 43.70 46.20 48.70 51.20 53.70 A 2.50 5.00 7.50 10.00 12.50 15.00 17.50 20.00 22.50 25.00 27.50 30.00 32.50 35.00 37.50 40.00 42.50 45.00 47.50 P.C.B LAYOUT A2501WV-F-XP Ordering Information & Dimensions: PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P Dimensions A B 2.50 7.50 5.00 10.00 7.50 12.50 10.00 15.00 12.50 17.50 15.00 20.00 17.50 22.50 20.00 25.00 22.50 27.50 25.00 30.00 27.50 32.50 30.00 35.00 32.50 37.50 35.00 40.00 37.50 42.50 40.00 45.00 42.50 47.50 45.00 50.00 47.50 52.50 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-283 A2501 SERIES A2501WVC(-F)-XP 2.50mm pitch wire to board and wire to wire connector Ordering Information: A2501WVC(-F)-XP - *** - ** - ** 1 2 3 4 1.Part No 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Color: (blank):White BL:Blue BK:Black RD:Red YL:Yellow GN:Green LY:Lemon yellow 4.Finish: (blank):Tin over Nickel G:Gold over Nickel Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A2501H,HB-XP series Housing *Color:White A±0.20 5.70±0.20 2.50±0.10 B±0.25 1.60±0.05 2.50±0.05 P.C.B LAYOUT PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 7.20±0.25 3.00±0.25 1.50 A2501WVC-F-XP Ordering Information & Dimensions: Ø1.00 0.95 A2501WVC-F-XP Ø1.10+0.10 -0.00 Ø0.95+0.05 -0.00 7.50±0.25 2.50±0.10 2.00±0.05 2.50mm pitch 180° Wafer Circuit 1 PIN 0.64 SQ Dimensions A B 2.50 7.50 5.00 10.00 7.50 12.50 10.00 15.00 12.50 17.50 15.00 20.00 17.50 22.50 20.00 25.00 22.50 27.50 25.00 30.00 27.50 32.50 30.00 35.00 32.50 37.50 35.00 40.00 37.50 42.50 40.00 45.00 42.50 47.50 45.00 50.00 47.50 52.50 Unit: mm A2501WV-F-XP-H 2.50mm pitch 180° Wafer - With Boss 2.00±0.10 Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A2501H,HB-XP series Housing *Color:White 1.60±0.10 Ø1.20±0.10 Ø0.90±0.05 2.50±0.10 P.C.B LAYOUT B±0.25 0.90 A±0.20 ∅1.00 PIN 0.64 SQ Circuit 1 3P~20P 3.40±0.20 14.20±0.25 3.40±0.20 1.50 5.80±0.25 14.20±0.25 6.80±0.25 2.50±0.05 Ordering Information: A2501WV-F-XP-H - *** - ** - ** 1 2 3 4 1.Part No 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Color: (blank):White BL:Blue BK:Black RD:Red Ordering Information & Dimensions: YL:Yellow GN:Green Dimensions 4.Finish: PART NO. A B (blank):Tin over Nickel 2.50 7.50 2P G:Gold over Nickel 3P 5.00 10.00 4P 7.50 12.50 5P 10.00 15.00 5.80±0.25 6P 12.50 17.50 7P 15.00 20.00 8P 17.50 22.50 9P 20.00 25.00 10P 22.50 27.50 25.00 30.00 11P 12P 27.50 32.50 13P 30.00 35.00 32.50 37.50 14P 15P 35.00 40.00 16P 37.50 42.50 17P 40.00 45.00 18P 42.50 47.50 ∅1.00 19P 45.00 50.00 2P 20P 47.50 52.50 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-284 A2501 SERIES A2501WR-XP 2.50mm pitch 90° Wafer Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A2501H,HB-XP series Housing *Color:White PIN 0.64 SQ 2.50±0.10 2.50mm pitch wire to board and wire to wire connector Circuit 1 Ordering Information: A2501WR-XP - ** - *** - ** - ** 1 2 3 4 5 1.Part No 2.Style: (blank) :Type 1 2 :Type 2 3.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 4.Color: (blank):White BL:Blue BK:Black RD:Red YL:Yellow GN:Green OR:Orange BR:Brown LY:Lemon yellow VY:Vivid yellow 5.Finish: (blank):Tin over Nickel G:Gold over Nickel 2.50±0.05 Ø0.90+0.10 -0.00 P.C.B LAYOUT Ordering Information & Dimensions: PART NO. A±0.20 5.75±0.25 9.20±0.25 7.00±0.25 11.50±0.25 0.80 TYPE 2 2.38±0.20 B±0.25 3.40±0.20 TYPE 1 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P Dimensions A B 2.50 7.50 5.00 10.00 7.50 12.50 10.00 15.00 12.50 17.50 15.00 20.00 17.50 22.50 20.00 25.00 22.50 27.50 30.00 25.00 27.50 32.50 30.00 35.00 32.50 37.50 35.00 40.00 37.50 42.50 40.00 45.00 42.50 47.50 45.00 50.00 47.50 52.50 Unit: mm A2501WRB-XP Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A2501H,HB-XP series Housing *Color:White PIN 0.64 SQ 2.50±0.10 Circuit 1 2.50mm pitch 90° Wafer Ordering Information: A2501WRB-XP - ** - *** - ** - ** 1 2 3 4 5 1.Part No 2.Style: (blank) :Type 1 2 :Type 2 3.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 4.Color: (blank):White BL:Blue BK:Black RD:Red YL:Yellow GN:Green OR:Orange BR:Brown LY:Lemon yellow VY:Vivid yellow 5.Finish: (blank):Tin over Nickel G:Gold over Nickel 2.50±0.05 Ø0.90+0.10 -0.00 P.C.B LAYOUT Ordering Information & Dimensions: PART NO. A±0.20 5.75±0.25 2.38±0.20 7.60±0.25 0.80 TYPE 2 7.00±0.25 11.50±0.25 B±0.25 3.40±0.20 TYPE 1 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P Dimensions A B 2.50 7.50 5.00 10.00 7.50 12.50 10.00 15.00 12.50 17.50 15.00 20.00 17.50 22.50 20.00 25.00 22.50 27.50 25.00 30.00 27.50 32.50 30.00 35.00 32.50 37.50 35.00 40.00 37.50 42.50 40.00 45.00 42.50 47.50 45.00 50.00 47.50 52.50 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-285 A2501 SERIES A2501WVR-XP 2.50mm pitch 90° Wafer Ordering Information: A2501WVR-XP - ** - *** - ** - ** 1 2 3 4 5 1.Part No 2.Style: (blank) :Type 1 2 :Type 2 3.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 4.Color: (blank):White 2.50±0.05 BL:Blue BK:Black RD:Red YL:Yellow GN:Green Ø0.90+0.10 -0.00 5.Finish: (blank):Tin over Nickel P.C.B LAYOUT G:Gold over Nickel Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A2501H,HB-XP series Housing *Color:White PIN 0.64 SQ 2.50±0.10 2.50mm pitch wire to board and wire to wire connector Circuit 1 A±0.20 5.75±0.25 B±0.25 0.80 7.32±0.25 7.00±0.25 2.38±0.20 3.40±0.20 TYPE 2 TYPE 1 Ordering Information & Dimensions: Dimensions A B 2.50 7.50 5.00 10.00 7.50 12.50 10.00 15.00 12.50 17.50 15.00 20.00 17.50 22.50 20.00 25.00 22.50 27.50 30.00 25.00 27.50 32.50 30.00 35.00 32.50 37.50 35.00 40.00 37.50 42.50 40.00 45.00 42.50 47.50 45.00 50.00 47.50 52.50 PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P Unit: mm A2501WV-S-XP 2.50mm pitch 180° Wafer - SMT TYPE Ordering Information: A2501WV-S-XP - *** - ** - ** 1 2 3 4 1.Part No. 2.Material: (Blank):LCP,UL94V-0 GWT:LCP,UL94V-0,GWT 750 ℃ 3.Color: (blank):Ivory BL:Blue RD:Red GN:Green 4.Finish: (blank):Tin over Nickel G:Gold over Nickel Reference Informations: *Material:Pin:Brass/Tin over Nickel Solder Tabs:Phosphor Bronze/Tin over Nickel Insulator:LCP,UL94V-0 *Mates with CJT A2501H,HB-XP series Housing *Color:Ivory PIN 0.64 SQ 1.30 9.50 1.80 2.50±0.10 2.30 A A±0.20 B±0.25 P.C.B LAYOUT 6.00±0.25 7.80±0.25 C±0.25 Circuit 1 2.50±0.20 3.90 5.00 Ordering Information & Dimensions: 2.50 PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P A 2.50 5.00 7.50 10.00 12.50 15.00 17.50 20.00 22.50 25.00 27.50 30.00 32.50 35.00 37.50 Dimensions B 5.90 8.40 10.90 13.40 15.90 18.40 20.90 23.40 25.90 28.40 30.90 33.40 35.90 38.40 40.90 10.00 12.50 15.00 17.50 20.00 22.50 25.00 27.50 30.00 32.50 35.00 37.50 40.00 42.50 45.00 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-286 A2501 SERIES A2501WR-S-XP 2.50mm pitch wire to board and wire to wire connector 2.50mm pitch 90° Wafer - SMT TYPE Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 6T,UL94V-0 *Mates with CJT A2501H,HB-XP series Housing *Color:Ivory 6.00±0.25 Circuit 1 Ordering Information: A2501WR-S-XP - *** - ** - ** 1 2 3 4 1.Part No. 2.Material: (Blank):Nylon 6T,UL94V-0 GWT:Nylon 6T,UL94V-0,GWT 750℃ 3.Color: (blank):Ivory BL:Blue RD:Red GN:Green LY:Lemon yellow 4.Finish: (blank):Tin over Nickel G:Gold over Nickel 2.50 Ordering Information & Dimensions: 1.30 PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 2.50±0.10 11.00 A±0.20 2.30 1.80 3.90 6.50 3.75 P.C.B LAYOUT B±0.25 3.00±0.20 7.00±0.25 5.50±0.25 6.00±0.25 PIN 0.64 SQ Dimensions A B 2.50 10.00 5.00 12.50 7.50 15.00 10.00 17.50 12.50 20.00 15.00 22.50 17.50 25.00 20.00 27.50 22.50 30.00 32.50 25.00 27.50 35.00 30.00 37.50 32.50 40.00 35.00 42.50 37.50 45.00 40.00 47.50 42.50 50.00 45.00 52.50 47.50 55.00 Unit: mm A2501WRA-S-F-2P 2.50mm pitch 90° Wafer - SMT TYPE 2.60±0.20 9.10±0.25 2.57±0.20 2.50±0.20 1.04±0.20 Ø1.80±0.20 0.80±0.05 2.50±0.20 7.50±0.20 4.00±0.20 3.54±0.20 5.40±0.20 5.80±0.20 Ordering Information: A2501WRA-S-F-2P - *** - ** 1 2 3 1.Part No. 2.Material: (Blank):Nylon 9T,UL94V-0 GWT:Nylon 9T,UL94V-0,GWT 750 ℃ 3.Finish: (blank):Tin over Nickel G:Gold over Nickel 7.07±0.20 Reference Informations: *Material:Pin:Copper Alloy/Tin over Nickel Insulator:Nylon 9T,UL94V-0 *Color:Ivory Ø1.42±0.20 12.07±0.25 11.28±0.20 P.C.B LAYOUT 1.35±0.20 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-287 A2501 SERIES A2501WVT-XP 2.50mm pitch wire to board and wire to wire connector 2.50mm pitch 180° Wafer ON RADIAL-TAPE Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon66,UL94V-0 *Mates with CJT A2501H,HB-XP series Housing *Color:White A±0.20 A±0.20 A±0.20 2.50±0.05 A±0.20 2.50±0.10 2.50±0.10 2.50±0.10 +0.10 Ø0.90-0.00 P.C.B LAYOUT B±0.25 CJTCONN Circuit 1 B±0.25 CJTCONN 7.00±0.25 B±0.25 Circuit 1 B±0.25 CJTCONN CJTCONN □0.64±0.10 2P 3P 5.76±0.25 2.38±0.20 4P 5P 17.20±0.25 Circuit 1 2.80±0.20 Circuit 1 ∅0.70±0.10 □0.64±0.10 CJTCONN CJTCONN CJTCONN 6P 7P 8P CJTCONN CJTCONN 18.00 20.00 12.70 18.00 20.00 CJTCONN 5.00 11.00 2.50 11.00 CJTCONN Ordering Information: A2501WVT-XP - *** - ** - ** 1 2 3 4 1.Part No 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Color: (blank):White BL:Blue BK:Black RD:Red YL:Yellow GN:Green 4.Finish: (blank):Tin over Nickel G:Gold over Nickel Ø4.00 12.70 Ø4.00 12.70 12.70 3P 2P CJTCONN 11.00 CJTCONN 20.00 25.40 Ordering Information & Dimensions: PART NO. 5.00 2P 3P 4P 5P 6P 7P 8P 18.00 3.85 12.70 12.70 12.70 Ø4.00 12.70 4P~8P Dimensions A B 2.50 7.50 5.00 10.00 7.50 12.50 10.00 15.00 12.50 17.50 15.00 20.00 17.50 22.50 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-288 A2501 SERIES A2501HWV-XP 2.50mm pitch wire to board and wire to wire connector 2.50mm pitch 180° Wafer Ordering Information: A2501HWV-XP - *** - ** 1 2 3 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Finish: (blank):Tin over Nickel G:Gold over Nickel Reference Informations: *Material:Pin:Phosphor Bronze/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A2501HMB-XP series Housing or A2501WV,WR, WV-S,WR-S,WV-F-XP,A2501WRB,WVR,WVT-XP series Wafer *Color:White Circuit 1 2.50±0.05 Ordering Information & Dimensions: ∅0.90±0.05 2.50±0.10 PART NO. P.C.B LAYOUT A±0.20 6.00±0.25 B±0.25 4.10±0.20 3.50±0.20 4.80±0.20 9.60±0.25 0.90 1.20±0.15 0.60±0.10 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P Dimensions A B 2.50 7.50 5.00 10.00 7.50 12.50 10.00 15.00 12.50 17.50 15.00 20.00 17.50 22.50 20.00 25.00 22.50 27.50 30.00 25.00 27.50 32.50 30.00 35.00 32.50 37.50 35.00 40.00 37.50 42.50 40.00 45.00 42.50 47.50 45.00 50.00 47.50 52.50 Unit: mm A2501HWR-XP 2.50mm pitch 90° Wafer Ordering Information: A2501HWR-XP - *** - ** 1 2 3 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Finish: (blank):Tin over Nickel G:Gold over Nickel Reference Informations: *Material:Pin:Phosphor Bronze/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A2501HMB-XP series Housing or A2501WV,WR, WV-S,WR-S,WV-F-XP,A2501WRB,WVR,WVT-XP series Wafer *Color:White 0.60±0.10 2.50±0.05 Circuit 1 Ordering Information & Dimensions: ∅0.90±0.05 PART NO. P.C.B LAYOUT 2.50±0.10 A±0.20 5.00±0.25 B±0.25 4.10±0.20 1.20±0.15 4.80±0.20 9.60±0.25 0.90 6.00±0.25 3.50±0.20 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P Dimensions A B 2.50 7.50 5.00 10.00 7.50 12.50 10.00 15.00 12.50 17.50 15.00 20.00 17.50 22.50 20.00 25.00 22.50 27.50 25.00 30.00 27.50 32.50 30.00 35.00 32.50 37.50 35.00 40.00 37.50 42.50 40.00 45.00 42.50 47.50 45.00 50.00 47.50 52.50 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-289
