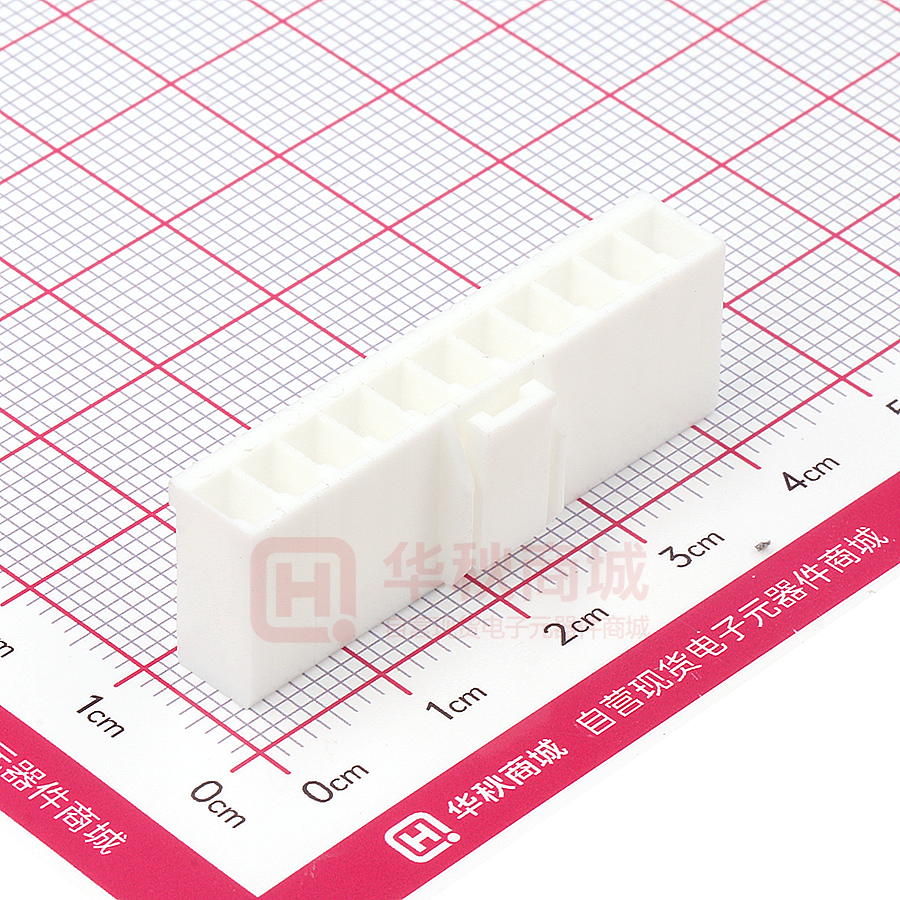

A3502H-11P

A3502 SERIES 3.50mm pitch wire to board connector Specifications Current rating:5.5A AC,DC(Max) Voltage rating:250V AC,DC Temperature range:-40°C~+105°C Contact resistance:10mΩMax. Insulation resistance:1000MΩMin. Withstanding voltage:1500V AC/minute *Compliant with RoHS and REACH* *Meet the HF/Halogen Free,GWT/Glow wire Test (IEC60335-1) request,need to customize* *Contact CJT for details* Standards E326732 E326732 9.40 9.40 1.90 1.60 1.60 1.90 CJTCONN CJTCONN 16.50 REF. 20.20 REF. CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-522 A3502 SERIES A3502H-XP 3.50mm Pitch Housing Ordering Information: A3502H-XP - *** - ** 1 2 3 1.Part No. 2.Material: (blank):Nylon 66,UL94V-0 PBT:PBT,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750°C 3.Color: (blank):White BK:Black RD:Red YL:Yellow BL:Blue GN:Green Reference Informations: *Material:Nylon 66,UL94V-0 *Suitable CJT A3965-T series Terminal *Mates with CJT A3502WV,WR-XP(-A) series Wafer *Color:White Circuit 1 Circuit 1 3.50mm pitch wire to board connector 3.50±0.10 3.50±0.10 A±0.20 Ordering Information & Dimensions: A±0.20 PART NO. B±0.25 B±0.25 13.30±0.25 13.30±0.25 4~15P 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 6.30±0.20 6.95±0.20 2~3P 9.40±0.25 Dimensions A B 3.50 7.50 7.00 11.00 10.50 14.50 14.00 18.00 17.50 21.50 21.00 25.00 24.50 28.50 28.00 32.00 31.50 35.50 35.00 39.00 38.50 42.50 42.00 46.00 45.50 49.50 49.00 53.00 Unit: mm A3502WV-XP 3.50mm Pitch 180° WAFER Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:PBT+15%GF,UL94V-0 *Mates with CJT A3502H-XP series Housing *Color:White 6.40±0.20 Circuit 1 3.50±0.10 Ordering Information: A3502WV-XP - *** - ** - ** 1 2 3 4 1.Part No. 2.Material: (blank):PBT+15%GF,UL94V-0 GWT:PBT,UL94V-0,GWT 750°C 3.Color: (blank):White 3.50±0.10 BK:Black RD:Red YL:Yellow BL:Blue Ø1.20±0.10 GN:Green PK:Pink P.C.B LAYOUT 4.Finish: (blank):Tin over Nickel G:Gold over Nickel Ordering Information & Dimensions: A±0.20 3.28±0.20 PART NO. 7.60±0.20 CJTCONN 3.50±0.20 10.50±0.25 B±0.25 8.25±0.25 0.60 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P Dimensions A B 3.50 9.10 7.00 12.60 10.50 16.10 14.00 19.60 17.50 23.10 21.00 26.60 24.50 30.10 28.00 33.60 31.50 37.10 35.00 40.60 38.50 44.10 42.00 47.60 45.50 51.10 49.00 54.60 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-523 A3502 SERIES A3502WV-XP-A 3.50mm pitch wire to board connector 7.00mm Pitch 180° WAFER Ordering Information: A3502WV-XP-A - *** - ** - ** 1 2 3 4 1.Part No. 2.Material: (blank):PBT+15%GF,UL94V-0 GWT:PBT,UL94V-0,GWT 750°C 3.Color: (blank):White BK:Black RD:Red YL:Yellow BL:Blue GN:Green PK:Pink 4.Finish: (blank):Tin over Nickel G:Gold over Nickel Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:PBT+15%GF,UL94V-0 *Mates with CJT A3502H-XP series Housing *Color:White 6.40±0.20 Circuit 1 7.00±0.10 7.00±0.10 A±0.20 3.28±0.20 Ø1.20±0.10 B±0.25 8.25±0.25 P.C.B LAYOUT 7.60±0.20 PART NO. 3.50±0.20 10.50±0.25 Ordering Information & Dimensions: CJTCONN 3P 5P 7P 9P 11P 13P 15P 0.60 Dimensions A B 7.00 12.60 14.00 19.60 21.00 26.60 28.00 33.60 35.00 40.60 42.00 47.60 49.00 54.60 Unit: mm A3502WR-XP 3.50mm Pitch 90° WAFER 6.40±0.20 4.25±0.20 1.20 3.50±0.10 Ordering Information: A3502WR-XP - *** - ** - ** 1 2 3 4 1.Part No. 2.Material: (blank):PBT+15%GF,UL94V-0 GWT:PBT,UL94V-0,GWT 750°C Ø1.75±0.05 3.Color: (blank):White BK:Black Ø1.20±0.05 RD:Red YL:Yellow BL:Blue 2.05±0.10 3.50±0.10 GN:Green PK:Pink A±0.10 4.Finish: P.C.B LAYOUT (blank):Tin over Nickel G:Gold over Nickel Circuit 1 4.50±0.10 Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:PBT+15%GF,UL94V-0 *Mates with CJT A3502H-XP series Housing *Color:White Ordering Information & Dimensions: PART NO. A±0.20 7.90±0.25 1.50 B±0.25 0.60 7.40±0.25 2.90 CJTCONN Ø1.50 10.20±0.20 14.20±0.25 0.30 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P Dimensions A B 3.50 9.10 7.00 12.60 10.50 16.10 14.00 19.60 17.50 23.10 21.00 26.60 24.50 30.10 28.00 33.60 31.50 37.10 35.00 40.60 38.50 44.10 42.00 47.60 45.50 51.10 49.00 54.60 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-524 A3502 SERIES A3502WR-XP-A 7.00mm Pitch 90° WAFER Ordering Information: A3502WR-XP-A - *** - ** - ** 1 2 3 4 1.Part No. 2.Material: (blank):PBT+15%GF,UL94V-0 GWT:PBT,UL94V-0,GWT 750°C 3.Color: (blank):White BK:Black RD:Red YL:Yellow BL:Blue GN:Green PK:Pink 4.Finish: (blank):Tin over Nickel G:Gold over Nickel 6.40±0.20 4.25±0.20 7.00±0.10 7.00±0.10 Ø1.75±0.05 Ø1.20±0.05 7.00±0.10 Circuit 1 2.05±0.10 A±0.10 A±0.20 4.50±0.10 Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:PBT+15%GF,UL94V-0 *Mates with CJT A3502H-XP series Housing *Color:White 1.20 3.50mm pitch wire to board connector P.C.B LAYOUT 7.90±0.25 1.50 B±0.25 Ordering Information & Dimensions: 0.60 7.40±0.25 PART NO. 2.90 CJTCONN Ø1.50 10.20±0.20 14.20±0.25 0.30 3P 5P 7P 9P 11P 13P 15P Dimensions A B 7.00 12.60 14.00 19.60 21.00 26.60 28.00 33.60 35.00 40.60 42.00 47.60 49.00 54.60 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-525
