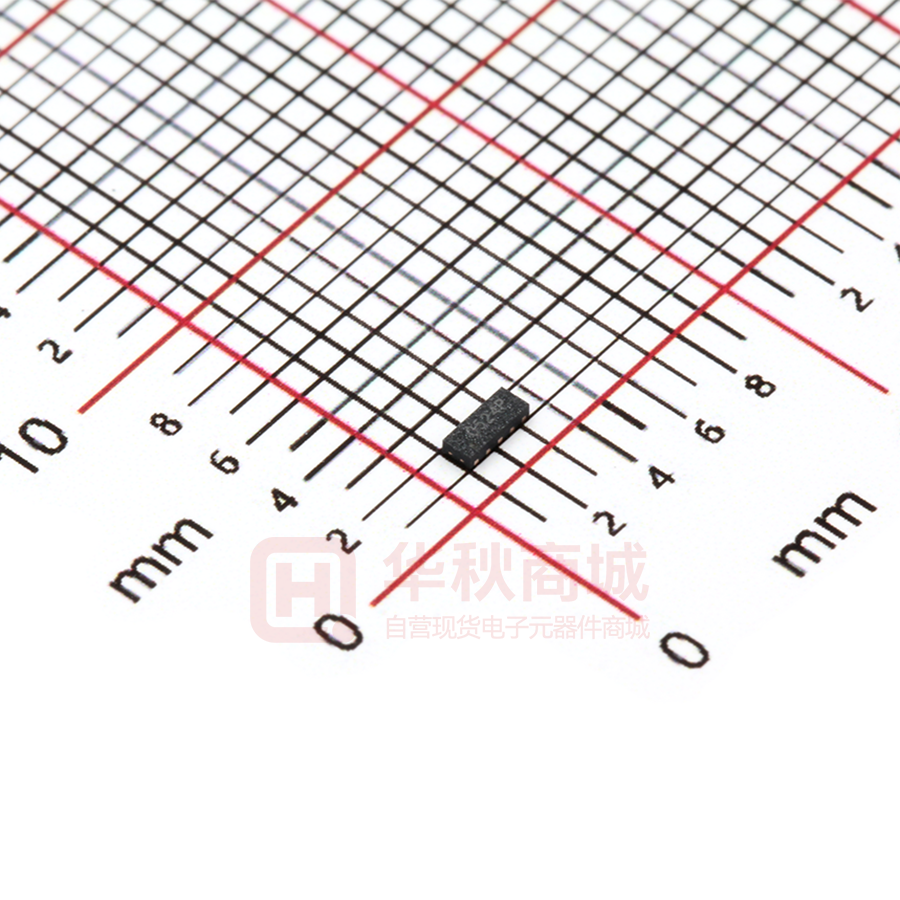

PESDALC10N5VU

PESDALC10N5VU Low Capacitance TVS Array Description The PESDALC10N5VU is low capacitance transient voltage suppressor 10 9 8 7 6 1 2 3 4 5 array for high speed data interface that designed to protect sensitive electronics from damage or latch-up due to ESD lightning, and other voltage induced transient events. All pins are rated to withstand 15kV ESD pulses using the IEC 61000-4-2 air discharge method, which can meet the requirement of level 4. S Feature Applications  100W peak pulse power (tP = 8/20μs)  USB 2.0,3.0 Power & Data Line Protection  DFN-10 Package  DVI & HDMI Port Protection  Working voltage: 5.0V  Serial ATA Port Protection  Low clamping voltage  Mobile Handsets  Low capacitance  Digital Cameras and camcorders  RoHS compliant  PDA & MP3 Players Transient protection for data lines to IEC 61000-4-2(ESD)  Digital TV and Set-top Boxes  Other Portable Electronic Components  ±30KV(air), ±15KV(contact); IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 5A (8/20us) Mechanical Characteristics  Lead finish:100% matte Sn(Tin)  Mounting position: Any  Qualified max reflow temperature:260℃  Device meets MSL 1 requirements  Pure tin plating: 7 ~ 17 um  Pin flatness:≤3mil Electronics Parameter Symbol Parameter VRWM Peak Reverse Working Voltage IR Reverse Leakage Current @ VRWM VBR Breakdown Voltage @ IT IT Test Current IPP Maximum Reverse Peak Pulse Current Rev.06.7 VC Clamping Voltage @ IPP PPP Peak Pulse Power C Junction Capacitance IF Forward Current VF Forward Voltage @ IF I IF V V C V BR V RWM IR V F IT IPP 1 www.prisemi.com Low Capacitance TVS Array PESDALC10N5VU Electrical characteristics per line@( unless otherwise specified) Parameter Symbol Conditions Min. Peak Reverse Working Voltage VRWM Breakdown Voltage VBR It = 1mA Reverse Leakage Current IR VRWM =5.0V, T=25℃ Clamping Voltage VC IPP = 1A, Clamping Voltage VC VC IPP=5A, Junction Capacitance(IO-IO) CJ VR=0V, f = 1MHz Junction Capacitance(IO-GND) CJ VR=0V, f = 1MHz Typ. Max. Units 5 V 6 V 1 μA 11 V 15 V 0.25 0.35 pF 0.5 0.65 pF tP = 8/20μs tP = 8/20μs Absolute maximum rating@25℃ Rating Symbol Value Units Peak Pulse Power (tp=8/20μs) Ppp 100 W Operating Temperature TJ -55 to +150 ℃ Storage Temperature TSTG -55 to +150 ℃ tf=8μs 100 Test 100 Waveform 80 Parameters % Of Rated Power IPP – Peak Pulse Current - % of I PP Typical Characteristics tf=8us 60 tp=20us 40 tP =20μs(IPP /2) 20 0 0 5 10 15 t - Time -μs 60 40 20 20 25 30 Fig 1.Pulse Waveform Rev.06.7 80 0 0 25 50 75 100 125 T L – Lead Temperature - ℃ 150 Fig 2.Power Derating Curve 2 www.prisemi.com Low Capacitance TVS Array PESDALC10N5VU 0.55 CJ - Junction capacitance (pF) 0.50 12 10 8 0 1 2 3 4 VC - Clamping voltage (V) VC - Clamping voltage (V) VC - Clamping voltage (V) f=1MHZ Any I/O pin to GND Pulse waveform : =8/20µs 14 0.45 0.40 0.35 Between any I/O pin 0.30 0.25 0 5 1 2 3 4 5 IPP - Peak pulse current (A) VR - Reverse voltage (V) Fig 3. Clamping voltage vs. Peak pulse current Fig 4 . Capacitance vs. Reveres voltage 10000 30 TLP Current (A) Peak Pulse Power (W) 24 1000 100 18 RD=0.55 Ω 12 6 10 1 10 100 Pulse Duration(us) 0 1000 0 5 Fig 5.Non Repetitive Peak Pulse Power vs. Pulse time 10 15 TLP Voltage (V) 20 25 Fig 6. TLP Measurement Solder Reflow Recommendation Peak Temp=257℃, Ramp Rate=0.802deg. ℃/sec 280 240 200 160 120 80 40 0 0 30 60 90 120 150 180 210 240 270 300 330 360 390 420 450 480 Time (sec) Rev.06.7 3 www.prisemi.com Low Capacitance TVS Array PESDALC10N5VU PCB Design For TVS diodes a low-ohmic and low-inductive path to chassis earth is absolutely mandatory in order to achieve good ESD protection. Novices in the area of ESD protection should take following suggestions to heart:  Do not use stubs, but place the cathode of the TVS diode directly on the signal trace.  Do not make false economies and save copper for the ground connection.  Place via holes to ground as close as possible to the anode of the TVS diode.  Use as many via holes as possible for the ground connection.  Keep the length of via holes in mind! The longer the more inductance they will have. Product dimension (DFN-10) A B D C E H F G 1 R：0.125 10 J L K Rev.06.7 4 www.prisemi.com Low Capacitance TVS Array PESDALC10N5VU Millimeters Inches Dim MIN MAX A 2.40 B 0.90 C MIN MAX 2.60 0.094 0.102 1.10 0.035 0.043 0.13 0.005 D 0.00 0.05 0.00 0.002 E 0.50 0.65 0.020 0.026 F 0.45 0.55 0.017 0.022 G 0.30 0.425 0.012 0.017 H 0.35 0.45 0.014 0.018 J 0.5 BSC 0.020 BSC K 1.20 1.30 0.047 0.056 L 0.15 0.25 0.006 0.010 0.40 0.60 0.20 0.60 0.20 0.50 0.50 Unit:mm Marking information .0524P Ordering information Device Package Reel Shipping PESDALC10N5VU DFN-10 (Pb-Free) 7'' 3000 / Tape & Reel Rev.06.7 5 www.prisemi.com Low Capacitance TVS Array PESDALC10N5VU IMPORTANT NOTICE and are registered trademarks of Pri semi Electronics Co., Ltd (Prisemi) ,Prisemi reserves the right to make changes with out further notice to any products herein. Prisemi makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does P risemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in Prisemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for eac h customer application by customer’s technical experts. Prisemi does not convey any license under its patent rights nor the rights of others. The products listed in this document are designed t o be used wit h ordinary electronic equipment or devices , Should you intend to use thes e products with equipment or devices which require an extremely high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, aerospac e machinery, nuclear-reactor controllers, fuel controllers and other safety devices), please be sure to consult with our sales representative in advance. Website: http://www.prisemi.com For additional information, please contact your local Sales Representative. ©Copyright 2009, Prisemi Electronics is a registered trademark of Prisemi Electronics . All rights are reserved. Rev.06.7 6 www.prisemi.com
