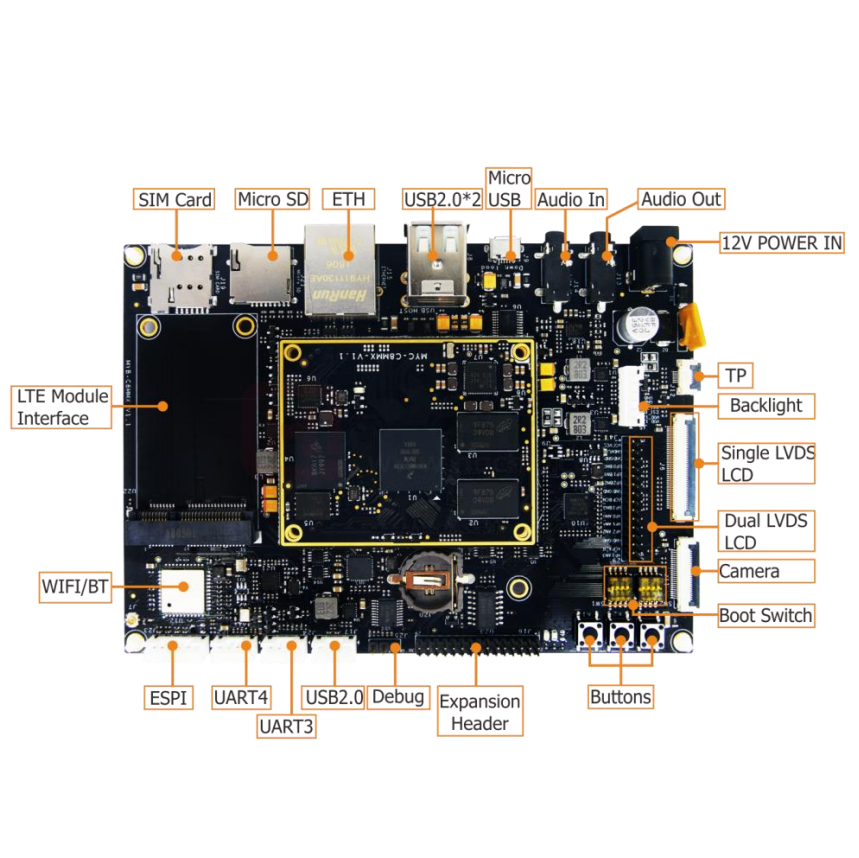

MYD-C8MMQ6-8E2D-160-I

MYC-C8MMX CPU Module ➢ ➢ ➢ ➢ ➢ ➢ ➢ NXP i.MX 8M Mini Quad Application Processor based on 1.8 GHz Arm Cortex-A53 and 400MHz Cortex-M4 Cores 2GB DDR4, 8GB eMMC Flash, 32MB QSPI Flash On-board Gigabit Ethernet PHY ROHM Power Management IC (PMIC) Two 0.8mm pitch 100-pin Board-to-Board Expansion Connectors Supports Working Temperature Ranging from -40°C to 85°C Supports Running Yocto Linux, Ubuntu Linux, Android Figure 1-1 MYC-C8MMX CPU Module Top-View Figure 1-2 MYC-C8MMX CPU Module Bottom-View Measuring 60mm by 49mm, the MYC-C8MMX CPU Module is a low-cost embedded ARM SoM based on NXP’s first embedded multicore applications processor i.MX 8M Mini which features up to 1.8GHz quad-core Cortex-A53 plus 400MHz Cortex-M4 processor, combining advanced 14LPC FinFET process technology to provide more speed and improved power efficiency. It has 2GB DDR4, 8GB eMMC and 32MB QSPI flash default memory and storage configuration as well as integrated GigE PHY and PMIC. A number of peripheral and IO signals are access through two 0.8mm pitch 100-pin board-to-board expansion connectors. It is capable of running Linux and Android OS and provided with plenty of software resources. MYIR offers MYD-C8MMX development board for evaluating the MYC-C8MMX CPU Module, the base board has taken great media capabilities of the i.MX 8M Mini processor to provide MIPI-DSI, MIPI-CSI, LVDS interfaces and Audio In/Out ports. It also has strong communication connectivity with 2 x USB 2.0 Host ports and 1 x Micro USB 2.0 Host/Device port, Gigabit Ethernet, MicroSD card slot, USB based Mini PCIe interface for 4G LTE Module, WiFi/Bluetooth and NVMe PCIe M.2 2280 SSD Interface. MYIR can offer design services to help customize the base board according to customers’ requirements. 1 / 10 Figure 1-3 MYC-C8MMX CPU Module Figure 1-4 MYD-C8MMX Development Board 2 / 10 Hardware Specification The MYC-C8MMX CPU Module is using NXP’s 14 x 14 mm, 0.5 mm pitch, FCBGA486 package i.MX 8M Mini Quad Application Processor (MIMX8MM6DVTLZAA/MIMX8MM6CVTKZAA) which is among the i.MX 8M Mini family and features as in below table. Feature MIMX8MM6CVTKZAA MIMX8MM6DVTLZAA Marketing Description i.MX 8M Mini Quad i.MX 8M Mini Quad Core: Number of cores (SPEC) 4 4 Core Type Arm Cortex-A53 Arm Cortex-A53 Operating Frequency [Max] (MHz) 1600 1800 Co Processor Type Arm Cortex-M4F Arm Cortex-M4F Co Processor Frequency (MAX) (MHz) 400 400 External Memory Supported DDR3L SDRAM, DDR4 SDRAM, ECC, LPDDR4 DRAM, NAND FLASH, NOR FLASH, QSPI L2 Cache (Max) (KB) 512 Ethernet Type 1 Gbps + IEEE 1588 + AVB Serial Communication 3 x SPI, 4 x I²C, 4 x UART PCIe 2.0 1 USB Controllers 2 Video Decode Acceleration HD1080p60, H.265, H.264, VP8, VP9 Video Encode Acceleration HD1080p60, H.264, VP8 Display 1 x MIPI-DSI Camera 1 x MIPI-CSI GPU 2D / GPU 3D 1x shader, Vivante GC320, Vivante GCNanoUltra Audio Specific Modules 8-ch PDM input, SAI/I2S Junction Temperature (Min) (℃) -40 0 Junction Temperature (Max) (℃) 105 95 Table 1-1 Features of i.MX 8M Mini Quad Application Processor 3 / 10 The i.MX 8M Mini family of applications processors (i.MX 8M Mini Quad/QuadLite, i.MX 8M Mini Dual/DualLite, i.MX8M Mini Solo/SoloLite) represent NXP’s latest video and audio experience combining state-of-the-art media-specific features with high-performance processing while optimized for lowest power consumption. The i.MX 8M Mini family of processors features advanced implementation of a quad Arm® Cortex®-A53 core, which operates at speeds of up to 1.8GHz. A general-purpose Cortex®-M4 400 MHz core processor is for low-power processing. The DRAM controller supports 32-bit/16-bit LPDDR4, DDR4, and DDR3L memory. A wide range of audio interfaces are available, including I2S, AC97, TDM, and S/PDIF. There are a number of other interfaces for connecting peripherals, such as USB, PCIe, and Ethernet. It is NXP’s first embedded multicore applications processor built using advanced 14LPC FinFET process technology, providing more speed and improved power efficiency. With commercial and industrial level qualification and backed by NXP’s product longevity program, the i.MX 8M Mini family may be used in any general purpose industrial and IoT application. Figure 1-5 i.MX 8M Mini System Block Diagram 4 / 10 Mechanical Parameters • Dimensions: 60mm x 49mm • PCB Layers: 8-layer design • Power supply: +5V/0.23A • Working temperature: 0~70 Celsius (commercial grade) or 40~85 Celsius (industrial grade) Processor • NXP i.MX 8M Mini Processor - 1.8 GHz Quad-core ARM Cortex-A53 CPU (MIMX8MM6DVTLZAA, commercial grade) / 1.6 GHz Quad-core ARM Cortex-A53 CPU (MIMX8MM6CVTKZAA, industrial grade) - 400MHz Real-time ARM Cortex-M4 co-processor - Integrated 2D/3D GPU and 1080p VPU Memory • 2GB DDR4 (supports up to 4GB DDR4) • 8GB eMMC Flash (supports up to 64GB eMMC) • 32MB QSPI Flash Peripherals and Signals Routed to Pins MYC-C8MMX Pinouts Description • One 10/100/1000M Ethernet PHY • Power Management IC (ROHM BD71847MWV) • Two 0.8mm pitch 100-pin Board-to-Board Expansion Connectors - 1 x 10/100/1000Mbps Ethernet - 3 x Serial ports - 3 x I2C - 3 x SPI - 4 x PWM - 2 x USB 2.0 - 1 x PCIe - 5 x I2S / SAI - 1 x MIPI-CSI - 1 x MIPI-DSI - Up to 103 GPIOs Note: the peripheral signals brought out to the expansion interface are listed in maximum number. Some signals are reused. Please refer to the processor datasheet. 5 / 10 Figure 1-6 MYC-JX8MX CPU Module Function Block Diagram Figure 1-7 MYC-C8MMX Dimensions Chart 6 / 10 Software Features MYIR’s MYC-C8MMX CPU module is ready to run Linux, Android OS and is provided with software packages. Many peripheral drivers are in source code to help accelerate customers’ designs. The software package provided is characterized as following: Item Features Description Source Code Provided Bootstrap program U-boot The primary bootstrap YES Linux kernel Image Based on NXP official imx_4.14.98_2.0.0_ga version YES PMIC BD71847MWV PMIC driver YES USB Host USB Host driver YES USB OTG USB OTG driver YES I2C I2C Bus driver YES SPI SPI Bus driver YES Ethernet 10/100/1000M Ethernet driver YES MMC MMC/eMMC/TF card driver YES LCD MIPI-LVDS driver YES PWM PWM driver YES RTC RTC driver YES IO GPIO driver YES Touch Capacitive touch screen driver YES Audio WM8904 driver YES Camera Ov5640 driver YES WiFi & BT AP6212 driver YES Watchdog Watchdog driver YES 4G LTE Module Supports Quectel’s EC20 using USB driver YES M.2 NVME driver YES Yocto rootfs Including QT5.10 YES Common file system for terminal YES GPIO KEY Key example YES GPIO LED LED example YES NET TCP/IP Sokect C/S example YES RTC RTC example YES UART UART example YES Audio Audio example YES LCD LCD example YES Camera Camera display example YES Cross compiler Yocto GCC 7.3.0 Hardfloat BINARY Drivers File System Application Programs Compiler Tool Chain Table 1-2 Yocto Linux Software Features 7 / 10 Item Features Description Source Code Provided Bootstrap program U-boot The primary bootstrap YES Linux kernel Boot Based on NXP official android_9.0.0_2.3.0 version YES PMIC BD71847MWV PMIC driver YES USB Host USB Host 2.0 driver YES I2C I2C Bus driver YES SPI SPI Bus driver YES Ethernet 10/100/1000M Ethernet driver YES MMC MMC/eMMC/TF card driver YES LVDS LVDS driver YES PWM PWM driver YES RTC RTC driver YES GPIO GPIO driver YES Audio WM8904 driver YES Camera Ov5640 driver YES WiFi & BT AP6212 driver YES Watchdog Watchdog driver YES 4G LTE Module Supports Quectel’s EC20 using USB driver NO M.2 NVME driver YES File System Android system Based on Android 9 YES Compiler Tool Chain Cross compiler Gcc version 4.9 x 20150123 (prerelease) (GCC) YES Drivers Table 1-3 Android Software Features 8 / 10 Item Features Description Source Code Provided Bootstrap program U-boot The primary bootstrap YES Linux kernel Image Based on NXP official imx_4.14.98_2.0.0_ga version YES PMIC BD71847MWV PMIC driver YES USB Host USB Host driver YES USB OTG USB OTG driver YES I2C I2C Bus driver YES SPI SPI Bus driver YES Ethernet 10/100/1000M Ethernet driver YES MMC MMC/eMMC/TF card driver YES LCD MIPI-LVDS driver YES PWM PWM driver YES RTC RTC driver YES IO GPIO driver YES Touch Capacitive touch screen driver YES Audio WM8904 driver YES Camera Ov5640 driver YES Watchdog Watchdog driver YES 4G LTE Module Supports Quectel’s EC20 using USB driver YES M.2 NVME driver YES File System Ubuntu base Ubuntu18.04 Rootfs YES Compiler Tool Chain Cross compiler Yocto GCC 7.3.0 Hardfloat BINARY Drivers Table 1-4 Ubuntu Linux Software Features 9 / 10 Order Information Product Item Part No. Packing List MYC-C8MMQ6-8E2D-180-C ➢ ➢ MYC-C8MMX CPU Module MYC-C8MMQ6-8E2D-160-I MYD-C8MMQ6-8E2D-180-C MYD-C8MMX Development Board MYD-C8MMQ6-8E2D-160-I MY-CAM003M MIPI Camera Module MY-CAM003M MY-CAM002U USB Camera Module MY-CAM002U MYIR Tech Limited Room 04, 6th Floor, Building No.2, Fada Road, Yunli Smart Park, Bantian, Longgang District, Shenzhen, Guangdong, China 518129 E-mail: sales@myirtech.com Phone: +86-755-22984836 Fax: +86-755-25532724 Website: http://www.myirtech.com 10 / 10 One MYC-C8MMX CPU Module One Quick Start Guide Add-on Options ➢ MYD-C8MMX Development Board ➢ MY-CAM003M Camera Module ➢ MY-CAM002U Camera Module Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: MYIR Tech: MYC-C8MMQ6-8E2D-180-C
