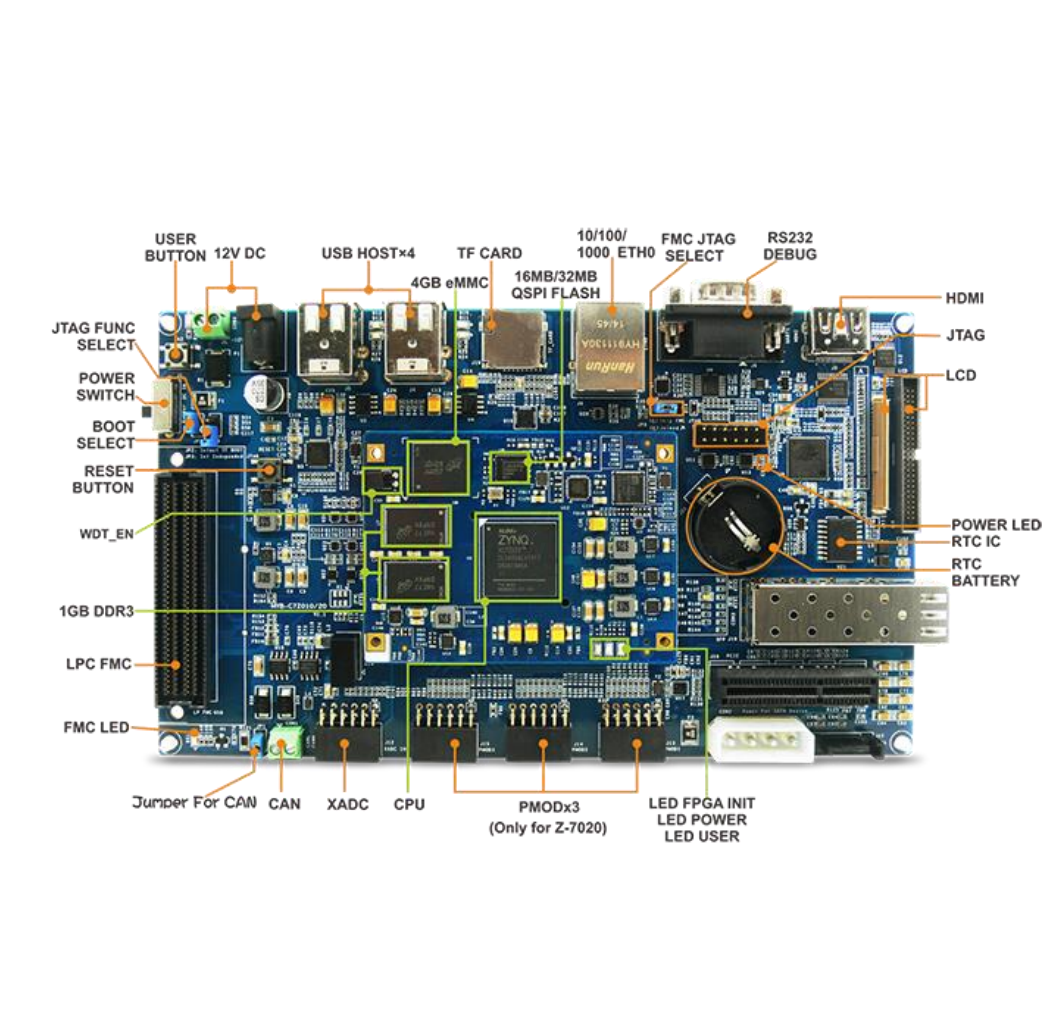

MYD-C7Z010/20 Development Board ➢ ➢ ➢ ➢ ➢ ➢ ➢ ➢ MYC-C7Z010/20 CPU Module as Controller Board Two 0.8mm pitch 140-pin Connectors for Board-to-Board Connections 667MHz Xilinx XC7Z010/20 Dual-core ARM Cortex-A9 Processor with Xilinx 7-series FPGA logic 1GB DDR3 SDRAM (2 x 512MB, 32-bit), 4GB eMMC, 32MB QSPI Flash Serial port, 4 x USB2.0 Host, Gigabit Ethernet, CAN, RTC, HDMI, LCD, TF 1 x XADC, 3 x PMoD, 1 x FMC Optional 4.3- or 7-inch LCD/TSP Ready-to-Run Linux 4.14.0 Figure 1-1 MYD-C7Z010/20 Development Board The MYD-C7Z010/20 development board is built around the MYC-C7Z010/20 CPU Module which is a compact Linux-ready ZYNQ-based SOM (System on Module). The MYC-C7Z010/20 combines the Xilinx XC7Z010-1CLG400C or XC7Z020-1CLG400C SoC device, 1GB DDR3 SDRAM, 4GB eMMC, 32MB quad SPI Flash, a Gigabit Ethernet PHY, a USB PHY and external watchdog. It is connected to the MYD-C7Z010/20 base board through two 0.8mm pitch 140-pin board-to-board connectors. The MYD-C7Z010/20 development board takes full features of the Zynq-7010 and Zynq-7020 SoCs’ powerful dual-core ARM Cortex-A9 processing system and Xilinx 7-series Field Programmable Gate Array (FPGA) logic unit to create a rich set of peripherals to the base board through headers and connectors including one RS232 serial port, four USB Host ports, one Gigabit Ethernet port, CAN, HDMI, LCD/Touch 1 / 10 screen, TF card slot, RTC, one XADC header to allow you take advantage of Xilinx XADC; it has three PMoD headers to meet your I/O needs with PMoDs (only for 7020); it also has a low-pin count FMC connector to allow various FMC cards for custom I/O options. User can integrate a MYC-C7Z010 or a MYC-C7Z020 SOM on the same base board, thus making two variants of Zynq evaluation boards. ⚫ MYD-C7Z010 Development Board – with MYC-C7Z010 CPU Module for Xilinx XC7Z010-1CLG400C ⚫ MYD-C7Z020 Development Board – with MYC-C7Z020 CPU Module for Xilinx XC7Z020-1CLG400C The MYD-C7Z010/20 development board is delivered with necessary cable accessories and MYIR offers optional 4.3-inch and 7-inch LCD. The board is preloaded with Linux. It is a high-performance and low-cost development platform for evaluation and prototype based on Xilinx Zynq-7000 All Programmable SoC family. Figure 1-2 MYD-XC7Z010/20 Development Board Hardware Specification The Zynq™-7000 family of devices combines the software programmability of a Processor with the hardware programmability of an FPGA, resulting in unrivaled levels of system performance, flexibility, scalability while providing system benefits in terms of power reduction, lower cost with fast time to market. Unlike traditional SoC processing solutions, the flexible programmable logic of the Zynq-7000 devices enables optimization and differentiation, allowing designers to add peripherals and accelerators to adapt to a broad base of applications. 2 / 10 The Zynq-7000 AP SoC leverages the 28nm scalable optimized programmable logic used in Xilinx’s 7 series FPGAs. Each device is designed to meet unique requirements across many use cases and applications. The Z-7010, Z-7015, and Z-7020 leverage the Artix® -7 FPGA programmable logic and offer lower power and lower cost for high-volume applications. The Z-7030, Z-7035, Z-7045, and Z-7100 are based on the Kintex® -7 FPGA programmable logic for higher-end applications that require higher performance and high I/O throughput. Z-7010 Z-7015 Z-7020 Processor Core Z-7030 Z-7035 Z-7045 Z-7100 Dual ARM® Cortex™-A9 MPCore™ with CoreSight™ Processor NEON™ & Single / Double Precision Floating Point for each processor Extensions L1 Cache 32 KB Instruction, 32 KB Data per processor L2 Cache 512 KB On-Chip 256 KB Memory Memory DDR3, DDR3L, DDR2, LPDDR2, 2x Quad-SPI, NAND, NOR Interfaces Peripherals 2x USB 2.0 (OTG), 2x Tri-mode Gigabit Ethernet, 2x SD/SDIO 28K Logic 74K Logic 85K Logic 125K Logic 275K Logic 350K Logic Cells Cells Cells Cells Cells Cells BlockRAM (Mb) 240 KB 380 KB 560 KB 1,060 KB 2,000 KB 2,180 KB 3,020 KB DSP Slices 80 160 220 400 900 900 2,020 Logic Cells Transceiver 4 (6.25 up to 4 up to 16 up to 16 Count Gb/s) (12.5 Gb/s) (12.5 Gb/s) (12.5 Gb/s) Table 1-1 ZYNQ-7000 Devices 3 / 10 444K Logic Cells up to 16 (10.3125 Gb/s) Figure 1-3 Zynq-7000 Devices Mechanical Parameters ✓ Dimensions: 190mm x 110mm (base board), 75mm x 55mm (CPU Module) ✓ PCB layers: 4-layer design (base board), 10-layer design (CPU Module) ✓ Power supply: 12V/0.5A (base board), 5V/0.5A (CPU Module) ✓ Working temp.: 0~70 Celsius (commercial grade) or -40~85 Celsius (industrial grade) The MYD-C7Z010/20 Controller Board (MYC-C7Z010/20 CPU Module) Figure 1-4 MYC-C7Z010/20 CPU Module Top-view Figure 1-5 MYC-C7Z010/20 CPU Module Bottom-view 4 / 10 SoC ✓ Xilinx XC7Z010-1CLG400C (Zynq-7010) or XC7Z020-2CLG400C (Zynq-7020) - 667MHz ARM® dual-core Cortex™-A9 MPCore processor (up to 866MHz) - Integrated Artix-7 class FPGA subsystem with 28K logic cells, 17,600 LUTs, 80 DSP slices (for XC7Z010) with 85K logic cells, 53,200 LUTs, 220 DSP slices (for XC7Z020) - NEON™ & Single / Double Precision Floating Point for each processor - Supports a Variety of Static and Dynamic Memory Interfaces Memory ✓ 1GB DDR3 SDRAM (512MB*2） ✓ 4GB eMMC ✓ 32MB QSPI Flash (16MB is optional) Peripherals and Signals Routed to Pins ✓ 10/100/1000M Ethernet PHY ✓ External watchdog ✓ Three LEDs - One blue LED for power indicator - One red LED for FPGA program done indicator - One green user LED ✓ Two 0.8mm pitch 140-pin board-to-board expansion connectors bring out below signals: - One Gigabit Ethernet - One USB OTG 2.0 - Two Serial ports - Two I2C - Two CAN BUS * Serial ports, I2C and CAN signals will be reused in PS part, or implemented through PL pins - Two SPI (can be implemented through PL pins) - ADC (one independent differential ADC, 16-channel ADC brought out through PL pins) - One SDIO The MYD-C7Z010/20 Base Board (MYB-C7Z010/20) Figure 1-6 MYD-C7Z010/20 Base Board for MYC-C7Z010/20 CPU Module 5 / 10 PS Unit ✓ Four USB 2.0 Host ports (through USB Hub) ✓ One RS232 (DB9 port) ✓ One TF card slot (bootable) ✓ One CAN interface ✓ One 10/100/1000M Ethernet ✓ One 2.54mm pitch 14-pin JTAG interface (PS, PL reused) ✓ Battery backed RTC ✓ One User Button (One I2C, can be connected to LCD and Resistive Touch Screen) ✓ Jumpers - One for booting selection from TF card or QSPI - One for JTAG selection for using PS and PL reused or independent JTAG configured through PL pins - One for selection if adding FMC module to JTAG PL Unit ✓ One XADC interface ✓ One Xilinx standard LPFMC interface ✓ One HDMI interface (16-bit YCrCb, support 1080p display, do not support audio) ✓ LCD/Touch screen interface (16-bit RGB, signals reused with HDMI, supports resistive and capacitive touch screen) ✓ Two LEDS (one for FMC module detection, one for power indicator) ✓ Three-channel PMoD (only for XC7Z020) 6 / 10 Function Block Diagram Figure 1-7 MYC-C7Z010/20 CPU Module Function Block Diagram Figure 1-8 MYD-C7Z010/20 Development Board Function Block Diagram 7 / 10 Dimension Chart Figure 1-9 Dimensions of MYC-C7Z010/20 CPU Module Figure 1-10 Dimensions of MYD-C7Z010/20 Development Board 8 / 10 Software Features The MYC-C7Z010/20 CPU Module is capable of running Linux 4.14.0. MYIR provides software package in product disk along with the goods delivery. The software package features as below: Item Cross compiler Features gcc 4.6.1 Description Remark gcc version 4.6.1 (Sourcery CodeBench Lite 2011.09-50) Boot BOOT.BIN First boot program including FSBL, bitstream Source code provided program u-boot Secondary boot program Source code provided Linux Kernel Linux 4.14.0 Customized kernel for MYD-C7Z010/20 Source code provided USB Host USB Host driver Source code provided Ethernet Gigabit Ethernet driver Source code provided MMC/SD/TF MMC/SD/TF card driver Source code provided CAN CAN driver Source code provided LCD Controller XYLON LCD driver Source code provided HDMI HDMI (SII902X chip) driver Source code provided Button Button driver Source code provided UART UART driver Source code provided LED LED driver Source code provided GPIO GPIO driver Source code provided QSPI QSPI Flash S25FL256S driver Source code provided RTC DS3231 RTC driver Source code provided Resistive Touch TSC2007 resistive touch screen driver Source code provided Capacitive Touch FT5X0X capacitive touch screen driver Source code provided ADC ADC driver Source code provided Ramdisk Ramdisk system image Rootfs.tar Tar file Drivers File System Table 1-2 Linux Software Package Features 9 / 10 Order Information Item MYD-C7Z010 Development Board Part No. MYD-C7Z010-4E1D-667-C MYD-C7Z010-4E1D-667-I MYD-C7Z020-4E1D-667-C MYD-C7Z020 Development Board MYD-C7Z020-4E1D-667-I Packing List - One MYD-C7Z010 or MYD-C7Z020 board - One 1.5m cross Ethernet cable - One DB9 UART to USB cable - One HDMI cable - One 12V/1.25A Power adapter - One 16GB TF Card - One product disk (including user manual, base board schematic in PDF format, datasheets and software package) MY-LCD43TP LCD Module MY-TFT043RV2 4.3-inch LCD Module with resistive touch screen MY-LCD70TP LCD Module MY-TFT070RV2 7-inch LCD Module with resistive touch screen MY-LCD70TP-C LCD Module MY-TFT070CV2 7-inch LCD Module with capacitive touch screen MYIR Tech Limited Room 04, 6th Floor, Building No.2, Fada Road, Yunli Smart Park, Bantian, Longgang District, Shenzhen, Guangdong, China 518129 E-mail: sales@myirtech.com Phone: +86-755-22984836 Fax: +86-755-25532724 Website: http://www.myirtech.com 10 / 10
