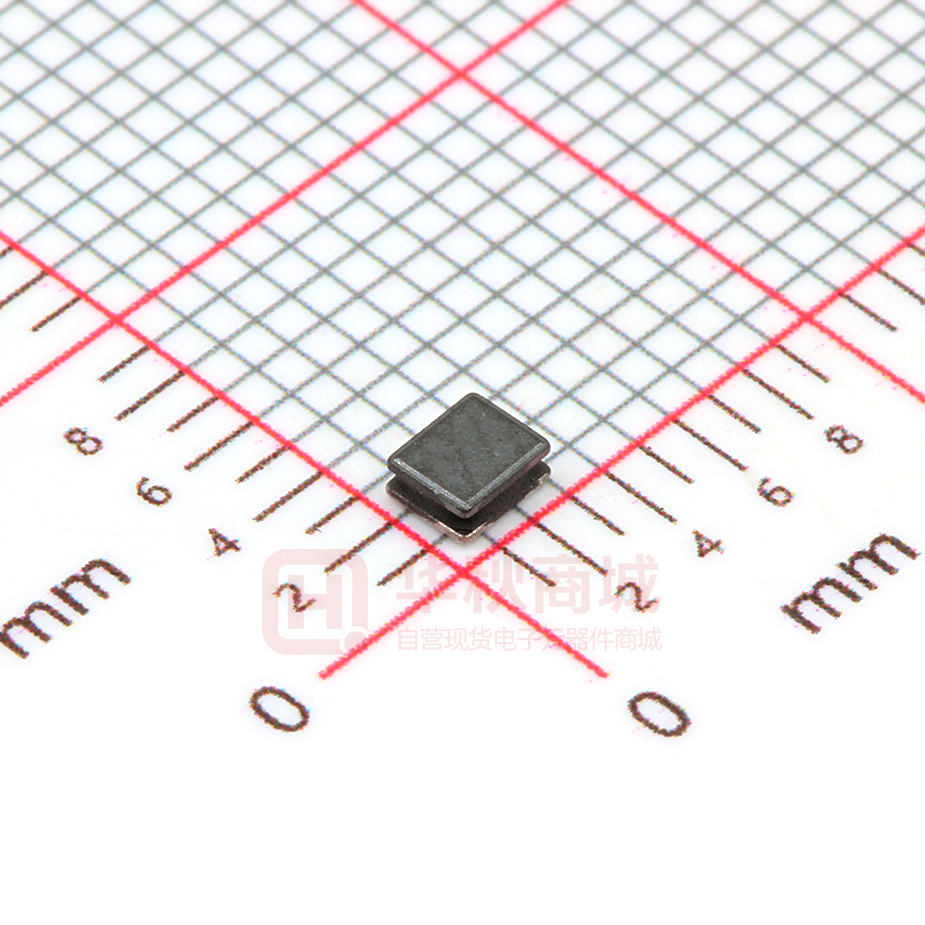

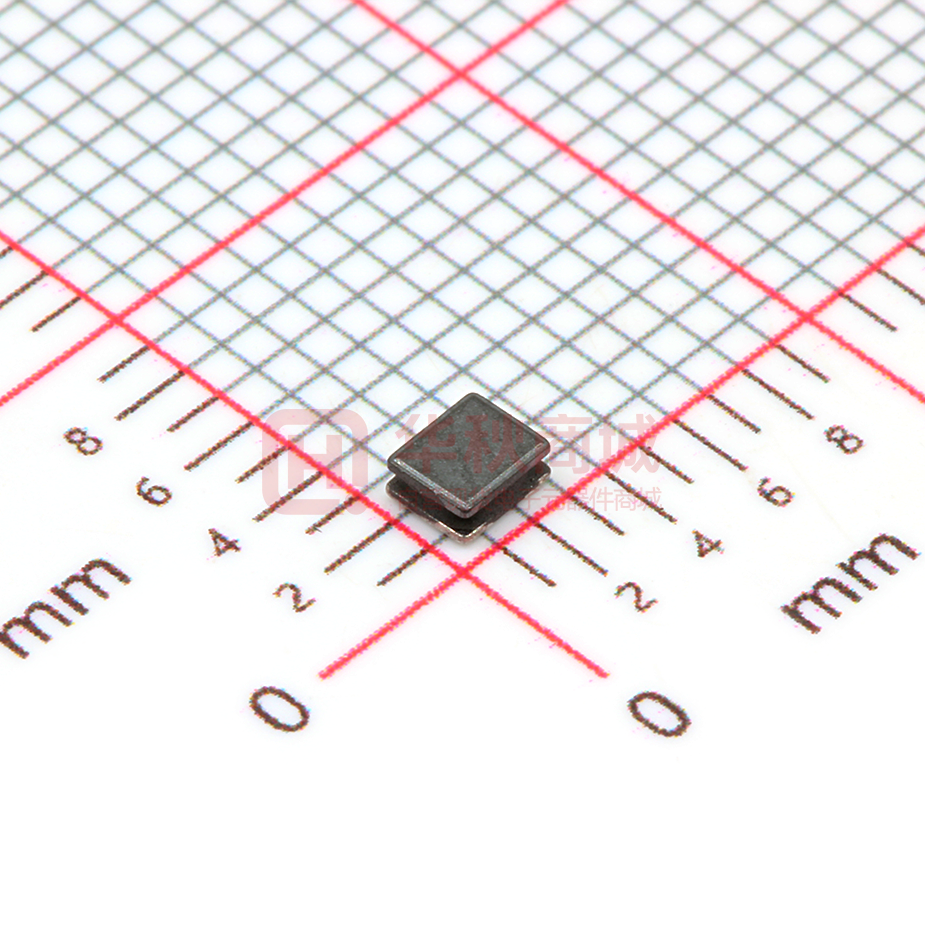

SMD Power Inductors -YNR2512 Series ■ Features ● Low profile construction and miniature size. ● Magnetic shielded construction. ● High current saturation. ● Operating temperature:-40℃ ~ +125℃. ● RoHS compliant ■ Applications ● For small DC/DC converter(HDD,DVC,DSC,PDA,LCD display etc.). ● Car navigation systems,telecom base stations. ● VR,AR,LED lighting. ■ Product Identification ⑴ ：Type ⑵ ：Dimensions ⑶ ：Inductance value ⑷ ：Inductance Tolerance；N=±30%,M=±20%，K=±10% ■ Shapes and Dimensions (Unit：mm) TYPE A B C Max. D E Ref. F Ref. G Ref. YNR2512 2.5±0.1 2.0±0.1 1.20 0.80±0.2 2.00 0.85 0.80 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -1- SMD Power Inductors -YNR2512 Series ■ YNR2512 Series Part Number Inductance DC Resistance (Ω) Heat Rating Saturation (uH) @100KHz Typ. Max. Current (A) Current (A) YNR2512-R22□ 0.22 0.039 0.047 2.20 6.10 YNR2512-R33□ 0.33 0.039 0.047 2.20 4.00 YNR2512-R47□ 0.47 0.047 0.061 2.15 3.82 YNR2512-R68□ 0.68 0.057 0.074 1.95 3.28 YNR2512-1R0□ 1.00 0.069 0.090 1.93 2.59 YNR2512-1R2□ 1.20 0.099 0.129 1.46 2.38 YNR2512-1R5□ 1.50 0.113 0.147 1.40 2.24 YNR2512-2R2□ 2.20 0.166 0.216 1.15 1.85 YNR2512-2R7□ 2.70 0.184 0.239 1.09 1.72 YNR2512-3R3□ 3.30 0.203 0.264 1.04 1.61 YNR2512-3R6□ 3.60 0.268 0.348 0.90 1.46 YNR2512-4R3□ 4.30 0.290 0.377 0.87 1.37 YNR2512-4R7□ 4.70 0.290 0.377 0.84 1.12 YNR2512-5R1□ 5.10 0.385 0.500 0.75 1.23 YNR2512-5R6□ 5.60 0.414 0.538 0.73 1.11 YNR2512-6R2□ 6.20 0.417 0.542 0.73 1.03 YNR2512-6R8□ 6.80 0.447 0.581 0.69 0.98 YNR2512-7R5□ 7.50 0.470 0.611 0.68 0.97 YNR2512-8R2□ 8.20 0.506 0.658 0.65 0.98 YNR2512-9R1□ 9.10 0.531 0.690 0.62 0.91 YNR2512-100□ 10.0 0.531 0.690 0.62 0.79 YNR2512-120□ 12.0 0.827 1.075 0.51 0.78 YNR2512-150□ 15.0 1.224 1.591 0.42 0.68 YNR2512-220□ 22.0 1.520 1.976 0.38 0.53 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -2- SMD Power Inductors -YNR2512 Series ※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃) ※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at 20℃) ※ The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -3- SMD Power Inductors -YNR2512 Series ■ Taping Dimensions(Unit:mm) TYPE Chip Thickness W A B D P K Max T Max MPQ YNR2512 1.20 8.00 2.35 2.65 3.50 4.00 1.40 0.25 2000 ■ Reel Dimensions(Unit:mm) TYPE W W1 A B C D YNR2512 178±2.0 8.40±1.50 4.3±0.20 5.0±0.10 3.0±0.10 58±2.0 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -4- SMD Power Inductors -YNR2512 Series ■ Direction of rolling ■ Cover tape peel off condition Cover tape peel force shall be 0.1N to 1.3N. Reference peel speed 300±10mm/min. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -5-
