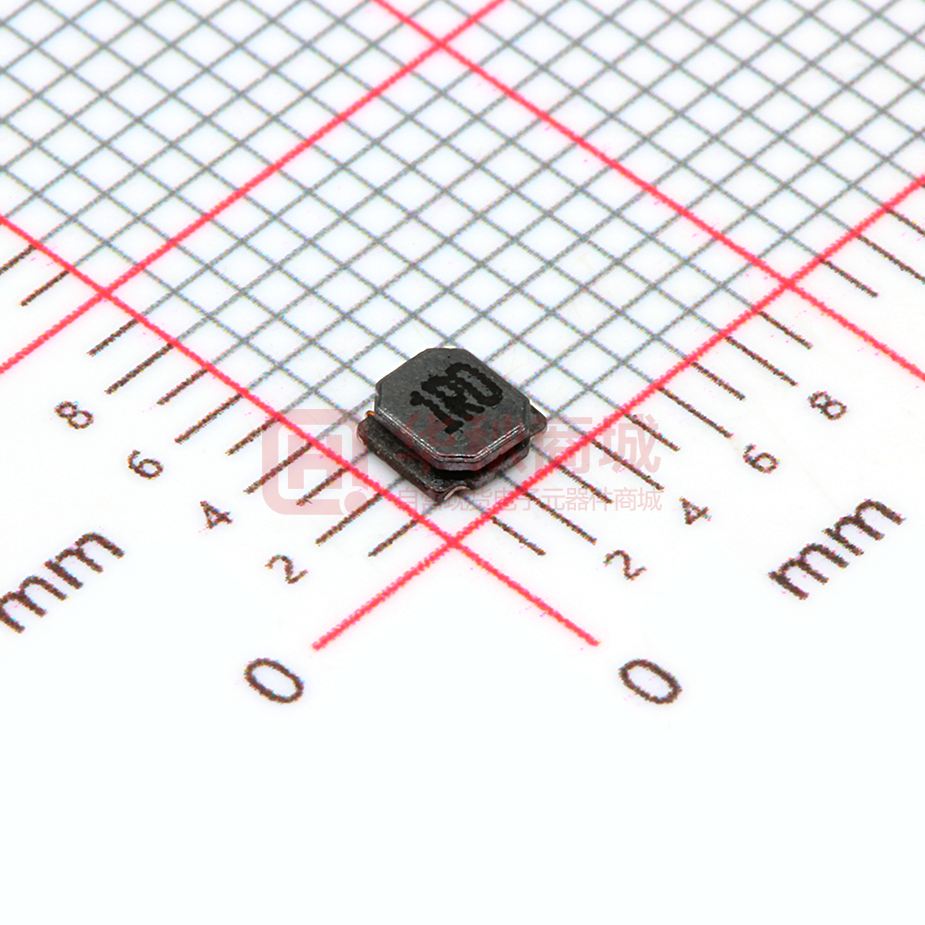

YNR3010-1R0M

SMD Power Inductors -YNR3010 Series ■ Features ● Low profile construction and miniature size. ● Magnetic shielded construction. ● High current saturation. ● Operating temperature:-40℃ ~ +125℃. ● RoHS compliant ■ Applications ● For small DC/DC converter(HDD,DVC,DSC,PDA,LCD display etc.). ● Car navigation systems,telecom base stations. ● VR,AR,LED lighting. ■ Product Identification ⑴ ：Type ⑵ ：Dimensions ⑶ ：Inductance value ⑷ ：Inductance Tolerance；N=±30%,M=±20%，K=±10% ■ Shapes and Dimensions (Unit：mm) TYPE A B C Max. D E Ref. F Ref. G Ref. YNR3010 3.0±0.2 3.0±0.2 1.00 0.75±0.2 2.70 0.80 1.50 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -1- SMD Power Inductors -YNR3010 Series ■ YNR3010 Series Part Number Inductance DC Resistance (Ω) Heat Rating Saturation (uH) @100KHz Typ. Max. Current (A) Current (A) YNR3010-R47□ 0.47 0.034 0.044 2.00 1.44 YNR3010-1R0□ 1.00 0.065 0.085 1.45 1.40 YNR3010-1R2□ 1.20 0.065 0.085 1.45 1.25 YNR3010-1R5□ 1.50 0.080 0.104 1.30 1.27 YNR3010-2R2□ 2.20 0.110 0.143 1.09 1.15 YNR3010-2R7□ 2.70 0.130 0.169 1.02 1.00 YNR3010-3R3□ 3.30 0.145 0.189 0.96 0.97 YNR3010-3R6□ 3.60 0.165 0.215 0.90 0.95 YNR3010-4R7□ 4.70 0.225 0.293 0.77 0.75 YNR3010-5R6□ 5.60 0.248 0.322 0.70 0.58 YNR3010-6R8□ 6.80 0.305 0.397 0.66 0.55 YNR3010-8R2□ 8.20 0.400 0.520 0.58 0.55 YNR3010-100□ 10.0 0.400 0.520 0.58 0.55 YNR3010-120□ 12.0 0.505 0.657 0.52 0.43 YNR3010-150□ 15.0 0.610 0.793 0.47 0.42 YNR3010-220□ 22.0 0.930 1.209 0.38 0.35 YNR3010-270□ 27.0 1.080 1.404 0.35 0.30 YNR3010-330□ 33.0 1.550 2.015 0.30 0.29 YNR3010-390□ 39.0 1.750 2.275 0.28 0.28 YNR3010-430□ 43.0 1.800 2.340 0.27 0.23 YNR3010-470□ 47.0 1.950 2.535 0.26 0.22 YNR3010-510□ 51.0 2.200 2.860 0.25 0.22 YNR3010-560□ 56.0 2.320 3.016 0.24 0.21 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -2- SMD Power Inductors -YNR3010 Series ※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃) ※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at 20℃) ※ The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -3- SMD Power Inductors -YNR3010 Series ■ Taping Dimensions(Unit:mm) TYPE Chip Thickness W A B D P K Max T Max MPQ YNR3010 1.00 8.00 3.30 3.30 3.50 4.00 1.40 0.25 2000 ■ Reel Dimensions(Unit:mm) TYPE W W1 A B C D YNR3010 178±2.0 8.40±1.50 4.3±0.20 5.0±0.10 3.0±0.10 58±2.0 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -4- SMD Power Inductors -YNR3010 Series ■ Direction of rolling ■ Cover tape peel off condition Cover tape peel force shall be 0.1N to 1.3N. Reference peel speed 300±10mm/min. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -5-
