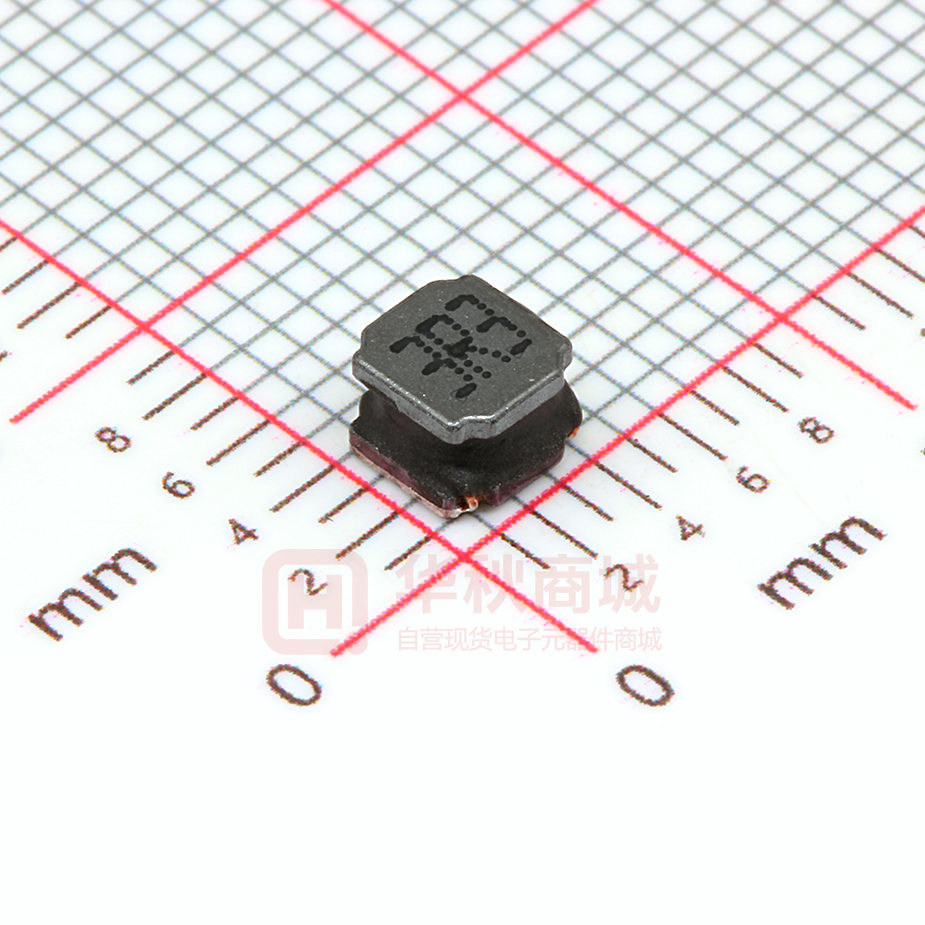

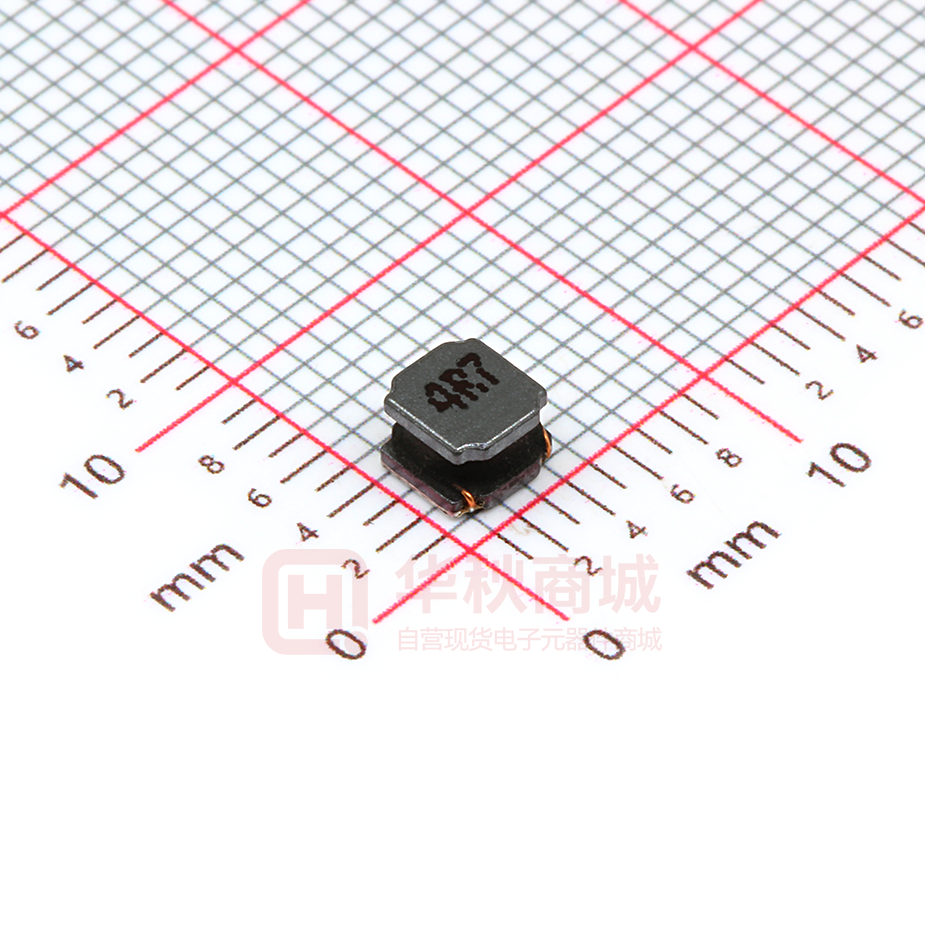

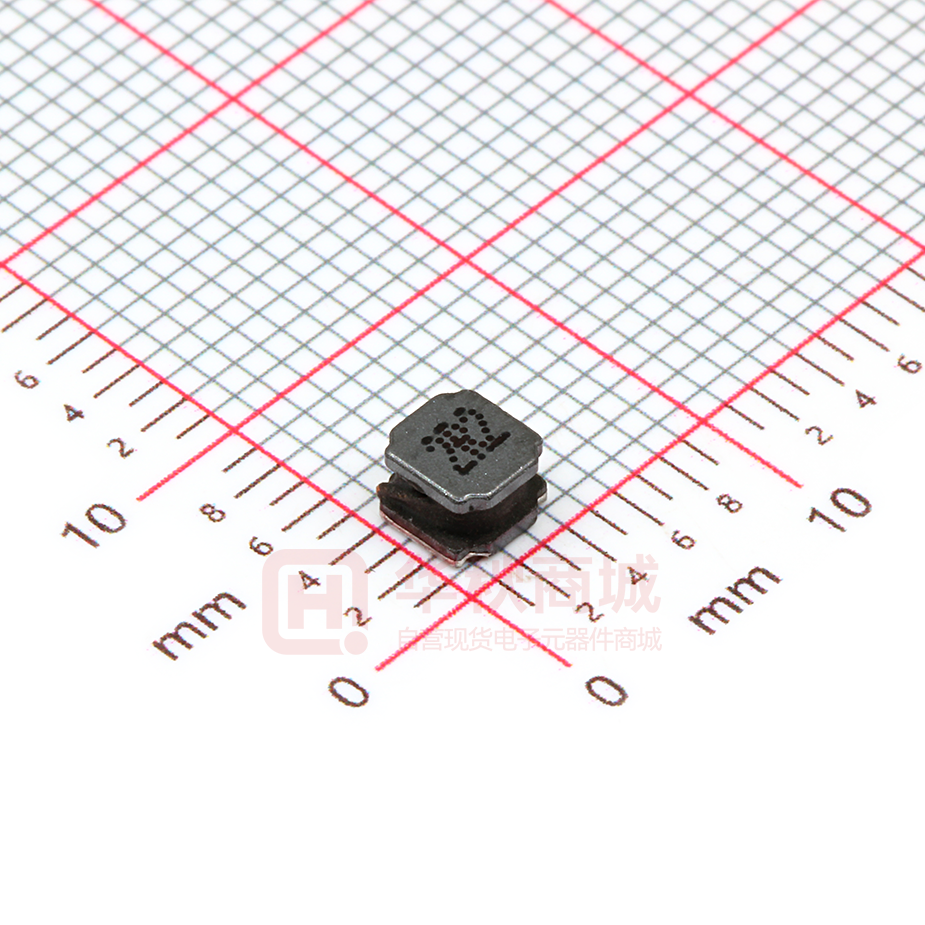

YNR4030-3R3M

SMD Power Inductors -YNR4030 Series ■ Features ● Low profile construction and miniature size. ● Magnetic shielded construction. ● High current saturation. ● Operating temperature:-40℃ ~ +125℃. ● RoHS compliant ■ Applications ● For small DC/DC converter(HDD,DVC,DSC,PDA,LCD display etc.). ● Car navigation systems,telecom base stations. ● VR,AR,LED lighting. ■ Product Identification ⑴ ：Type ⑵ ：Dimensions ⑶ ：Inductance value ⑷ ：Inductance Tolerance；N=±30%,M=±20%，K=±10% ■ Shapes and Dimensions (Unit：mm) TYPE A B C Max. D E Ref. F Ref. G Ref. YNR4030 4.0±0.2 4.0±0.2 3.00 0.95±0.2 3.70 1.10 1.90 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -1- SMD Power Inductors -YNR4030 Series ■ YNR4030 Series Part Number Inductance DC Resistance (Ω) Heat Rating Saturation (uH) @100KHz Typ. Max. Current (A) Current (A) YNR4030-R47□ 0.47 0.008 0.010 5.20 7.80 YNR4030-R68□ 0.68 0.010 0.013 4.56 6.80 YNR4030-R91□ 0.91 0.013 0.017 4.15 6.25 YNR4030-1R0□ 1.00 0.014 0.018 4.15 5.26 YNR4030-1R5□ 1.50 0.020 0.026 3.34 4.84 YNR4030-1R8□ 1.80 0.025 0.033 3.20 5.40 YNR4030-2R2□ 2.20 0.030 0.039 2.95 4.90 YNR4030-3R3□ 3.30 0.040 0.052 2.40 3.30 YNR4030-3R9□ 3.90 0.057 0.074 2.10 3.00 YNR4030-4R7□ 4.70 0.060 0.078 2.00 2.90 YNR4030-5R6□ 5.60 0.065 0.085 1.95 2.60 YNR4030-6R8□ 6.80 0.090 0.117 1.60 2.75 YNR4030-7R5□ 7.50 0.085 0.110 1.65 2.20 YNR4030-8R2□ 8.20 0.090 0.117 1.60 2.10 YNR4030-100□ 10.0 0.100 0.130 1.50 1.95 YNR4030-120□ 12.0 0.135 0.175 1.30 1.70 YNR4030-150□ 15.0 0.190 0.247 1.11 1.65 YNR4030-180□ 18.0 0.200 0.260 1.10 1.40 YNR4030-220□ 22.0 0.225 0.292 1.00 1.30 YNR4030-270□ 27.0 0.260 0.338 0.90 1.15 YNR4030-330□ 33.0 0.330 0.429 0.84 1.10 YNR4030-360□ 36.0 0.335 0.436 0.83 1.05 YNR4030-390□ 39.0 0.435 0.566 0.73 1.03 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -2- SMD Power Inductors -YNR4030 Series ■ YNR4030 Series Part Number Inductance DC Resistance (Ω) Heat Rating Saturation (uH) @100KHz Typ. Max. Current (A) Current (A) YNR4030-470□ 47.0 0.445 0.579 0.72 0.95 YNR4030-510□ 51.0 0.470 0.611 0.70 0.90 YNR4030-560□ 56.0 0.555 0.722 0.65 0.85 YNR4030-620□ 62.0 0.585 0.761 0.63 0.80 YNR4030-680□ 68.0 0.868 1.128 0.52 0.72 YNR4030-820□ 82.0 1.060 1.378 0.47 0.66 YNR4030-910□ 91.0 1.100 1.430 0.46 0.65 YNR4030-101□ 100 1.150 1.495 0.45 0.60 YNR4030-121□ 120 1.350 1.755 0.42 0.55 YNR4030-151□ 150 1.800 2.340 0.30 0.50 YNR4030-221□ 220 2.500 3.250 0.35 0.40 YNR4030-331□ 330 4.000 5.200 0.25 0.30 YNR4030-471□ 470 7.200 9.360 0.20 0.30 YNR4030-501□ 500 6.944 9.027 0.15 0.28 YNR4030-681□ 680 7.580 9.854 0.14 0.19 ※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃) ※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at 20℃) ※ The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -3- SMD Power Inductors -YNR4030 Series ■ Taping Dimensions(Unit:mm) TYPE Chip Thickness W A B D P K Max T Max MPQ YNR4030 3.00 12.0 4.30 4.30 5.50 8.00 3.20 0.40 2000 ■ Reel Dimensions(Unit:mm) TYPE W W1 A B C D YNR4030 330±2.0 12.8±1.50 13.0±0.50 21.0±0.80 2.0±0.50 100 Min 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -4- SMD Power Inductors -YNR4030 Series ■ Direction of rolling ■ Cover tape peel off condition Cover tape peel force shall be 0.1N to 1.3N. Reference peel speed 300±10mm/min. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -5-
