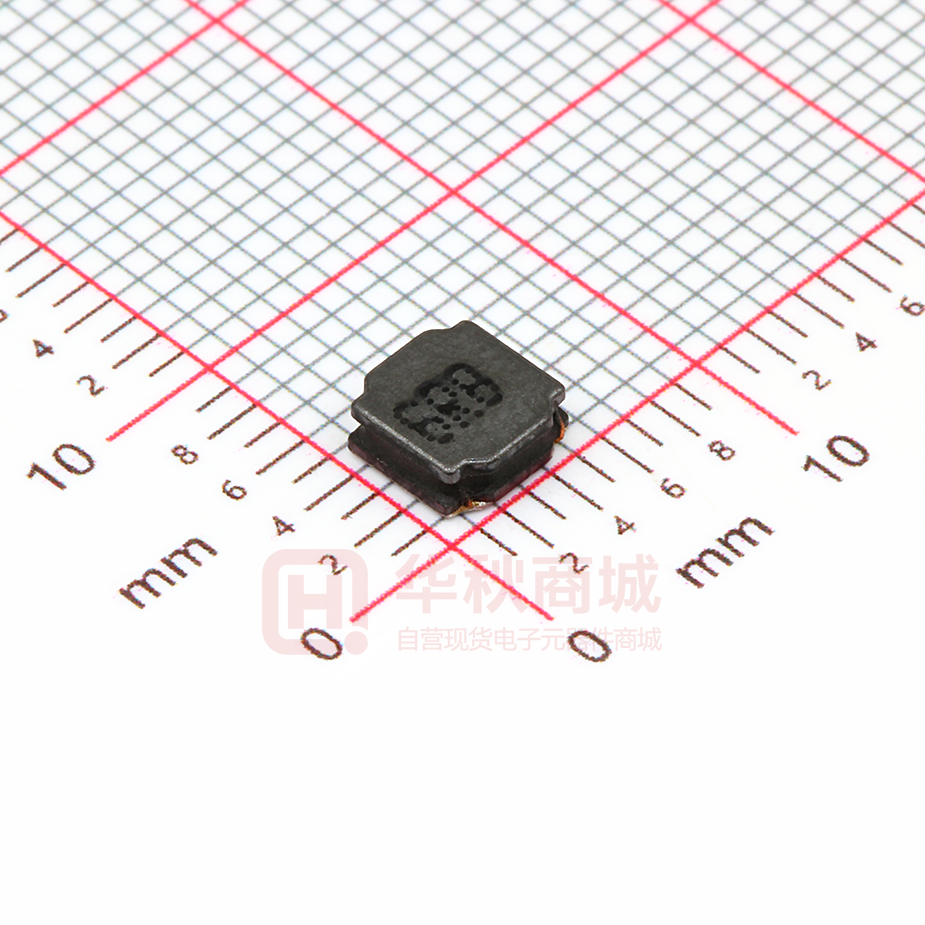

SMD Power Inductors -YNR5020 Series ■ Features ● Low profile construction and miniature size. ● Magnetic shielded construction. ● High current saturation. ● Operating temperature:-40℃ ~ +125℃. ● RoHS compliant ■ Applications ● For small DC/DC converter(HDD,DVC,DSC,PDA,LCD display etc.). ● Car navigation systems,telecom base stations. ● VR,AR,LED lighting. ■ Product Identification ⑴ ：Type ⑵ ：Dimensions ⑶ ：Inductance value ⑷ ：Inductance Tolerance；N=±30%,M=±20%，K=±10% ■ Shapes and Dimensions (Unit：mm) TYPE A B C Max. D E Ref. F Ref. G Ref. YNR5020 5.0±0.2 5.0±0.2 2.00 1.25±0.2 4.70 1.40 2.30 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -1- SMD Power Inductors -YNR5020 Series ■ YNR5020 Series Part Number Inductance DC Resistance (Ω) Heat Rating Saturation (uH) @100KHz Typ. Max. Current (A) Current (A) YNR5020-R22□ 0.22 0.009 0.011 5.30 9.00 YNR5020-R24□ 0.24 0.009 0.011 4.60 8.00 YNR5020-R47□ 0.47 0.013 0.017 4.60 6.15 YNR5020-R56□ 0.56 0.017 0.022 3.80 8.50 YNR5020-R68□ 0.68 0.017 0.022 4.00 5.50 YNR5020-R75□ 0.75 0.017 0.022 4.00 5.50 YNR5020-1R0□ 1.00 0.020 0.026 3.80 4.10 YNR5020-1R5□ 1.50 0.026 0.034 3.20 4.10 YNR5020-2R2□ 2.20 0.032 0.042 2.90 3.20 YNR5020-2R7□ 2.70 0.038 0.049 2.70 2.90 YNR5020-3R0□ 3.00 0.038 0.049 2.70 2.55 YNR5020-3R3□ 3.30 0.043 0.056 2.50 2.55 YNR5020-3R9□ 3.90 0.043 0.056 2.50 2.30 YNR5020-4R7□ 4.70 0.057 0.074 2.20 2.50 YNR5020-5R1□ 5.10 0.064 0.083 2.05 2.25 YNR5020-5R6□ 5.60 0.064 0.083 2.05 2.30 YNR5020-6R8□ 6.80 0.083 0.108 1.80 2.05 YNR5020-7R5□ 7.50 0.090 0.117 1.75 1.85 YNR5020-8R2□ 8.20 0.098 0.127 1.65 1.85 YNR5020-9R1□ 9.10 0.110 0.143 1.55 1.70 YNR5020-100□ 10.0 0.110 0.143 1.55 1.70 YNR5020-120□ 12.0 0.140 0.182 1.40 1.50 YNR5020-150□ 15.0 0.165 0.215 1.25 1.35 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -2- SMD Power Inductors -YNR5020 Series ■ YNR5020 Series Part Number Inductance DC Resistance (Ω) Heat Rating Saturation (uH) @100KHz Typ. Max. Current (A) Current (A) YNR5020-180□ 18.0 0.200 0.260 1.15 1.25 YNR5020-220□ 22.0 0.226 0.294 1.10 1.15 YNR5020-330□ 33.0 0.390 0.507 0.90 0.92 YNR5020-470□ 47.0 0.523 0.680 0.77 0.77 YNR5020-560□ 56.0 0.630 0.819 0.70 0.77 YNR5020-620□ 62.0 0.630 0.819 0.70 0.60 YNR5020-680□ 68.0 0.740 0.962 0.64 0.65 YNR5020-820□ 82.0 0.965 1.158 0.50 0.65 YNR5020-101□ 100 1.100 1.430 0.53 0.53 YNR5020-121□ 120 1.350 1.755 0.40 0.42 YNR5020-151□ 150 2.150 2.795 0.35 0.40 YNR5020-201□ 200 2.000 2.600 0.30 0.30 YNR5020-221□ 220 2.380 3.094 0.30 0.30 YNR5020-561□ 560 6.970 9.061 0.20 0.24 ※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃) ※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at 20℃) ※ The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -3- SMD Power Inductors -YNR5020 Series ■ Taping Dimensions(Unit:mm) TYPE Chip Thickness W A B D P K Max T Max MPQ YNR5020 2.00 12.0 5.40 5.40 5.50 8.00 2.20 0.35 3000 ■ Reel Dimensions(Unit:mm) TYPE W W1 A B C D YNR5020 330±2.0 12.8±1.50 13.0±0.50 21.0±0.80 2.0±0.50 100 Min 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -4- SMD Power Inductors -YNR5020 Series ■ Direction of rolling ■ Cover tape peel off condition Cover tape peel force shall be 0.1N to 1.3N. Reference peel speed 300±10mm/min. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -5-
