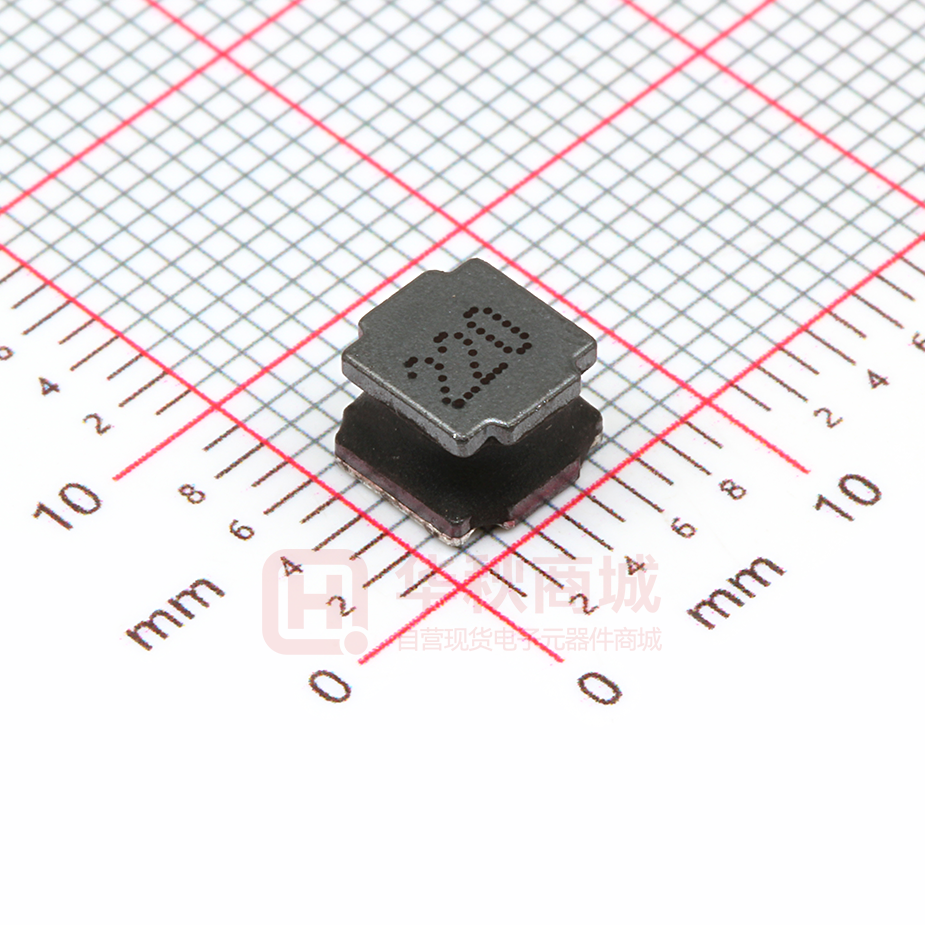

YNR6045-220M

SMD Power Inductors -YNR6045 Series ■ Features ● Low profile construction and miniature size. ● Magnetic shielded construction. ● High current saturation. ● Operating temperature:-40℃ ~ +125℃. ● RoHS compliant ■ Applications ● For small DC/DC converter(HDD,DVC,DSC,PDA,LCD display etc.). ● Car navigation systems,telecom base stations. ● VR,AR,LED lighting. ■ Product Identification ⑴ ：Type ⑵ ：Dimensions ⑶ ：Inductance value ⑷ ：Inductance Tolerance；N=±30%,M=±20%，K=±10% ■ Shapes and Dimensions (Unit：mm) TYPE A B C Max. D E Ref. F Ref. G Ref. YNR6045 6.0±0.3 6.0±0.3 4.50 1.55±0.3 5.70 1.70 2.80 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -1- SMD Power Inductors -YNR6045 Series ■ YNR6045 Series Part Number Inductance DC Resistance (Ω) Heat Rating Saturation (uH) @100KHz Typ. Max. Current (A) Current (A) YNR6045-R47□ 0.47 0.006 0.008 6.50 15.000 YNR6045-R56□ 0.56 0.006 0.008 6.50 14.000 YNR6045-R68□ 0.68 0.006 0.008 5.70 11.000 YNR6045-R82□ 0.82 0.008 0.010 5.90 10.350 YNR6045-1R0□ 1.00 0.011 0.014 5.14 9.850 YNR6045-1R5□ 1.50 0.012 0.016 4.95 8.800 YNR6045-1R8□ 1.80 0.012 0.016 4.95 7.600 YNR6045-2R2□ 2.20 0.014 0.018 4.60 6.750 YNR6045-2R7□ 2.70 0.015 0.020 4.30 5.750 YNR6045-3R0□ 3.00 0.020 0.026 3.80 5.600 YNR6045-3R3□ 3.30 0.021 0.027 3.70 5.900 YNR6045-3R6□ 3.60 0.021 0.027 3.70 5.250 YNR6045-4R7□ 4.70 0.026 0.034 3.30 4.970 YNR6045-5R6□ 5.60 0.029 0.038 3.15 4.150 YNR6045-6R2□ 6.20 0.031 0.040 3.00 4.430 YNR6045-6R8□ 6.80 0.031 0.040 3.00 3.900 YNR6045-7R5□ 7.50 0.034 0.044 2.90 3.500 YNR6045-8R2□ 8.20 0.043 0.056 2.60 3.900 YNR6045-9R1□ 9.10 0.043 0.056 2.60 3.350 YNR6045-100□ 10.0 0.048 0.062 2.45 3.200 YNR6045-120□ 12.0 0.058 0.075 2.20 2.800 YNR6045-150□ 15.0 0.068 0.088 2.05 2.500 YNR6045-180□ 18.0 0.081 0.105 1.85 2.200 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -2- SMD Power Inductors -YNR6045 Series ■ YNR6045 Series Part Number Inductance DC Resistance (Ω) Heat Rating Saturation (uH) @100KHz Typ. Max. Current (A) Current (A) YNR6045-220□ 22.0 0.089 0.116 1.80 2.050 YNR6045-270□ 27.0 0.102 0.133 1.65 1.900 YNR6045-300□ 30.0 0.132 0.172 1.50 1.700 YNR6045-330□ 33.0 0.137 0.178 1.45 1.650 YNR6045-360□ 36.0 0.173 0.225 1.40 1.620 YNR6045-390□ 39.0 0.180 0.234 1.25 1.500 YNR6045-430□ 43.0 0.200 0.260 1.20 1.630 YNR6045-470□ 47.0 0.200 0.260 1.20 1.400 YNR6045-510□ 51.0 0.207 0.269 1.15 1.350 YNR6045-560□ 56.0 0.221 0.287 1.10 1.300 YNR6045-620□ 62.0 0.235 0.306 1.10 1.250 YNR6045-680□ 68.0 0.289 0.376 1.00 1.200 YNR6045-750□ 75.0 0.305 0.397 0.95 1.150 YNR6045-820□ 82.0 0.341 0.443 0.90 1.050 YNR6045-910□ 91.0 0.359 0.467 0.85 1.000 YNR6045-101□ 100 0.433 0.563 0.80 0.950 YNR6045-121□ 120 0.484 0.629 0.77 0.850 YNR6045-151□ 150 0.580 0.754 0.70 0.800 YNR6045-221□ 220 0.834 1.084 0.59 0.700 YNR6045-271□ 270 1.096 1.425 0.55 0.650 YNR6045-331□ 330 1.270 1.651 0.57 0.570 YNR6045-391□ 390 1.800 2.340 0.40 0.500 YNR6045-471□ 470 1.800 2.340 0.42 0.500 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -3- SMD Power Inductors -YNR6045 Series ■ YNR6045 Series Part Number Inductance DC Resistance (Ω) Heat Rating Saturation (uH) @100KHz Typ. Max. Current (A) Current (A) YNR6045-561□ 560 2.480 3.224 0.33 0.460 YNR6045-681□ 680 2.500 3.250 0.33 0.420 YNR6045-751□ 750 3.700 4.810 0.30 0.400 YNR6045-821□ 820 3.700 4.810 0.30 0.360 YNR6045-102□ 1000 4.500 5.850 0.30 0.300 YNR6045-152□ 1500 6.750 8.100 0.21 0.240 YNR6045-202□ 2000 9.700 11.640 0.175 0.210 YNR6045-222□ 2200 10.000 12.000 0.169 0.205 YNR6045-252□ 2500 10.570 12.680 0.167 0.200 YNR6045-332□ 3300 13.000 15.300 0.150 0.170 YNR6045-472□ 4700 18.750 22.500 0.120 0.150 YNR6045-502□ 5000 20.000 24.000 0.115 0.135 YNR6045-602□ 6000 30.000 36.000 0.097 0.125 YNR6045-682□ 6800 31.200 37.400 0.095 0.120 YNR6045-702□ 7000 33.000 39.600 0.090 0.120 YNR6045-802□ 8000 35.500 42.600 0.085 0.115 YNR6045-103□ 10000 40.000 48.000 0.08 0.100 YNR6045-123□ 12000 62.000 74.400 0.065 0.095 YNR6045-143□ 14000 63.500 76.200 0.063 0.090 YNR6045-153□ 15000 70.000 84.000 0.060 0.080 ※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃) ※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at 20℃) ※ The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -4- SMD Power Inductors -YNR6045 Series ■ Taping Dimensions(Unit:mm) TYPE Chip Thickness W A B D P K Max T Max MPQ YNR6045 4.50 16.0 6.40 6.40 7.50 8.00 4.70 0.40 1500 ■ Reel Dimensions(Unit:mm) TYPE W W1 A B C D YNR6045 330±2.0 16.5±1.50 13.0±0.50 21.0±0.80 2.0±0.50 100 Min 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -5- SMD Power Inductors -YNR6045 Series ■ Direction of rolling ■ Cover tape peel off condition Cover tape peel force shall be 0.1N to 1.3N. Reference peel speed 300±10mm/min. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -6-
