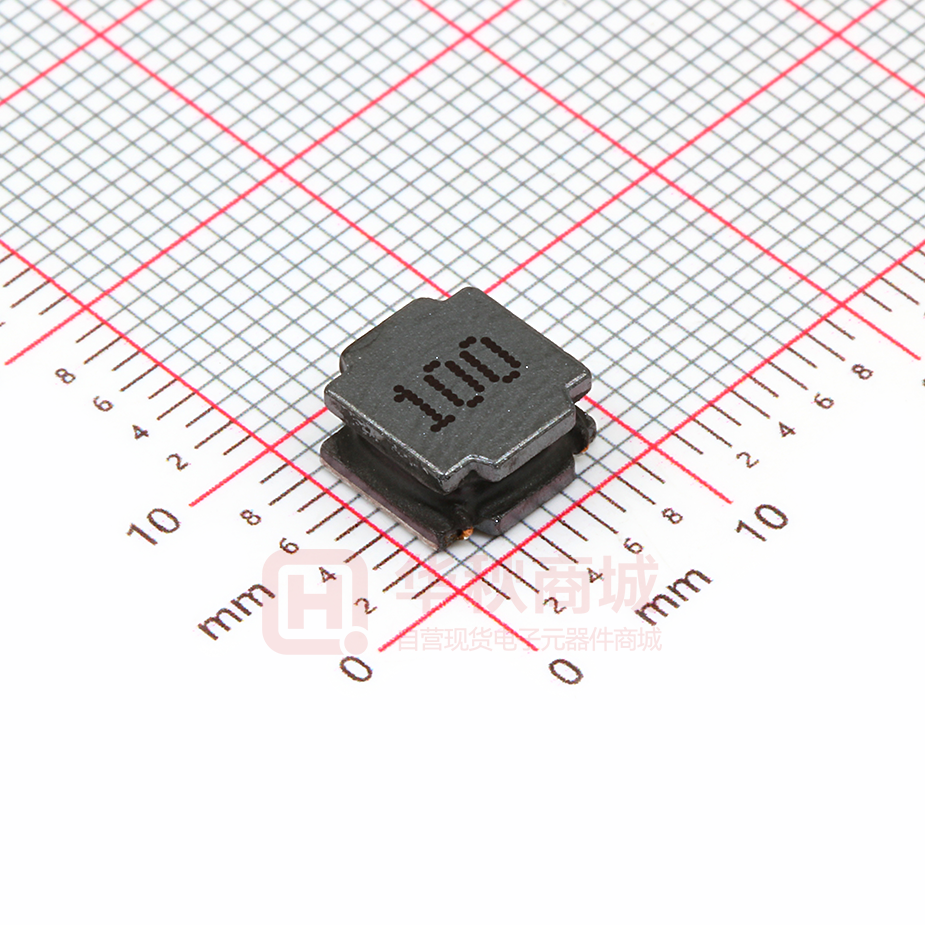

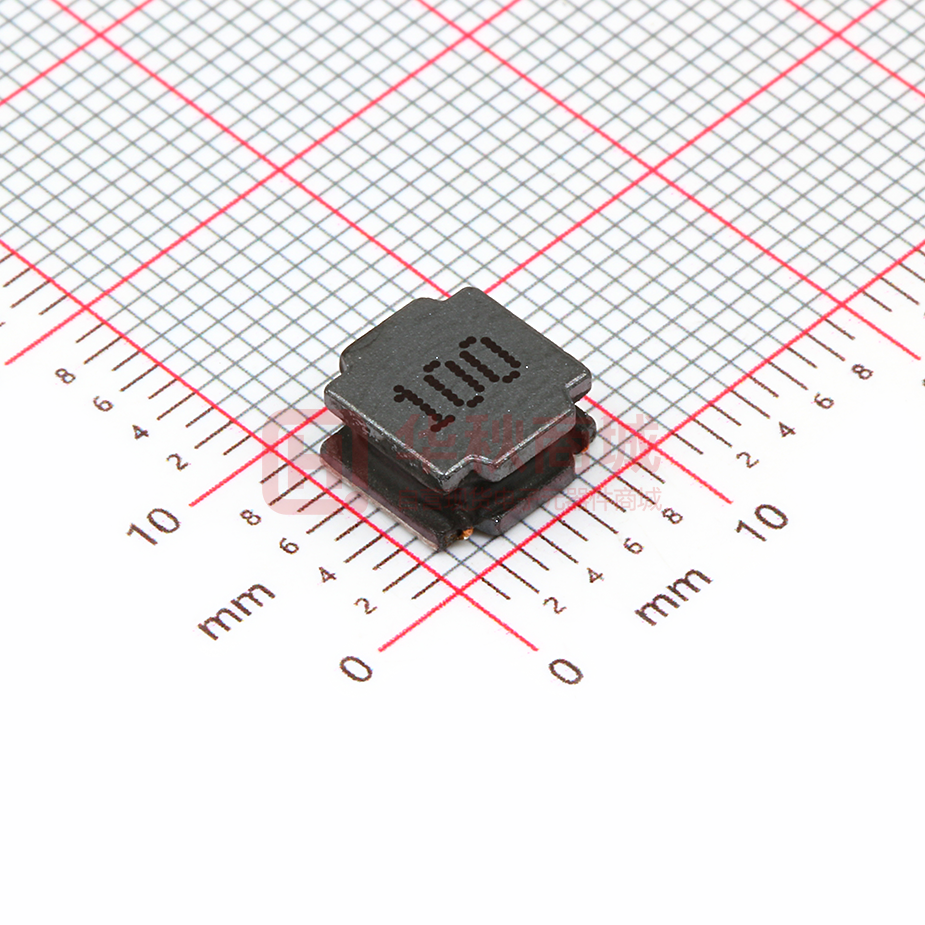

YNR8040-100M

SMD Power Inductors -YNR8040 Series ■ Features ● Low profile construction and miniature size. ● Magnetic shielded construction. ● High current saturation. ● Operating temperature:-40℃ ~ +125℃. ● RoHS compliant. ■ Applications ● For small DC/DC converter(HDD,DVC,DSC,PDA,LCD display etc.). ● Car navigation systems,telecom base stations. ● VR,AR,LED lighting. ■ Product Identification ⑴ ：Type ⑵ ：Dimensions ⑶ ：Inductance value ⑷ ：Inductance Tolerance；N=±30%,M=±20%，K=±10% ■ Shapes and Dimensions (Unit：mm) TYPE A B C Max. D E Ref. F Ref. G Ref. YNR8040 8.0±0.3 8.0±0.3 4.20 2.00±0.3 7.50 2.20 3.80 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -1- SMD Power Inductors -YNR8040 Series ■ YNR8040 Series Part Number Inductance DC Resistance (Ω) Heat Rating Saturation (uH) @100KHz Typ. Max. Current (A) Current (A) YNR8040-R82□ 0.82 0.008 0.010 6.30 13.80 YNR8040-1R0□ 1.00 0.008 0.010 6.30 9.85 YNR8040-1R2□ 1.20 0.010 0.013 5.65 10.00 YNR8040-1R5□ 1.50 0.010 0.013 5.65 8.15 YNR8040-2R0□ 2.00 0.012 0.016 5.15 9.25 YNR8040-2R2□ 2.20 0.012 0.016 5.15 7.10 YNR8040-3R0□ 3.00 0.014 0.018 4.70 6.10 YNR8040-3R3□ 3.30 0.017 0.022 4.40 6.50 YNR8040-3R6□ 3.60 0.017 0.022 4.35 7.52 YNR8040-3R9□ 3.90 0.017 0.022 4.35 5.75 YNR8040-4R7□ 4.70 0.019 0.025 4.10 5.90 YNR8040-5R1□ 5.10 0.019 0.025 4.05 4.70 YNR8040-5R6□ 5.60 0.021 0.027 3.85 6.00 YNR8040-6R8□ 6.80 0.024 0.031 3.60 4.55 YNR8040-8R2□ 8.20 0.026 0.034 3.45 4.20 YNR8040-100□ 10.0 0.029 0.038 3.30 3.60 YNR8040-120□ 12.0 0.041 0.053 2.80 3.50 YNR8040-150□ 15.0 0.047 0.061 2.60 2.95 YNR8040-180□ 18.0 0.053 0.069 2.40 2.70 YNR8040-220□ 22.0 0.069 0.090 2.10 2.40 YNR8040-270□ 27.0 0.078 0.101 2.00 2.15 YNR8040-330□ 33.0 0.097 0.126 1.80 2.05 YNR8040-360□ 36.0 0.102 0.133 1.75 2.00 YNR8040-390□ 39.0 0.107 0.138 1.70 1.95 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -2- SMD Power Inductors -YNR8040 Series ■ YNR8040 Series Part Number Inductance DC Resistance (Ω) Heat Rating Saturation (uH) @100KHz Typ. Max. Current (A) Current (A) YNR8040-430□ 43.0 0.113 0.147 1.65 1.90 YNR8040-470□ 47.0 0.136 0.177 1.55 1.75 YNR8040-510□ 51.0 0.142 0.185 1.50 1.70 YNR8040-620□ 62.0 0.182 0.237 1.30 1.50 YNR8040-680□ 68.0 0.196 0.255 1.25 1.45 YNR8040-750□ 75.0 0.211 0.274 1.20 1.35 YNR8040-820□ 82.0 0.225 0.293 1.15 1.30 YNR8040-910□ 91.0 0.272 0.354 1.05 1.20 YNR8040-101□ 100 0.290 0.377 1.00 1.15 YNR8040-121□ 120 0.334 0.434 0.95 1.05 YNR8040-151□ 150 0.410 0.533 0.85 1.10 YNR8040-181□ 180 0.520 0.676 0.83 0.95 YNR8040-221□ 220 0.599 0.779 0.80 0.85 YNR8040-271□ 270 0.750 0.975 0.75 0.80 YNR8040-331□ 330 0.889 1.156 0.64 0.68 YNR8040-391□ 390 0.860 1.118 0.60 0.53 YNR8040-471□ 470 1.260 1.625 0.50 0.60 YNR8040-561□ 560 1.790 2.327 0.47 0.50 YNR8040-681□ 680 2.040 2.652 0.45 0.50 YNR8040-821□ 820 2.800 3.640 0.35 0.53 YNR8040-102□ 1000 2.800 3.640 0.35 0.40 YNR8040-152□ 1500 5.000 6.500 0.26 0.32 ※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃) ※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at 20℃) ※ The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -3- SMD Power Inductors -YNR8040 Series ■ Taping Dimensions(Unit:mm) TYPE Chip Thickness W A B D P K Max T Max MPQ YNR8040 4.00 16.0 8.35 8.35 7.50 12.0 4.50 0.40 1000 ■ Reel Dimensions(Unit:mm) TYPE W W1 A B C D YNR8040 330±2.0 16.5±1.50 13.0±0.50 21.0±0.80 2.0±0.50 100 Min 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -4- SMD Power Inductors -YNR8040 Series ■ Direction of rolling ■ Cover tape peel off condition Cover tape peel force shall be 0.1N to 1.3N. Reference peel speed 300±10mm/min. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -5-
