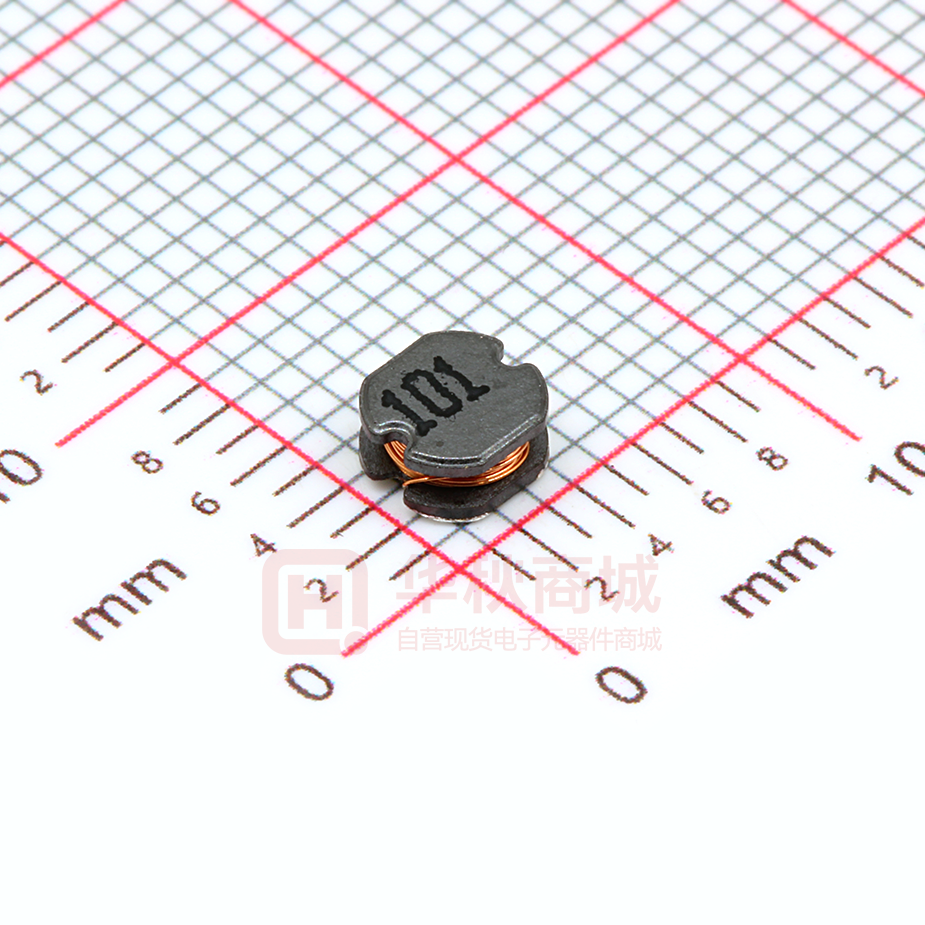

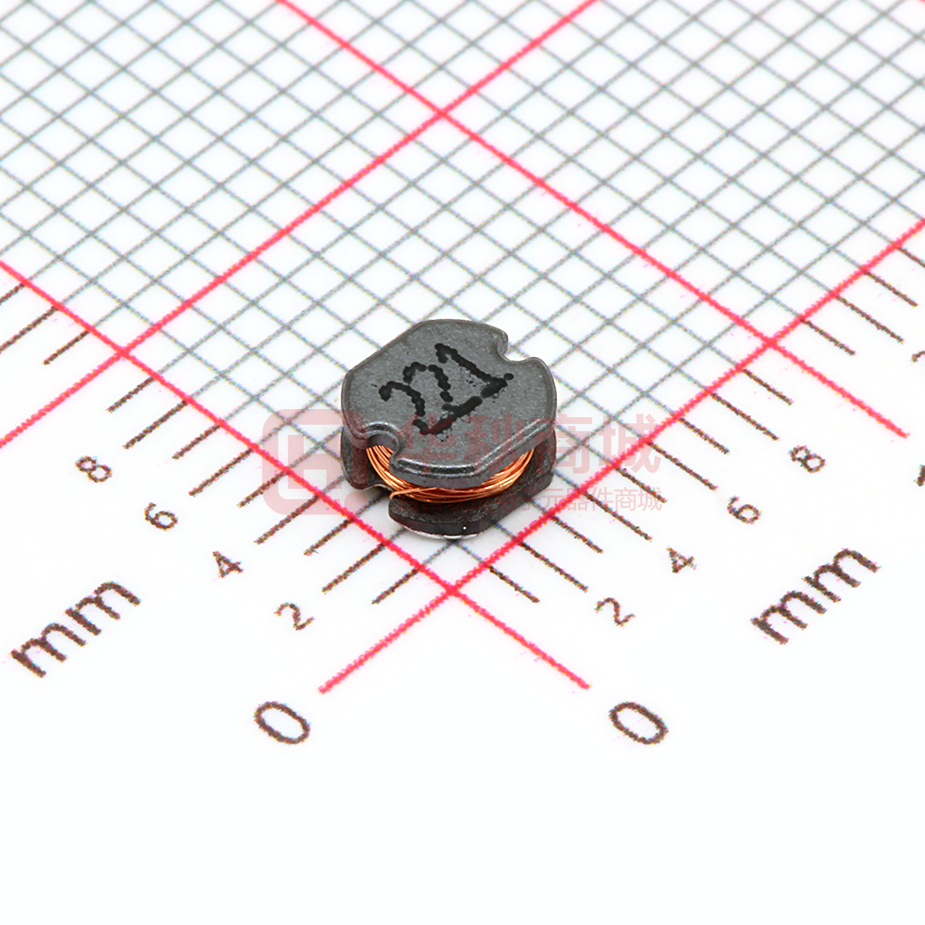

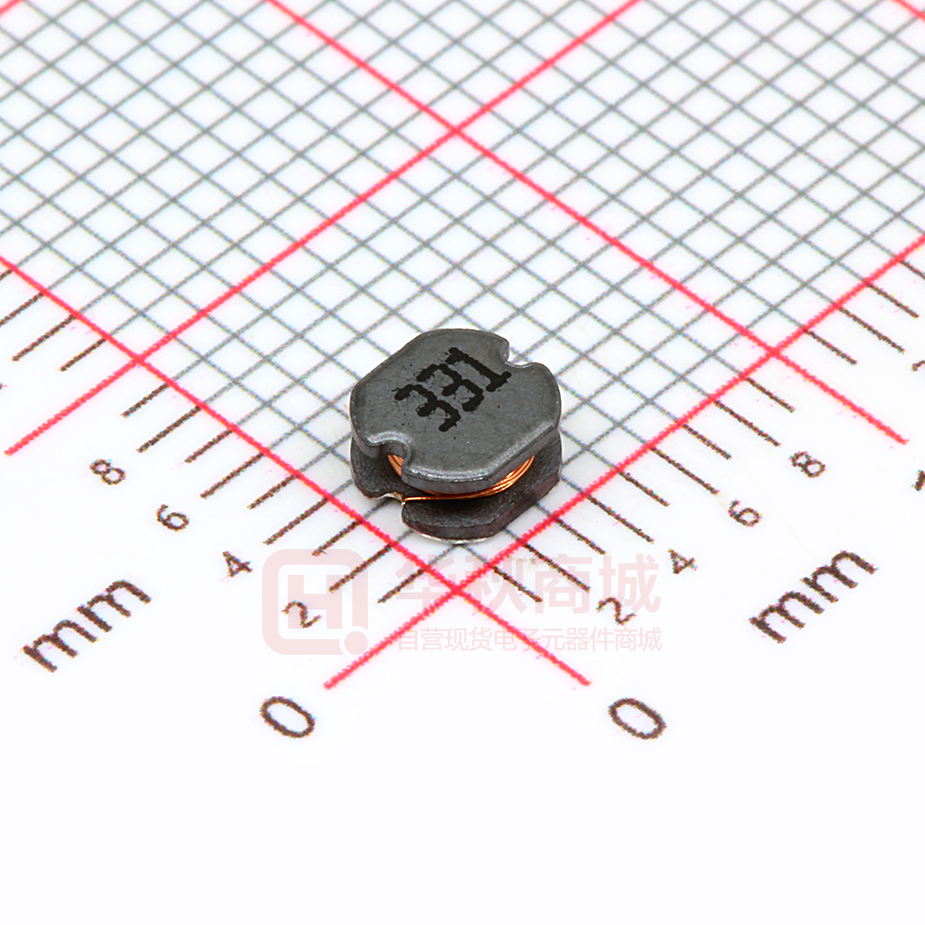

YP0402-101M

SMD Power Inductors -YP0402 Series ■ Features ● High current Type. ● Ferrite bobbin core and compact size. ● Low core loss for high frequency power application. ● Large terminal surface for good PCB bonding. ● Operating temperature:-40℃ ~ +125℃. ■ Applications ● Portable communication equipment. ● Notebook PC,digital carmera,LCD television set. ● Power supply for VTR,OA equipment. ● DC/DC converters. ■ Product Identification ⑴ ：Type ⑵ ：Dimensions ⑶ ：Inductance value ⑷：Inductance Tolerance：N=±30%,M=±20%，L=±15%，K=±10% ■ Shapes and Dimensions (Unit：mm) TYPE A B C D1 Ref. D2 Ref. E Ref. F Ref. YP0402 4.5±0.3 4.0±0.3 2.0±0.3 1.4 1.5 5.0 4.5 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -1- SMD Power Inductors -YP0402 Series ■ YP0402 Series Part Number Inductance (uH) L Test Frequency Max.DC Resistance Max.Rated Current (KHz) (Ω) (A) YP0402-1R0□ 1.00 100 0.030 2.50 YP0402-1R5□ 1.50 100 0.040 2.30 YP0402-1R8□ 1.80 100 0.050 2.00 YP0402-2R2□ 2.20 100 0.060 1.80 YP0402-3R3□ 3.30 100 0.080 1.50 YP0402-4R7□ 4.70 100 0.106 1.20 YP0402-6R8□ 6.80 100 0.135 1.00 YP0402-100□ 10.0 100 0.195 0.80 YP0402-150□ 15.0 100 0.330 0.70 YP0402-220□ 22.0 100 0.486 0.60 YP0402-330□ 33.0 100 0.640 0.55 YP0402-390□ 39.0 100 0.700 0.50 YP0402-470□ 47.0 100 0.950 0.40 YP0402-680□ 68.0 100 1.350 0.30 YP0402-101□ 100 100 1.710 0.25 YP0402-151□ 150 100 2.530 0.24 YP0402-221□ 220 100 4.200 0.23 YP0402-331□ 330 100 5.300 0.20 YP0402-391□ 390 100 6.820 0.18 YP0402-471□ 470 100 7.780 0.15 ※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃) ※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at 20℃) ※ The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -2- SMD Power Inductors -YP0402 Series ■ Taping Dimensions(Unit:mm) TYPE W A B C D E P K Ref T MPQ YP0402 12±0.3 4.25±0.1 4.65±0.1 4.75 5.5±0.1 2.25±0.1 8.0±0.1 2.4 0.30±0.05 3000 ■ Reel Dimensions(Unit:mm) TYPE W W1 W2 W3 A B C D YP0402 330±2.0 12.8±1.50 18.4MAX 11.9 Min 13.0±0.50 21.0±0.80 2.0±0.50 100 Min 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -3- SMD Power Inductors -YP0402 Series ■ Direction of rolling ■ Cover tape peel off condition Cover tape peel force shall be 0.1N to 1.3N. Reference peel speed 300±10mm/min. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -4-
