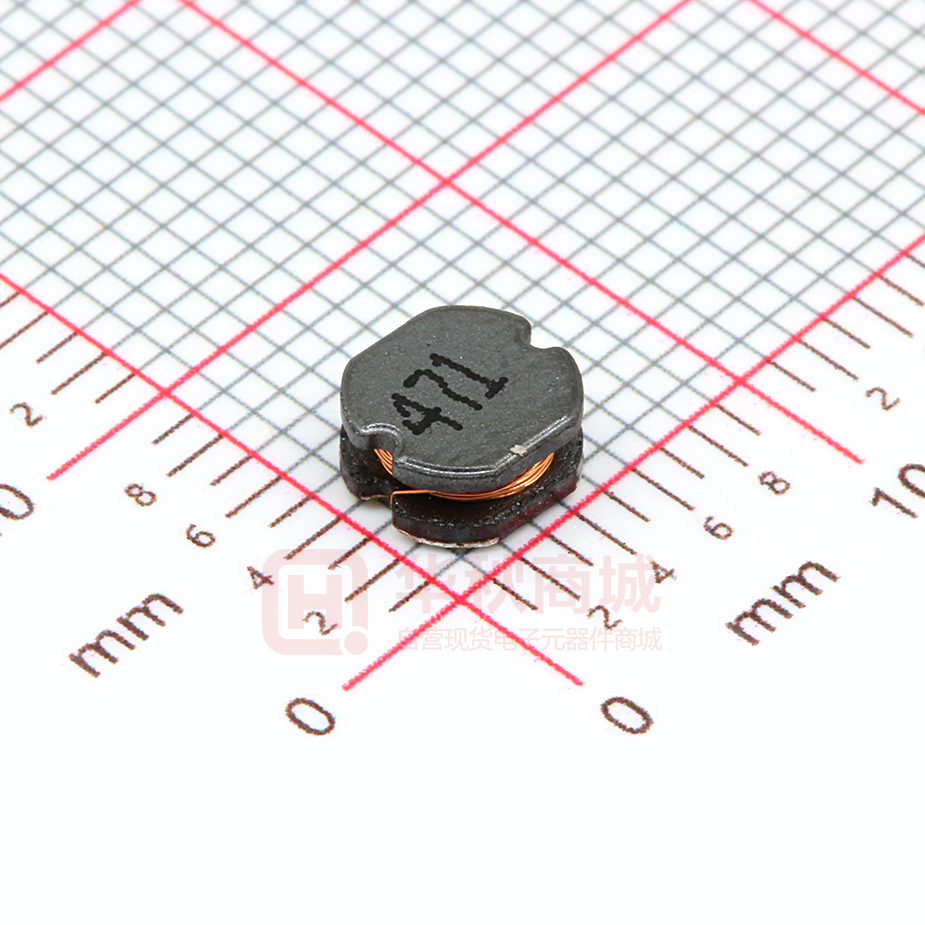

YP0502-471M

SMD Power Inductors -YP0502 Series ■ Features ● High current Type. ● Ferrite bobbin core and compact size. ● Low core loss for high frequency power application. ● Large terminal surface for good PCB bonding. ● Operating temperature:-40℃ ~ +125℃. ■ Applications： ● Portable communication equipment. ● Notebook PC,digital carmera,LCD television set. ● Power supply for VTR,OA equipment. ● DC/DC converters. ■ Product Identification ⑴ ：Type ⑵ ：Dimensions ⑶ ：Inductance value ⑷：Inductance Tolerance：N=±30%,M=±20%，L=±15%，K=±10% ■ Shapes and Dimensions (Unit：mm) TYPE A B C D1 Ref. D2 Ref. E Ref. F Ref. YP0502 5.8±0.3 5.2±0.3 2.5±0.3 1.5 1.7 6.0 5.5 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -1- SMD Power Inductors -YP0502 Series ■ YP0502 Series Part Number Inductance (uH) L Test Frequency Max.DC Resistance Max.Rated Current (KHz) (Ω) (A) YP0502-1R2□ 1.20 100 0.050 4.20 YP0502-1R5□ 1.50 100 0.060 4.00 YP0502-1R8□ 1.80 100 0.065 3.70 YP0502-2R2□ 2.20 100 0.070 3.50 YP0502-2R7□ 2.70 100 0.080 3.20 YP0502-3R3□ 3.30 100 0.100 2.70 YP0502-3R9□ 3.90 100 0.120 2.40 YP0502-4R7□ 4.70 100 0.140 2.00 YP0502-5R6□ 5.60 100 0.150 1.80 YP0502-6R8□ 6.80 100 0.160 1.50 YP0502-8R2□ 8.20 100 0.170 1.40 YP0502-100□ 10.0 100 0.200 1.30 YP0502-120□ 12.0 100 0.230 1.10 YP0502-150□ 15.0 100 0.250 1.05 YP0502-180□ 18.0 100 0.300 1.00 YP0502-220□ 22.0 100 0.350 0.90 YP0502-270□ 27.0 100 0.400 0.85 YP0502-330□ 33.0 100 0.500 0.75 YP0502-390□ 39.0 100 0.550 0.70 YP0502-470□ 47.0 100 0.650 0.60 YP0502-560□ 56.0 100 0.750 0.55 YP0502-680□ 68.0 100 0.950 0.50 YP0502-820□ 82.0 100 1.400 0.40 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -2- SMD Power Inductors -YP0502 Series ■ YP0502 Series Part Number Inductance (uH) L Test Frequency Max.DC Resistance Max.Rated Current (KHz) (Ω) (A) YP0502-101□ 100 100 1.400 0.40 YP0502-121□ 120 100 1.750 0.35 YP0502-151□ 150 100 2.000 0.25 YP0502-181□ 180 100 2.600 0.22 YP0502-221□ 220 100 3.000 0.20 YP0502-271□ 270 100 3.700 0.18 YP0502-331□ 330 100 4.300 0.17 YP0502-391□ 390 100 6.000 0.16 YP0502-471□ 470 100 6.700 0.15 ※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃) ※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at 20℃) ※ The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -3- SMD Power Inductors -YP0502 Series ■ Taping Dimensions(Unit:mm) TYPE W A B C D E P K Ref T MPQ YP0502 12±0.3 5.50±0.1 5.85±0.1 4.75 5.5±0.1 2.50±0.1 8.0±0.1 2.7 0.30±0.05 2000 ■ Reel Dimensions(Unit:mm) TYPE W W1 W2 W3 A B C D YP0502 330±2.0 12.8±1.50 18.4MAX 11.9 Min 13.0±0.50 21.0±0.80 2.0±0.50 100 Min 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -4- SMD Power Inductors -YP0502 Series ■ Direction of rolling ■ Cover tape peel off condition Cover tape peel force shall be 0.1N to 1.3N. Reference peel speed 300±10mm/min. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -5-
