ESD2511CDN

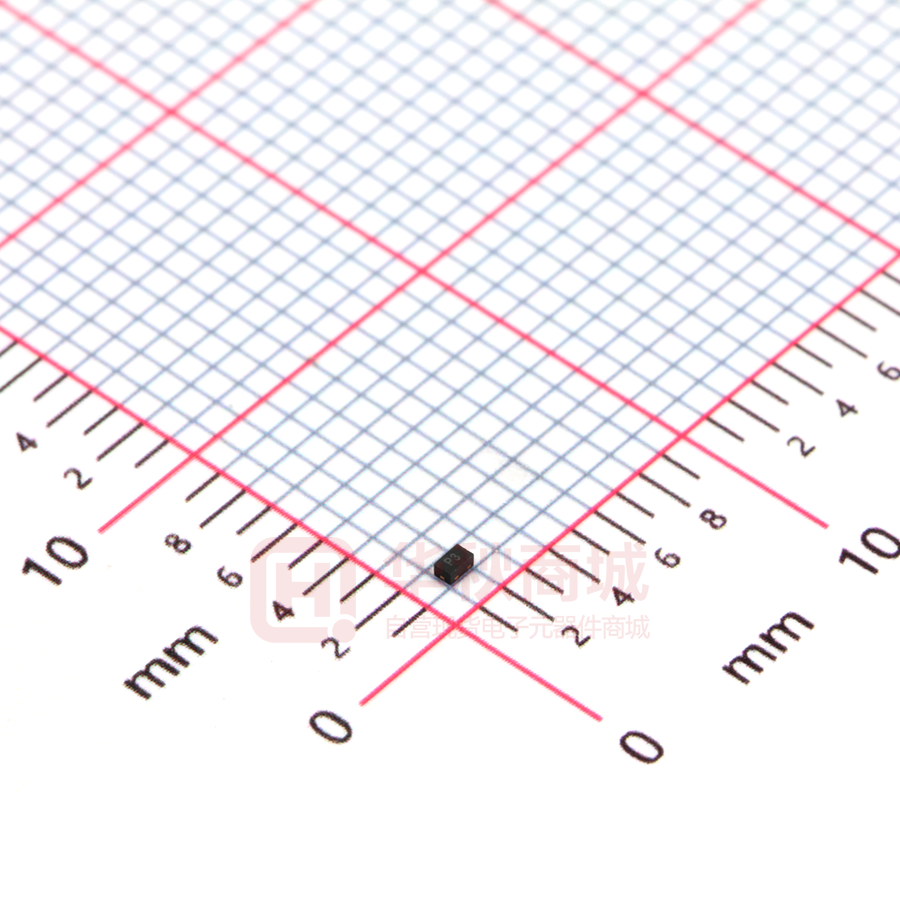

ESD2511CDN LOW VOLTAGE BIDIRECTIONAL TVS DIODE Features ● ● ● ● ● Dimensions DFN1006DN Ultra low leakage: nA level Operating voltage: 2.5V Low clamping voltage Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-4 (EFT) 40A (5/50ns) – IEC61000-4-5 (Lightning) 12A (8/20μs) RoHS Compliant Pin Configuration Applications ● ● ● ● ● ● USB 2.0 power and data line Set-top box and digital TV Digital video interface (DVI) Notebook Computers SIM Ports 10/100 Ethernet Mechanical Characteristics ● Package: DFN1006DN ● Lead Finish: Lead Free ● UL Flammability Classification Rating 94V-0 ● Quantity Per Reel:10,000pcs ● Reel Size:7 inch Absolute Maximum Ratings(Tamb=25°C unless otherwise specified) Parameter Peak Pulse Power (8/20µs) ESD per IEC 61000−4−2 (Air) Symbol Value Ppp 100 VESD ± 30 Unit W Kv ± 30 ESD per IEC 61000−4−2 (Contact) Operating Temperature Range TJ -55 to +150 ℃ Storage Temperature Range TSTJ -55 to +150 ℃ Rev : 01.06.2014 1/4 www.leiditech.com ESD2511CDN Electrical Characteristics(TA=25°C unless otherwise specified) Vc Part Number Device Marking ESD2511CDN N1 VRWM (V) 2.5 VBR (V) 2.85 IT (mA) VC @1A 1 6 (Max) 7.5 Vc (@A) (Max) (@A) IR μA (Max) 5 13 8 0.05 C (Pf) (Typ.) 23 ◆ IR : < 0.05uA@25℃ ◆ IR : < 0.10uA@125℃ Characteristic Curves Rev : 01.06.2014 2/4 www.leiditech.com ESD2511CDN TRANSMISSION LINE PULSE (TLP) Transmission Line Pulse (TLP) is a measurement technique used in the Electrostatic Discharge (ESD) arena to characterize performance attributes of devices under ESD stresses. TLP is able to obtain current versus voltage (I−V) curves in which each data point is obtained with a 100 ns long pulse, with currents up to 40 A. TLP was first used in the ESD field to study human body model (HBM) in integrated circuits, but it is an equally valid tool in the field of system level ESD. The applicability of TLP to system level ESD is illustrated in Figure 1, which compares an 8 kV IEC 61000−4−2 current waveform with TLP current pulses of 8 and 16 A. The current levels and time duration for the pulses are similar and the initial rise time for the TLP pulse is comparable to the rise time of the IEC 61000−4−2’s initial current spike. This application note will give a basic introduction to TLP measurements and explain the datasheet parameters extracted from TLP for SDI Technology’s protection products. Rev : 01.06.2014 3/4 www.leiditech.com ESD2511CDN DFN1006DN PACKAGE OUTLINE & DIMENSIONS Shanghai Leiditech Electronic Co.,Ltd Email: sale1@leiditech.com Tel : +86- 021 50828806 Fax : +86- 021 50477059 Rev : 01.06.2014 4/4 www.leiditech.com
