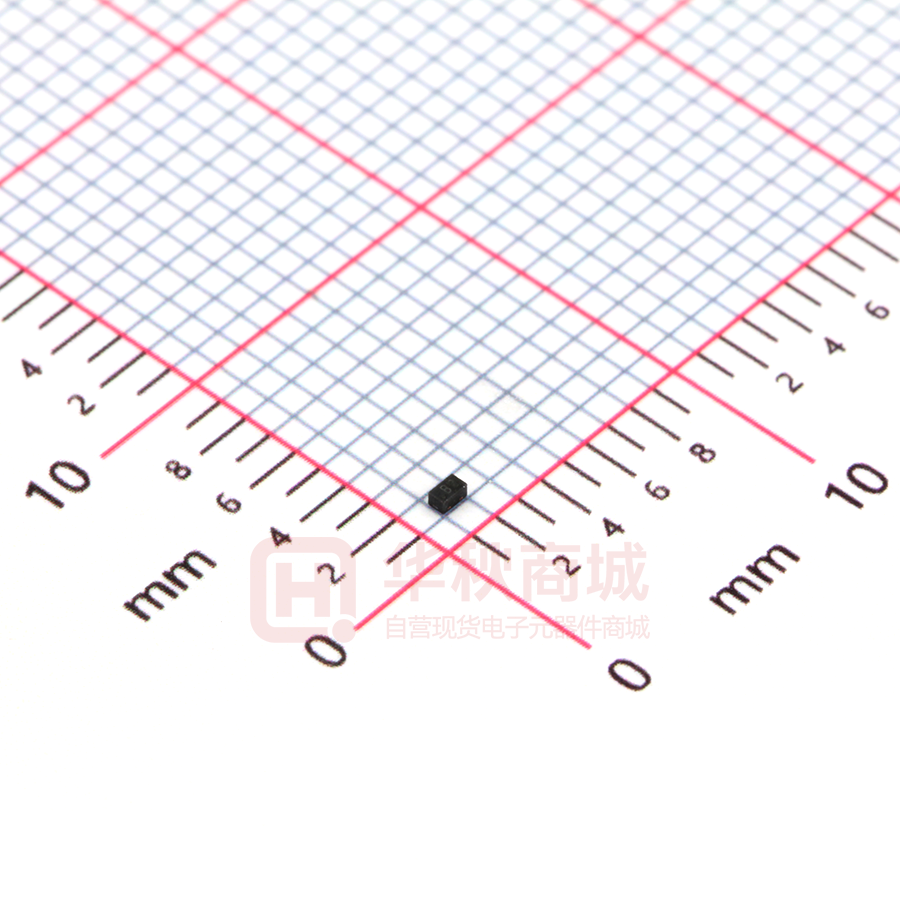

ESDA05CP

ESDA05CP 1-Line Bi-directional TVS Diode Features ● ● ● ● ● Ultra low leakage: nA level Operating voltage: 5V Low clamping voltage Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±15kV Contact discharge: ±8kV – IEC61000-4-4 (EFT) 40A (5/50ns) – IEC61000-4-5 (Lightning) 9.4A (8/20 μs) RoHS Compliant Dimensions DFN1006-2 Pin Configuration Applications z z z z Cellular phones Portable devices Digital cameras Power supplies Mechanical Characteristics ● Package: DFN1006-2 ● Lead Finish: Lead Free ● UL Flammability Classification Rating 94V-0 ● Quantity Per Reel:10,000pcs ● Reel Size:7 inch Absolute Maximum Ratings(Tamb=25°C unless otherwise specified) Parameter Peak Pulse Power (8/20µs) ESD per IEC 61000−4−2 (Air) ESD per IEC 61000−4−2 (Contact) Symbol Ppp VESD Value Unit 150 W ±15 Kv ±8 Operating Temperature Range TJ -55 to +125 ℃ Storage Temperature Range TSTJ -55 to +150 ℃ Rev : 01.06.2014 1/3 www.leiditech.com ESDA05CP Electrical Characteristics(TA=25°C unless otherwise specified) Vc Part Number Device Marking VRWM (V) VBR (V) IT (mA) C 5 6 1 ESDA05CP VC @5A 11.6 (Max) (@A) 18.5 9.4 IR μA (Max) C (Pf) (Typ.) 0.5 15 Characteristic Curves Fig1. Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) 8/20µ s Pulse Waveform tr 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP 80 Percent of Peak Pulse Current % IPP - Peak Pulse Current - % of IPP 120 60 40 td=t IPP/2 20 0 0 5 10 15 20 25 10% tr = 0.7~1ns Time (ns) 30ns 30 60ns t - Time ( s) Fig3. 90% Power Derating Curve % of Rated Power 110 100 90 80 70 60 50 40 30 20 10 0 0 25 50 75 100 125 150 Ambient Temperature –TA (ºC) Rev : 01.06.2014 2/3 www.leiditech.com ESDA05CP DFN1006-2 Package Outline Drawing e D h A DIMENSIONS MILLIMETERS INCHES MIN NOM MAX MIN NOM MAX 0.45 0.50 0.55 0.018 0.020 0.022 A1 0.00 0.02 0.05 0.000 0.001 0.002 b 0.45 0.50 0.55 0.018 0.020 0.022 c 0.12 0.15 0.18 0.005 0.006 0.007 D 0.95 1.00 1.05 0.037 0.039 0.041 SYM h - b E - L c A Bottom View A1 e 0.65 BSC 0.026 BSC E 0.55 0.60 0.65 0.022 0.024 0.026 L 0.20 0.25 0.30 0.008 0.010 0.012 h 0.07 0.12 0.17 0.003 0.005 0.007 Suggested Land Pattern SYM ╋ Y3 MILLIMETERS INCHES X 0.60 0.024 Y1 0.50 0.020 Y2 0.30 0.012 Y3 0.80 0.032 Z 1.30 0.052 Y1 Y2 Z ╋ DIMENSIONS X Shanghai Leiditech Electronic Co.,Ltd Email: sale1@leiditech.com Tel : +86- 021 50828806 Fax : +86- 021 50477059 Rev : 01.06.2014 3/3 www.leiditech.com
