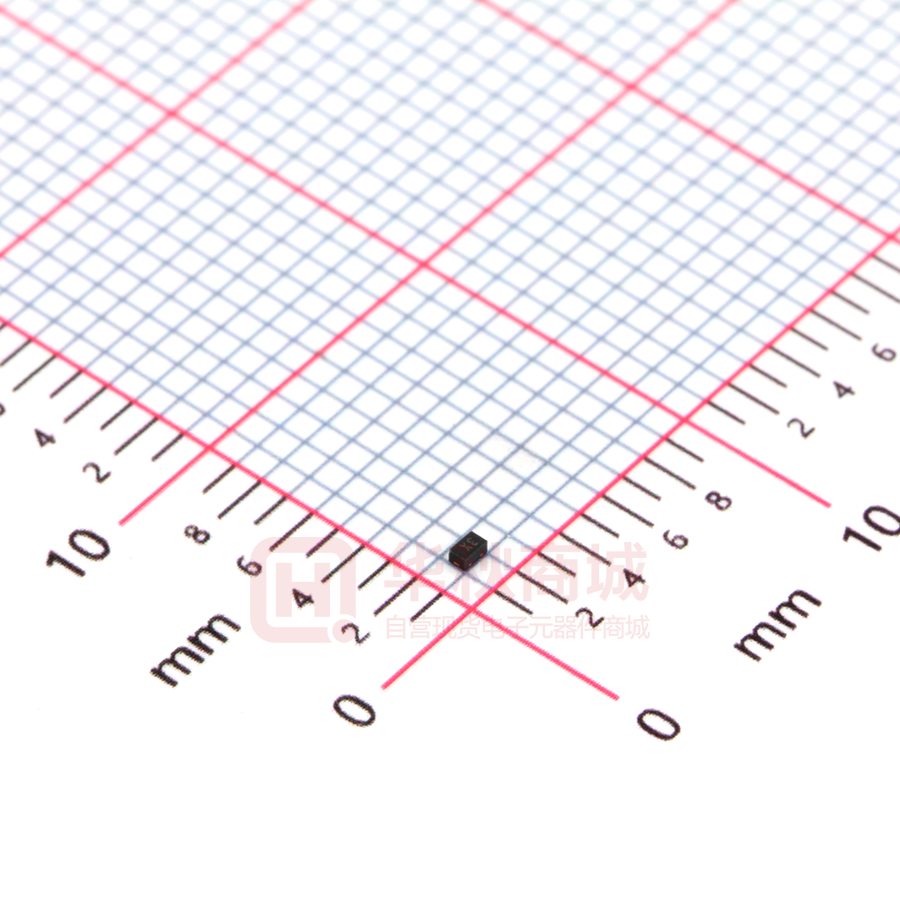

ESDA33CP

ESDA33CP BIDIRECTIONAL TVS DIODE Features  Protects one data line  Ultra low leakage: nA level   Operating voltage: 3.3V Ultra low clamping voltage  Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-5 (Lightning) 7A (8/20μs) RoHS Compliant  Dimensions DFN1006 Applications   Pin Configuration Cellular Handsets and Accessories Personal Digital Assistants  Notebooks and Handhelds  Portable Instrumentation   Digital Cameras Peripherals  Audio Players  Keypads, Side Keys, LCD Displays Mechanical Characteristics  Package: DFN1006-2 (1.0×0.6×0.5mm)   Case Material: “Green” Molding Compound. Moisture Sensitivity: Level 3 per J-STD-020  Terminal Connections: See Diagram Below  Marking Information: See Below Absolute Maximum Ratings(Tamb=25°C unless otherwise specified) Parameter Peak Pulse Power (8/20µs) ESD per IEC 61000−4−2 (Air) Symbol Ppp Value Unit 100 W ±30 VESD Kv ±30 ESD per IEC 61000−4−2 (Contact) Operating Temperature Range TJ -55 to +125 ℃ Storage Temperature Range TSTJ -55 to +150 ℃ Rev : 01.06.2018 1/4 www.leiditech.com ESDA33CP Electrical Characteristics(TA=25°C unless otherwise specified) Vc Part Number ESDA33CP Rev : 01.06.2018 Device Marking VRWM (V) VBR (V) IT (mA) VC @1A 3X 3.3 3.8 50 4 2/4 (Max) 12 (@A) 7 IR μA (Max) 0.01 C (Pf) (Typ.) 6 www.leiditech.com ESDA33CP Typical Performance Characteristics (TA=25°C unless otherwise Specified) ESD clamp voltage ESD clamp voltage Negative 8KV IEC61000-4-2 contact discharge Positive 8KV IEC61000-4-2 contact discharge 10 Waveform Parameters: tr=8us td=20us Peak Pulse Power-PPK（KW) PP 110 100 90 80 70 60 50 40 30 20 10 0 td=IPP/2 0 5 10 15 20 25 0.1 0.01 0.1 30 Time (us) 1 10 100 1000 Pulse Duration-tp（us) Pulse Waveform % of Rated Power or Ipp 1 Non-Repetitive Peak Pulse Power vs. Pulse Time 110 100 90 80 70 60 50 40 30 20 10 0 0 25 50 75 100 125 150 Ambient Temperature-TA Power Derating Curve Rev : 01.06.2018 3/4 www.leiditech.com ESDA33CP DNF1006 PACKAGE OUTLINE & DIMENSIONS D b L L1 Millimeters L e E b ID PIN 1 L1 Inches DIM 1 脚标识 Min Max Min Max A 0.30 0.50 0.012 0.020 A1 0.00 0.05 0.000 0.002 D 0.55 0.65 0.022 0.026 E 0.95 1.05 0.037 0.041 b 0.25 0.60 0.010 0.024 A1 A e L 0.60mm L1 0.65TYP 0.15 0.35 0.05REF 0.026TYP 0.006 0.014 0.002REF 0.85mm 0.55mm Shanghai Leiditech Electronic Co.,Ltd Email: sale1@leiditech.com Tel : +86- 021 50828806 Fax : +86- 021 50477059 Rev : 01.06.2018 4/4 www.leiditech.com
