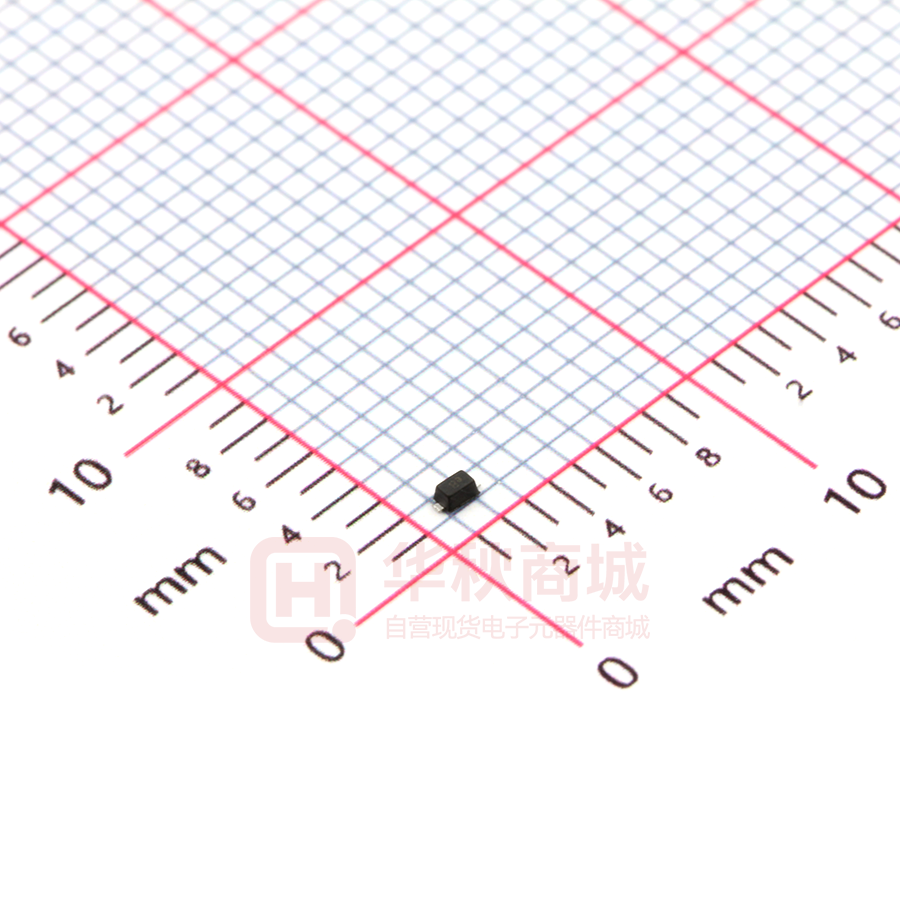

ESDA33CT Bidirectional TVS Diode Features ● ● ● ● ● Ultra low leakage: nA level Operating voltage: 3.3V Low clamping voltage Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±15kV Contact discharge: ±8kV – IEC61000-4-4 (EFT) 40A (5/50ns) – IEC61000-4-5 (Lightning) 12A (8/20μs) RoHS Compliant Dimensions SOD-523 Pin Configuration Applications ● ● ● ● ● ● USB 2.0 power and data line Set-top box and digital TV Digital video interface (DVI) Notebook Computers SIM Ports 10/100 Ethernet Mechanical Characteristics ● Package: SOD-523 ● Lead Finish: Lead Free ● UL Flammability Classification Rating 94V-0 ● Quantity Per Reel:3,000pcs ● Reel Size:7 inch Absolute Maximum Ratings(Tamb=25°C unless otherwise specified) Parameter Peak Pulse Power (8/20µs) ESD per IEC 61000−4−2 (Air) Symbol Ppp VESD Value Unit 100 W ± 15 Kv ± 8 ESD per IEC 61000−4−2 (Contact) Operating Temperature Range TJ -55 to +125 ℃ Storage Temperature Range TSTJ -55 to +150 ℃ Rev : 01.06.2014 1/3 www.leiditech.com ESDA33CT Electrical Characteristics(TA=25°C unless otherwise specified) Part Number Device Marking VRWM (V) VBR (V) IT (mA) VC @1A eB 3.3 4 1 7 ESDA33CT Vc (Max) (@A) 12 IR μA (Max) C (Pf) (Typ.) 2.5 18 8 Characteristic Curves Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 120 IPP - Peak Pulse Current - % of IPP 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP 80 Percent of Peak Pulse Current % tr 60 40 td=t IPP/2 20 0 0 5 10 15 20 25 10% tr = 0.7~1ns Time (ns) 30ns 30 60ns t - Time ( s) Fig3. 90% Power Derating Curve % of Rated Power 110 100 90 80 70 60 50 40 30 20 10 0 0 25 50 75 100 125 150 Ambient Temperature –TA (ºC) Rev : 01.06.2014 2/3 www.leiditech.com ESDA33CT SOD-523 Package Outline & Dimensions Millimeters Inches Symbol Soldering Footprint Min. Nom. Max. Min. Nom. Max. A 1.10 1.20 1.30 0.043 0.047 0.051 B 0.70 0.80 0.90 0.028 0.032 0.035 C 0.50 0.60 0.70 0.020 0.024 0.028 D 0.25 0.30 0.35 0.010 0.012 0.014 J 0.07 0.14 0.20 0.0028 0.0055 0.0079 K 0.15 0.20 0.25 0.006 0.008 0.010 S 1.50 1.60 1.70 0.059 0.063 0.067 Symbol Millimeters Inches E 1.40 0.0547 F 0.40 0.0157 G 0.40 0.0157 Shanghai Leiditech Electronic Co.,Ltd Email: sale1@leiditech.com Tel : +86- 021 50828806 Fax : +86- 021 50477059 Rev : 01.06.2014 3/3 www.leiditech.com
