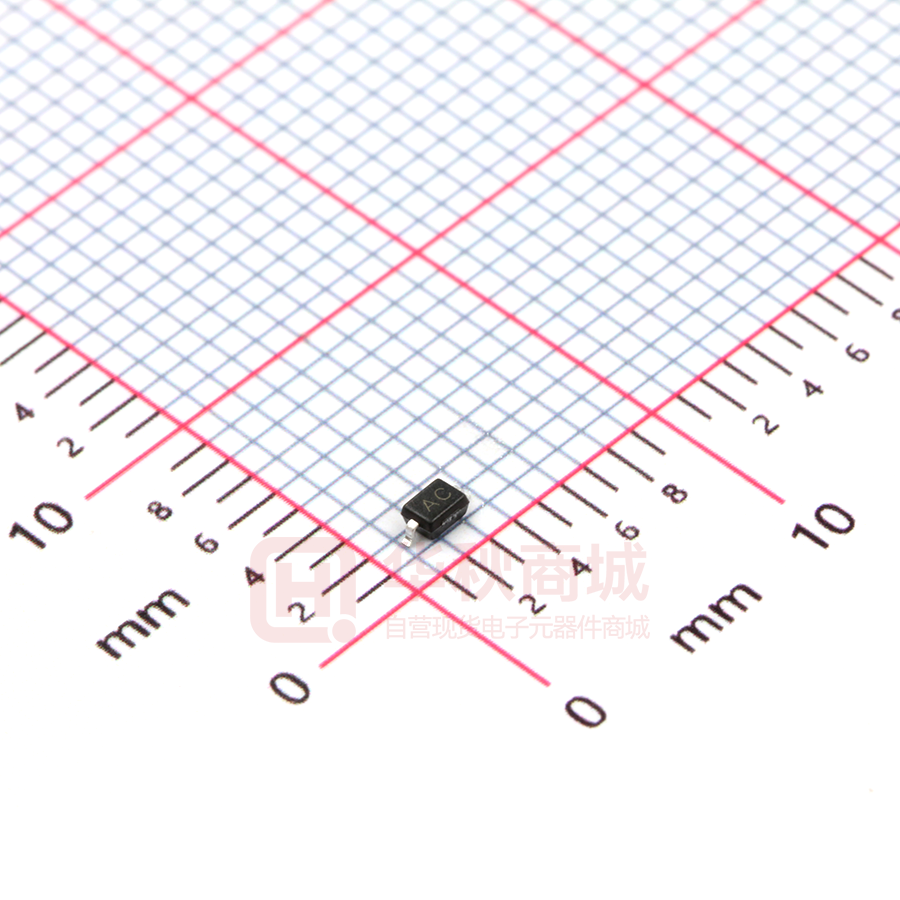

LC05CI 1-Line Low Capacitance Bi-directional TVS Diode Features ● ● ● ● ● ● ● ● 450W peak pulse power (8/20μs) Ultra low capacitance: 2pF typical Dimensions SOD-323 Ultra low leakage: nA level Low operating voltage: 5V Low clamping voltage Protects one power line or data line Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-4 (EFT) 40A (5/50ns) – IEC61000-4-5 (Lightning) 18A (8/20μs) RoHS Compliant Pin Configuration Applications ● ● ● ● USB Ports Smart Phones Wireless Systems Ethernet 10/100/1000 Base T Mechanical Characteristics ● ● ● ● ● ● ● Package: SOD-323 Lead Finish: Matte Tin Case Material: “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 3 per J-STD-020 Terminal Connections: See Diagram Below Marking Information: See Below Absolute Maximum Ratings(Tamb=25°C unless otherwise specified) Parameter Peak Pulse Power (8/20µs) ESD per IEC 61000−4−2 (Air) Symbol Ppp VESD Value Unit 450 W ± 30 Kv ± 30 ESD per IEC 61000−4−2 (Contact) Operating Temperature Range TJ -55 to +125 ℃ Storage Temperature Range TSTJ -55 to +150 ℃ Rev : 01.06.2015 1/3 www.leiditech.com LC05CI Electrical Characteristics(TA=25°C unless otherwise specified) Vc Part Number Device Marking VRWM (V) VBR (V) IT (mA) VC @1A AC 5.0 6 1 12 LC05CI Rev : 01.06.2015 2/3 (Max) 25 (@A) 18 IR μA (Max) C (Pf) (Typ.) 0.5 2 www.leiditech.com LC05CI Typical Performance Characteristics (TA=25°C unless otherwise Specified) 10 4.00 Peak Power_Ppp(W) Clamping Voltage_Vc (V) 5.00 3.00 2.00 1.00 0.00 1 0.1 0.01 0 1 2 3 4 5 Peak Pulse Current_Ipp (A) 6 0.1 Junction Capacitance vs. Reverse Voltage 100 Peak Pulse Power vs. Pulse Time 120 50.00 100 40.00 % of Rated Power Clamping Voltage_Vc (V) 1 10 Pulse Duration_tp(uS) 30.00 20.00 10.00 80 60 40 20 0.00 0 0 4 8 12 16 Peak Pulse Current_Ipp (A) 20 0 Clamping Voltage vs. Peak Pulse Current 25 50 75 100 125 Ambient Temperature_Ta(℃) 150 Power Derating Curve 100 % of Peak Pulse Current 90 80 70 60 50 40 30 20 10 0 0 20 40 Time_t(uS) 60 80 ESD Clamping Voltage 8 kV Contact per IEC61000−4−2 8 X 20uS Pulse Waveform Rev : 01.06.2015 3/4 www.leiditech.com LC05CI SOD-323 Package Outline & Dimensions Millimeters Inches Symbol Min. Nom. Max. Min. Nom. Max. A 0.80 0.90 1.00 0.031 0.035 0.040 A1 0.00 0.05 0.10 0.000 0.002 0.004 A3 Soldering Footprint 0.15 REF 0.006 REF b 0.25 0.32 0.40 0.010 0.012 0.016 C 0.089 0.12 0.177 0.003 0.005 0.007 D 1.60 1.70 1.80 0.062 0.066 0.070 E 1.15 1.25 1.35 0.045 0.049 0.053 L 0.08 HE 2.30 0.098 0.105 0.003 2.50 2.70 0.090 Symbol Millimeters Inches F 1.60 0.063 G 2.85 0.112 J 0.83 0.033 K 0.63 0.025 Shanghai Leiditech Electronic Co.,Ltd Email: sale1@leiditech.com Tel : +86- 021 50828806 Fax : +86- 021 50477059 Rev : 01.06.2015 4/4 www.leiditech.com
