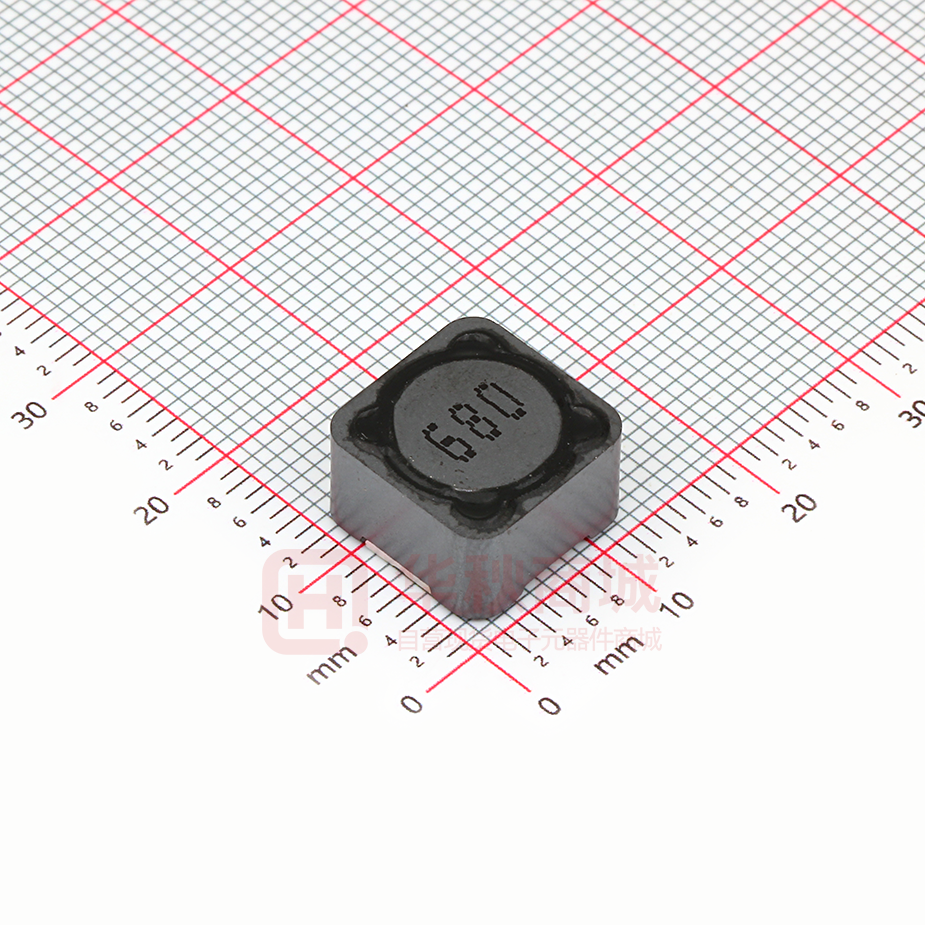

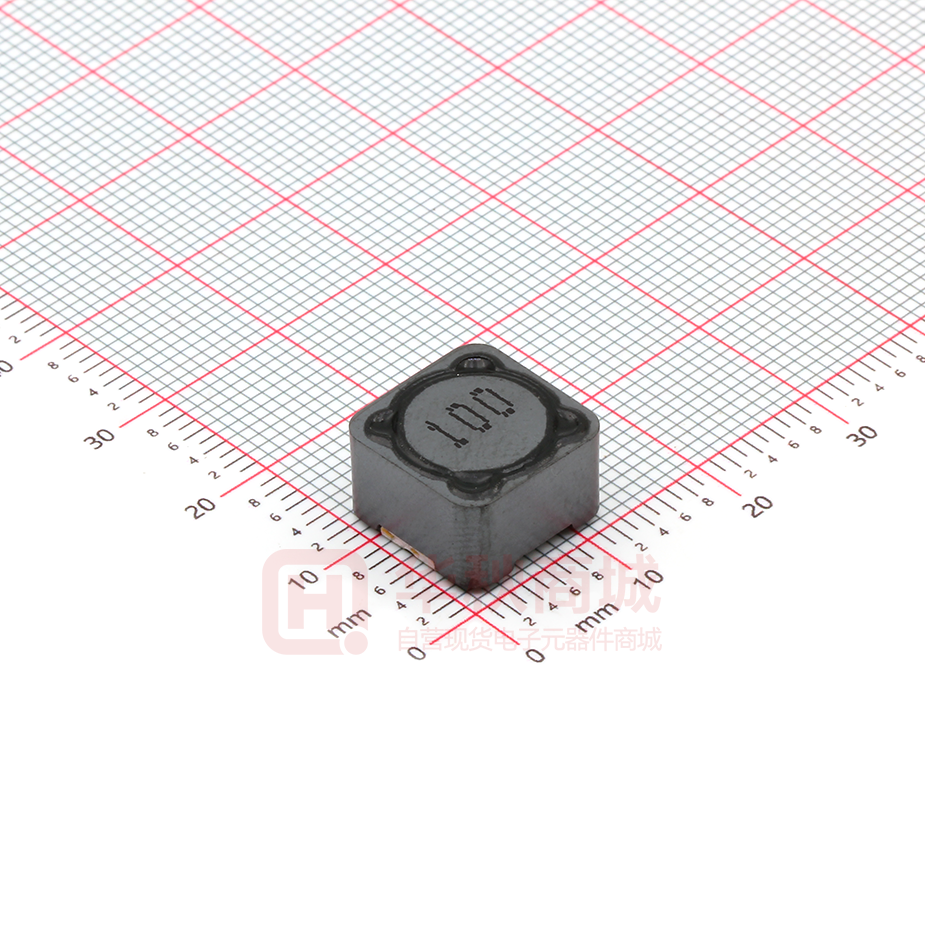

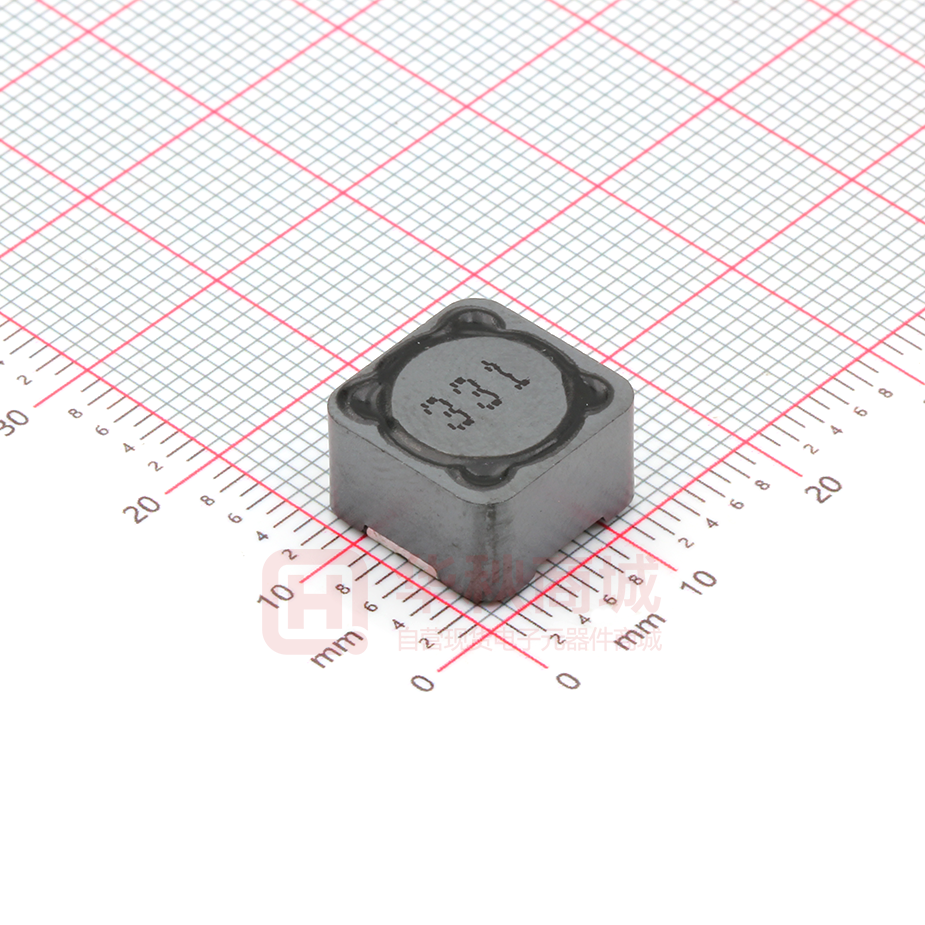

YPRH1207-680M

SMD Power Inductors -YPRH1207 Series ■ Features ● High current type. ● Ferrite bobbin core and compact size. ● Low core loss for high frequency power application. ● Large terminal surface for good PCB bonding. ● Operating temperature:-40℃ ~ +125℃. ■ Applications ● Portable communication equipment. ● Notebook PC,digital camera,LCD television set. ● Power supply for VTR,OA equipment. ● DC/DC converters. ■ Product Identification ⑴ ：Type ⑵ ：Dimensions ⑶ ：Inductance value ⑷ ：Inductance Tolerance；N=±30%,M=±20%，K=±10% ■ Shapes and Dimensions (Unit：mm) TYPE A B C max D E F Ref. G Ref. H Ref. YPRH1207 12.0±0.5 12.0±0.5 8.0 7.60±0.2 5.0 2.8 7.0 5.4 深圳市益嘉源电子有限公司 http://www.yjysmd.com.cn Tel:0755-27803896 Fax:0755-27803897 -1- SMD Power Inductors -YPRH1207 Series ■ YPRH1207 Series Part Number Inductance (uH) L Test Frequency Max.DC Resistance MAX.Rated Current (KHz) (Ω) (A) YPRH1207-R47□ 0.47 100 0.003 23.50 YPRH1207-R75□ 0.75 100 0.0042 19.80 YPRH1207-1R0□ 1.00 100 0.0065 10.00 YPRH1207-1R2□ 1.20 100 0.007 9.80 YPRH1207-1R5□ 1.50 100 0.008 9.40 YPRH1207-1R8□ 1.80 100 0.010 9.00 YPRH1207-2R2□ 2.20 100 0.012 8.00 YPRH1207-2R7□ 2.70 100 0.013 8.00 YPRH1207-3R3□ 3.30 100 0.013 8.00 YPRH1207-3R9□ 3.90 100 0.014 7.50 YPRH1207-4R0□ 4.00 100 0.015 7.20 YPRH1207-4R7□ 4.70 100 0.016 6.80 YPRH1207-5R6□ 5.60 100 0.017 6.40 YPRH1207-6R1□ 6.10 100 0.018 6.20 YPRH1207-6R8□ 6.80 100 0.019 6.20 YPRH1207-7R0□ 7.00 100 0.019 6.10 YPRH1207-7R6□ 7.60 100 0.020 5.90 YPRH1207-8R2□ 8.20 100 0.020 5.60 YPRH1207-100□ 10.0 100 0.022 5.40 YPRH1207-120□ 12.0 100 0.025 4.90 YPRH1207-150□ 15.0 100 0.030 4.50 YPRH1207-180□ 18.0 100 0.039 3.90 YPRH1207-220□ 22.0 100 0.043 3.60 YPRH1207-270□ 27.0 100 0.046 3.40 YPRH1207-330□ 33.0 100 0.065 3.00 深圳市益嘉源电子有限公司 http://www.yjysmd.com.cn Tel:0755-27803896 Fax:0755-27803897 -2- SMD Power Inductors -YPRH1207 Series Part Number Inductance (uH) L Test Frequency Max.DC Resistance MAX.Rated Current (KHz) (Ω) (A) YPRH1207-390□ 39.0 100 0.073 2.75 YPRH1207-470□ 47.0 100 0.100 2.50 YPRH1207-530□ 53.0 100 0.100 2.45 YPRH1207-560□ 56.0 100 0.110 2.35 YPRH1207-680□ 68.0 100 0.140 2.10 YPRH1207-820□ 82.0 100 0.160 1.95 YPRH1207-101□ 100 100 0.220 1.70 YPRH1207-121□ 120 100 0.250 1.60 YPRH1207-151□ 150 100 0.280 1.42 YPRH1207-181□ 180 100 0.350 1.30 YPRH1207-221□ 220 100 0.390 1.16 YPRH1207-271□ 270 100 0.560 1.06 YPRH1207-331□ 330 100 0.640 0.95 YPRH1207-391□ 390 100 0.700 0.88 YPRH1207-471□ 470 100 0.980 0.79 YPRH1207-561□ 560 100 1.070 0.73 YPRH1207-681□ 680 100 1.460 0.67 YPRH1207-821□ 820 100 1.640 0.60 YPRH1207-102□ 1000 100 1.820 0.55 YPRH1207-122□ 1200 100 2.600 0.48 ※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃) ※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at 20℃) ※ The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value. 深圳市益嘉源电子有限公司 http://www.yjysmd.com.cn Tel:0755-27803896 Fax:0755-27803897 -3- SMD Power Inductors -YPRH1207 Series ■ Taping Dimensions(Unit:mm) TYPE MPQ W A B C D E P K T YPRH1207 500 24±0.3 12.6±0.1 12.6±0.1 10.75 11.5±0.1 8.2±0.1 16±0.1 8.4 Ref 0.4±0.05 ■ Reel Dimensions(Unit:mm) TYPE W W1 W2 W3 A B C D YPRH1207 330±2.00 24.4±1.50 30.40 Max 23.90 Min 13.0±0.50 21.0±0.80 2.0±0.50 100 Min 深圳市益嘉源电子有限公司 http://www.yjysmd.com.cn Tel:0755-27803896 Fax:0755-27803897 -4- SMD Power Inductors -YPRH1207 Series ■ Direction of rolling ■ Cover tape peel off condition Cover tape peel force shall be 0.1N to 1.3N. Reference peel speed 300±10mm/min. 深圳市益嘉源电子有限公司 http://www.yjysmd.com.cn Tel:0755-27803896 Fax:0755-27803897 -5-
