SPTECH Product Specification
SPTECH Silicon PNP Power Transistor
DESCRIPTION
·Collector-Emitter Sustaining Voltage: VCEO= -60V(Min)
·High DC Current Gain: hFE= 100(Min)@ (VCE= -2V , IC= -1A)
·Low Saturation Voltage: VCE(sat)= -0.3V(Max)@ (IC= -3A, IB= -0.15A)
APPLICATIONS
·This type of power transistor is developed for high-speed
switching and features a high hFE at low VCE(sat),which is
ideal for use as a driver in DC/DC converters and actuators.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE
UNIT
VCBO
Collector-Base Voltage
-100
V
VCEO
Collector-Emitter Voltage
-60
V
VEBO
Emitter-Base Voltage
-7.0
V
IC
Collector Current-Continuous
-7.0
A
ICM
Collector Current-Pulse
-12
A
IB
Base Current-Continuous
-2.5
A
Total Power Dissipation @TC=25℃
25
Total Power Dissipation @Ta=25℃
2.0
TJ
Junction Temperature
150
℃
Tstg
Storage Temperature
-55~150
℃
W
PT
SPTECH website:www.superic-tech.com
1

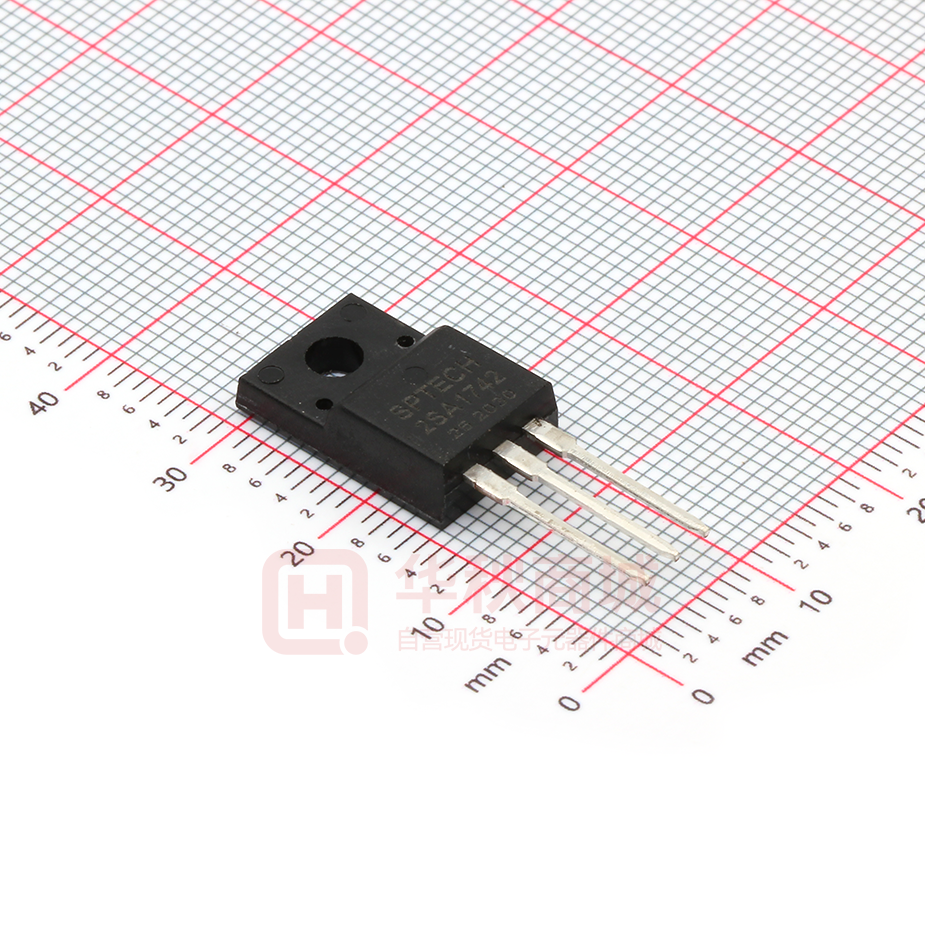

2SA1742
SPTECH Product Specification
SPTECH Silicon PNP Power Transistor
2SA1742
ELECTRICAL CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL
PARAMETER
CONDITIONS
MIN
TYP.
MAX
UNIT
VCEO
Collector-Emitter
Voltage
IC= -10mA; IB= 0
-60
V
VCBO
Collector-Emitter
Voltage
IE= -1mA; IC= 0
-100
V
VCE(sat)-1
Collector-Emitter Saturation Voltage
IC= -3A; IB= -0.15A
-0.3
V
VCE(sat)-2
Collector-Emitter Saturation Voltage
IC= -4A; IB= -0.2A
-0.5
V
VBE(sat)-1
Base-Emitter Saturation Voltage
IC= -3A; IB= -0.15A
-1.2
V
VBE(sat)-2
Base-Emitter Saturation Voltage
IC= -4A; IB= -0.2A
-1.5
V
ICBO
Collector Cutoff Current
VCB= -80V ; IE=0
-10
μA
ICEO
Collector Cutoff Current
VCE= -50V; IB=0
-1.0
mA
IEBO
Emitter Cutoff Current
VEB= -5V; IC=0
-10
μA
hFE-1
DC Current Gain
IC= -0.5A ; VCE= -2V
100
hFE-2
DC Current Gain
IC= -1.0A ; VCE= -2V
100
hFE-3
DC Current Gain
IC= -3.0A ; VCE= -2V
60
400
Switching times
ton
Turn-on Time
tstg
Storage Time
tf
IC= -3.0A ,RL= 17Ω,
IB1= -IB2= -0.15A,VCC≈-50V
Fall Time
hFE-2 Classifications
M
L
K
100-200
150-300
200-400
SPTECH website:www.superic-tech.com
2
0.3
μs
1.5
μs
0.3
μs
