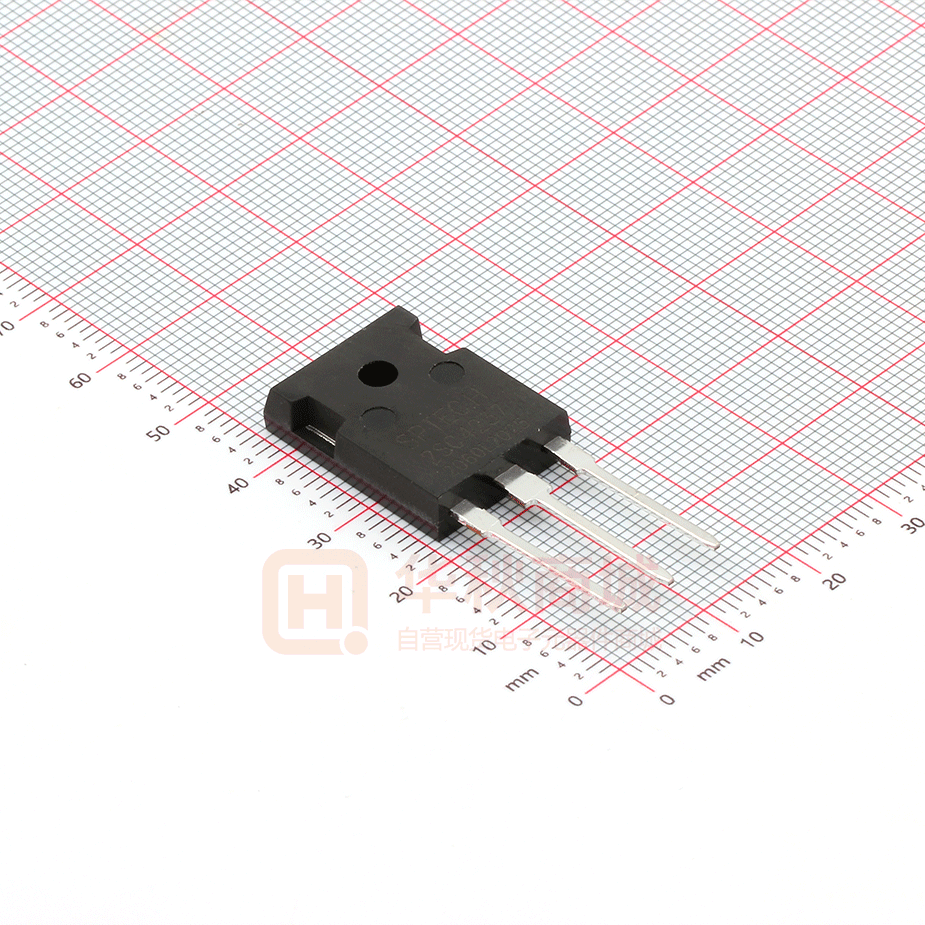

2SC4237

SPTECH Product Specification SPTECH Silicon NPN Power Transistor 2SC4237 DESCRIPTION ·Collector-Emitter Sustaining Voltage: VCEO(SUS)= 800V(Min) ·Fast Switching speed APPLICATIONS ·Color TV horizontal output applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1200 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous 12 A ICM Collector Current-Peak 25 A IB Base Current-Continuous 4 A IBM Base Current-Peak 8 PT Total Power Dissipation @ TC=25℃ 150 W TJ Junction Temperature 150 ℃ -55~150 ℃ Tstg Storage Temperature Range A THERMAL CHARACTERISTICS SYMBOL PARAMETER MAX UNIT Rth j-c Thermal Resistance,Junction to Case 0.83 ℃/W SPTECH website：www.superic-tech.com 1 SPTECH Product Specification SPTECH Silicon NPN Power Transistor 2SC4237 ELECTRICAL CHARACTERISTICS TC=25℃ unless otherwise specified SYMBOL PARAMETER CONDITIONS MIN TYP. MAX VCEO(SUS) Collector-Emitter Sustaining Voltage IC= 10mA; IB= 0 VCE(sat) Collector-Emitter Saturation Voltage IC= 5A; IB= 1A 1.0 V VBE(sat) Base-Emitter Saturation Voltage IC= 5A; IB= 1A 1.5 V ICBO Collector Cutoff Current At rated Voltage 100 μA ICEO Collector Cutoff Current At rated Voltage 100 μA IEBO Emitter Cutoff Current At rated Voltage 100 μA hFE-1 DC Current Gain IC= 5A ; VCE= 5V 18 hFE-2 DC Current Gain IC= 1mA ; VCE= 5V 5 Current-Gain—Bandwidth Product IC= 1A ; VCE= 10V fT 800 UNIT V 28 8 MHz Switching times ton Turn-on Time tstg Storage Time tf IC= 5A , IB1= 1A; IB2= -2A RL= 50Ω; VBB2= 4V Fall Time SPTECH website：www.superic-tech.com 0.5 μs 3.5 μs 0.3 μs 2
