SPTECH Product Specification

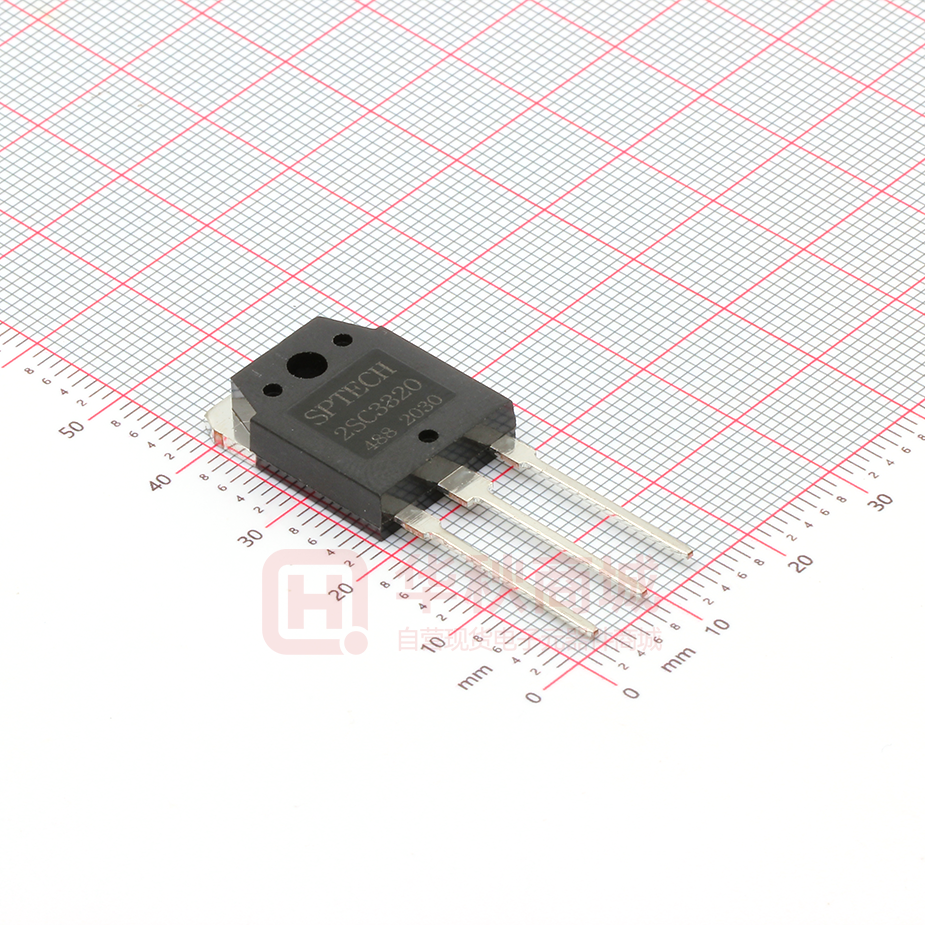

SPTECH Silicon NPN Power Transistor
2SC3320
DESCRIPTION
·High Collector-Emitter Breakdown Voltage: V(BR)CEO= 400V(Min)
·High Switching Speed
·High Reliability
APPLICATIONS
·Switching regulators
·Ultrasonic generators
·High frequency inverters
·General purpose power amplifiers
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE
UNIT
VCBO
Collector-Base Voltage
500
V
VCEO
Collector-Emitter Voltage
400
V
VCEO(SUS)
Collector-Emitter Voltage
400
V
Emitter-Base Voltage
7
V
IC
Collector Current-Continuous
15
A
IB
Base Current-Continuous
5
A
PC
Collector Power Dissipation
@ TC=25℃
80
W
TJ
Junction Temperature
150
℃
-65~150
℃
VEBO
Tstg
Storage Temperature Range
THERMAL CHARACTERISTICS
SYMBOL
PARAMETER
MAX
UNIT
Rth j-c
Thermal Resistance,Junction to Case
1.56
℃/W
SPTECH website:www.superic-tech.com
1
SPTECH Product Specification
2SC3320
SPTECH Silicon NPN Power Transistor
ELECTRICAL CHARACTERISTICS
TC=25℃ unless otherwise specified
SYMBOL
PARAMETER
CONDITIONS
MIN
TYP.
MAX
UNIT
V(BR)CEO
Collector-Emitter Breakdown Voltage
IC= 10mA ; IB= 0
400
V
VCEO(SUS)
Collector-Emitter Sustaining Voltage
IC= 50mA ; IB= 0
400
V
V(BR)CBO
Collector-Base Breakdown Voltage
IC= 1mA ; IE= 0
500
V
V(BR)EBO
Emitter-Base Breakdown Voltage
IE= 1mA ; IC= 0
7
V
VCE(sat)
Collector-Emitter Saturation Voltage
IC= 6A; IB= 1.2A
1.0
V
VBE(sat)
Base-Emitter Saturation Voltage
IC= 6A; IB= 1.2A
1.5
V
ICBO
Collector Cutoff Current
VCB= 500V ; IE= 0
1.0
mA
IEBO
Emitter Cutoff Current
VEB= 7V; IC= 0
1.0
mA
hFE
DC Current Gain
IC= 6A ; VCE= 5V
0.5
μs
1.5
μs
0.15
μs
10
Switching times
ton
Turn-on Time
tstg
Storage Time
tf
IC= 7.5A , IB1= 1.5A; IB2= -3A
RL= 20Ω;PW=20μs Duty≤2%
Fall Time
SPTECH website:www.superic-tech.com
2
