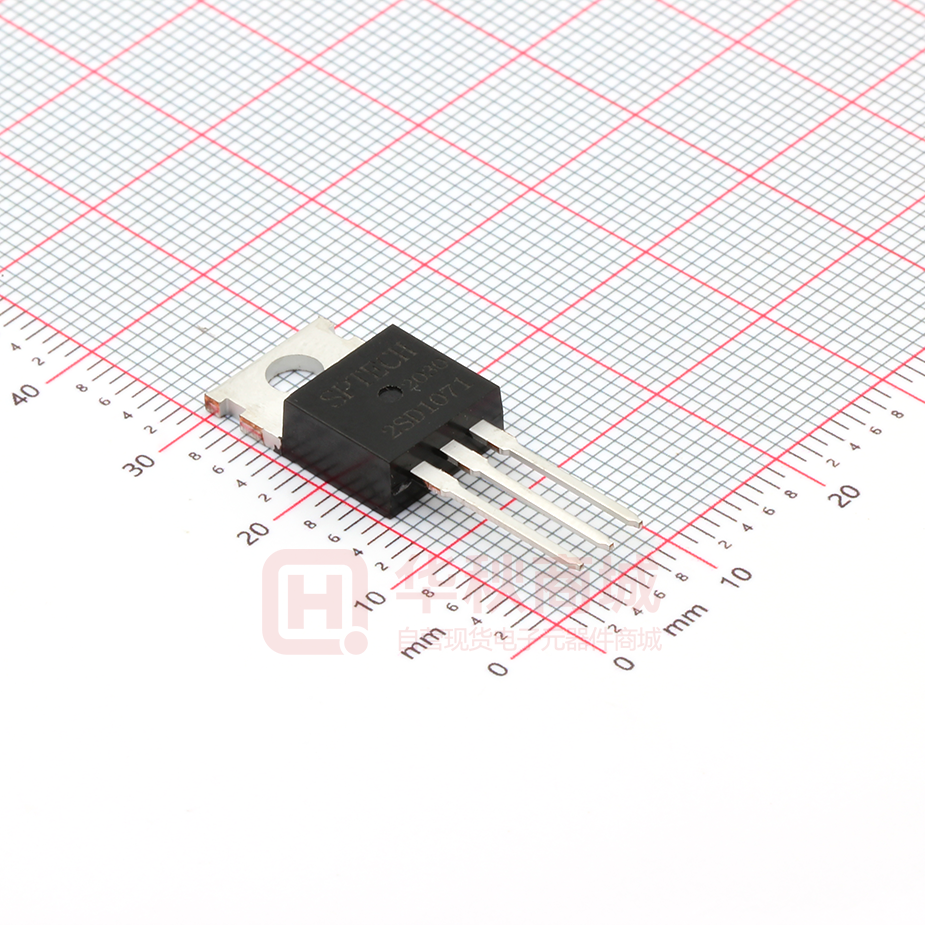

2SD1071

SPTECH Product Specification SPTECH Silicon NPN Darlington Power Transistor 2SD1071 DESCRIPTION ·Low Collector Saturation Voltage ·High DC Current Gain ·High Reliability APPLICATIONS ·Audio power amplifiers ·Relay & solenoid drivers ·Motor controls ·General purpose power amplifiers ·Including zener diode ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL VCBO VCEO(SUS) VEBO PARAMETER VALUE UNIT Collector-Base Voltage 450 V Collector-Emitter Voltage 300 V 6 V 300 V 6 A Emitter-Base Voltage VZ Zener Voltage IC Collector Current-Continuous IB Base Current-Continuous 2.5 A PC Collector Power Dissipation @ TC=25℃ 40 W TJ Junction Temperature 150 ℃ -40~150 ℃ Tstg Storage Temperature Range THERMAL CHARACTERISTICS SYMBOL Rth j-c PARAMETER Thermal Resistance,Junction to Case SPTECH website：www.superic-tech.com MAX UNIT 3.0 ℃/W 1 SPTECH Product Specification SPTECH Silicon NPN Darlington Power Transistor 2SD1071 ELECTRICAL CHARACTERISTICS TC=25℃ unless otherwise specified SYMBOL VZ PARAMETER CONDITIONS MIN MAX UNIT 450 V Zener Voltage IZ= 0.1mA V(BR)EBO Emitter-Base Breakdown Voltage IE= 5mA; IC= 0 VCE(sat) Collector-Emitter Saturation Voltage IC= 4A; IB= 15mA 1.5 V VBE(sat) Base-Emitter Saturation Voltage IC= 4A; IB= 15mA 2.0 V ICBO Collector Cutoff Current VCB= 300V; IE= 0 0.1 mA IEBO Emitter Cutoff Current VEB= 6V; IC=0 5 mA hFE DC Current Gain IC= 4A; VCE= 2V SPTECH website：www.superic-tech.com 300 TYP. 6 V 500 2
