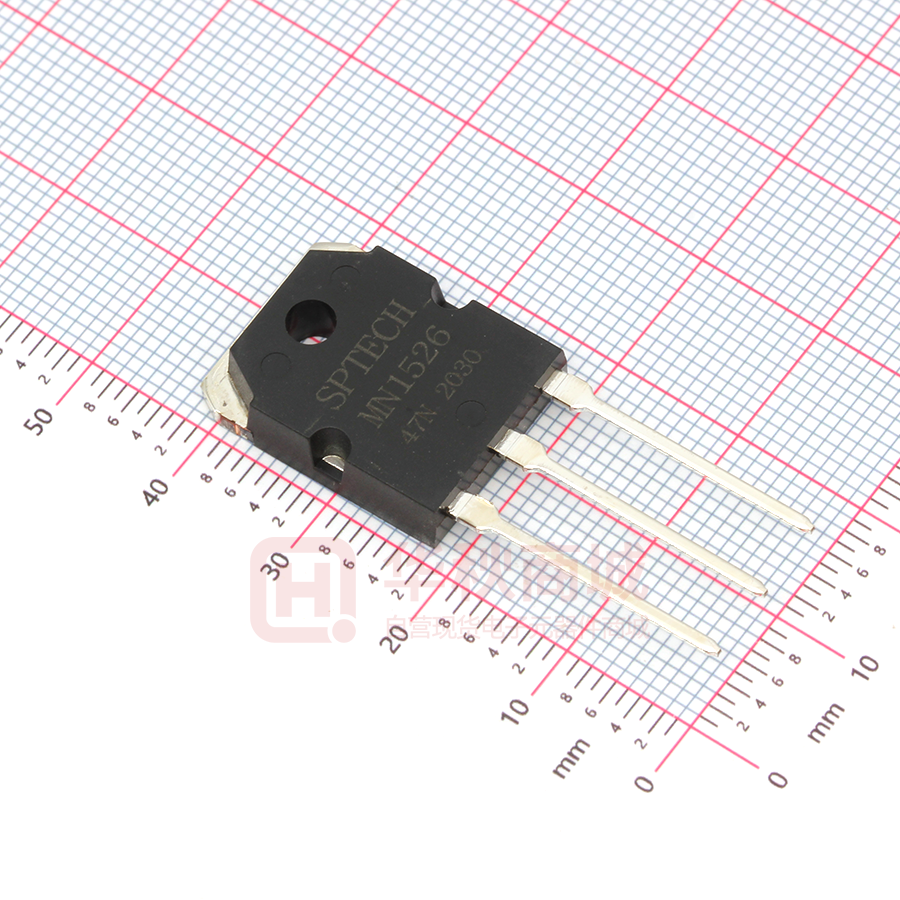

MN1526

SPTECH Product Specification SPTECH Silicon NPN Power Transistor MN1526 DESCRIPTION ·High Current Capability ·High Power Dissipation ·High Collector-Emitter Breakdown Voltage: V(BR)CEO= 260V(Min) ·Complement to Type MP1526 APPLICATIONS ·Power amplifier applications ·Recommend for 150W high fidelity audio frequency amplifier output stage applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 260 V VCEO Collector-Emitter Voltage 260 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 15 A IB Base Current-Continuous 4 A PC Collector Power Dissipation @ TC=25℃ 150 W TJ Junction Temperature 150 ℃ -55~150 ℃ Tstg Storage Temperature Range SPTECH website：www.superic-tech.com 1 SPTECH Product Specification MN1526 SPTECH Silicon NPN Power Transistor ELECTRICAL CHARACTERISTICS TC=25℃ unless otherwise specified SYMBOL PARAMETER V(BR)CEO Collector-Emitter Breakdown Voltage IC= 50mA ; IB= 0 VCE(sat) Collector-Emitter Saturation Voltage IC= 8.0A; IB= 0.8A 3.0 V VBE(on) Base-Emitter On Voltage IC= 7A ; VCE= 5V 1.5 V ICBO Collector Cutoff Current VCB= 260V ; IE= 0 5 μA IEBO Emitter Cutoff Current VEB= 5V; IC= 0 5 μA hFE-1 DC Current Gain IC= 1A ; VCE= 5V 40 hFE-2 DC Current Gain IC= 7A ; VCE= 5V 35 COB Output Capacitance IE=0 ; VCB= 10V;f= 1.0MHz 250 pF Current-Gain—Bandwidth Product IC=1A ; VCE= 5V 60 MHz fT  CONDITIONS MIN TYP. MAX 260 UNIT V 140 hFE-1 Classifications R 40-80 O 50-100 P 70－140 SPTECH website：www.superic-tech.com 2
