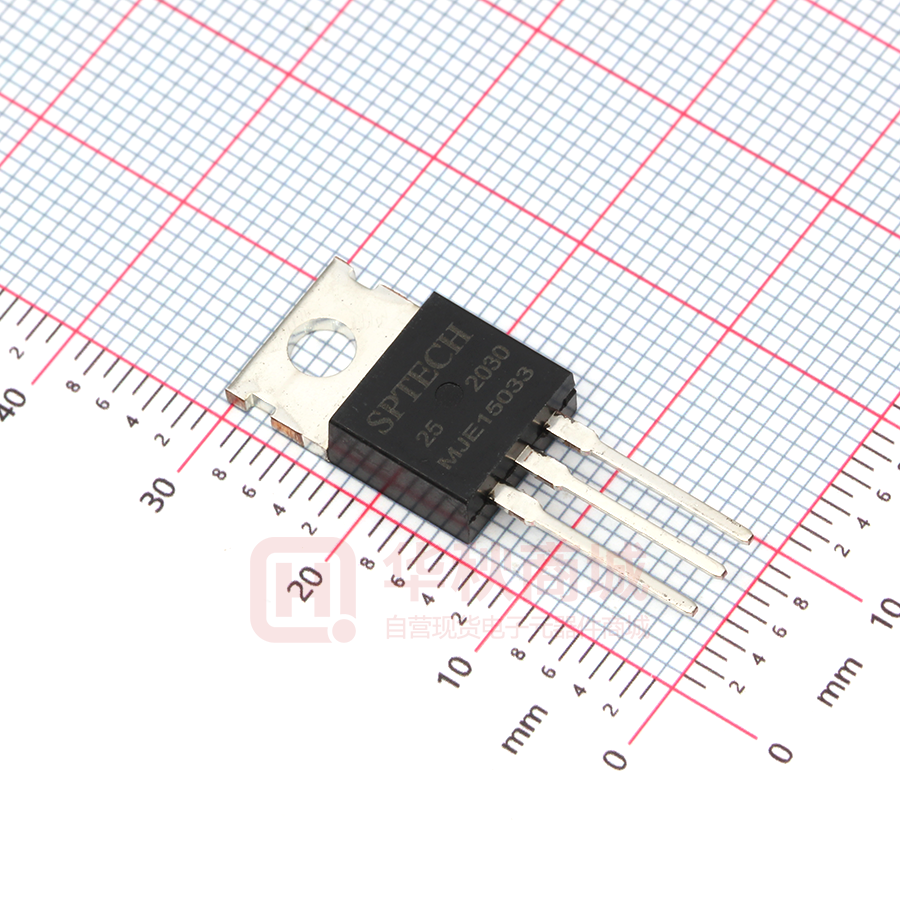

MJE15033

SPTECH Product Specification SPTECH Silicon PNP Power Transistor MJE15033 DESCRIPTION ·Collector-Emitter Sustaining Voltage: VCEO(SUS)= -250V(Min) ·DC current gain : hFE = 50 (Min) @IC= -0.5 A : hFE = 10 (Min) @IC= -2.0 A ·Complement to Type MJE15032 APPLICATIONS ·Designed for use as high–frequency drivers in audio amplifiers. ABSOLUTE MAXIMUM RATINGS (Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -250 V VCEO Collector-Emitter Voltage -250 V VEBO Emitter-Base Voltage -5 V IC Collector Current -Continuous -8 A ICM Collector Current-Peak -16 A IB Base Current -2 A PC Collector Power Dissipation @Ta=25℃ Collector Power Dissipation @TC=25℃ Tj Junction Temperature 150 ℃ Tstg Storage Temperature -65~150 ℃ 2 50 W THERMAL CHARACTERISTICS SYMBOL PARAMETER MAX UNIT Rth j-c Thermal Resistance,Junction to Case 2.5 ℃/W Rth j-a Thermal Resistance,Junction to Ambient 62.5 ℃/W SPTECH website：www.superic-tech.com 1 SPTECH Product Specification SPTECH Silicon PNP Power Transistor MJE15033 ELECTRICAL CHARACTERISTICS Tj=25℃ unless otherwise specified SYMBOL PARAMETER VCEO(SUS) Collector-Emitter Sustaining Voltage IC= -10mA ;IB= 0 VCE(sat) Collector-Emitter Saturation Voltage IC= -1A ;IB= -0.1A -0.5 V VBE(on) Base-Emitter On Voltage IC= -1A ; VCE= -5V -1.0 V ICBO Collector Cutoff Current VCB= -150V; IE= 0 -10 μA IEBO Emitter Cutoff Current VEB= -5V; IC= 0 -10 μA hFE-1 DC Current Gain IC= -0.5A ; VCE= -5V 50 hFE-2 DC Current Gain IC= -1A ; VCE= -5V 50 hFE-3 DC Current Gain IC= -2A ; VCE= -5V 10 Current Gain-Bandwidth Product IC= -0.5A; VCE= -10V; ftest= 1.0MHz 20 fT CONDITIONS SPTECH website：www.superic-tech.com MIN MAX -250 UNIT V MHz 2
