SPTECH Product Specification

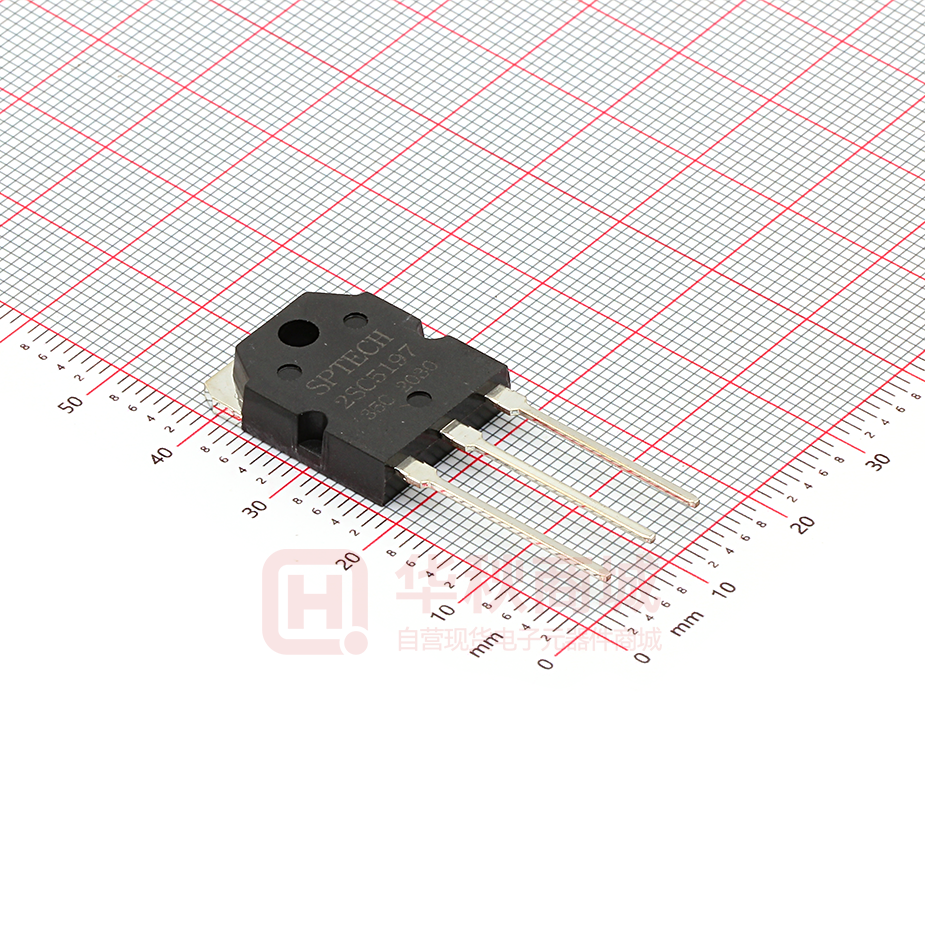

SPTECH Silicon NPN Power Transistor
DESCRIPTION
·Low Collector Saturation Voltage: VCE(sat)= 2.0V(Min) @IC= 6A
·Good Linearity of hFE
·Complement to Type 2SA1940
APPLICATIONS
·Power amplifier applications
·Recommend for 55W high fidelity audio frequency
amplifier output stage applications
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE
UNIT
VCBO
Collector-Base Voltage
120
V
VCEO
Collector-Emitter Voltage
120
V
VEBO
Emitter-Base Voltage
5
V
IC
Collector Current-Continuous
8
A
IB
Base Current-Continuous
0.8
A
PC
Collector Power Dissipation
@ TC=25℃
80
W
TJ
Junction Temperature
150
℃
-55~150
℃
B
Tstg
Storage Temperature Range
SPTECH website:www.superic-tech.com
1
2SC5197
SPTECH Product Specification
SPTECH Silicon NPN Power Transistor
2SC5197
ELECTRICAL CHARACTERISTICS
TC=25℃ unless otherwise specified
SYMBOL
PARAMETER
V(BR)CEO
Collector-Emitter Breakdown Voltage
IC= 50mA ; IB= 0
VCE(sat)
Collector-Emitter Saturation Voltage
IC= 6A; IB= 0.6A
2.0
V
VBE(on)
Base-Emitter On Voltage
IC= 4A ; VCE= 5V
1.5
V
ICBO
Collector Cutoff Current
VCB= 120V ; IE= 0
5
μA
IEBO
Emitter Cutoff Current
VEB= 5V; IC= 0
5
μA
hFE-1
DC Current Gain
IC= 1A ; VCE= 5V
55
hFE-2
DC Current Gain
IC= 4A ; VCE= 5V
35
COB
Output Capacitance
IE= 0; VCB= 10V;ftest= 1.0MHz
120
pF
Current-Gain—Bandwidth Product
IC= 1A ; VCE= 5V
30
MHz
fT
CONDITIONS
O
55-110
80-160
SPTECH website:www.superic-tech.com
TYP.
2
MAX
120
UNIT
V
B
hFE-1 Classifications
R
MIN
160
SPTECH Product Specification
SPTECH Silicon NPN Power Transistor
SPTECH website:www.superic-tech.com
3
2SC5197
