SPTECH Product Specification

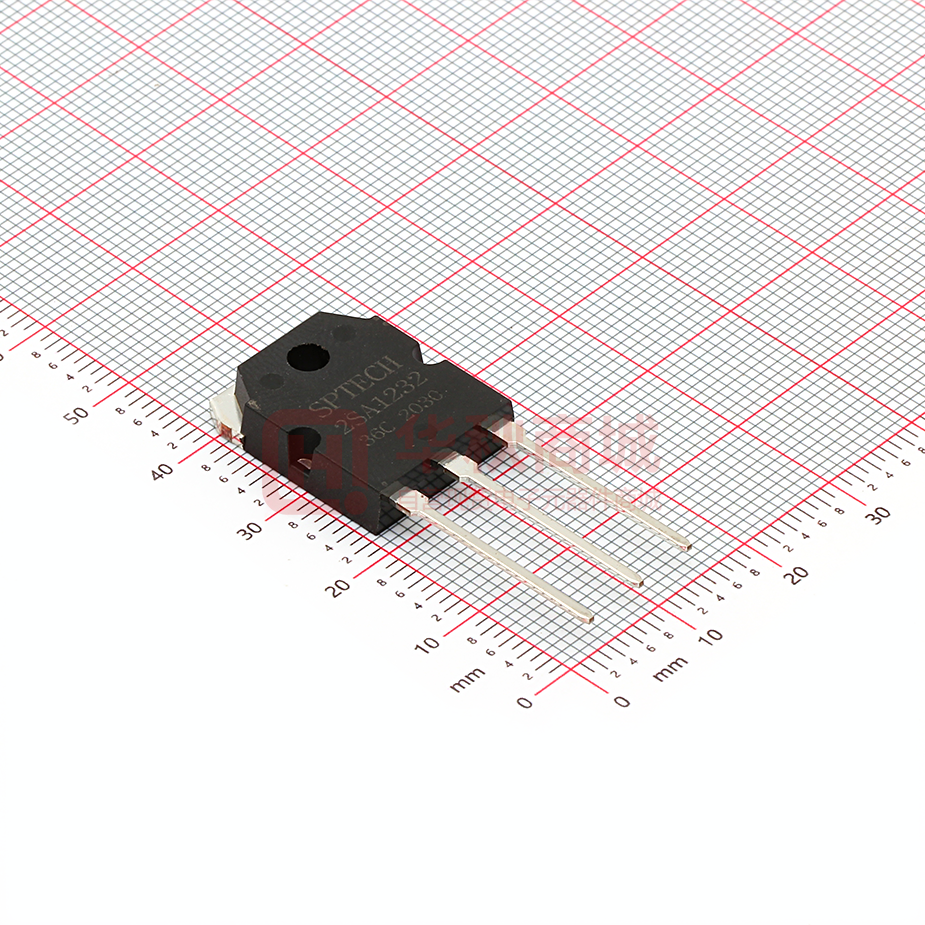

SPTECH Silicon PNP Power Transistor
2SA1232
DESCRIPTION
·Collector-Emitter Breakdown Voltage: V(BR)CEO= -130V(Min)
·Good Linearity of hFE
·Complement to Type 2SC3012
APPLICATIONS
·For audio frequency power amplifier applications.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE
UNIT
VCBO
Collector-Base Voltage
-130
V
VCEO
Collector-Emitter Voltage
-130
V
VEBO
Emitter-Base Voltage
-5
V
IC
Collector Current-Continuous
-10
A
ICM
Collector Current-Peak
-15
A
PC
Collector Power Dissipation
@ TC=25℃
100
W
TJ
Junction Temperature
150
℃
-55~150
℃
Tstg
Storage Temperature Range
SPTECH website:www.superic-tech.com
1
SPTECH Product Specification
2SA1232
SPTECH Silicon PNP Power Transistor
ELECTRICAL CHARACTERISTICS
TC=25℃ unless otherwise specified
SYMBOL
PARAMETER
VCE(sat)
Collector-Emitter Saturation Voltage
VBE(sat)
MAX
UNIT
IC= -5.0A; IB= -0.5A
-1.5
V
Base-Emitter Saturation Voltage
IC= -5.0A; IB= -0.5A
-2.0
V
ICBO
Collector Cutoff Current
VCB= -130V; IE= 0
-50
μA
IEBO
Emitter Cutoff Current
VEB= -3V; IC= 0
-50
μA
hFE-1
DC Current Gain
IC= -2A; VCE= -5V
60
hFE-2
DC Current Gain
IC= -5A; VCE= -5V
40
COB
Output Capacitance
IE= 0; VCB= -10V; f= 1.0MHz
250
pF
Current-Gain—Bandwidth Product
IC= -1A; VCE= -5V
60
MHz
fT
CONDITIONS
MIN
TYP.
320
hFE-1 Classifications
R
Q
P
60-120
100-200
160-320
SPTECH website:www.superic-tech.com
2
