SPTECH Product Specification

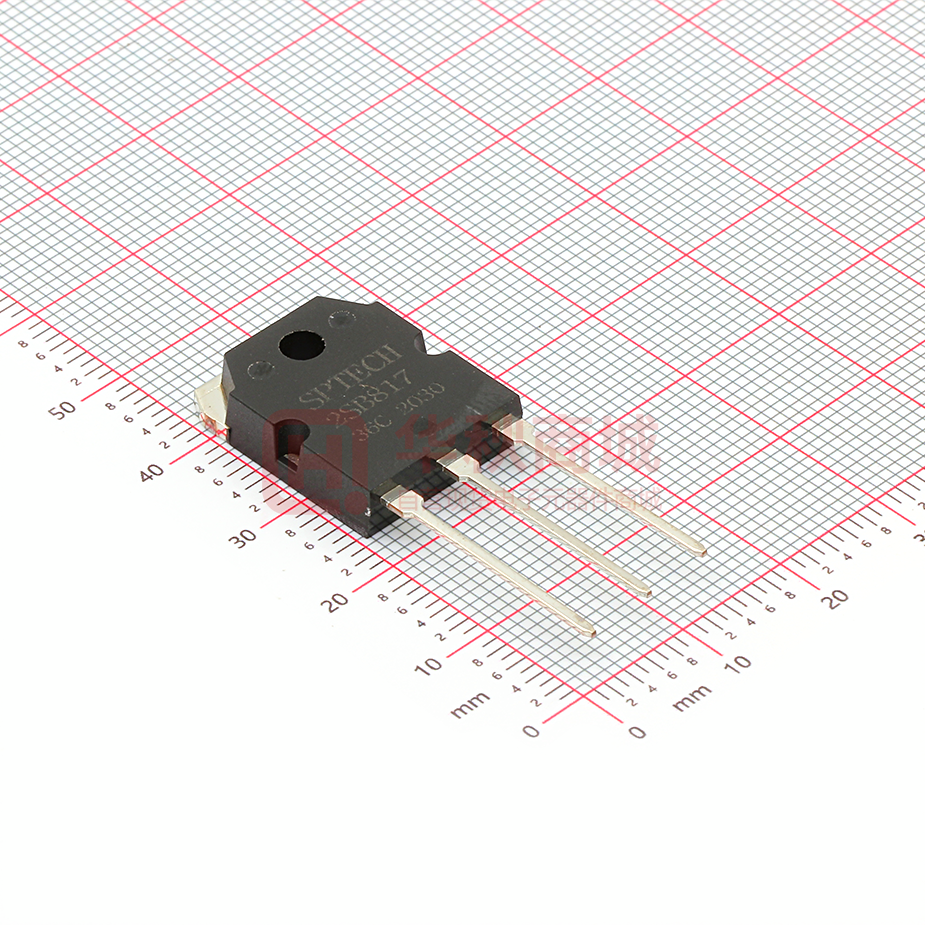

SPTECH Silicon PNP Power Transistor
2SB817
DESCRIPTION
·Collector-Emitter Breakdown Voltage: V(BR)CEO= -140V(Min)
·Good Linearity of hFE
·High Current Capability
·Wide Area of Safe Operation
·Complement to Type 2SD1047
APPLICATIONS
·Recommend for 60W audio frequency amplifier output
stage applications
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE
UNIT
VCBO
Collector-Base Voltage
-160
V
VCEO
Collector-Emitter Voltage
-140
V
VEBO
Emitter-Base Voltage
-6
V
IC
Collector Current-Continuous
-12
A
ICP
Collector Current-Pulse
-15
A
PC
Collector Power Dissipation
@ TC=25℃
100
W
TJ
Junction Temperature
150
℃
-40~150
℃
Tstg
Storage Temperature Range
SPTECH website:www.superic-tech.com
1
SPTECH Product Specification
2SB817
SPTECH Silicon PNP Power Transistor
ELECTRICAL CHARACTERISTICS
TC=25℃ unless otherwise specified
SYMBOL
PARAMETER
V(BR)CEO
Collector-Emitter Breakdown Voltage
IC= -30mA ; RBE=∞
-140
V
V(BR)CBO
Collector-Base Breakdown Voltage
IC= -5mA; IE= 0
-160
V
V(BR)EBO
Emitter-Base Breakdown Voltage
IE= -5mA; IC= 0
-6
V
VCE(sat)
Collector-Emitter Saturation Voltage
IC= -5.0A; IB= -0.5A
-2.5
V
VBE(on)
Base -Emitter On Voltage
IC= -1A ; VCE= -5V
-1.5
V
ICBO
Collector Cutoff Current
VCB= -80V ; IE=0
-100
μA
IEBO
Emitter Cutoff Current
VEB= -4V; IC=0
-100
μA
hFE-1
DC Current Gain
IC= -1A ; VCE= -5V
60
hFE-2
DC Current Gain
IC= -6A ; VCE= -5V
20
COB
Output Capacitance
IE=0 ; VCB= -10V;ftest= 1.0MHz
300
pF
Current-Gain—Bandwidth Product
IC=-1A ; VCE= -5V
15
MHz
0.25
μs
1.61
μs
0.53
μs
fT
CONDITIONS
MIN
TYP.
MAX
UNIT
200
Switching times
ton
Turn-on Time
tstg
Storage Time
tf
Fall Time
IC= -1A ,RL= 20Ω,
IB1= -IB2= -0.1A,VCC=-20V
hFE-1 Classifications
D
E
60-120
100-200
SPTECH website:www.superic-tech.com
2
