SPTECH Product Specification

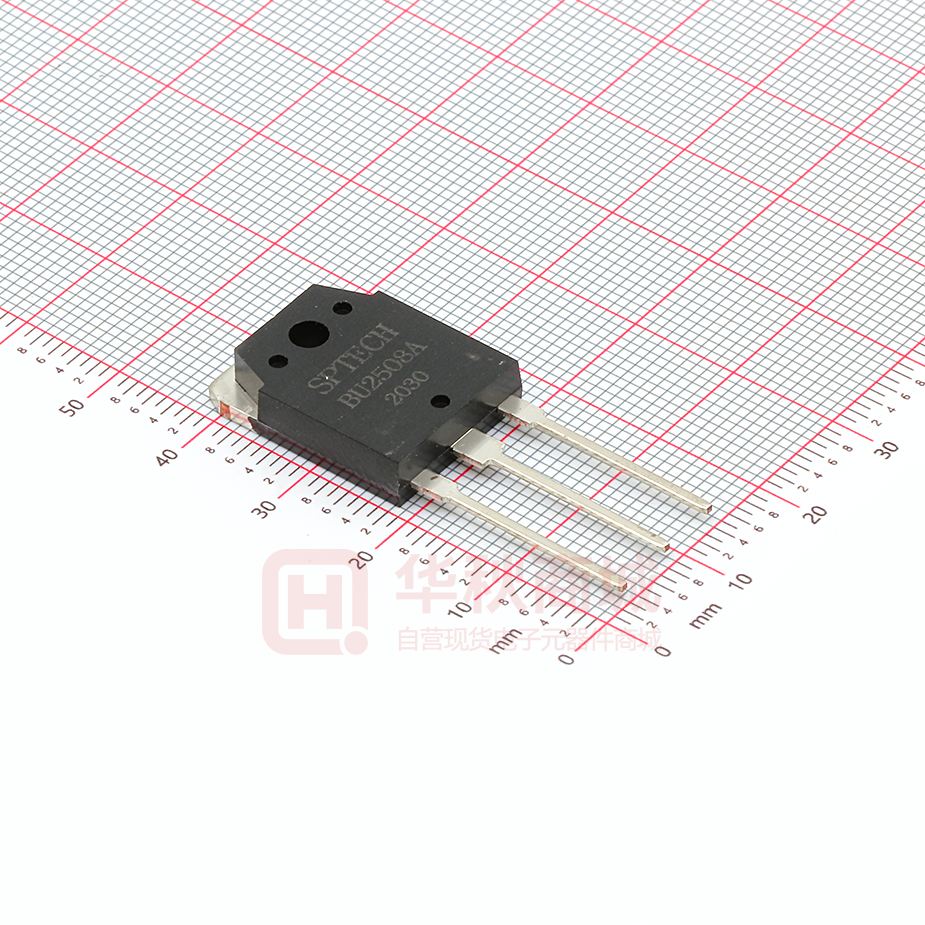

SPTECH Silicon NPN Power Transistor
BU2508A
DESCRIPTION
·Collector-Emitter Sustaining Voltage: VCEO(SUS)= 700V (Min)
·High Switching Speed
APPLICATIONS
·Designed for use in horizontal deflection circuits of
color TV receivers.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE
UNIT
VCES
Collector- Emitter Voltage(VBE= 0)
1500
V
VCEO
Collector-Emitter Voltage
700
V
VEBO
Emitter-Base Voltage
7.5
V
IC
Collector Current- Continuous
8
A
ICM
Collector Current-Peak
15
A
IB
Base Current- Continuous
4
A
IBM
Base Current-Peak
6
A
PC
Collector Power Dissipation
@ TC=25℃
125
W
TJ
Junction Temperature
150
℃
-65~150
℃
Tstg
Storage Temperature Range
SYMBOL
PARAMETER
MAX
UNIT
Rth j-c
Thermal Resistance,Junction to Case
1.0
℃/W
SPTECH website:www.superic-tech.com
1
SPTECH Product Specification
SPTECH Silicon NPN Power Transistor
BU2508A
ELECTRICAL CHARACTERISTICS
TC=25℃ unless otherwise specified
SYMBOL
PARAMETER
CONDITIONS
MIN
TYP.
MAX
UNIT
VCEO(SUS)
Collector-Emitter Sustaining Voltage
IC= 50mA ; IB= 0,L= 25mH
700
V
V(BR)EBO
Emitter-Base Breakdown Voltage
IE= 1mA; IC= 0
7.5
V
VCE(sat)-1
Collector-Emitter Saturation Voltage
IC= 4.5A; IB= 1.1A
5.0
V
VCE(sat)-2
Collector-Emitter Saturation Voltage
IC= 4.5A; IB= 1.29A
1.0
V
Base-Emitter Saturation Voltage
IC= 4.5A; IB= 1.7A
1.3
V
ICES
Collector Cutoff Current
VCE= 1500V ; VBE= 0
VCE= 1500V ; VBE= 0; TC=125℃
1.0
2.0
mA
IEBO
Emitter Cutoff Current
VEB= 7.5V ; IC= 0
1.0
mA
hFE-1
DC Current Gain
IC= 0.1A ; VCE= 5V
6
hFE-2
DC Current Gain
IC= 4.5A ; VCE= 1V
4
COB
Output Capacitance
IE= 0; VCB= 10V; ftest= 1MHz
VBE(sat)
SPTECH website:www.superic-tech.com
26
80
pF
2
