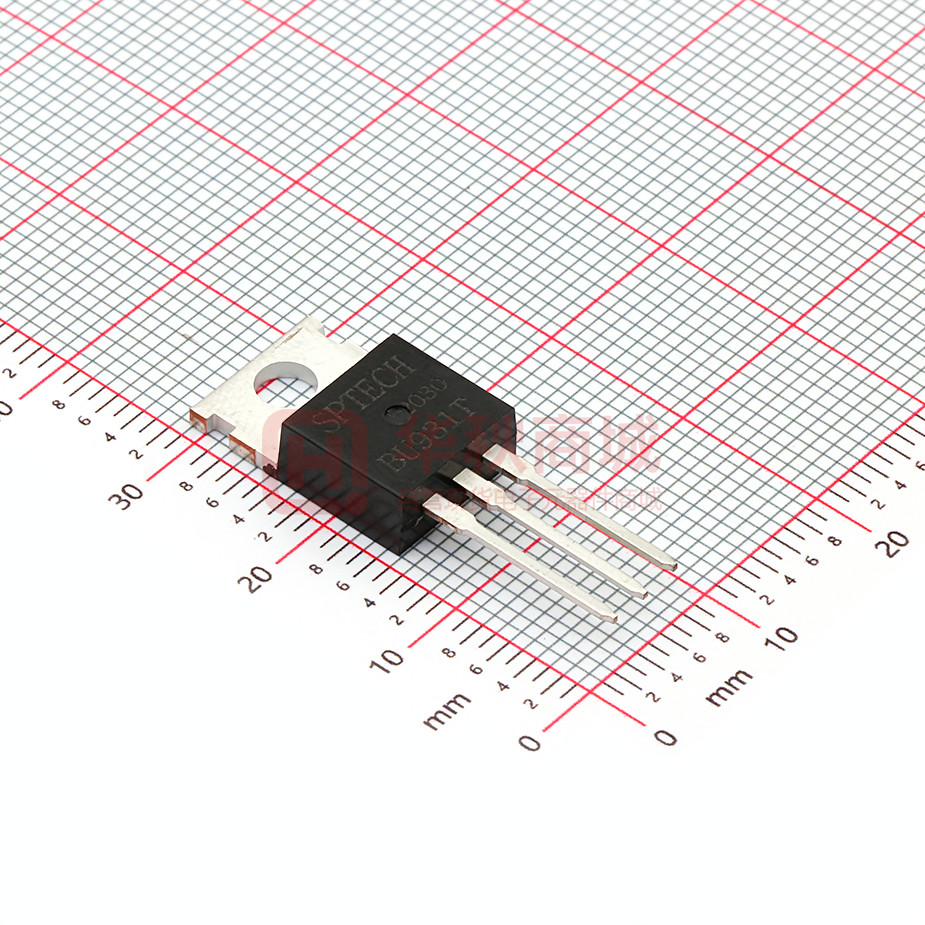

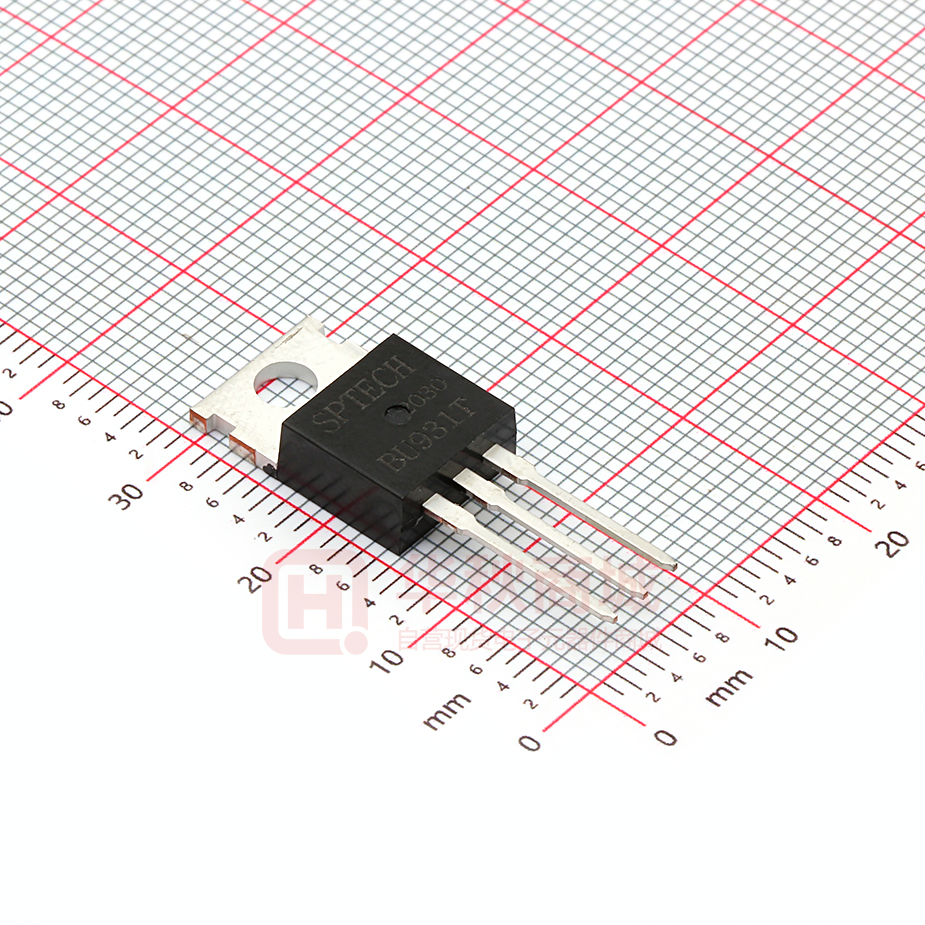

BU931T

SPTECH Product Specification SPTECH Silicon NPN Power Transistor BU931T DESCRIPTION ·High Voltage ·DARLINGTON APPLICATIONS ·High ruggedness electronic ignitions ·High voltage ignition coil driver ABSOLUTE MAXIMUM RATINGS (Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 500 V VCEO Collector-Emitter Voltage 400 V VEBO Emitter-Base Voltage 5 V IC Collector Current 10 A ICM Collector Current-peak 15 A IB Base Current 1 A IBM Base Current-peak 5 A PC Collector Power Dissipation @TC=25℃ 125 W Tj Junction Temperature 150 ℃ -65~150 ℃ Tstg Storage Temperature Range THERMAL CHARACTERISTICS SYMBOL PARAMETER MAX UNIT Rth j-c Thermal Resistance, Junction to Case 1.2 ℃/W SPTECH website：www.superic-tech.com 1 SPTECH Product Specification SPTECH Silicon NPN Power Transistor BU931T ELECTRICAL CHARACTERISTICS TC=25℃ unless otherwise specified SYMBOL PARAMETER VCEO(SUS) Collector-Emitter Sustaining Voltage IC= 50mA; IB= 0 VCE(sat)-1 Collector-Emitter Saturation Voltage IC= 7A; IB= 70mA 1.6 V V CE(sat)-2 Collector-Emitter Saturation Voltage IC= 8 A; IB= 100mA 1.8 V VBE(sat)-1 Base-Emitter Saturation Voltage IC= 7A; IB= 70mA 2.2 V V BE(sat)-2 Base-Emitter Saturation Voltage IC= 8 A; IB= 100mA 2.4 V ICES Collector Cutoff Current VCE= 500V;VBE= 0 VCE= 500V;VBE= 0;Tj= 125℃ 0.1 0.5 mA ICEO Collector Cutoff Current VCE= 450V;IB= 0 VCE= 450V;IB= 0;Tj= 125℃ 0.1 0.5 mA IEBO Emitter Cutoff Current VEB= 5V; IC= 0 20 mA hFE DC Current Gain IC= 5A ; VCE= 10V VECF C-E Diode Forward Voltage IF= 10A 2.5 V SPTECH website：www.superic-tech.com CONDITIONS MIN TYP. MAX 400 UNIT V 300 2
