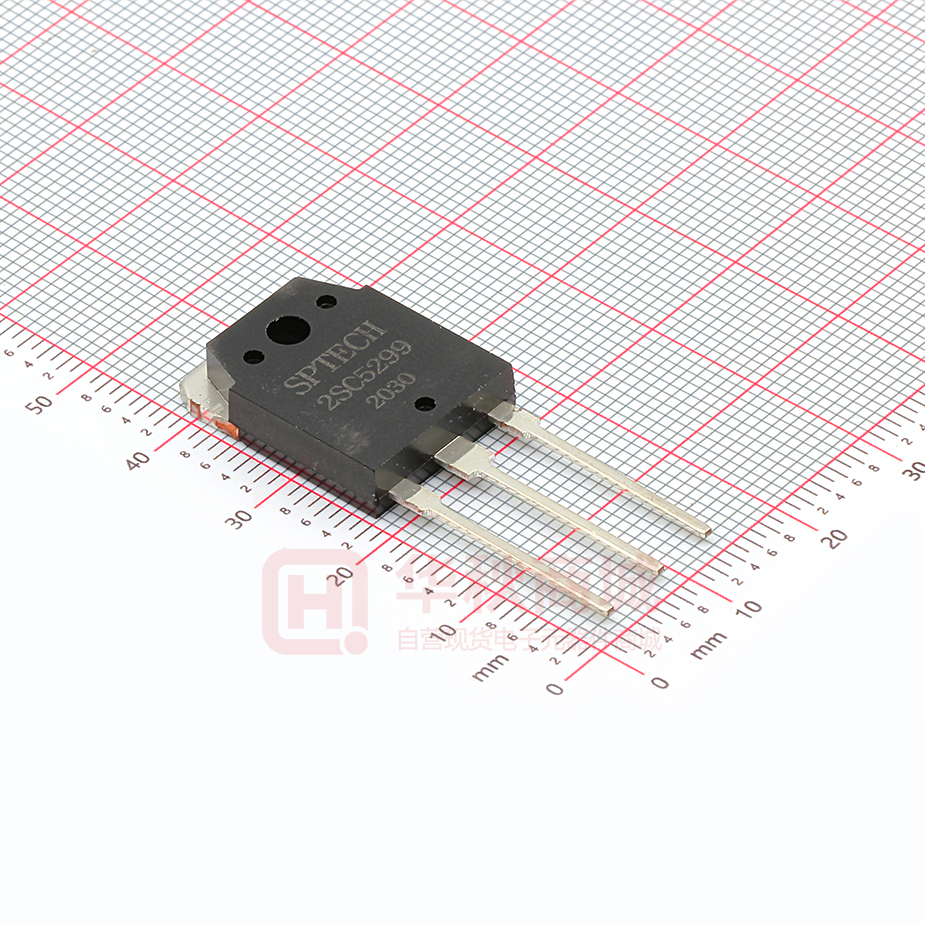

2SC5299

SPTECH Product Specification SPTECH Silicon NPN Power Transistor 2SC5299 DESCRIPTION ·High Breakdown Voltage: V(BR)CBO= 1500V(Min) ·High Switching Speed ·High Reliability APPLICATIONS ·Ultrahigh-definition CRT display horizontal deflection output applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 6 V IC Collector Current-Continuous 10 A ICP Collector Current-Peak 25 A Collector Power Dissipation @ Ta=25℃ 3.0 Collector Power Dissipation @ TC=25℃ 70 Junction Temperature 150 ℃ -55~150 ℃ PC TJ Tstg Storage Temperature Range W SPTECH website：www.superic-tech.com 1 SPTECH Product Specification SPTECH Silicon NPN Power Transistor 2SC5299 ELECTRICAL CHARACTERISTICS TC=25℃ unless otherwise specified SYMBOL PARAMETER CONDITIONS MIN TYP. MAX VCEO(SUS) Collector-Emitter Sustaining Voltage IC= 10mA; IB= 0 VCE(sat) Collector-Emitter Saturation Voltage IC= 8A; IB= 2A 5.0 V VBE(sat) Base-Emitter Saturation Voltage IC= 8A; IB= 2A 1.5 V ICBO Collector Cutoff Current VCB= 800V ; IE= 0 10 μA ICES Collector Cutoff Current VCE= 1500V; RBE= 0 1.0 mA IEBO Emitter Cutoff Current VEB= 4V ; IC= 0 1.0 mA hFE-1 DC current gain IC= 1A ; VCE= 5V 20 30 hFE-2 DC current gain IC= 8A ; VCE= 5V 4 7 800 UNIT V Switching times tstg tf Storage Time Fall Time IC= 6A , IB1= 1.2A; IB2= -2.4A RL= 50Ω; VCC= 200V SPTECH website：www.superic-tech.com 3.0 μs 0.2 μs 2
