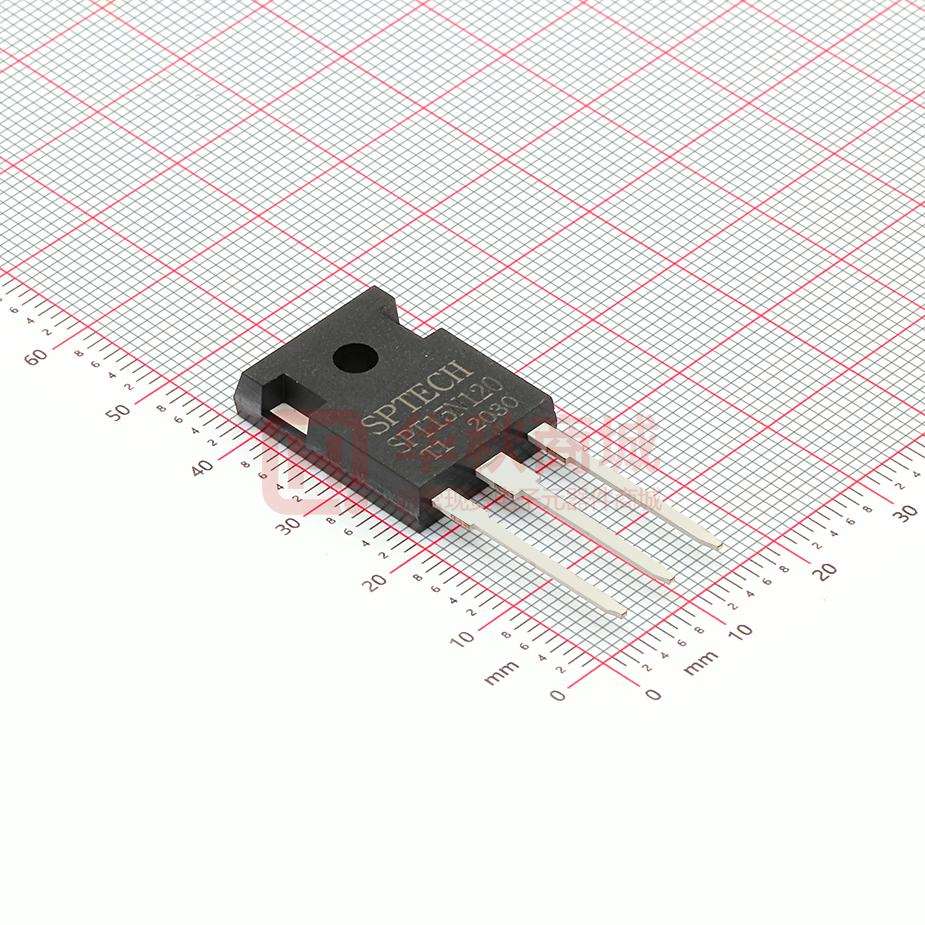

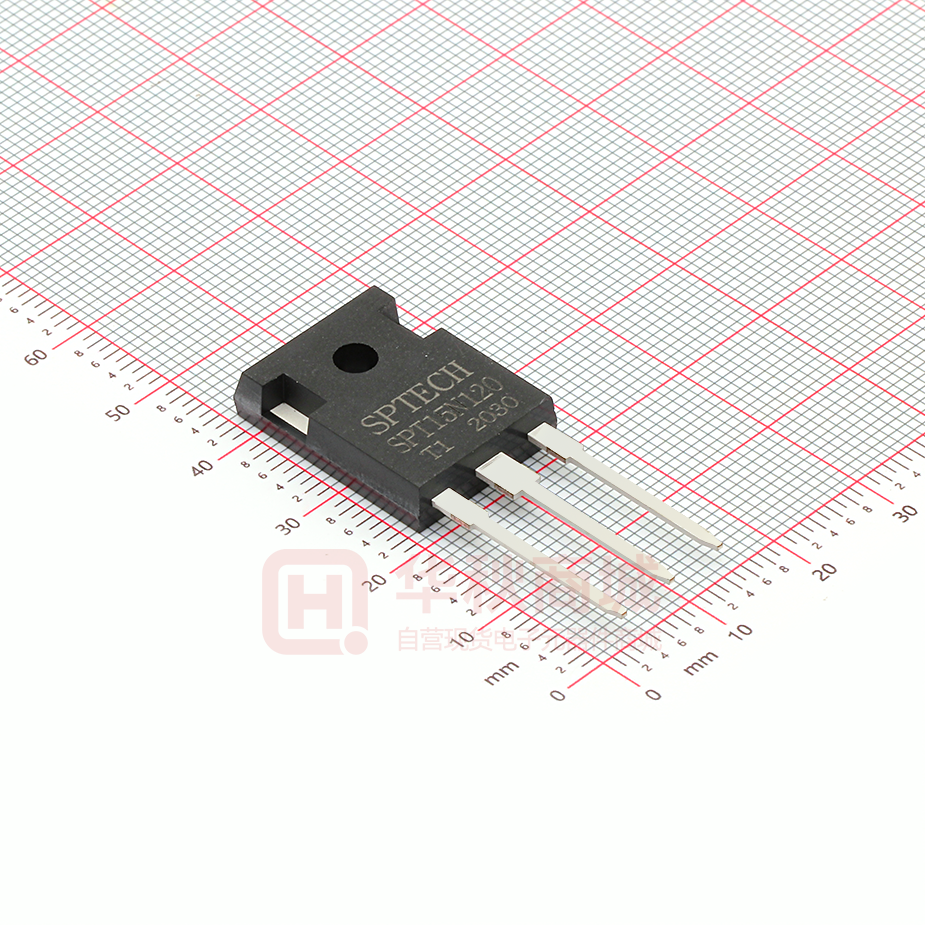

SPT15N120T1

SPT15N120T1

  • 厂商:

    SPTECH(质超)

  • 封装:

    TO-247-3

  • 描述:

    1200V/15A沟槽场阻IGBT

  • 数据手册
  • 价格&库存
SPT15N120T1 数据手册
SPT15N120T1 1200V /15A Trench Field Stop IGBT FEATURES  High breakdown voltage to 1200V for VCE 1200 V IC 15 A VCE(SAT) IC=15A 1.7 V improved reliability  Trench-Stop Technology offering :  very tight parameter distribution  high ruggedness, temperature stable behavior  Short circuit withstand time – 10s  High ruggedness, temperature stable  Low VCE(SAT)  Easy parallel switching capability due to positive temperature coefficient in VCE(SAT)  Enhanced avalanche capability APPLICATION  Frequency Converters  Motor Drive Product SPT15N120T1 Package TO247 Packaging Tube http://www.superic-tech.com 1 2018.11 / Rev3.0 SPT15N120T1 Maximum Ratings Parameter Symbol Value Unit Collector-Emitter Breakdown Voltage VCE 1200 V DC collector current, limited by Tjmax TC = 25°C TC = 100°C IC 30 15 A Diode Forward current, limited by Tjmax TC = 25°C TC = 100°C IF 30 15 A Pulsed collector current, tp limited by Tjmax ICpuls 60 A Turn off safe operating area VCE ≤1200V, Tj ≤ 150°C - 60 A Short Circuit Withstand Time, VGE= 15V, VCE≤ 600V Tsc 10 μs Power dissipation , Tj=25℃ Ptot 208 W Operating junction temperature Tj - -40...+150 °C Storage temperature Ts -55...+150 °C Soldering temperature, wave soldering 1.6mm (0.063in.) from case for 10s - 260 °C Thermal Resistance Parameter Symbol Max. Value IGBT thermal resistance, junction - case Rθ(j-c) 0.65 K/W Diode thermal resistance, junction - case Rθ(j-c) 1.5 K/W Thermal resistance, junction - ambient Rθ(j-a) 40 K/W http://www.superic-tech.com 2 Unit 2018.11 / Rev3.0 SPT15N120T1 Electrical Characteristics of the IGBT(Tj= 25℃ unless otherwise specified): Parameter Symbol Conditions Min Typ Max Unit Static Collector-Emitter breakdown voltage BVCES VGE=0V , IC=250μA 1200 - - V Gate threshold voltage VGE(th) VGE=VCE, IC=250μA 5.2 6.0 6.8 V Collector-Emitter Saturation voltage VCE(sat) VGE=15V, IC=15A Tj = 25°C Tj = 150°C - 1.7 2.1 2.1 - V Zero gate voltage collector current ICES VCE = 1200V, VGE = 0V Tj = 25°C Tj = 150°C - - 100 1000 μA - Gate-emitter leakage current IGES VCE = 0V, VGE = 20V - - 100 nA Transconductance gfs VCE=20V, IC=15A - 10 - S Parameter Symbol Conditions Min Typ Max Unit - 1870 - - 70 - - 45 - VCC = 960V, IC = 15A, VGE = 15V - 137 - nC VGE=15V,tSC≤10us VCC=600V, Tj,start=25°C - 140 - A Dynamic Input capacitance Cies Output capacitance Coes Reverse transfer capacitance Cres Gate charge QG Short circuit collector current IC(SC) http://www.superic-tech.com VCE = 25V, VGE = 0V, f = 1MHz 3 2018.11 / Rev3.0 pF SPT15N120T1 Switching Characteristic, Inductive Load Parameter Symbol Conditions Min Typ Max Unit Dynamic , at Tj = 25°C Turn-on delay time td(on) - 55 - ns tr - 21 - ns - 1.9 - mJ - 330 - ns tf - 200 - ns Eoff - 0.31 - mJ Rise time Turn-on energy Turn-off delay time VCC = 600V, IC = 15A, VGE = 0/15V, Rg=42Ω Eon td(off) Fall time Turn-off energy Electrical Characteristics of the DIODE(Tj= 25℃ Parameter Symbol Conditions unless otherwise specified) Min Typ Max Unit - 2.7 - V - 270 - ns - 10 - A - 1800 - nC Dynamic Diode Forward Voltage VFM Reverse Recovery Time Trr Reverse Recovery Current Irr Reverse Recovery Charge Qrr http://www.superic-tech.com IF = 15A IF= 15A, di/dt= 600A/μs 4 2018.11 / Rev3.0 SPT15N120T1 Fig. 1 FBSOA characteristics Fig. 2 Load Current vs. Frequency 100 60 50 80℃ tP = 10μs 40 10 50μs 110℃ IC(A) IC(A) 100μs 500μs 30 1ms DC 1 20 10 D=0.5, VCE=600V, VGE=0/15V, Rg=42Ω,Tj ≤ 150C Ta=25°C, Tj ≤150C , VGE=15V 0 0.1 1 10 100 0.1 1000 1 10 VCE(V) 100 f (KHz) Fig. 3 Output characteristics Fig. 4 Saturation voltage characteristics 60 60 25℃ VGE = 20V 50 50 150℃ 17V 15V 40 40 IC(A) IC(A) 13V 11V 30 9V 30 20 20 10 10 0 0 VGE = 15V 0 1 2 3 4 5 0 VCE(V) http://www.superic-tech.com 1 2 3 4 5 VCE(V) 5 2018.11 / Rev3.0 6 SPT15N120T1 Fig. 5 Switching times vs. gate resistor td(off) td(off) tf tf td(on) td(on) tr tr t, SWITCHING TIMES [ns] t, SWITCHING TIMES [ns] Fig. 6 Switching times vs. collector current 1000 1000 100 100 Common Emitter VCC = 600V, VGE = 15V, RG=42Ω Ta=25℃ Common Emitter VCC =600V, VGE = 15V, IC=20A Ta=25℃ 10 10 0 5 10 15 20 25 30 35 40 45 50 55 0 10 20 Rg (Ω) 40 50 60 IC(A) Fig. 7 Switching loss vs. gate resistor Fig. 8 Switching loss vs. collector current 2.5 12 Eoff Eon Eoff Eon 10 2 8 Switching loss (mJ) Switching loss (mJ) 30 1.5 1 6 4 Common Emitter VCC =600V, VGE = 15V, IC=20A Ta=25℃ Common Emitter VCC = 600V, VGE = 15V, RG=42Ω Ta=25℃ 0.5 2 0 0 0 5 10 15 20 25 30 35 40 45 50 55 Rg (Ω) http://www.superic-tech.com 0 10 20 30 40 50 Ic (A) 6 2018.11 / Rev3.0 60 SPT15N120T1 Fig. 9 Gate charge characteristics Fig. 10 Capacitance characteristics 15 10000 240V 12 Ciss(pF) 640V Coss(pF) 960V Crss(pF) Capacitance 1000 VGE (V) 9 6 100 3 Common Emitter VGE = 0V, f = 1MHz Ta=25℃ Common Emitter IC= 15A ,Ta=25℃ 0 10 0 50 100 150 1 Qg (nC) http://www.superic-tech.com 11 21 31 VCE(V) 7 2018.11 / Rev3.0 SPT15N120T1 http://www.superic-tech.com 8 2018.11 / Rev3.0
