AM16000007

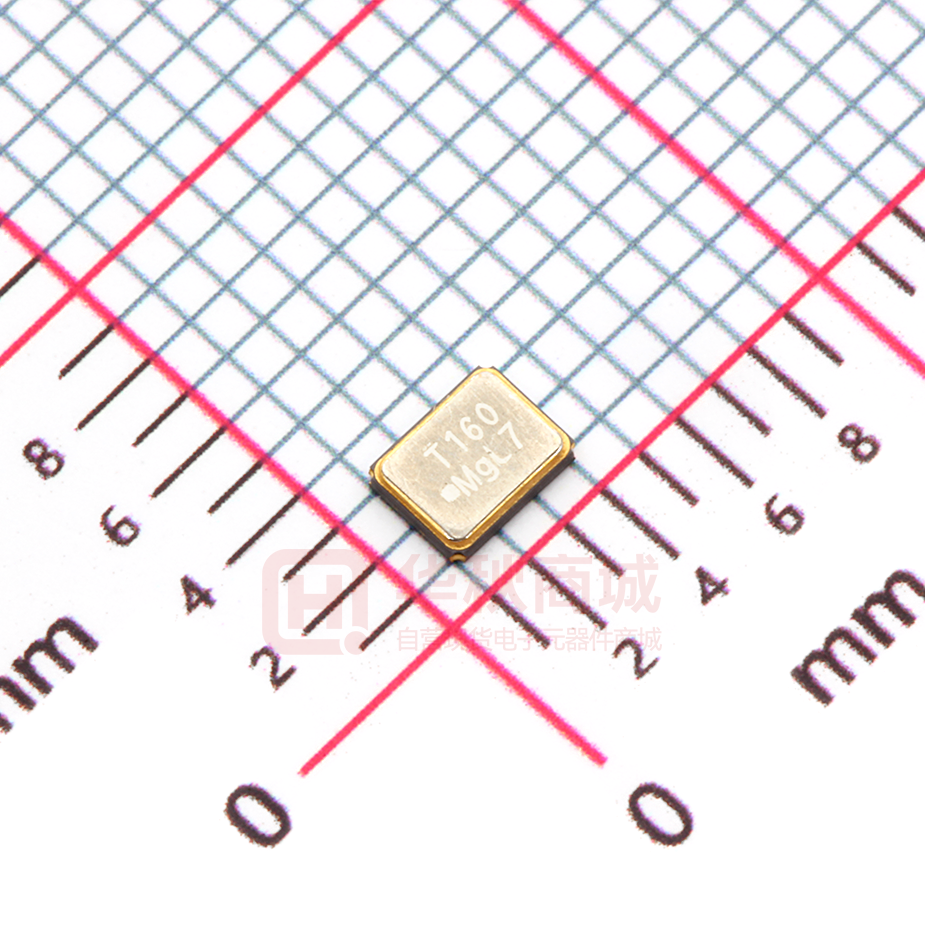

TXC CORPORATION www.txccorp.com SPECIFICATION FOR APPROVAL CN: CUSTOMER : PRODUCT TYPE : SMD SEAM SEALING X'TAL 3.2×2.5 NOMINAL FREQ. : 16.000000MHz TXC P/N : AM16000007 REVISION : A2 CUSTOMER P/N : PM / SALES : DATE : CUSTOMER CONFIRMATION ： (Singnature) (Date) (1) TXC requires one copy returned with signature and title of authorized individual that signifies acceptance of the attached specifications. (2) Orders received and accepted by TXC after return of signed copy of specification will be produced per these specifications. (3) Any changes to these specifications must be agreed upon by both parties and new revision of the Product Specification Sheet will be issued. (4) Any issuance of purchase order prior to consigning back the Approval page of "Specification Sheets" from customers will be regarded as the agreement on the contents of these specifications. MSL:Level 1 RoHS Compliant (for glass crystal only：Pb used in sealing glass material is exempt from EU directive) FMT-DOC015 Issue Date: 04.17'15 VER.C TXC CORPORATION www.txccorp.com PRODUCT SPECIFICATION SHEET CN: PRODUCT TYPE : SMD SEAM SEALING X'TAL 3.2×2.5 NOMINAL FREQ. : 16.000000MHz TXC P/N : AM16000007 REVISION : A2 PE/RD QA MFG Minlin Tseng Alex Huang Rick Lo 24-Mar-16 24-Mar-16 24-Mar-16 NOTE: (1) The green product standard set by TXC is based upon the international standards. Related information is publicly described on the TXC's Website, and updated regularly. The document is compliant with the latest green product quality system directives at the time. (2) Revision "Sx" is for engineering samples only. PE/RD's approval required. (3) Revision "Ax" is production ready. PE, QA and MFG's approval required. MSL:Level 1 RoHS Compliant (for glass crystal only：Pb used in sealing glass material is exempt from EU directive) FMT-DOC015 Issue Date: 04.17'15 VER.C TXC CORPORATION Rev Revise page A1 N/A A2 ALL FMT-DOC015 TXC P/N： Revise contents AM16000007 REVISION： A2 PAGE： 1 Date Ref.No. Reviser Initial released 6-Aug-12 N/A Jane Lee Format change ref. DCN-15P030016 24-Mar-16 EC-PCF-160321-01 Yoyo Wang Issue Date: 04.17'15 VER.C TXC CORPORATION AM16000007 TXC P/N： REVISION： A2 PAGE： 2 ■ ELECTRICAL SPECIFICATIONS Standard atmospheric conditions Unless otherwise specified, the standard range of atmospheric conditions for making measurement and tests are as follow: Ambient temperature : 25±5℃ Relative humidity 40%~70% : If there is any doubt about the results, measurement shall be made within the following limits: Ambient temperature : 25±3℃ Relative humidity 40%~70% : Measure equipment Electrical characteristics measured by HP E5100A or equivalent. Crystal cutting type The crystal is using AT CUT (thickness shear mode). Unit Weight: 0.018±0.001 g/pcs Parameters 1 Nominal Frequency SYM. Electrical Spec. MIN TYPE FL 16.000000 MAX Notes UNITS MHz - - Fundamental - - CL 12 pF - 4 Frequency Tolerance - ±15 ppm at 25 ℃ ± 3 ℃ 5 Frequency Stability - ±50 ppm Over Operating Temp. Range (Reference 25℃) 2 Oscillation Mode 3 Load Capacitance 6 Operating Temperature - 7 Aging - -40 ~ 125 ±3 - ℃ ppm 1st Year 8 Drive Level DL - 100 200 μW - 9 Effective Resistance Rr Rr - - 120 Ω - 10 Insulation Resistance - 500 - - MΩ 11 Storage Temperature Range - -40 ~ 125 ℃ 12 DLD2 - - - 12 Ω 0.01uW, 0.1uW, 1uW, 50uW 13 FDLD2 - - - 5 ppm 0.01uW, 0.1uW, 1uW, 50uW FMT-DOC015 at DC 100V - Issue Date: 04.17'15 VER.C TXC CORPORATION REVISION： A2 AM16000007 TXC P/N： ■ DIMENSIONS PAGE： 3 Unit:mm (Unit:mm) 0.70 ± 0.10 3.20 ± 0.10 GND 3 3 4 2.50 ± 0.10 4 1 GND 2 1 2 0.90±0.10 Internal View Connection 1.20±0.10 1.00±0.10 2 4 3 0.80 1.40 0.70±0.10 1.20 0.50 1.20 1 1.40 Bottom View Suggested Layout ■ MARKING 　 T□□□ TXC Logo Pin 1 Location ■ Frequency Code ex:14.318180 MHz=143 □□□□ Tracking Code Date Code: MONTH YEAR JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC 2005 2009 2013 2017 A B C D E F G H J K L 2006 2010 2014 2018 N P Q R S T U V W X Y Z 2007 2011 2015 2019 a b c d e f g h j k l m 2008 2012 2016 2020 n p q r s t u v w x y z M *This date code will be cycled every four years Production location:Taiwan (℃) ■ SUGGESTED REFLOW PROFILE 10 sec 260 Total time : 200 sec. Max. Solder melting point :220 ℃ 220 180 150 Time (sec) 120 sec FMT-DOC015 60 sec Issue Date: 04.17'15 VER.C TXC CORPORATION TXC P/N： AM16000007 REVISION： A2 PAGE： 4 ■ STRUCTURE ILLUSTRATION A-A' sectional drawing B-B' sectional drawing NO COMPONENTS C-C' sectional drawing FINISH/SPECIFICATIONS MATERIALS 1 Lid Kovar (Fe/Co/Ni) - 2 Base(Package) Ceramic (AI2O3) + Kovar (Fe/Co/Ni)+ Ag/Cu Color black 3 PAD Au Tungsten metalize + Ni plating + Au plating 4 Crystal blank SiO2 - 5 Conductive adhesive Ag Silicon resin 6 Electrode - FMT-DOC015 Noble Metal Issue Date: 04.17'15 VER.C TXC CORPORATION AM16000007 TXC P/N： REVISION： A2 PAGE： 5 ■ PACKING F G B E H INDEX MARK A DIMENSIONS C D Feeding A B C D E F G H 1.65 3.4 2.7 4 8 4 1.5 1.75 (UNIT : mm) REMARK : W W1 2.0 L1 DIMENSIONS FMT-DOC015 L L1 W W1 178 13 11.5 8 L pcs / Reel (UNIT : mm) Standard Reel Quantity is 3,000 pcs per reel Issue Date: 04.17'15 VER.C TXC CORPORATION TXC P/N： AM16000007 REVISION： A2 PAGE： 6 ■ RELIABILITY SPECIFICATIONS (AEC-Q200 Compliant) 1.Mechanical Endurance No. Test Item 1.1 Drop Test Test Methods REF.DOC JIS C 6701 120 cm height, 20 times on Stainless Plate . 1.2 Mechanical Shock 1.3 Vibration Device are shocked to half sine wave ( 5000 G ) three mutually perpendicular axes each 3 times. 0.3m sec. duration time Frequency range 10 ~ 2000 Hz~10 Hz Amplitude 1.52 mm/20G Sweep time 20 minute Perpendicular axes each test time 4 Hrs Temperature 245 ℃ ± 5℃ MIL-STD-202 Method 213 MIL-STD-202 Method 204 (Total test time 12 Hrs) 1.4 Solderability Immersing depth 1.25 mm Immersion time 5 ± 1 seconds Flux Rosin resin methyl alcohol J-STD-002 solvent ( 1 : 4 ) 1.5 Terminal Strength Mount on PCB board and shear strength 1.8kg for 60 sec. AEC-Q200-006 1.6 Board Flex Duration Time: 60 sec, Deviation: 3mm AEC-Q200-005 2.Environmental Endurance No. Test Item Test Methods Pre-heat temperature 2.1 Resistance To Soldering Heat Pre-heat time 60 ~ 120 sec. Test temperature 260 ± 5 ℃ Test time 10 ± 1 sec. 2.2 High Temp. Storage + 125 ℃ ± 3 ℃ for all 1000 Hrs. 2.3 Low Temp. Storage - 40 ℃ ± 3 ℃ for all 1000 Hrs. REF. DOC 125 ℃ MIL-STD 202 Method 210 MIL-STD-202 Method 108 JIS C 6701 Total 1000 cycles of the following Thermal Shock : MIL-STD-202 Method 107 2.4 Thermal Shock 2.5 Temperature Cycle Total 1000 cycles of the following temperature cycle : - 40℃ ± 3 to 125℃ ± 3 , Dwell time:15min. JESD 22 Method JA-104 2.6 Biased Humidity + 85℃ ± 3℃ , RH 85% , 1000 Hrs. MIL-STD-202 Method 103 2.7 Moisture Resistance 20 cycles ( +25℃~65℃ , 80%~100% RH) , 24hrs/cycle. MIL-STD 202 Method 106 2.8 Operational Life + 125 ℃ ± 3 ℃ for 1000 Hrs. MIL-STD-202 Method 108 FMT-DOC015 Issue Date: 04.17'15 VER.C
