A204000002

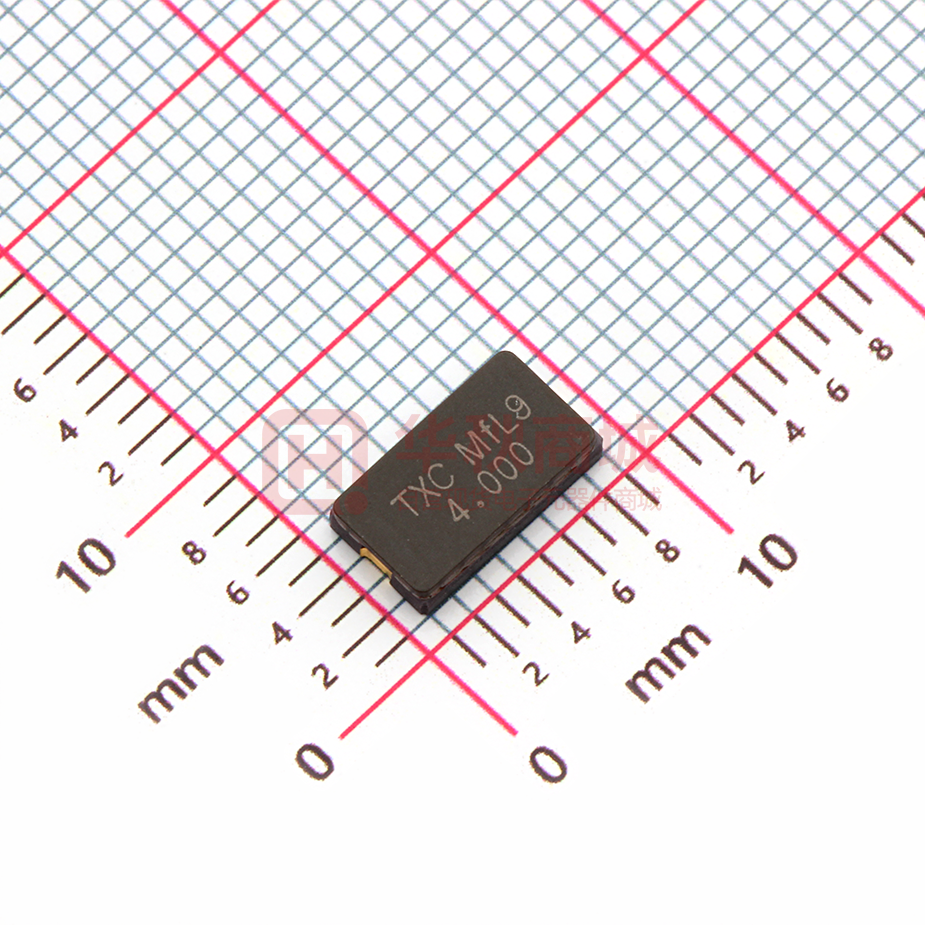

TXC CORPORATION www.txccorp.com SPECIFICATION FOR APPROVAL CN: CUSTOMER : PRODUCT TYPE : SMD GLASS SEALING XTAL 8.0 × 4.5 NOMINAL FREQ. : 4.000000MHz TXC P/N : A204000002 REVISION : S1 CUSTOMER P/N : PM / SALES : DATE : 1801000778 CUSTOMER SIGNATURE & Date (1) TXC requires one copy returned with signature and title of authorized individual that signifies acceptance of the attached specifications. (2) Orders received and accepted by TXC after return of signed copy of specification will be produced per these specifications. (3) Any changes to these specifications must be agreed upon by both parties and new revision of the Product Specification Sheet will be issued. (4) Any issuance of purchase order prior to consigning back the Approval page of "Specification Sheets" from customers will be regarded as the agreement on the contents of these specifications. MSL:Level 1 RoHS Compliant Pb used in sealing glass material is exempt from EU directive FMT-DOC015 VER.C TXC confidential and proprietary document TXC CORPORATION www.txccorp.com PRODUCT SPECIFICATION SHEET CN: PRODUCT TYPE : SMD GLASS SEALING XTAL 8.0 × 4.5 NOMINAL FREQ. : 4.000000MHz TXC P/N : A204000002 REVISION : S1 PE/RD Wen yuanPREARE Chang PREPAR PR PREPAR REP PRE QA PREPARPEP PREPAR PREPAPRE PR P PREPAR PRE PREPA 1801000778 MFG PRE PREPAR PREPREPRE PR PREPAR 15-Jan-18 NOTE: (1)The green product standard set by TXC is based upon the international standards. Related information is publicly described on the TXC's Website, and updated regularly. The document is compliant with the latest green product quality system directives at the time. (2)Revision "Sx" is for engineering samples only. PE/RD's approval required. (3)Revision "Ax" is production ready. PE, QA and MFG's approval required MSL:Level 1 RoHS Compliant Pb used in sealing glass material is exempt from EU directive FMT-DOC015 VER.C TXC confidential and proprietary document TXC CORPORATION Rev Revise page S1 N/A FMT-DOC015 VER.C TXC P/N： Revise contents Initial released A204000002 S1 REVISION： PAGE： 1 Date Ref.No. Reviser 15-Jan-18 N/A Xiaohua Zhang TXC confidential and proprietary document TXC CORPORATION TXC P/N： A204000002 REVISION： S1 PAGE： Spec Sheet Contents No. Content Page 1 ELECTRICAL SPECIFICATIONS & ATTENTION P.3 2 DIMENSIONS P.4 3 MARKING P.4 4 FACTORY LOCATION P.4 5 SUGGESTED REFLOW PROFILE& MANUAL SOLDER CONDITION P.4 6 STRUCTURE ILLUSTRATION P.5 7 EMBOSS CARRIER TAPE & REEL P.6 8 PACKING P.7 9 RELIABILITY SPECIFICATIONS FMT-DOC015 VER.C P.8～9 TXC confidential and proprietary document 2 TXC CORPORATION TXC P/N： A204000002 REVISION： S1 PAGE： 3 ■ ELECTRICAL SPECIFICATIONS Parameters 1 Nominal Frequency 2 Oscillation Mode 3 Load Capacitance 4 SYM. Electrical Spec. MIN TYP FL 4.000000 MAX Notes UNITS MHz - - Fundamental - CL 8 pF Frequency Tolerance - ±20 ppm at 25 ± 3 ℃ 5 Frequency Stability - ppm Over Operating Temp. Range (Reference 25℃） 6 Operating Temperature - 7 Aging 8 Drive Level DL - 50 100 uW - 9 Equivalent Resistance Rr Rr - - 200 Ω - ±50 -40 - ~ 85 ±3 - ℃ ppm 10 Shunt Capacitance C0 C0 - - 5 pF 11 Insulation Resistance - 500 - - MΩ 12 Storage Temperature Range - -40 ~ 105 ℃ 1st Year at 25 ± 3 ℃ at DC 100V - Measure equipment Electrical characteristics measured by S&A250B or equivalent. Unit Weight: 0.185±0.008 g/pcs ■ Attention (注意事項) : 1. If you intend to use product on controls relating to medical equipment, aeronautical equipment, aerospace, military science, space equipment, etc.) please do not fail to advise us of your intention beforehand. 請勿將本產品使用在醫療,航空,宇航,軍事或與生命安全性相關的設備中，若需使用在上述應用請事前與TXC聯繫。 2. Crystal units will be damaged by ultrasonic welding process due to resonance of crystal wafer itself. If ultrasonic welding used, TXC strongly recommend verifying damage by ultrasonic weld. 本產品在超音波封合的過程中晶片可能會因共振受損，若有超音波封合需求,TXC強烈建議應給予適當的驗證。 3. Crystal units will be damaged by plastic molding process due to pressure. If plastic molding used, TXC strongly recommend use seam welding products instead. 本產品在熱塑封合的過程中結構可能會受到熱壓力而損壞，若有熱塑封合需求,請給以適當的驗證。 FMT-DOC015 VER.C TXC confidential and proprietary document TXC CORPORATION A204000002 TXC P/N： S1 REVISION： PAGE： ■ DIMENSIONS (Unit:mm) REFERENCE LAND PATTERN 1.70±0.3 1.60 4.50±0.10 8.00±0.10 0.6 TYP 1.40 9.0 0.80±0.05 3.40±0.10 *Coplanarity of solderable areas Camber 0.10 mm Max ■ MARKING TXC TXC Logo Tracking Code Frequency Code Ex.: 4.000000 MHz= 4.000 Production Location:China(Ningbo) Date Code: MONTH JAN FEB MAR APR MAY JUN JUL AUG SEP OCT YEAR NOV DEC M 2005 2009 2013 2017 2021 A B C D E F G H J K L 2006 2010 2014 2018 2022 N P Q R S T U V W X Y Z 2007 2011 2015 2019 2023 a b c d e f g h j k l m 2008 2012 2016 2020 2024 n p q r s t u v w x y z *This date code will be cycled every four years ■ SUGGESTED REFLOW PROFILE (℃) 10 sec 260 Solder melting point :220±10 ℃, 60 sec. Min. Peak Temperature: 260 ± 5 ℃, 10 sec. Max. 220 Reflow passage time : twice 180 150 ■ SUGGESTED MANUAL SOLDER CONDITION Pressing a soliding iron of 350 ℃ on the terminal electrode for 4 seconds (twice). Time (sec) 120 sec 60 sec When using a soldering iron, press its tip on the part below the sealed part, avoiding glass-sealed part (otherwise, the glass will meit and air-tightness may be lost). NOTE: After manual welding, the product should be placed at least 2 hours FMT-DOC015 VER.C TXC confidential and proprietary document 4 TXC CORPORATION TXC P/N： A204000002 REVISION： S1 PAGE： ■ STRUCTURE ILLUSTRATION 5 4 6 1 2 3 COMPONENTS NO MATERIALS FINISH/SPECIFICATIONS 1 Cap Package Ceramic (Al2O3) Ceramic (Al2O3) - 2 3 PAD Au Tungsten metalize + Ni plating + Au plating 4 Crystal blank SiO2 5 Conductive adhesive Resin+Ag - 6 Electrode Noble Metal - 7 Sealing Glass Glass (PbO) - FMT-DOC015 VER.C - TXC confidential and proprietary document 5 TXC CORPORATION TXC P/N： A204000002 S1 REVISION： PAGE： ■ EMBOSS CARRIER TAPE & REEL F E B H G C A A B C D D Feeding E F G H DIMENSIONS 2.15±0.10 8.40±0.10 4.90±0.10 8.00±0.10 16.00±0.30 4.00±0.10 1.50±0.10 1.75±0.10 (UNIT：mm) Products put in 1000pcs Trailer Empty Sealed Leader 160mm(Min) 230mm(Min) REMARK : 160mm(Min) User direction of feed W W1 2.0 L1 DIMENSIONS FMT-DOC015 VER.C L L1 W W1 180±1.00 13±0.50 20.5±0.20 16±0.10 L pcs / Reel (UNIT : mm) Standard Reel Quantity is 1,000 pcs per reel TXC confidential and proprietary document 6 TXC CORPORATION TXC P/N： A204000002 REVISION： S1 PAGE： ■ PACKING Reel Quantity : 1. Reel X 5 (5 Reels x1 ) 2. Reel X 10 (10 Reels x1 ) 3. Reel X 20 (10 Reels x2 ) 4. Reel X 40 (10 Reels x4 ) Label B Box Size: 1. L200 X W200 X H140mm 2. L200 X W200 X H250mm 3. L400 X W200 X H250mm 4. L400 X W400 X H280mm Tape Tape Label B Label A QA Pass (Label A) Size:100 X 100mm (Label B) Size:80 X 40mm [STORAGE] 1.Don't be caught in the rain. 2.The storage environment shall be 5℃ ~40℃ temperature and 30% ~ 75%RH humidity and free from the sun shine. 3.If customers have special requirements, we can paste labels according to it. FMT-DOC015 VER.C TXC confidential and proprietary document 7 TXC CORPORATION TXC P/N： A204000002 REVISION： S1 PAGE： ■ RELIABILITY SPECIFICATIONS (AEC-Q200 Compliant) 1.Mechanical Endurance No. 1.1 1.2 Test Item Mechanical Shock Test Methods Test Criteria 2000 G , 0.3 m Sec. ,3 times for all 3 directions. BC Frequency range 10 ~ 2000 Hz Acceleration 20G Amplitude 1.52mm Sweep time 20 minute Pendicular axes each test time 4 hours Vibration BC (Total test time 12 hours) 1.3 Terminal Strength 17.7N force for 60sec +/-1sec. 1.4 Board Flex Duration time:60 Sec Minimum,Deviation:3mm 1.5 Solderability F BC Temperature 245 oC +/- 5oC Immersing depth 0.5 mm minimum Immersion time 5 +/- 0.5 seconds Flux Rosin resin methyl alcohol E solvent ( 1 : 4 ) 2.Environmental Endurance No. Test Item Test Methods SPEC o 2.1 Resistance To Soldering Heat Test temperature 260 +/- 5 C Test time 10 +/- 1 sec. 2.2 High Temp. Storage + 105℃ ± 3 ℃ for 1000 ± 12 Hrs BCD 2.3 Low Temp. Storage - 40 ℃ ± 3 ℃ for 1000 ± 12 Hrs BCD BCD -40℃~85℃,for 1000 cycles. B C D 1 cycle 85+/-3℃ 2.4 Temperature cycle 25 ℃ -40+/-3 ℃ BCD 30 min. 30 min. 2min Max. 1000 hrs @ 85± 3°C. Rated VDD applied with 1 MΩ. 2.5 Operational Life 2.6 High Temp＆Humidity 85℃ ± 3℃ , RH 85% , 1000 Hrs FMT-DOC015 VER.C TXC confidential and proprietary document BCD BCD 8 TXC CORPORATION TXC P/N： A204000002 REVISION： S1 RELIABILITY SPECIFICATIONS Specifications A Frequency change: Within ±5ppm or in customer's specification. B Frequency change: Within ±10ppm or in customer's specification. C Equivalent series resistance(E.S.R) change: Within ±15% or 10Ω(larger value). D After conditioning , quartz crystal units shall be subjected to standard atmospheric conditions for 24 hour, and measured. E Minimum 95% of immersed terminal shall be covered with new uniform solder. F No damage on specimen Measurement condition Electrical characteristics measured by S&A250B or equivalent. FMT-DOC015 VER.C TXC confidential and proprietary document PAGE： 9
